Quick Start Guide ScoutSKX Balances

Ohaus Corporation www.ohaus.com iScoutSKX Balances

UNPACKING

Carefully remove your Scout balance and each of its components from the package.

Store the packaging material to ensure safe storage and future transport.

Included Components:

Balance

Pan

Quick Start Guide

Stacking & Storage Cover (not applicable for 1mg model)

Warranty Card

Calibration Mass* (only for models up to 620g capacity)

AC Adapter & Plug

Density Kits* (Up Hook & Beaker Stand)

* Only available for certain regions.

SELECTING THE LOCATION

Place on a firm, steady surface with sufficient space. Avoid excessive air current,

vibrations, heat sources, or rapid temperature changes.

PREPARATION FOR USE

Step-1

Release the red Transportation

Lock on the subplatform of the

balance

Turn the pointer 90counter-

clockwise.

Step-2

Install the Pan

Rectangular pan: Place diagonally

on sub-platform and rotate counter-

clockwise until it locks.

Round pan: Set straight down on

subplatform.

Step-3

Connect Power

Connect the AC Adapter to the

balance input jack.

Battery Installation

Install the Four “AA” (LR6) batteries

(not included) with polarity as shown

in the battery compartment.

AC Adapter Jack

Battery

Compartment

Subplatform

Transportation

Lock Pointer

Locked Position

Unlocked

Position

ScoutSKX Balances Quick Start Guide

ScoutSKX Balances ii Ohaus Corporation www.ohaus.com

SAFETY PRECAUTIONS

CAUTION: Read all safety warnings before installing, making

connections, or servicing this equipment. Failure to comply with these

warnings could result in personal injury and/or property damage. Retain

all instructions for future reference.

Verify that the local AC power supply voltage is within the input voltage range

printed on the AC adapter’s ratings label.

Only connect the AC adapter to a compatible grounded socket.

Position the instrument such that the AC adapter can be easily disconnected

from the socket.

Position the power cord so that it does not pose a potential obstacle or tripping

hazard.

Operate the equipment only under ambient conditions specified in the user

instructions.

Do not operate the equipment in hazardous or explosive environments.

Disconnect the equipment from mains power before cleaning or servicing.

Service should only be performed by authorized personnel.

Quick Start Guide ScoutSKX Balances

Ohaus Corporation www.ohaus.com iii ScoutSKX Balances

CONTROLS

Button

Functions:

Button

Short Press

Zero/On

Turns the balance

on;

If balance is On,

sets Zero

Initiates print

Function

Initiates an

application mode

Tare

Long Press

Off

Turns the balance

Off

Units

Changes the

weighing unit

Mode

Changes the

application mode

Enters the User

Short Press

(Menu Function)

Yes

Accepts the

current setting

Advances to the

next menu or

setting

Back

Moves to previous

menu item

Exit

Exits the User

ScoutSKX Balances Quick Start Guide

ScoutSKX Balances iv Ohaus Corporation www.ohaus.com

CALIBRATION

When the balance is operated for the first time, a span calibration is

recommended to ensure accurate weighing results. With balance turned on:

Step-1

Press and hold Menu until [mMeNU] (Menu) is displayed.

Step-2

Release the button, the display will show [C.A.L].

Step-3

Press Yes to accept. [SpaN] will then be shown.

Step-4

Press Yes to begin the span calibration. Zero reading is stored

automatically.

Step-5

The specified mass blinks on the display.

Place the specified span calibration mass on the pan or press No to

select an alternate weight.

[--C--] will blink while the reading is stored.

The display will show [done] if the calibration was successful. The

balance returns to the previous application mode and is ready for use.

OPERATION & APPLICATIONS

The balance can be configured to operate in various Application modes.

Press and hold Mode key to select your Application mode.

The Scout SKX balance

incorporates the following

Applications shown on the

right:

[wWeIGH]

[SPEC.Gr]

[mMoLE]

Weighing

Density

Determination

Mole

Weighing

Weighing [wWeIGH]

1. Press the Zero/On button to turn the balance on.

2. Select Weighing (this application is the default) by pressing & holding Mode key.

3. Press Tare or Zero if necessary to begin.

4. Place objects on the pan to display the weight. When stable, the *appears.

The display shows the resulting value of the sample.

Density Determination [SPEC.Gr]

This mode allows the user to calculate the specific

gravity of a sample when using the density kit. Density

mode has been initiated when “G” and the current unit is

displayed.

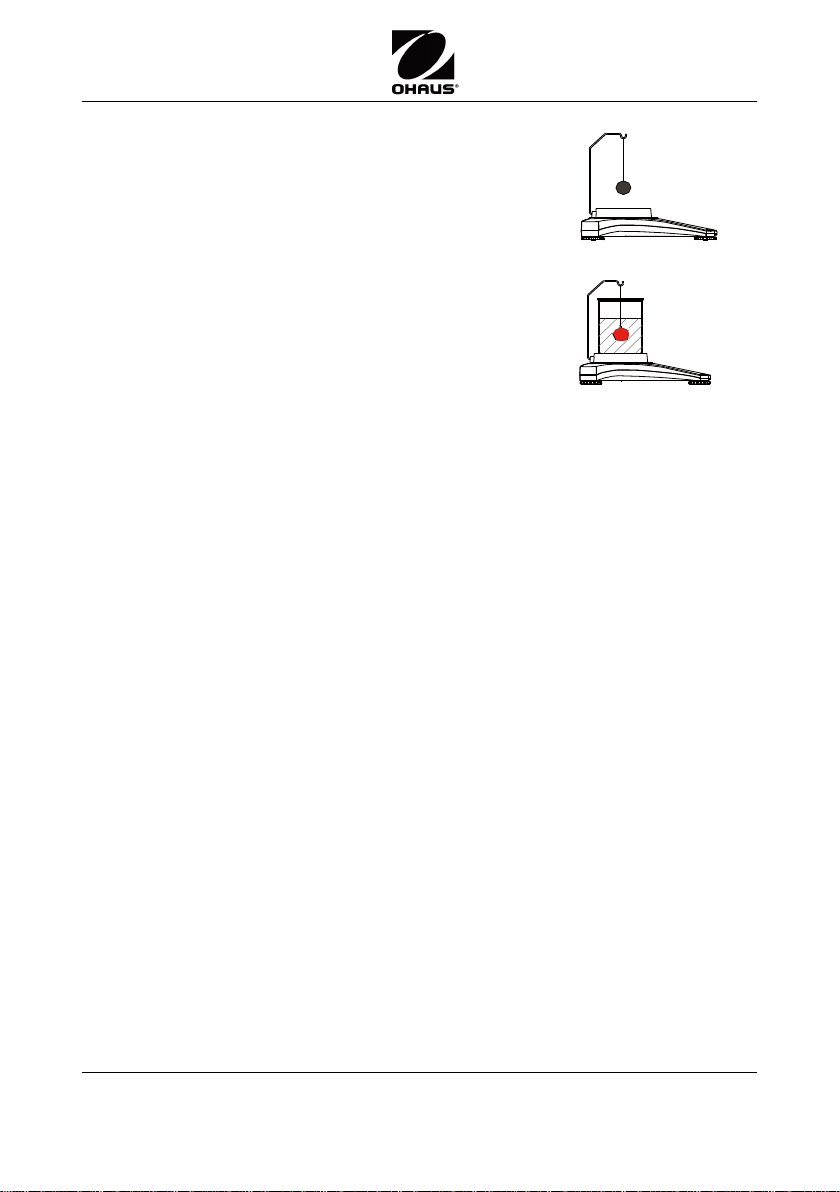

1. Prepare the balance as shown right. Remove the

balance platform, insert the up hook and install the

beaker stand (beaker is not supplied).

2. Press the Zero/On button to turn the balance on.

Quick Start Guide ScoutSKX Balances

Ohaus Corporation www.ohaus.com vScoutSKX Balances

3. If needed, press & hold Mode key until [SPEC.Gr] is

displayed, then release.

4. [Air.wWt] (Air weight) is displayed, place weight on the

hook

5. Press Yes to store the dry weight value.

6. [wW.wWt] (Wet weight) is displayed, place weight in the

water.

7. Press Yes to get the final specifiec gravity value.

Note: "G" indicates a specific gravity value; and has no

unit of measure.

For large samples it is recommended to use the weigh

below feature (weigh below hook located in battery

compartment).

Mole Weighing Mode [mMoLE]

1. If needed, press and hold the Mode key until [mMoLE] is displayed, then release.

2. [Clr.mMS] is displayed.

2. Press the Yes key to clear the stored Molar Mass. Press the No key to recall the

existing Molar Mass. If no Molar Mass was stored, the [Clr.mMS] display is skipped

and inputting a Molar Mass is required.

3. If there is a Molar Mass stored, the current Molar Mass will be displayed and

flashing.

4. Press the No key to begin editing the Molar Mass.

5. Press the No/Back key to increment/decrement the flashing digit.

7. Press the Yes key to accept the value and move one digit to the right.

Notes: If the setting exceeds the limit, the display returns to the previously stored

value. The available settings are from 0.01 to 999.99. The Molar Mass unit is g/mol.

Air Weight

Wet Weight

ScoutSKX Balances Quick Start Guide

ScoutSKX Balances vi Ohaus Corporation www.ohaus.com

ADDITIONAL FEATURES

Connecting the Interface

Use an optional interface connectivity kit to

connect the balance either to a computer,

printer or OHAUS auxiliary display.

Below Interface kit accessories are available:

RS232, USB Host, USB Device, Ethernet,

Bluetooth*.

Interface connection on the rear of

the balance:

* Interface kits may vary according to local regulations

Weigh Below Hook

The weigh below hook is located at the reverse side of the battery cover as shown.

To use this feature, remove the red protective cover underneath for the weigh below

opening.

Interface

connection

AC Adapter

Jack

Security Slot

Weigh below protective cover

Weigh

below

hook

Quick Start Guide ScoutSKX Balances

Ohaus Corporation www.ohaus.com vii ScoutSKX Balances

MENU STRUCTURE

Sub-Menus

C.a.l

S.e.t.u.p

M.o.d.e

U.n.i.t

E.n.d

User Menu Items:

Span

Lin

Reset Yes/No

Filter

Low/Med/High

AZT 0.5/1/3/Off

StableRange

0.5/1/2//5

Backlight

Off/On/Auto

Auto Tare

Off/On/On-acc

Auto Off

Off/1/5/10

Reset

Yes/No

Weighing

On/Off

Density

On/Off

Mole

On/Off

Reset

lb:oz

End

Note: Bold fonts are default setting in the menu.

No/Back

Long press -Enter

Short press -

Short press –

Go Next/Prev.

Yes

Exit

Short press –

Exit menu

ScoutSKX Balances Quick Start Guide

ScoutSKX Balances viii Ohaus Corporation

www.ohaus.com

COMPLIANCE

Compliance to the following standards is indicated by the corresponding mark on

the product.

Mark

Standard

This product complies with the EU Directives 2014/30/EU (EMC),

2014/35/EU (LVD) and 2014/31/EU (NAWI). The EU Declaration of

Conformity is available online at www.ohaus.com/ce.

This product complies with the EU Directive 2002/96/EC (WEEE).

Please dispose of this product in accordance with local regulations at

the collecting point specified for electrical and electronic equipment.

For disposal instructions in Europe, refer to www.ohaus.com/weee.

AS/NZS 61000.6.1, AS/NZS 61000.6.3

CAN/CSA-C22.2 No. 61010-1

UL Std. No. 61010-1

INSTRUCTION MANUAL

For more detailed information about the balance,

please refer to the product instruction manual.

The instruction manual can be obtained either by

scanning the QR code or by going to the product

page and from there download it.

Go to www.ohaus.com to register your product's

warranty.

Product Page:

http://www.ohaus.com
