Quick Start Guide ScoutTM SJX Balances

Ohaus Corporation www.ohaus.com i ScoutTM SJX Balances

UNPACKING

Carefully remove your Scout balance and each of its components from the

package. Store the packaging material to ensure safe storage and future transport.

Included Components:

Balance

Pan

Quick Start Guide

Calibration Mass (only for SJX/E models with 64g capacity)

Warranty Card

Scoop (only for models with 64g capacity)

AC Adapter & Plug

SELECTING THE LOCATION

Place on a firm, steady surface with sufficient space. Avoid excessive air currents,

vibrations, heat sources, or rapid temperature changes.

PREPARATION FOR USE

Step-1

Release the red Transportation Lock

on subplatform of the balance

Turn the pointer 90counter-clockwise.

Notes:

SJXN/E models may have different

transportation protection method.

For SJXN models, the shipping lock

needs to be removed (by pulling it out)

before installing the pan.

Step-2

Install the Pan

For SJX/E:

Rectangular pan: Place diagonally on

sub-platform and rotate counter-

clockwise until it locks.

Round pan: Set straight down on

subplatform.

For SJX: Install the stainless steel pan

directly on the subplatform.

Unlocked

Position

Locked

Position

For SJX/E

Visit www.scaleman.com to purchase Ohaus Scout SJX Scale

Visit www.balances.com for balances, scales & calibration weights

ScoutTM

SJX Balances Quick Start Guide

ScoutTM SJX Balances ii Corporation www.ohaus.com

Step-3

Connect Power

Connect the AC Adapter to the balance

input jack.

Battery Installation

Install the Four “AA” (LR6) batteries

(not included) with polarity as shown in

the battery compartment.

Step-4

Level the balance

Level the balance before using by

adjusting the feet until the air bubble is

centered

SAFETY PRECAUTIONS

CAUTION: Read all safety warnings before installing, making connections, or

servicing this equipment. Failure to comply with these warnings could result in

personal injury and/or property damage. Retain all instructions for future reference.

Verify that the local AC power supply voltage is within the input voltage

range printed on the AC adapter’s ratings label.

Only connect the AC adapter to a compatible grounded socket.

Position the instrument such that the AC adapter can be easily

disconnected from the socket.

Position the power cord so that it does not pose a potential obstacle or

tripping hazard.

Operate the equipment only under ambient conditions specified in the user

instructions.

Do not operate the equipment in hazardous or explosive environments.

Disconnect the equipment from mains power before cleaning or servicing.

Service should only be performed by authorized personnel.

AC Adapter Jack

Battery

Compartment

Visit www.scaleman.com to purchase Ohaus Scout SJX Scale

Visit www.balances.com for balances, scales & calibration weights

Quick Start Guide ScoutTM SJX Balances

Ohaus Corporation www.ohaus.com iii ScoutTM SJX Balances

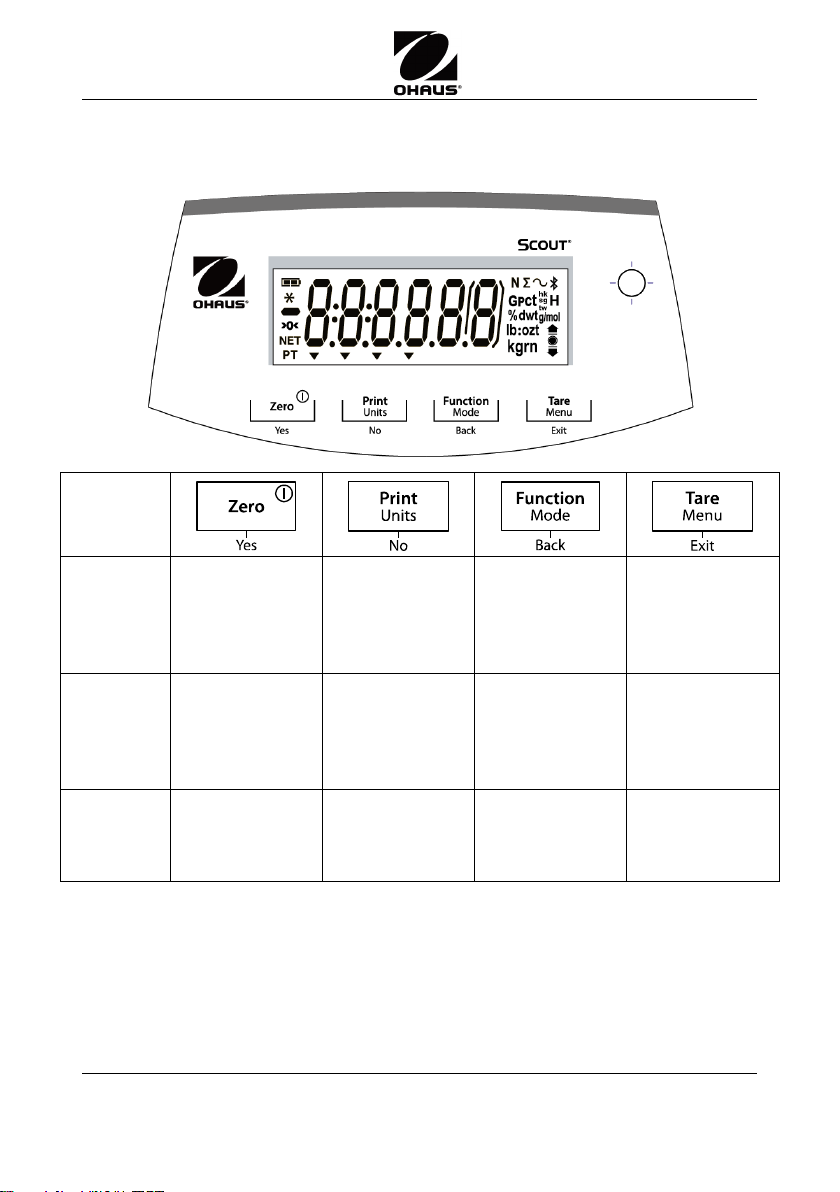

CONTROLS

Button Functions

Button

Short

Press

Zero/On

Turns the balance

on;

If balance is On,

sets Zero

Initiates print

Function

Initiates an

application mode

Tare

Long

Press

Extended

Press

Off

Turns the balance

Off

None

Units

Changes the

weighing unit

None

Mode

Changes the

application mode

None

Enters the user

View the preset

Tare value

Short

Press

(Menu

Function)

Yes

Accepts the current

setting

Advances to the

next menu or

setting

Back

Moves to previous

menu item

Exit

Exits the user menu

Visit www.scaleman.com to purchase Ohaus Scout SJX Scale

Visit www.balances.com for balances, scales & calibration weights

ScoutTM

SJX Balances Quick Start Guide

ScoutTM SJX Balances iv Corporation www.ohaus.com

CALIBRATION

When the balance is operated for the first time, a calibration is recommended to

ensure accurate weighing results.

External Span Calibration

With balance turned on:

Step-1

Press and hold Menu until [mMeNU] (Menu) is displayed.

Step-2

Release the button, the display will show [C.A.L].

Step-3

Press Yes to accept. [SpaN] will then be shown.

Step-4

Press Yes to begin the span calibration. [--C--] will blink and the

Zero reading is stored automatically.

Step-5

The specified mass blinks on the display.

Place the specified span calibration mass on the pan or press

No to select an alternate weight.

[--C--] will blink while the reading is stored.

The display will show [done] if the calibration was successful. The

balance returns to the previous application mode and is ready for

use.

Internal Calibration (not available for SJX/E models)

With balance turned on:

Step-1

Press and hold Menu until [mMeNU] (Menu) is displayed.

Step-2

Release the button, the display will show [C.A.L].

Step-3

Press Yes to accept. [In.CAL] will then be shown.

Step-4

Press Yes to begin the Internal calibration. Zero reading is

stored automatically.

Step-5

Pull the InCal handle while the

display show [PULL].

Step-6

Push the InCal handle while the

display show [PUSH].

Step-7

Repeat the step-5, and step-6 one

more time.

Step-8

The display will show [done] if the calibration was successful.

The balance returns to the previous application mode and is

ready for use.

Visit www.scaleman.com to purchase Ohaus Scout SJX Scale

Visit www.balances.com for balances, scales & calibration weights

Quick Start Guide ScoutTM SJX Balances

Ohaus Corporation www.ohaus.com vScoutTM SJX Balances

OPERATION & APPLICATIONS

The balance can be configured to operate in one or more Application modes.

Press and hold Mode key to select your Application mode.

The Scout SJX balance incorporates the following Applications:

[wWeIGH]

[Count]

[Percnt]

[CHeCK]

[total]

[SPEC.Gr]

[Hold]

Weighing

Parts

Counting

Percent

Weighing

Check

Weighing

Totalization

Density

Determination

Display

Hold

Weighing

Step-1

Press the Zero/On button to turn the balance on.

Step-2

Select Weighing (default application) by pressing & holding

Mode key.

Step-3

Press Tare or Zero if necessary to begin.

Step-4

Place objects on the pan to display the weight. When stable, the

appears on the display. The display then shows the resulting

weight of the sample.

MENU STRUCTURE

Sub-Menus

C.a.l**

S.E.t.U.P

M.o.d.E

U.n.i.t**

E.n.d

User Menu Items:

In.CAL*

A.CAL*

On/Off

CAL.Adj*

-100

100

Span

Lin

Reset Yes/No

Filter

Low/Med/High

AZT 0.5/1/3/Off

StableRange

0.5/1/2//5

Backlight

Off/On/Auto

Auto Tare

Off/On/On-acc

Auto Off

Off/1/5/10

Reset Yes/No

Weighing

On/Off

Counting

On/Off

Percent

On/Off

Check On/Off

Totalize

On/Off

Density

On/Off

Hold

Disp/Peak/Off

Reset

ozt

dwt

grn

hkt

sgt

twt

ttola/tical

End

Note: Bold fonts are default settings in the menus.

* These sub-menus are not available in SJX/E models.

** Available Settings may vary by local regulations.

No/Back

Long press –

Enter menu

Short press -

Short press –

Go Next/Prev.

Yes

Exit

Short press –

Exit menu

Visit www.scaleman.com to purchase Ohaus Scout SJX Scale

Visit www.balances.com for balances, scales & calibration weights

ScoutTM

SJX Balances Quick Start Guide

ScoutTM SJX Balances vi Corporation www.ohaus.com

ADDITIONAL FEATURES

Connecting the Interface

Use an optional interface connectivity

kit to connect the balance either to a

computer, printer or OHAUS auxiliary

display.

Below Interface kit accessories are

available:

RS232, USB Host, USB Device,

Ethernet, Bluetooth*.

Interface connection on the rear of the

balance:

* Interface kits may vary according to local regulations

Weigh Below Hook

The weigh below hook on SJX/E models is located at the reverse

side of the battery cover as shown below (on SJX models it is located in

the weigh below protective cover). To use this feature, remove the red

protective cover underneath for the weigh below opening.

Interface connection

AC Adapter Jack

Security slot

Weigh below protective cover

Weigh below

hook

(SJX/E)

Visit www.scaleman.com to purchase Ohaus Scout SJX Scale

Visit www.balances.com for balances, scales & calibration weights

Quick Start Guide ScoutTM SJX Balances

Ohaus Corporation www.ohaus.com vii ScoutTM SJX Balances

COMPLIANCE

Compliance to the following standards is indicated by the corresponding mark on

the product.

Mark

Standard

This product complies with the EU Directives 2014/30/EU (EMC),

2014/35/EU (LVD) and 2014/31/EU (NAWI). The EU Declaration of

Conformity is available online at www.ohaus.com/ce.

This product complies with the EU Directive 2002/96/EC (WEEE).

Please dispose of this product in accordance with local regulations at

the collecting point specified for electrical and electronic equipment.

For disposal instructions in Europe, refer to www.ohaus.com/weee.

AS/NZS 61000.6.1, AS/NZS 61000.6.3

CAN/CSA-C22.2 No. 61010-1

UL Std. No. 61010-1

INSTRUCTION MANUAL

For more detailed information about the balance,

please refer to the product instruction manual. The

instruction manual can be obtained either by

scanning the QR code or by going to the Scout

SJX product page to download it.

Go to www.ohaus.com to register your product's

warranty.

Product Page:

http://www.ohaus.com/scout

QR Code:

Visit www.scaleman.com to purchase Ohaus Scout SJX Scale

Visit www.balances.com for balances, scales & calibration weights

Otros manuales para Scout SJX

Tabla de contenidos

Otros manuales de Escala de OHAUS

OHAUS

OHAUS CHAMP II BASE Manual de usuario

OHAUS

OHAUS Explorer EX125 Manual de usuario

OHAUS

OHAUS Guardian 3000 Manual de usuario

OHAUS

OHAUS Navigator NV212 Manual de usuario

OHAUS

OHAUS Ranger Count 3000 Series Manual de usuario

OHAUS

OHAUS AV53 Manual de usuario

OHAUS

OHAUS 700 Metric Series Manual de usuario

OHAUS

OHAUS Scout Pro Balance Manual de usuario

OHAUS

OHAUS Defender D12RQR Manual de usuario

OHAUS

OHAUS EXPLORER Manual de usuario

OHAUS

OHAUS Ranger Count 3000 Series Manual de usuario

OHAUS

OHAUS TAJ Carat TAJ203 Manual de usuario

OHAUS

OHAUS ES series Manual de usuario

OHAUS

OHAUS Triple Pro TP2611 Manual de usuario

OHAUS

OHAUS Adventurer AX124 Manual de usuario

OHAUS

OHAUS PX Series Manual de usuario

OHAUS

OHAUS EC Series Manual de usuario

OHAUS

OHAUS Ranger 4000 Count Series Manual de usuario

OHAUS

OHAUS Ranger R41ME6-M Manual de usuario

OHAUS

OHAUS DIAL-O-GRA 310 Manual de usuario

OHAUS

OHAUS Valor 7000 series Manual de usuario

OHAUS

OHAUS CHAMP II BASE Manual de usuario

OHAUS

OHAUS TROOPER SCALE Manual de usuario

OHAUS

OHAUS Adventurer AX224N Manual de usuario

Manuales populares de Escala de otras marcas

AWS

AWS ZEO-50 Manual de usuario

Gima

Gima Glass Body Fat Analyzer Manual de lista de piezas

Seca

Seca 374 Manual de usuario

TEC

TEC TEC SL59 SERIES Manual de usuario

Axis

Axis B/E Series Manual de usuario

Alecto

Alecto ACW-40 Manual de usuario

Rice Lake

Rice Lake MSI-4260 IS Manual de usuario

IKA

IKA RCT basic safety control Manual de usuario

ADE

ADE M20011 Manual de usuario

Duronic

Duronic KS3000 Manual de usuario

Digi

Digi SM-720 Manual de usuario

Cardinal

Cardinal CS Series Manual de usuario

Korona

Korona Kastella Manual de usuario

A&D

A&D FC-50Ki Manual de usuario

BDA

BDA CAMARGUE Manual de usuario

Tanita

Tanita HD-357 Manual de usuario

Leifheit

Leifheit 03173 Manual de usuario

Lumme

Lumme LU-1340 Manual de usuario
