Quick Start Guide Adventurer™Balances

Ohaus Corporation www.ohaus.com iAdventurer™Balances Quick Start Guide

ASSEMBLY

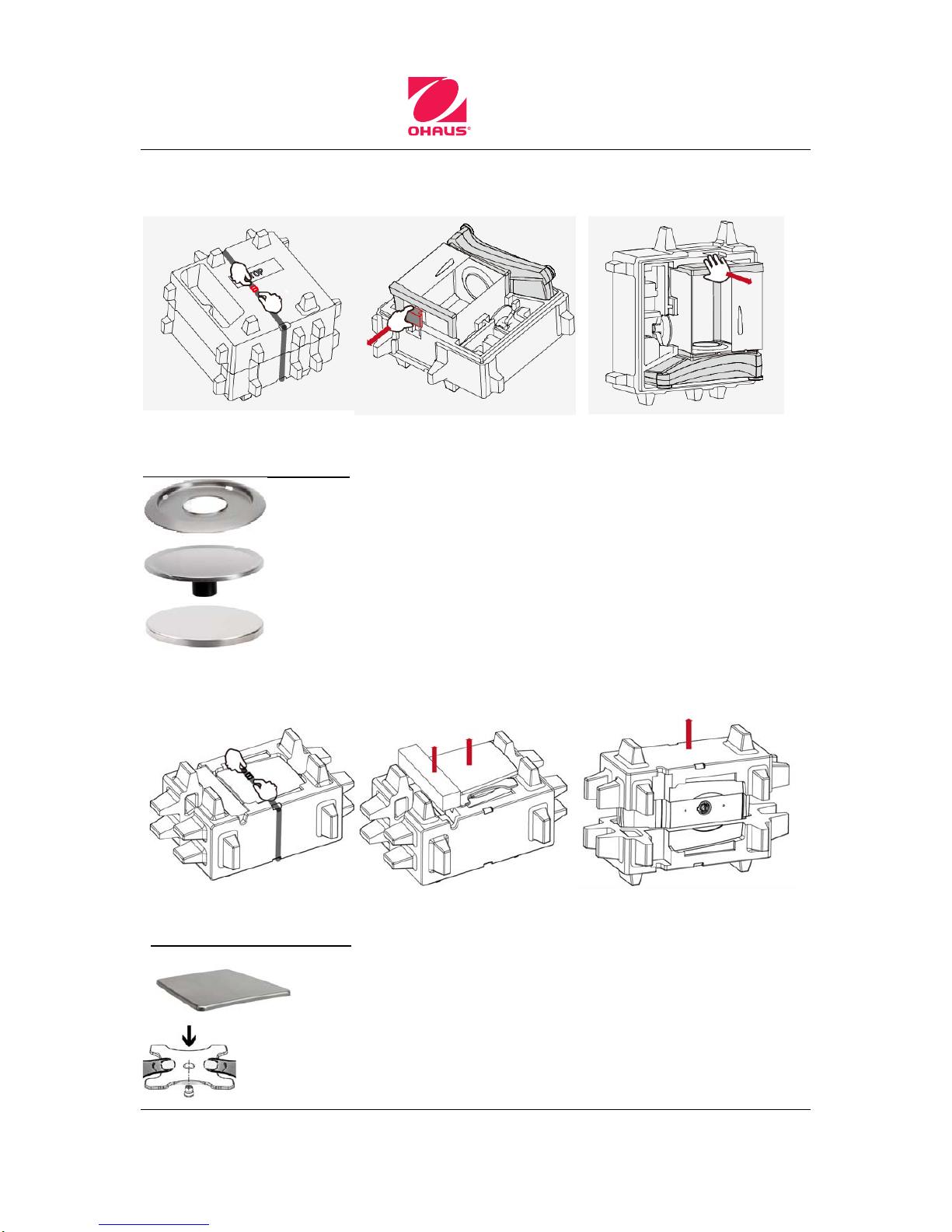

1) Unpack the balance

1) Remove the binder 2) Take out the red cube 3) Take out the balance

For 1mg and 0.1mg Models:

- Wind Ring

- Weighing pan (90mm) for 0.1mg model

-Weighing pan (130mm) for 1mg model

2) Install Wing ring and weighing pan

1) Remove the binder 2) Take out the adaptor box and

weighing pan 3) Take out the balance

For 0.1g and 0.01g Models:

- Weighing pan (175x195mm) for 0.1g and 0.01g balance

- Pan support, push the pan support to the end, tightly connect with cone.

Adventurer™Balances Quick Start Guide

Adventurer™Balances Quick Start Guide ii Ohaus Corporation www.ohaus.com

SAFETY PRECAUTIONS

CAUTION: Read all safety warnings before installing, making connections, or

servicing this equipment. Failure to comply with these warnings could result in

personal injury and/or property damage. Retain all instructions for future reference.

•Verify that the AC adapter’s input voltage range and plug type are compatible with the

local AC power to be used.

•Make sure that the power cord does not pose a potential obstacle or tripping hazard.

•The balance is for indoor use only.

•Use the balance only in dry locations.

•Do not drop loads on the pan.

•Use only approved accessories and peripherals.

•Operate the equipment only under ambient conditions specified in these instructions.

•Disconnect the equipment from the power supply when cleaning.

•Do not operate the equipment in hazardous or unstable environments.

•Service should only be performed by authorized personnel.

•Do not position the balance such that it is difficult to reach the power connection.

CONTROLS

Button Action

Short Press (if powered Off): Turns on the scale

Long Press (if powered On): Turns off the scale

Note: The balance will automatically power on when power is connected.

Short Press: Prints the present data to a printer or a computer.

Short Press: Perform Zero operation

Short Press: Perform Calibration operation

Short Press: Perform Tare operation

(866) 433-6682 • (281) 359-8538 • [email protected] • www.novatech-usa.com

Quick Start Guide Adventurer™Balances

Ohaus Corporation www.ohaus.com iii Adventurer™Balances Quick Start Guide

Main Application Screen

MENU & SCREEN NAVIGATION

Touch Menu to open the menu list.

Calibration:

Touch to view calibration options.

Balance Setup:

Touch to view and change balance settings.

Weighing Units:

Touch to view and change weighing units.

Data Maintenance:

Touch to view data maintenance settings.

Factory Reset:

Touch to do a Factory reset of menu

settings.

GLP and GMP Data:

Insert user data for traceability.

Lockout:

Touch to view lockout options.

Communication:

Touch to view COM Device Settings and

Print Settings.

Application

Instructional Messages

Stability (*), Net (NET),

Gross (G) and/or center

of zero (>0<) indicators

Reference Fields Application Buttons:

Functions vary by

Result Field: Information

varies by application

Touch gto change unit

Capacity and readability

(866) 433-6682 • (281) 359-8538 • [email protected] • www.novatech-usa.com

Adventurer™Balances Quick Start Guide

Adventurer™Balances Quick Start Guide iv Ohaus Corporation www.ohaus.com

APPLICATIONS

The balance can be configured to operate in various Application modes.

Touch the top left Application field (weighing in the example below):

The Adventurer Balance has 9 application modes, as follows:

Weighing Parts Counting Percent

Weighing

Dynamic

(Animal)

Weighing

Density

Determination Check

Weighing

Display

Hold Totalization/Statistics

Formulation

Connecting the Interface

Use the built-in RS-232 Port to connect either to a computer or a printer with a standard (straight-through)

serial cable. Or connect using the scale’s USB port.

Interface connections on the rear of the balance: USB connection on the front of the balance:

USB1: Used to connect to PC only USB2: Used to connect a USB flash driver only

RS232: Used to connect to PC or Printer

USB1 RS232 USB2

(866) 433-6682 • (281) 359-8538 • [email protected] • www.novatech-usa.com

Quick Start Guide Adventurer™Balances

Ohaus Corporation www.ohaus.com vAdventurer™Balances Quick Start Guide

Weigh Below Hook

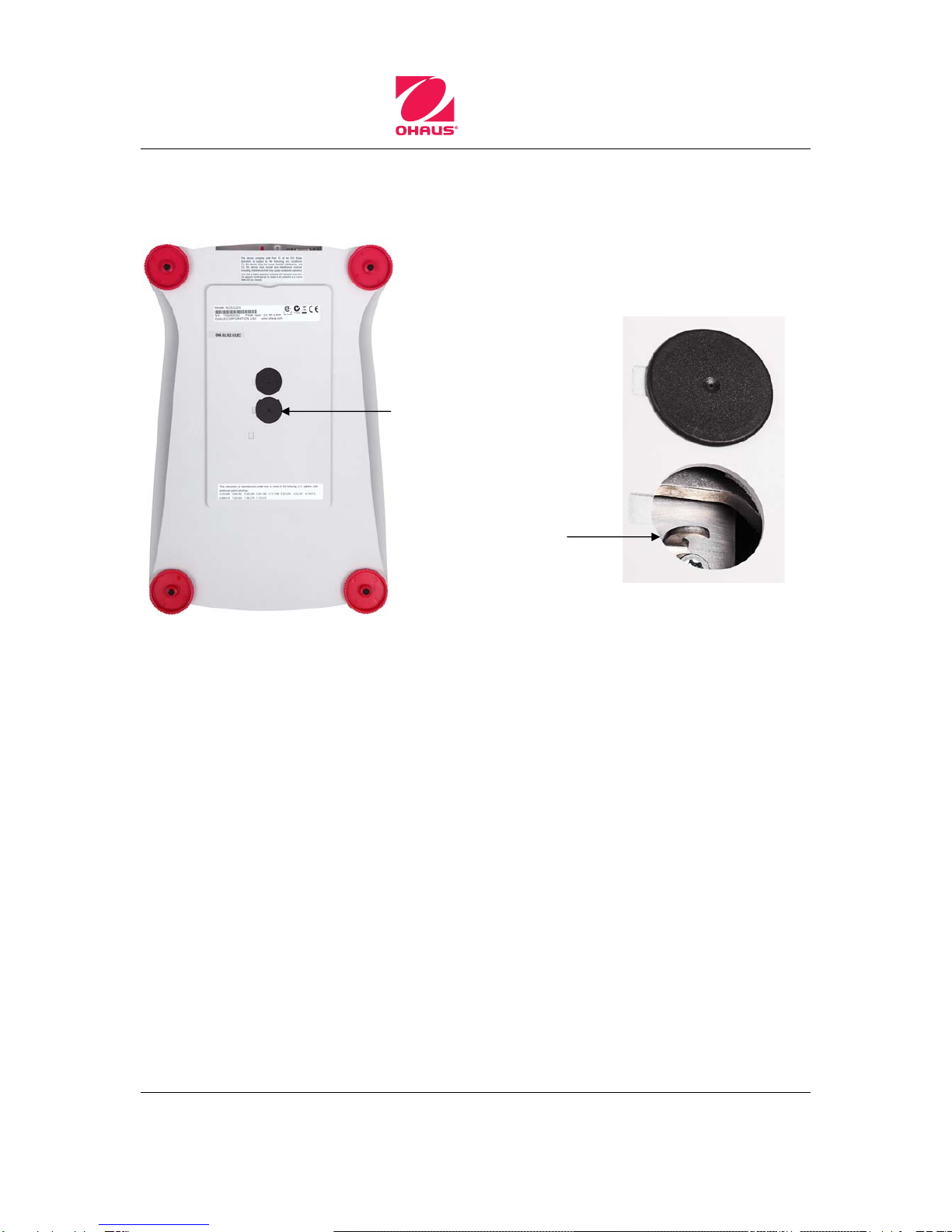

To use this feature, remove power from the balance, then remove the protective cover for the weigh

below opening.

Weigh below

protective cover

Weigh below hook

(866) 433-6682 • (281) 359-8538 • [email protected] • www.novatech-usa.com

Adventurer™Balances Quick Start Guide

Adventurer™Balances Quick Start Guide vi Ohaus Corporation www.ohaus.com

Ohaus Corporation

7 Campus Drive

Suite 310

Parsippany, NJ 07054 USA

Tel: (973) 377-9000

Fax: (973) 944-7177

With offices worldwide.

www.ohaus.com

*30111760*

sales@novatech-usa.com

www.novatech-usa.com

Tel: (866) 433-6682 Fax: (866) 433-6684

Tel: (281) 359-8538 Fax: (281) 359-0084
