INTRODUCTION

This Ethernet interface kit is for use with the Defender®5000 TD52 indicators.

KIT CONTENTS

Cable

Screws(3)

Ethernet Cable

Ethernet PC board

INTERFACE INSTALLATION

Install the Ethernet Interface on the underside of the indicator as shown.

For TD52P:

1. Separate the indicator from the base by loosening load cell cable male connector. Remove

the interface option cover.

Load cell cable male connector

Interface option cover

EN-2

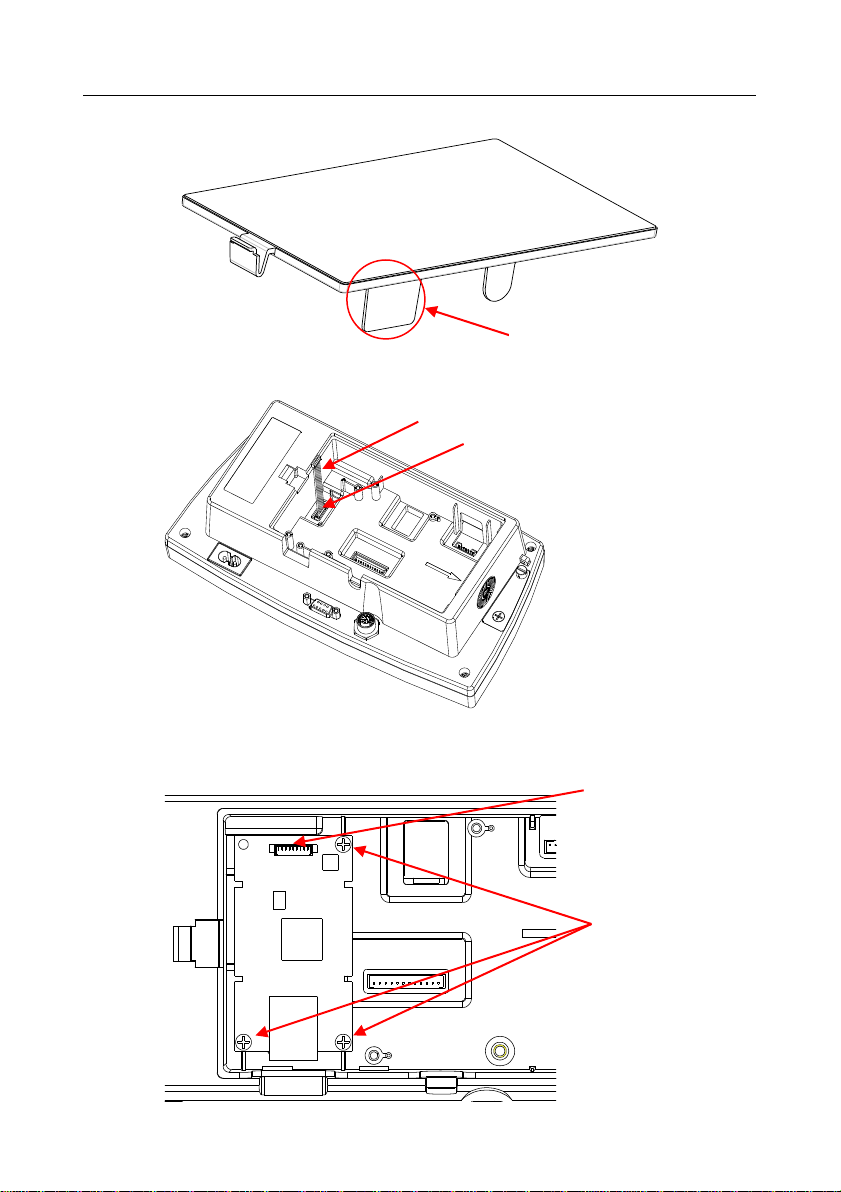

2. Break off the rib of the interface option cover as shown.

3. Connect the cable to the main board connector.

4. Install the Ethernet board. Secure it with the 3 screws. Connect the cable

to Ethernet board 9 Pin Connector.

Rib

Cable

Main board connector 1

9 Pin Connector

Screw

EN-3

5. Place the cord in the slot and put the interface option cover back on.

For TD52XW:

1. Remove the 6 sealing screws to open the rear housing. Remove the M25 hole plug as

shown.

2. Take the rear housing down from the front housing as shown.

Slot

Screw

M25 hole plug

EN-4

3. Connect the cable to the main board connector.

4. Install the Ethernet board. Fix the Ethernet board by 4 plastic clips and 2 position ribs.

(Note: the slots of the accessory board align with the 2 position ribs as shown.)

Connect the cable to the Ethernet 9 Pin Connector.

Cable

Main board connector

Slot

9 Pin connector

Position Rib

EN-5

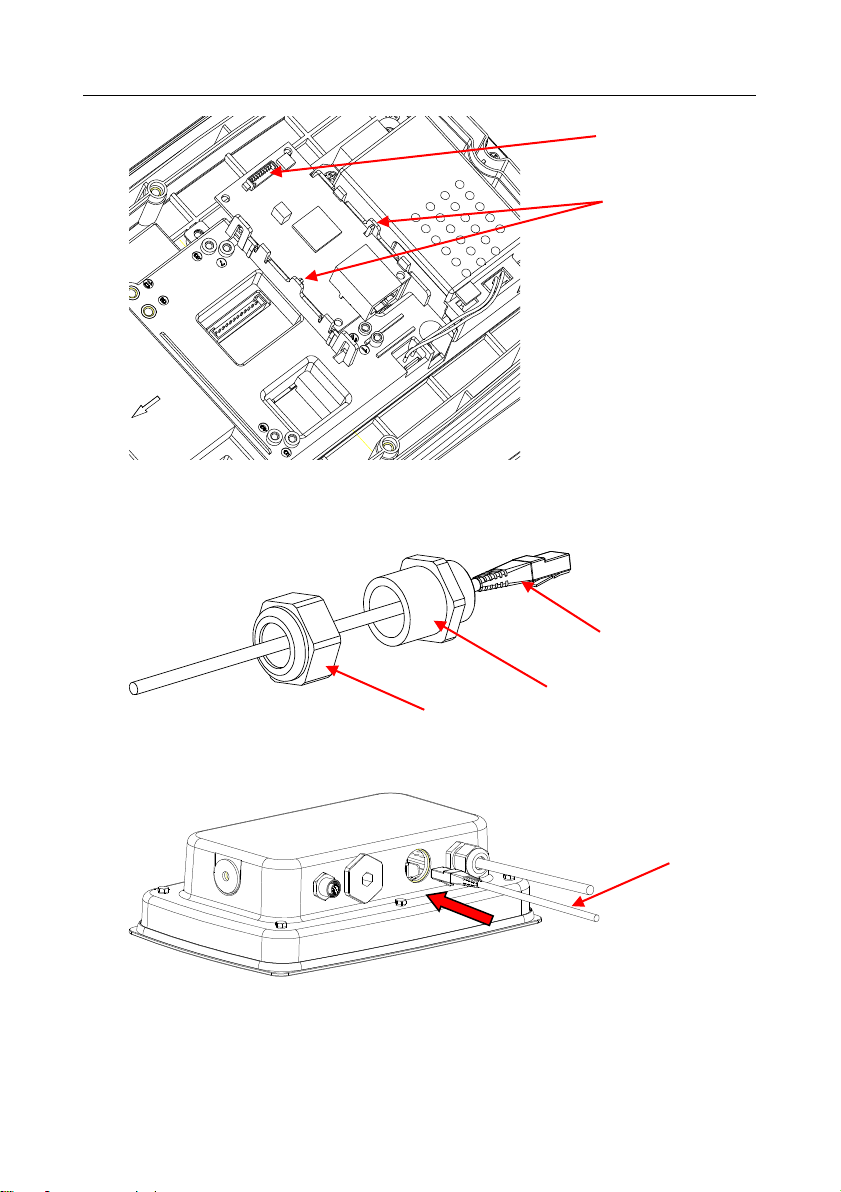

5. Disassemble the cable gland by loosening the cap nut and removing the rubber seal. Pass

the Ethernet cable through the cap nut; then spread the rubber seal and place it over the

cable. Now pass the cable through the body of the cable gland.

6. Put the rear housing back on the front housing. Install the 6 sealing screws (Torque is

1.8N*m± 0.5). Insert the Ethernet cable through the housing and connect it to the Ethernet

board.

7. Install the body of the cable gland into the rear housing. Tighten the cable gland.

8. Push the rubber seal into the body of the cable gland.

Ethernet cable

M25 Cable gland

Cap nut

M25 Hole

Cable gland

Rubber seal

EN-6

9. Install the cap nut onto the body of the cable gland. Tighten the cap nut.

For TD52XW with reversed rear cover:

1. Remove the 6 sealing screws to open the rear housing. Remove the M25 hole plug as

shown.

2. Take the rear housing down from the front housing as shown.

Cap nut of M25 gland

Screw

M25 hole plug

Load cell cable male connector

EN-7

3. Connect the cable to the main board connector 1.

4. Install the Ethernet board. Fix the Ethernet board by 4 plastic clips and 2 position ribs.

(Note: the slots of accessory board match with the 2 position ribs as shown)

Connect the cable to the Ethernet 9 Pin Connector.

cable

Main board connector 1

Slot

EN-8

5. Disassemble the cable gland by loosening the cap nut and removing the rubber seal. Pass

the Ethernet cable through the cap nut; then spread the rubber seal and place it over the cable.

Now pass the cable through the body of the cable gland.

6. Put the rear housing back on the front housing. Re-install the 6 screws (Torque is

1.8N*m± 0.5). Insert the Ethernet cable through M25 hole. (Note: the direction which is the hook

of the Ethernet plug face down).

7. Fasten the M25 gland to the rear housing.

Ethernet cable

M25 cable gland

Cap nut

Ethernet cable

9 Pin connector

Position rib
