OfficeSource PPPSTRAIGHT Manual de usuario

Ensure all bolts and screws are tightened, check bolts and screws every 6 months.

If any parts are missing, broken, damaged or worn, stop use of product until repairs have been made using factory authorized parts.

Failure to follow these warnings may result in injury.

ATTENTION

Nylon Clip

qty = 2 pcs qty = 10 pcs

Flat Bracket (Tie Bracket)

1 of 2

qty = 2 pcs

Mid Cap

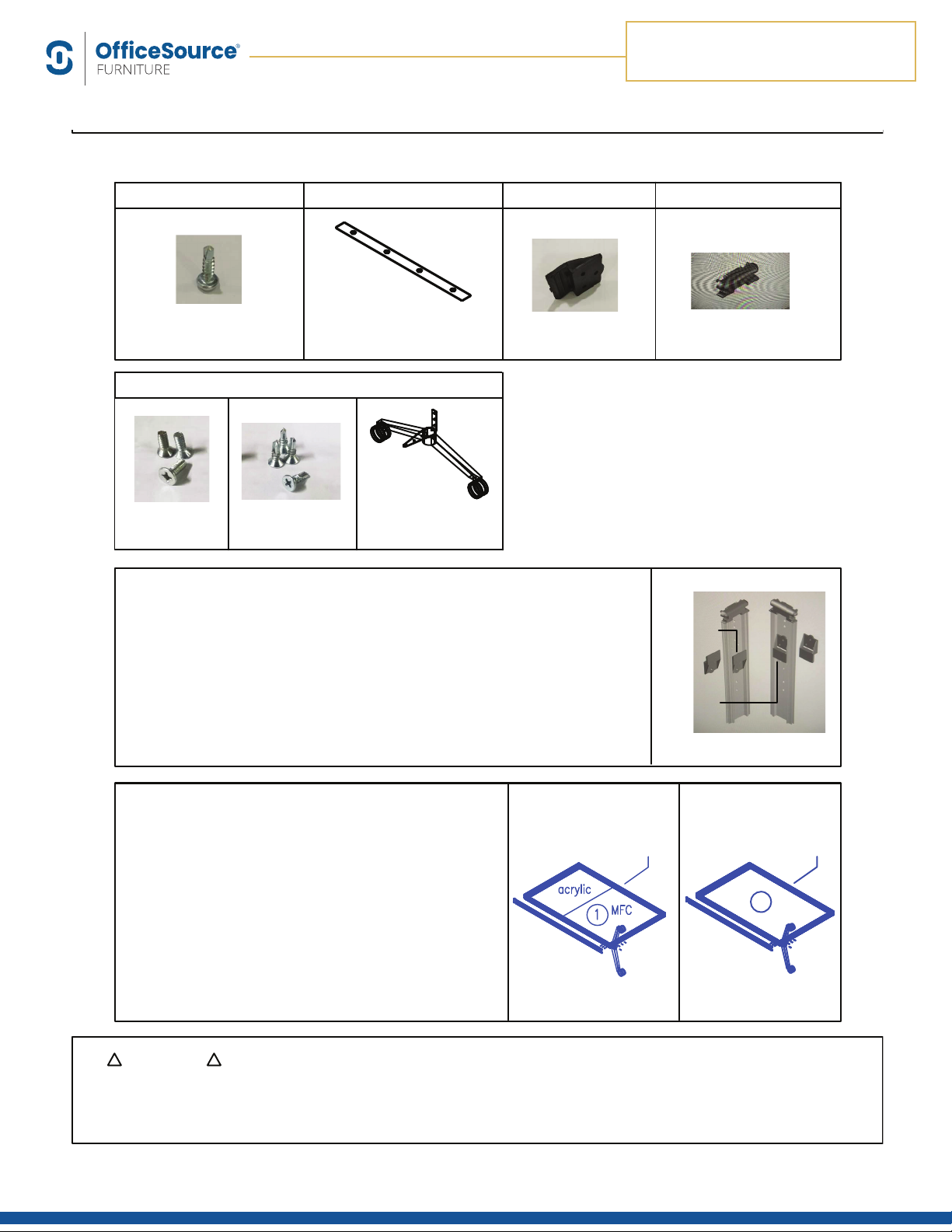

In the Carton : In the Carton :

Self drilling screw

@ #6x1/2" = 28 pcs

nylon clip

face-down

nylon clip

face-up

nylon clip side

In the Carton : In the Carton :

M6x16 bolt

qty = 6 pcs

screw #10x5/8"

Qty = 8 pcs qty = 2 pcs

V base castor Leg

1. Lay the panels down on a flat clean surface for assembly

2. Remove the end caps (side trim) from the panels from both sides of each panel

3. Install 5 of the nylon clips face up (see image to the right) to the side being joined on one of the panels

a. Screw the nylon clips to the panels using 2 of the #6 x ½” Self drilling screws. There will be 3 holes

drilled in a triangular shape – leave the center hole empty

4. Install 5 of the nylon clips face down (see image to the right) to the side being joined on the other panel

a. Screw the nylon clips to the panels using 2 of the #6 x ½” Self drilling screws. There will be 3 holes

drilled in a triangular shape – leave the center hole empty

(PPPDELFOOTCPR)

Sold Separately :

acrylic

Before assembly, please remove all parts from carton, verifying that you have the correct quantities, and read all the insructions.

ASSEMBLY INSTRUCTIONS

MODEL: PPPSTRAIGHT

Leg bracket

nylon clip side

5. Install the V Base Castor Leg to the outside of the 2 connected panels,

following the instructions outlined in the V Base Leg, model #

PPPDELFOOTCPR, (sold separately).

6. Re-attach panel side trims to the outsides of the panels (the same sides

the V Base Caster Leg is on)

Last Updated: 02/2021

MODEL NO. PPPSTRAIGHT

OFFICESOURCE.COM

ASSEMBLY INSTRUCTIONS

Last Updated: 3/2023

Ensure all bolts and screws are tightened, check bolts and screws every 6 months.

If any parts are missing, broken, damaged or worn, stop use of product until repairs have been made using factory authorized parts.

Failure to follow these warnings may result in injury.

ATTENTION

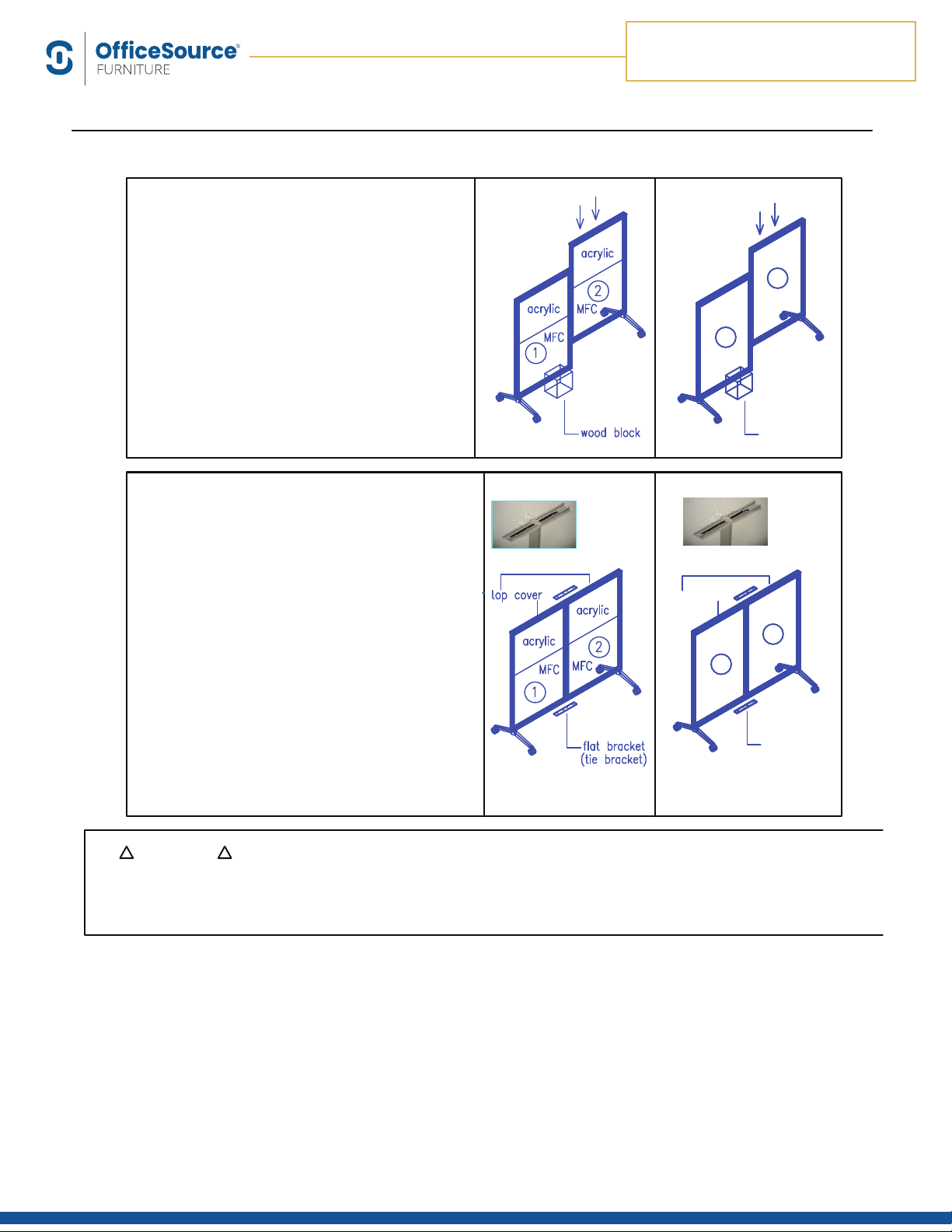

7. Stand the panels up and place the sides with the clips together.

This step is made easier if a block of wood, or other support is

placed under the panel that has the Nylon Clips facing upwards

8. Press the panel that has the Nylon Clips facing downwards

against the panel with the Nylon Clips facing upwards until the clips

have securely locked together

a. This will be shown by the panel tops and bottoms being level

9. Remove both panel top caps

10. Remove the metal trim that is installed in the top corner (this is

the bracket that transitions from the panel top cap to the panel side

cap, so the top corner looks smooth) on the side that is to be joined

to the other panel only

11. Install the Mid-Cap in replacement of the corner piece that was

just removed (this only goes on the side of the panel that is being

attached to another panel)

12. Slide the Flat Bracket (Tie Bracket) through the gap under the Mid Cap

wood block

flat bracket

top cover

(tie bracket)

13. Screw the Tie Bracket to the top of the panels using 2x #6 x ½”

Self Drilling Screws on each panel (total of 4 screws used in this step)

14. Replace the metal top caps

15. Lay the panels back onto their sides

16. Press the 2nd Tie bracket up against the bottom of the panels, and

install it by screwing 2x #6 x ½” screws into each panel (the same

format as the top), (a total of 4 screws used in this step)

a. Note there is no cap to remove when mounting the bottom bracket

17. Stand panels up to complete

acrylic

acrylic acrylic

2 of 2

Before assembly, please remove all parts from carton, verifying that you have the correct quantities, and read all the insructions.

ASSEMBLY INSTRUCTIONS

MODEL: PPPSTRAIGHT

Last Updated: 02/2021

MODEL NO. PPPSTRAIGHT

OFFICESOURCE.COM

ASSEMBLY INSTRUCTIONS

Last Updated: 3/2023
