Ocean Digital WR-336N Manual de usuario

Please read this user manual carefully before using the receiver.

WR-336N

Internet Radio

User Manual

Please read this user manual carefully before using the receiver

Location of Controls .......................................................... .......1..

Remote control ..........................................................................2

How to input password for your wireless network ..........................3

1. Getting started .....................................................................5

2. Charging battery ..................................................................5

3 6. Network Setup .....................................................................

4 7. Overview of features and functions ........................................

5 8. Internet Radio ......................................................................

6 10. Media Centre .....................................................................

7. Bluetooth playback .............................................................11

8. Alarm Setting .....................................................................12

9. Sleep Timer Setting ............................................................13

1 . Conﬁguration .....................................................................0 14

11. Remote control via PC / Smart phone

- Tuning internet radio & manage favourite............................19

12. Trouble Shooting ................................................................22

Helpful Tips .............................................................................24

Technical Speciﬁcation .............................................................25

In the box ................................................................................26

Contents

- 01 -

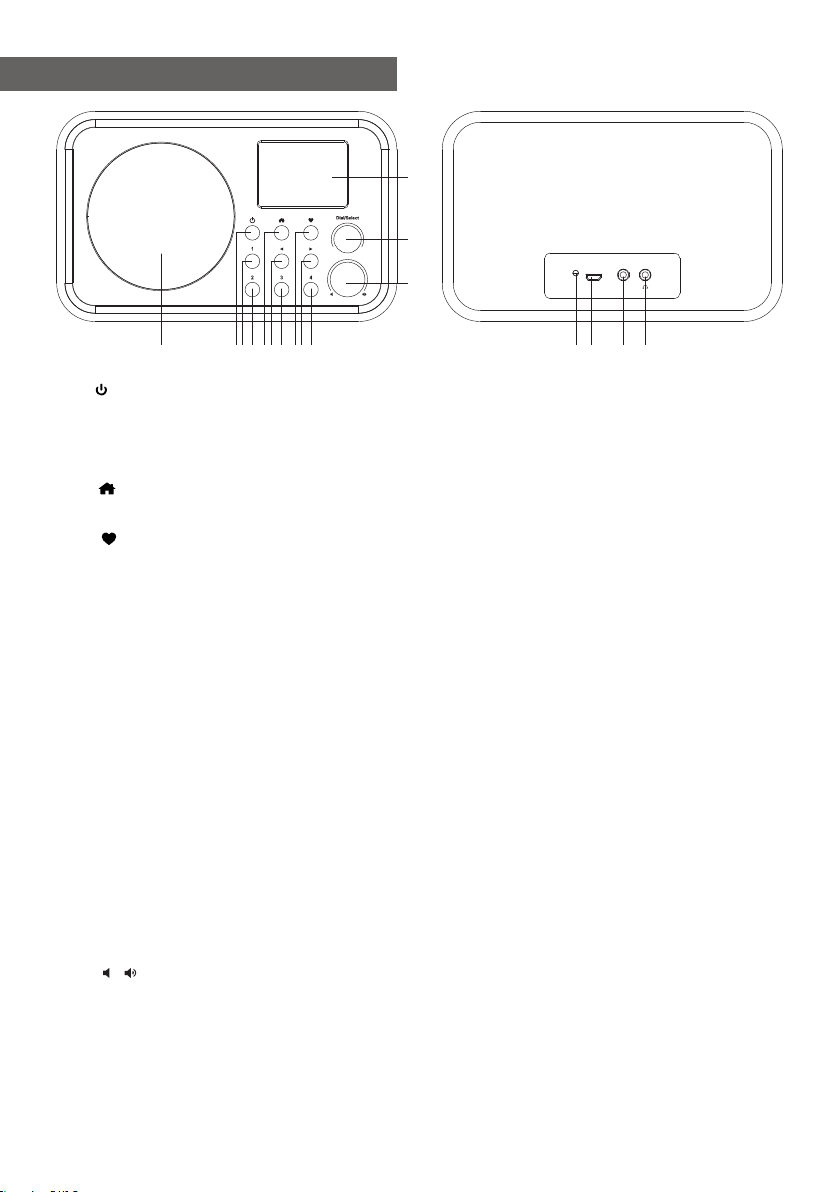

Press and hold to power on/off

Press and release to Standby / activate the radio (Standby is enabled only

when power is connected. It will be disabled when internal battery is used)

Access main menu/press this button to return to the playing screen

Press and hold to preset a particular station

Press to recall the favourite list

4. ►

Right cursor/Enter edit menu under Favourite list /View the big clock & radio

info under playing screen

5. ◄

Back to previous menu/left cursor

6-9. Preset button 1-4

Preset the top four favourite stations

Press and hold to preset

Press it brieﬂy to recall

10. Speaker

11. TFT color screen 2.4"

12. Dial / Select

Rotate to scroll along, up/down on the menu / Push to conﬁrm / Select menu

options / Push to stop / resume playback of radio channel

13. /

Rotate to adjust the volume level

14. LED indicator for battery charging status

15. DC IN Jack

16. Line output jack 3.5 mm

17. Earphone jack 3.5 mm

LINEOUTDCIN5V

7 2 5 8 3

6910

15 16 17

Location of Controls

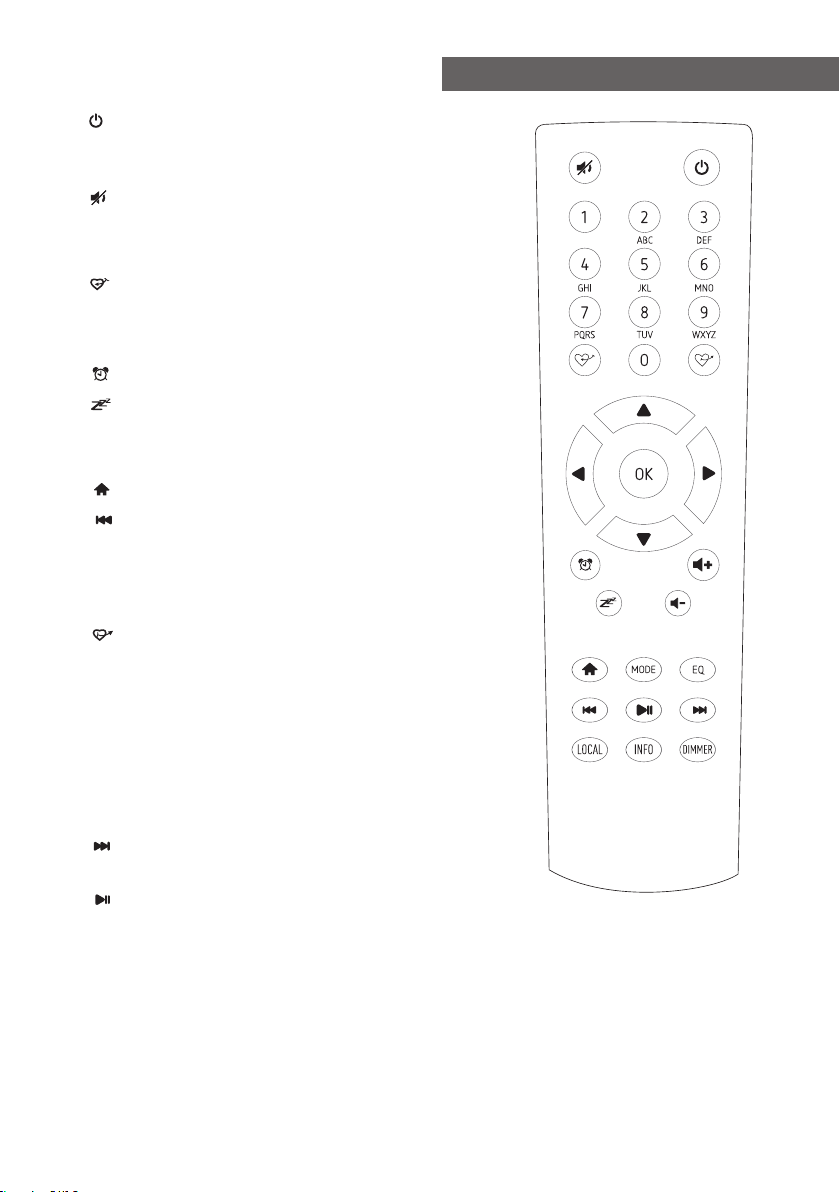

1. : Press to toggle between Standby and

Operation (applicable only when Standby is

enabled with power connected to the radio)

2. : Mute

3. 0-9: Input index number on the list / input

characters for WiFi password

4. : Preset the current playing station to Favorite

5. ▲ : Cursor up

6. ◄ : Cursor left / back to previous menu

7. : Alarm button

8. : Sleep Timer

9. Mode: Switch between Internet

radio/Bluetooth/Media Centre

10. : Main Menu

11. : Previous station on the list/previous track on

bluetooth/Media Centre

12. Local: Access the local station list

(Local area set up in Configuration)

13. : Recall the favorite list

14. OK: confirm button

15. ► : Cursor right

16. ▼: Cursor down

17. Vol+: Volume up

18. Vol-: Volume down

19. EQ: Equalizer

20. : Next station on the list/next track on

bluetooth/Media Centre

21. : Play/pause for Bluetooth/Media Centre

Play/stop for Internet radio

22. Dimmer: Access the Dimmer menu to adjust the

brightness of the display

23. Info: Quick access to Network and System

information

- 02 -

Remote Control

- 03 -

Using remote control

On the alpha-numeric keypad, press the button repeatedly to cycle through the

characters assigned to each button. Refer to the following list.

To input a character, highlight it and press the ► button to conﬁrm and input the next

character. When it comes to the last character of the password, press [OK] to

complete the entry.

Button 1: 1 and different kind of symbols !@#$%^&*()_+[]{};:'”\|,./<>?

Button 2: 2ABCabc

Button 3: 3DEFdef

Button 4: 4GHIghi

Button 5: 5JKLjkl

Button 6: 6MNOmno

Button 7: 7PQRSpqrs

Button 8: 8TUVtuv

Button 9: 9WXYZwxyz

Button 0: 0

Using control button on the radio unit

Use the [Dial/Select] knob to scroll through the characters, highlight it and press

[ ► ] button to conﬁrm and input the next character. When it comes to the last

character of the password , press [Dial/Select] to conﬁrm and complete the entry.

Note: The password is case sensitive.

How to input password for your wireless network

- 04 -

Please ensure the following is ready:

You have a broadband internet connection.

A wireless broadband router is connected to the internet successfully. The radio

supports Wireless B, G and N connection (Wireless N router can also be used with

the setting on B or G). You know the Wired Equivalent Privacy (WEP) or Wi-Fi

Protected Access (WPA) data encryption code/password. You need to key in the

correct code when the radio is connected to the wireless router for network

connection. If you do not know the code/password, please contact the

person/technician who set up the router/network for you.

The radio can work via Wireless network connection (Wi-Fi connection).

Precautions

The radio should not be used in a high temperature or high humidity environment

over prolonged periods of time as this may damage the unit.

Keep the radio away from liquids as it may get damaged. Please switch off the radio

immediately if water or liquids is spilled into the radio. Consult with the shop you

bought this radio for any question.

Avoid using or storing the unit in dusty or sandy environment. Do not open and

repair the radio by yourself.

Clean only with dry cloth.

Before you start

- 05 -

The radio is powered by the built-in lithium battery. A USB cable is supplied in the

product package.

Press and hold the [ ] button to power on.

To power off the radio, press and hold the same button.

The Standby mode is enabled only when the power is connected and so to make use

of the Alarm clock function.

Connect the power supply to the radio, press and hold the [ ] button to turn it on.

Pressing the [ ] button again will put the radio into standby.

Getting started/Charging battery

You can check the level of battery power remains on the radio.

There is a battery power indicator showing on the top row of the screen.

When battery power is low, the battery indicator keeps blinking as a reminder for

battery charging.

To charge the battery, connect the micro USB plug to the port where located at the

rear side of the radio, connect the other end to a power source supplied in 5V OUT

(the rating of the electric current is minimum 1A or higher), The LED on the rear side

of the radio will light up in red indicates the battery is charging. The charging icon

will appear on the screen.

When charging is done, the LED on the rear side will turn to green and the icon on

screen will change to . it means the radio has the power connected.

Note: The charging might take much longer to complete if the radio is playing

while charging.

2. Charging battery

1. Getting started

- 06 -

Internet connection can be setup via Wireless network (WiFi).

Your radio requires a broadband Internet connection.

• If this is ﬁrst time use, the Conﬁgure Network wizard will be displayed. Choose Yes

to start conﬁguring network. Press the [ ◄ ] button to highlight Yes and press

[Dial/Select] to conﬁrm.

• Select Add/Remove AP from the list, use the [Dial/Select] knob to scroll and press

it to conﬁrm, then choose Add AP (Scan):

• It will start scanning the Wi-Fi networks available. Scroll to your network and press

[OK] to conﬁrm. If your wiﬁ network has a password protected, it will ask you to

enter the passphrase/password. Please refer to the above section 'How to input

password for your wireless network' on P.3.

Note: The password is case sensitive. Please consult with the one who setup your

network if you don't know the password.

• When the Wi-Fi connection is successful, the Association Complete will be shown

brieﬂy. The wiﬁ signal bar will appear on the top left corner of the display:

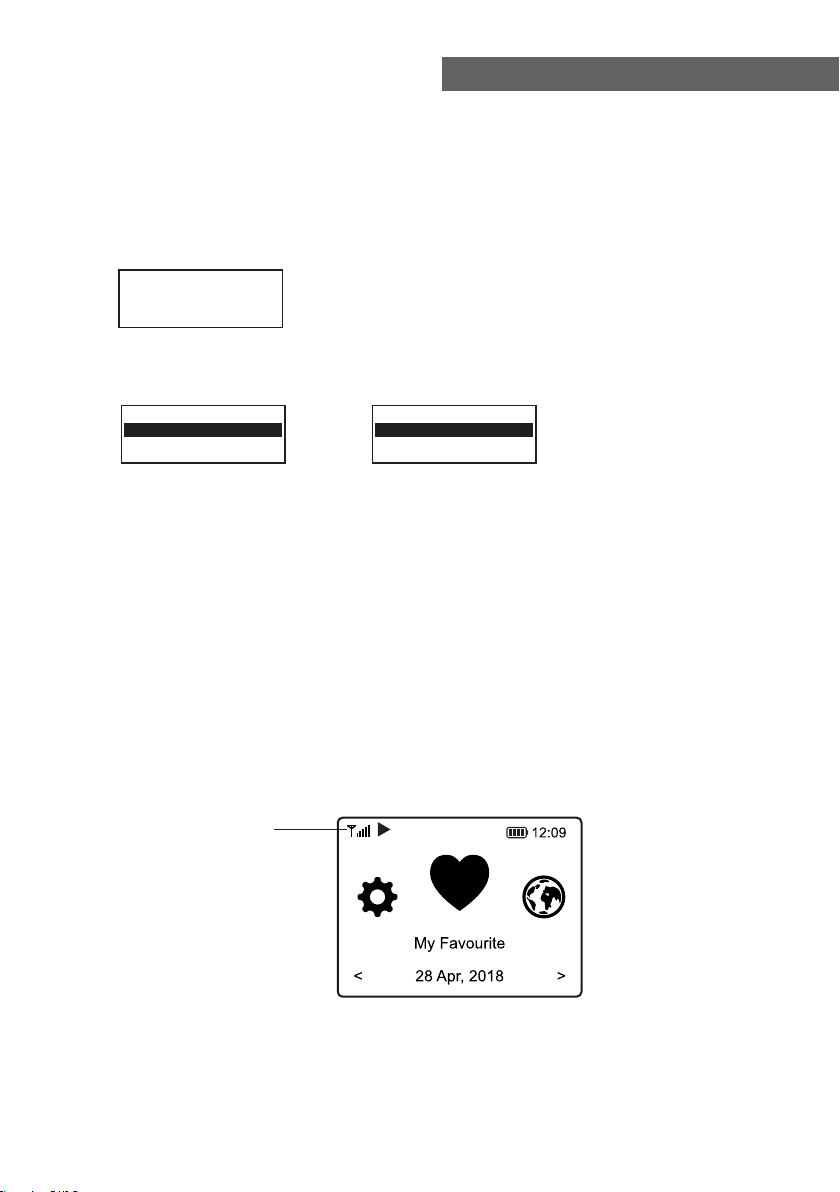

3. Network Setup

Add AP

Remove AP

Add/Remove AP

AP:[ ]

Configure Network?

<Yes> No

Wi-Fi signal bar

- 07 -

Press [ ] to enter the main menu. Scroll by rotating the [Dial/Select] knob or the

[ ◄ / ► ] button on remote:

My Favorite - To show the list of favorite stations which have been assigned to the

presets. There are up to 99 presets available.

Internet Radio - Start exploring the worldwide radio stations and music here.

Media Centre - You can browse and stream music from your network via UPnP or

DLNA Compatible devices.

Bluetooth - Bluetooth playback, to play audio stream (receive) from another

Bluetooth enabled device after pairing/connected each other.

Alarm - Alarm clock. Two alarm settings available. (It works only when the power is

connected and standby is enabled)

Sleep Timer - Enable the timer to turn the radio off after the selected time elapsed.

Conﬁguration - More options/settings available to personalize as you desire.

4. Overview of features and functions
