Ocean Digital WR-800D Manual de usuario

Please read this user manual carefully before using the receiver.

WR-800D

Stereo Internet Radio

User Manual

Please read this user manual carefully before using the receiver

- 3 -

Location of Controls .......................................................... ......... 4

Remote control ..........................................................................6

Entering the passcode of the wireless network .............................7

1. To start up ............................................................................9

2 10. Network Setup ...................................................................

3 11. Overview of features and functions ......................................

4. Internet Radio ....................................................................12

5 14. Media Centre .....................................................................

6. DAB+/DAB Radio ...............................................................15

7. FM Radio ...........................................................................16

8. Bluetooth playback .............................................................17

9. Alarm Setting .....................................................................18

10. Sleep Timer Setting ............................................................19

11. Conﬁguration .....................................................................20

12. Remote control via PC / Smart phone

- Tuning internet radio & manage favourite ...........................25

13. Trouble Shooting ................................................................28

Helpful Tips .............................................................................30

Technical Speciﬁcation .............................................................31

In the box ................................................................................32

Contents

- 4 -

Location of Controls

1 2 3 4 5 6 7 89

10 11 13 14

16 17 18 19

- 5 -

Press to toggle between Standby & Operational

Press to display the sleep timer intervals: 15/30/45/60/90/120/180 minutes

Press to recall Favorite list; long press to add a playing station to favorite list

4. Preset button 1-3

Assign the top 3 favorites to the button 1-3

Press and hold to preset

Press it brieﬂy to recall

Access Home screen/Press this button to return to the now playing screen (or

until you see the now playing station)

6. ◄

Press to return to the last level up

7. ►

Press to display various information under the now playing screen; enter the

Favorite's edit menu by long pressing the button

8. 3.5mm headphone jack

9. Remote sensor

10. Micro SD/TF card slot

Micro SD/TF card playback (insert the card with metal contacts up)

11. VOLUME/MUTE

Rotate to adjust volume, press to mute

12. TFT color screen 2.8''

13. NAVIGATE/ENTER

Rotate to dial up / down, press to Enter

14. Speaker

15. Power on/off switch

16. DC IN Jack

17. Line out jack 3.5 mm

18. Aux in jack 3.5 mm

19. Telescopic antenna

Location of Controls

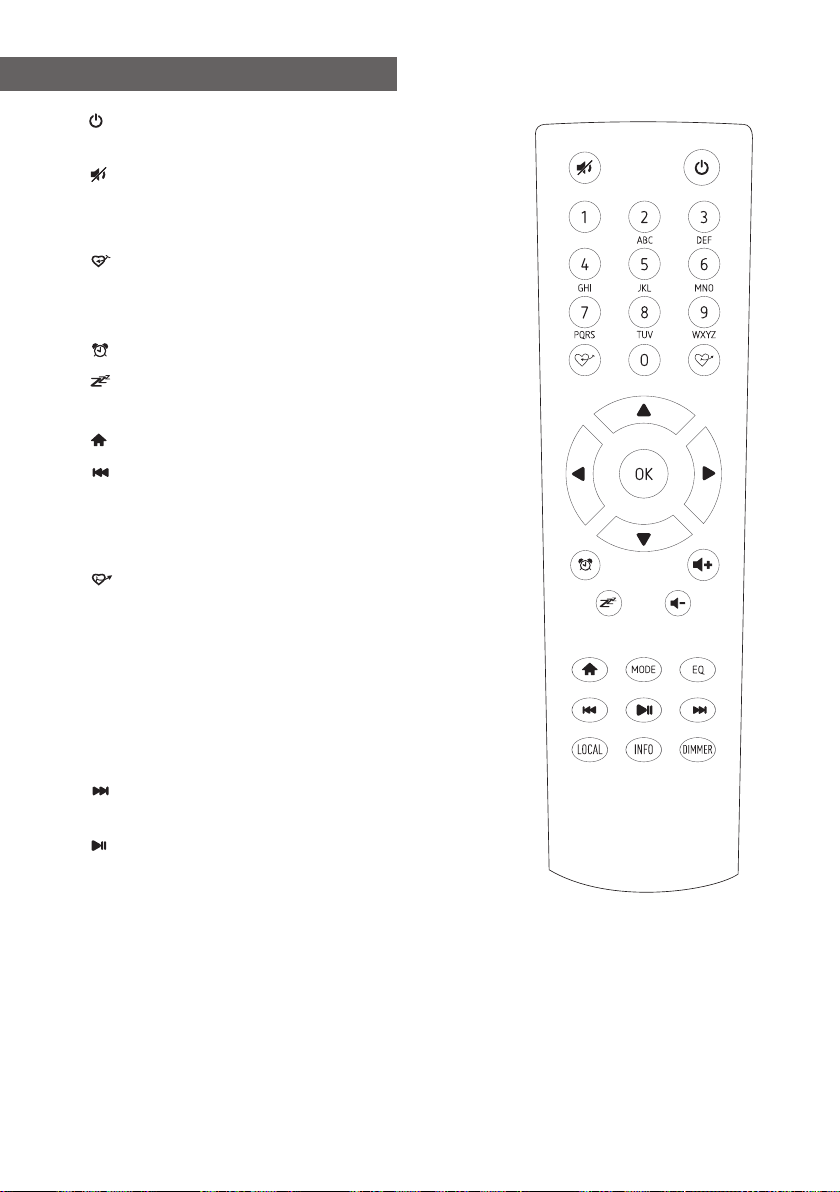

- 6 -

1. : Press to toggle between Standby and

Operation

2. : Mute

3. 0-9: Input index number on the list / input

characters for WiFi passcode

4. : Preset the now playing station to Favorite

5. ▲ : Cursor up

6. ◄ : Cursor left / back to previous menu

7. : Alarm button

8. : Sleep Timer

9. Mode: Switching between the radio modes

10. : Home

11. : Previous station on the list/previous track on

bluetooth/Media Centre

12. Local: Access the local station list (The region

can be set up in Configuration)

13. : Recall the favorite list

14. OK: confirm button

15. ► : Cursor right

16. ▼: Cursor down

17. Vol+: Volume up

18. Vol-: Volume down

19. EQ: Equalizer

20. : Next station on the list/next track on

bluetooth/Media Centre

21. : Play/pause for Bluetooth/Media Centre

Play/stop for Internet radio

22. Dimmer: Access the Dimmer menu to adjust the

brightness of the display

23. Info: Quick access to Network and System

information

Remote Control

- 7 -

Using remote control

On the alpha-numeric keypad, press the button repeatedly to cycle through the

characters assigned to each button. Refer to the following list.

To input a character, highlight it and press the [ OK ] button to conﬁrm and input the

next character. When it comes to the last character of the password, press and hold

[OK] to complete the entry.

Button 1: 1 and different kind of symbols !@#$%^&*()_+[]{};:'”\|,./<>?

Button 2: 2ABCabc

Button 3: 3DEFdef

Button 4: 4GHIghi

Button 5: 5JKLjkl

Button 6: 6MNOmno

Button 7: 7PQRSpqrs

Button 8: 8TUVtuv

Button 9: 9WXYZwxyz

Button 0: 0

Using control button on the radio unit

Use the [NAVIGATE / ENTER] knob to scroll through the characters, highlight it and

press [NAVIGATE / ENTER] knob to conﬁrm and input the next character. When it

comes to the last character of the password , press and hold [NAVIGATE / ENTER]

to conﬁrm and complete the entry.

Note: The password is case sensitive.

Entering the passcode of the wireless network

- 8 -

Please ensure the following is ready:

You have a broadband internet connection.

A wireless broadband router is connected to the internet successfully. The radio

supports Wireless B, G and N connection (Wireless N router can also be used with

the setting on B or G). You know the Wired Equivalent Privacy (WEP) or Wi-Fi

Protected Access (WPA) data encryption code/password. You need to key in the

correct code when the radio is connected to the wireless router for network

connection. If you do not know the code/password, please contact the

person/technician who set up the router/network for you.

The radio can work via Wireless network connection (Wi-Fi connection).

Precautions

The radio should not be used in a high temperature or high humidity environment

over prolonged periods of time as this may damage the unit.

Keep the radio away from liquids as it may get damaged. Please switch off the radio

immediately if water or liquids is spilled into the radio. Consult with the shop you

bought this radio for any question.

Avoid using or storing the unit in dusty or sandy environment. Do not open and

repair the radio by yourself.

Clean only with dry cloth.

Before you start

- 9 -

• Remove internet radio from the package box.

• Plug in the power adapter and turn the radio on by the power switch located at the

rear panel of the radio.

◦ Caution: Use only the adaptor supplied with the radio. Connecting a power

supply with a different rating will cause permanent damage to the radio and may be

hazardous.

Once the radio is powered on, the ﬁrst thing is to choose the preferred language.

Rotate the [NAVIGATE/ENTER] knob and press to conﬁrm the choice.

1. To start up

- 10 -

Internet connection is setup via Wireless network (WiFi).

A broadband internet connection is required.

• If this is ﬁrst time use, the Conﬁgure Network wizard will be displayed. Choose Yes

to start conﬁguring network. Press the [ ◄ ] button to highlight Yes and press

[NAVIGATE/ENTER] to conﬁrm.

• Select Add/Remove AP from the list, use the [NAVIGATE/ENTER] knob to scroll

and press it to conﬁrm, then choose Add AP (Scan):

• It will start scanning the Wi-Fi networks available. Scroll to your network and press

[NAVIGATE/ENTER] or [OK] on remote control to conﬁrm. If your wiﬁ network has a

password protected, it will ask you to enter the passphrase/password. Please refer

to the above section ‘Entering the passcode of the wireless network' on P.7.

Note: The password is case sensitive. Please consult with the one who setup your

network if you don't know the password.

• When the Wi-Fi connection is successful, the Association Complete will be shown

brieﬂy. The wiﬁ signal bar will appear on the top left corner of the display:

2. Network Setup

Wi-Fi signal bar

12:01am

Conﬁgure Network?

Yes No

←to previous →to next SelectOK whendone

12:01am

Network Options >

Wi-Fi Channels >

< Add/Remove Ap >

AP:[] >

Network 3/7

12:01am

Add/Remove AP 1/4

< Add AP(Scan) >

Add AP(WPS button) >

Add AP(SmartConﬁg) >

Remove AP >
