QuickStartGuide

3-PhasePMSM Motor Control DevelopmentKit

withMPC5744PMCU

MTRCKTSPS5744P

Quick Start Guide

3-Phase PMSM Motor Control Development Kit

with MPC5744P MCU Contents

Hardware

•MPC5744P controller board

•3-phase PMSM/BLDC low-

voltage power stage based on the

MC33937A pre-driver integrated

circuit

•3-phase PMSM motor with

resolver, 25V per phase, 3000

RPM, 0.51Nm, 160W, 7.6A,

TGN2-0054-30-36,

Motor parameters available @:

www.tgdrives.cz/en/servomotors/

•USB cable

•+24 VDC power supply

Resource

•Modular PMSM application

source code configured for this

development kit

•Automotive Math and Motor

Control Library set for MPC5744P

installation package

•FreeMASTER installation pack

•FreeMASTER project with MCAT

•3-phase PMSM development

quick start guide

•3-phase PMSM development fact

sheet

•Dual 3-phase PMSM

development kit with MPC5744P

application note AN12017

•MTRCKTSPS5744P

Development Kit user guide

Quick Start Guide

Get To Know The MPC5744P Controller Board

Board

Descriptor

Board

Descriptor

Board

Descriptor

Board

Descriptor

Board

Descriptor

Board

Descriptor

Board

Descriptor

Board

Descriptor

Figure 1: Front side of MPC5744P Controller Board

Quick Start Guide

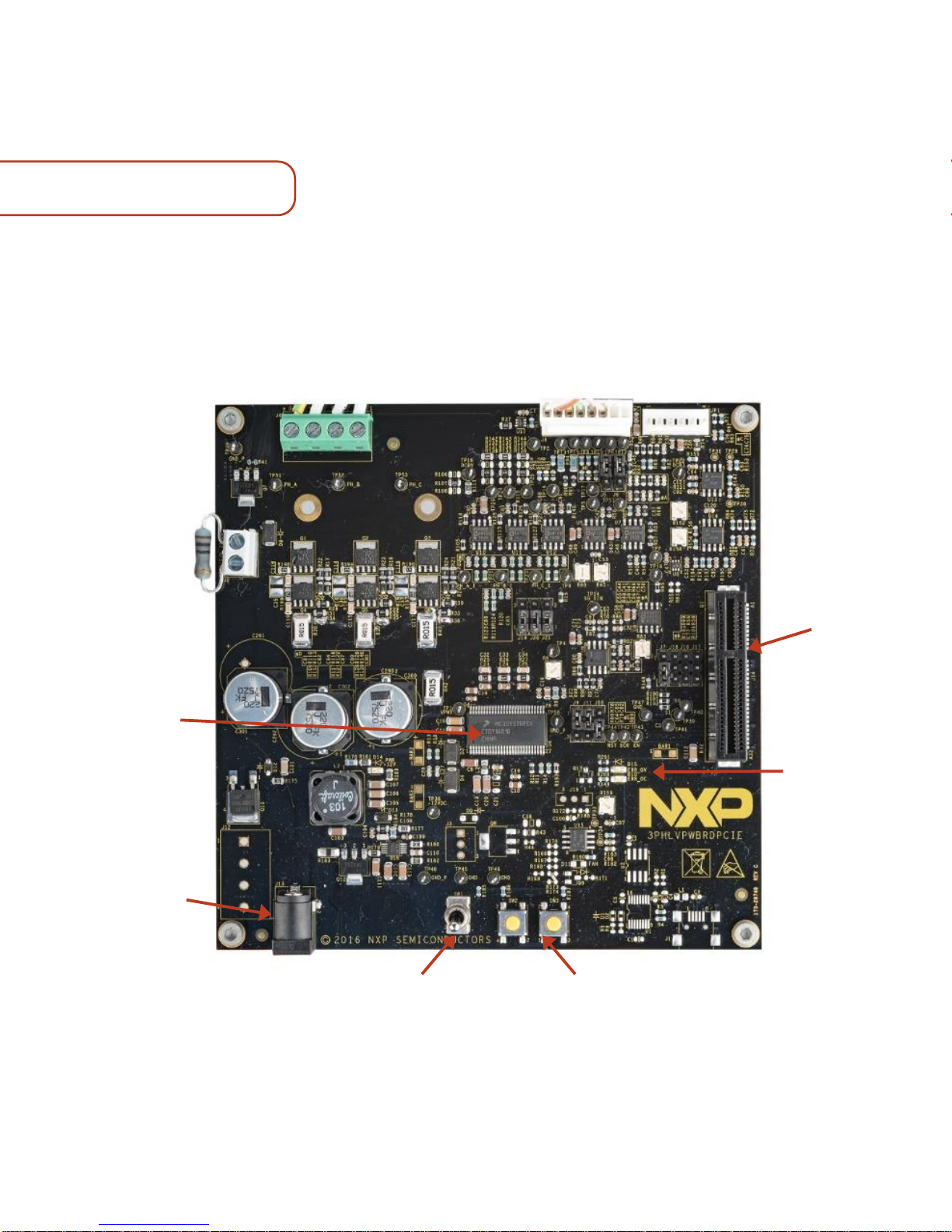

Get To Know The 3-Phase Low-Voltage Power

Stage Board

PWM 3-Phase

Outputs

Over Voltage

and Over

Current fault

indication LEDs

Power Plug

Application

ON/OFF Switch

Resolver

interface

PCI-Express

Interface

MC33937A

Pre-Driver

UP/DOWN Speed

Control Buttons

Figure 2: Front side of 3-Phase Low-Voltage Power

Stage Board

HALL / Encoder

interface

Brake

Resistor

Quick Start Guide

MTRCKTSPS5744P

FEATURES

•NXP MPC5744PMCU Controller

Board with JTAG and NEXUS

debug interface

•3-phase low-voltage power stage

based on

SMARTMOS®MC33937A pre-

driver

•Supports low-voltage PMSM

motors with resolver position

sensor

•DC-bus overvoltage, overcurrent,

and undervoltage fault detection

•ANSI-C based example Software

and Hardware in S32DS IDE for

Power Architecture-based MCUs

•FreeMASTER Tool for Project

visualization

•MCAT tool 1.0 part of S/W

package

•Extensive documentation for

S/W and H/W

STEP-BY-STEP

INSTRUCTIONS

This section covers software download,

development kit setup, and application

control.

Install the FT230x virtual COM port driver.

Visit ftdichip.com/drivers/vcp.htm to

download the correct driver. Select the

virtual COM port (VCP) driver based on your

operating system and processor

architecture.

Download installation software

and documentation under

“MPC56xx/MPC57xx

Development Kits” at

nxp.com/automcdevkits

Download

Software

Download Necessary

Drivers

www.nxp.com

3. Connect the power supply to the

power stage. The controller board

power supply is taken from the

power stage. The PMSM motor is

designedfor phase voltage = 25V.

Run “Device Manager” on your

system and determine which COM

port was assigned to the FTDI COM

port driver.

Virtual COM Port Setup

WARNING: Make sure to perform the

following steps in order. The power stage

cannot be powered without the controller

board when Brake Resistor (J2) is

populated. The absence of the controller

board leads to a high BRAKE_GATE signal,

and a large current flows through the

BRAKE_RESISTOR. This creates a

considerable burn hazard, as the resistor

will dissipate enough heat to harm on

contact. If PWM braking is used, software

must explicitly control the BRAKE_GATE

signal. Thus, the power stage board must

always be connected to the controller board.

1. Connect the USB cable to the

MPC5744P controller board and the

host PC.

2. Connect the controller board (using

PCIe connector J1) to the power

stage.

Kit setup (part 1/3)

STEP-BY-STEP INSTRUCTIONS (cont.)

Start the FreeMASTER project

MPC5744P_PMSM_FOC_MCAT.pmp

located in

MTRCKTSPS5744P\sw\FreeMASTER

_control project directory.

Kit setup (part 2/3)

In FreeMASTER\Project\Options,

choose the RS232 COM port

number that was assigned

to the virtual COM port driver and set

the communication speed to 115200

Bd.

Enable communication by pressing the

“STOP” button in FreeMASTER or by

pressing “CTRL-K.”

Kit setup (part 3/3)

www.nxp.com

Yellow LEDs D18, D19, D20 (for motor on

J200 side) and D1, D2, D3 (for motor on J1

side) have the following functionality:

•D18 (D1) flashes if application is READY

•D19 and D20 (D2 and D3) flash if

application is in CALIB or ALIGN state

•D18, D19, and D20 (D1, D2, and D3) are

ON if application is in RUN state

•D18, D19, and D20 (D1, D2, and D3)

flash quickly if application is in FAULT

state

Application Control

(part 1/8)

If no actual faults are present in the

system, all the LED-like indicators on

the FreeMASTER control page will be

dark red. If there is a fault present,

identify the source of the fault and

remove it. The fault has been

successfully removed when the

respective LED-like indicator on the

FreeMASTER control page turns off.

Application Control

(part 2/8)

STEP-BY-STEP INSTRUCTIONS (cont.)

Press the UP + DOWN buttons

(SW2+SW1 on the MPC5774P

controller board) simultaneously to

clear the fault status register once in

the FAULT state. The application can

be restarted by positioning the

RUN/STOP switch (SW1 on the Power

Stage board) to the RUN position

(transition from STOP to RUN in case

the switch was in the RUN state when

the fault event occurred).

Application Control

(part 3/8)

If all the LED-like indicators on the

FreeMASTER control page are off,

clear pending faults by pressingthe

green circled button “FAULT CLEAR”

on the FreeMASTER control page, or

alternatively by pressing the

UP+DOWN buttons (SW2+SW3 on the

Power Stage board) simultaneously.

The RUN/STOP switch (SW1 on the

Power Stage board) must be in STOP

position.

Application Control

(part 4/8)

www.nxp.com

Start the application by pressing 1 -

“RUN” on the flip/flop (ON/OFF)

switch on the FreeMASTER control

page or by positioning the RUN/STOP

switch (SW1 on the Power Stage

board) to the RUN position (transition

from STOP to RUN in case the switch

was in the RUN state when a fault

event occurred)

Application Control

(part 5/8)

Enter the required speed by assigning

this value to the “Nreq” variable in the

variables watch window. The value is

in revolutions per minute.

Alternatively, the rotor speed can be

increased/decreased by pressing the

UP/DOWN switches on the Power

Stage Board –SW2/SW3

respectively.

Application Control

(part 6/8)

STEP-BY-STEP INSTRUCTIONS (cont.)

Stop the application by pressing 0 -

“STOP” on the flip/flop (ON/OFF)

switch on the FreeMASTER control

page, or by positioning the RUN/ STOP

switch (SW1 on the Power Stage

board) to the STOP position.

Application Control

(part 7/8)

RESET the application anytime by

pressing the SW1 on the

MPC5744P controller board.

Application Control

(part 8/8)

Quick Start Guide

Jumper

Option

Setting

Description

MCRGM_ABS1

MCRGM_ABS2

MCRGM_FAB

1-2

1-2 Single Chip Mode configuration (default)

J12 SBC 1-2 SBC configured in debug mode (default)

J25 M1_RX

M2_RX 1-2

2-3 Serial Communications Receive (LINFLEX)

J26 SINE-WAVE

1-2

2-3

Resolver excitation from SW_GEN (not used)

PCIe connector J1

PCIe connector J200

J27 M1_TX

M2_TX 1-2

2-3 Serial Communications Transmit (LINFLEX)

MPC5744P Controller Board

Jumper Options

www.nxp.com

3-Phase Low-Voltage Power Stage

Jumper Options

Jumper

Option

Setting

Description

J5 Resolver

Sin-Cos

1-2

2-3

Resolver S4 output enters operational amplifier (default)

DC offset compare value

J6 Resolver

Sin-Cos

1-2

2-3

Resolver S3 output enters operational amplifier (default)

DC offset compare value

J7 Resolver 2-3

1-2

Resolver excitation –square signal (default)

Resolver excitation –SWG source

J9 DC-bus

Current

measurement

1-2

2-3

By an external operational amplifier (default)

By a MC33937

J10 Overcurrent

threshold

reference

1-2

2-3

+5V DC

V_ref (default)

J11 Over Current

fault 1-2

2-3

External comparator (default)

MC33937 output

Tabla de contenidos

Otros manuales de Microcontrolador de NXP Semiconductors

NXP Semiconductors

NXP Semiconductors Kinetis KE1xZ256 Manual de usuario

NXP Semiconductors

NXP Semiconductors PN7462AU Manual de usuario

NXP Semiconductors

NXP Semiconductors KITMPXA6115AEVB Manual de usuario

NXP Semiconductors

NXP Semiconductors QN908 series Manual de usuario

NXP Semiconductors

NXP Semiconductors TWR-KV31F120M Manual de usuario

NXP Semiconductors

NXP Semiconductors MPC5746R Guía

NXP Semiconductors

NXP Semiconductors S12VR32EVB Manual de usuario

NXP Semiconductors

NXP Semiconductors SE050 Manual de usuario

NXP Semiconductors

NXP Semiconductors JN517x-DK005 Manual de usuario

NXP Semiconductors

NXP Semiconductors LPC5500 Series Manual de referencia

NXP Semiconductors

NXP Semiconductors freescale Kinetics TWR-K60N512-KEIL Manual de usuario

NXP Semiconductors

NXP Semiconductors MPC5777C Manual de usuario

NXP Semiconductors

NXP Semiconductors KE17Z Series Manual de usuario

NXP Semiconductors

NXP Semiconductors IoT ZTB-DK006 Manual de usuario

NXP Semiconductors

NXP Semiconductors freescale semiconductor ColdFire MCF51CN128... Manual de usuario

NXP Semiconductors

NXP Semiconductors IOTZTB-DK006 Manual de usuario

NXP Semiconductors

NXP Semiconductors LPC1114 Manual de usuario

NXP Semiconductors

NXP Semiconductors WPR1500-BUCK Manual de usuario

NXP Semiconductors

NXP Semiconductors LPC11E Series Manual de usuario

NXP Semiconductors

NXP Semiconductors MPC5777M Guía del usuario

NXP Semiconductors

NXP Semiconductors FRDM-KW24D512 Manual de usuario

NXP Semiconductors

NXP Semiconductors SLN-VIZN3D-IOT Manual de usuario

NXP Semiconductors

NXP Semiconductors MC9S12G Manual de usuario

NXP Semiconductors

NXP Semiconductors MC9S12ZVMB-Family Manual de usuario

Manuales populares de Microcontrolador de otras marcas

AMS

AMS AS7261 Demo Kit Manual de usuario

Novatek

Novatek NT6861 Manual de usuario

Espressif Systems

Espressif Systems ESP8266 SDK Guía de configuración

Nuvoton

Nuvoton ISD61S00 ChipCorder Guía

STMicrolectronics

STMicrolectronics ST7 Assembler Linker Manual de usuario

Texas Instruments

Texas Instruments Chipcon CC2420DK Manual de usuario

Lantronix

Lantronix Intrinsyc Open-Q 865XR SOM Manual de usuario

NEC

NEC 78GK0S/K 1+ Series Instrucciones de instalación y funcionamiento

Mikroe

Mikroe SEMITECH N-PLC Click Instrucciones de instalación y funcionamiento

Intel

Intel Agilex Manual de usuario

Cypress

Cypress CY4607 HX2VL Manual de usuario

DIGITAL-LOGIC

DIGITAL-LOGIC MICROSPACE Manual de usuario

Texas Instruments

Texas Instruments TMS320F2837 D Series Manual de usuario

CYPRES

CYPRES CY14NVSRAMKIT-001 Manual de usuario

Texas Instruments

Texas Instruments INA-DUAL-2AMP-EVM Manual de usuario

Espressif Systems

Espressif Systems ESP8266EX Instrucciones de funcionamiento

Abov

Abov AC33M8128L Manual de usuario

Laird

Laird BL654PA Manual de usuario
