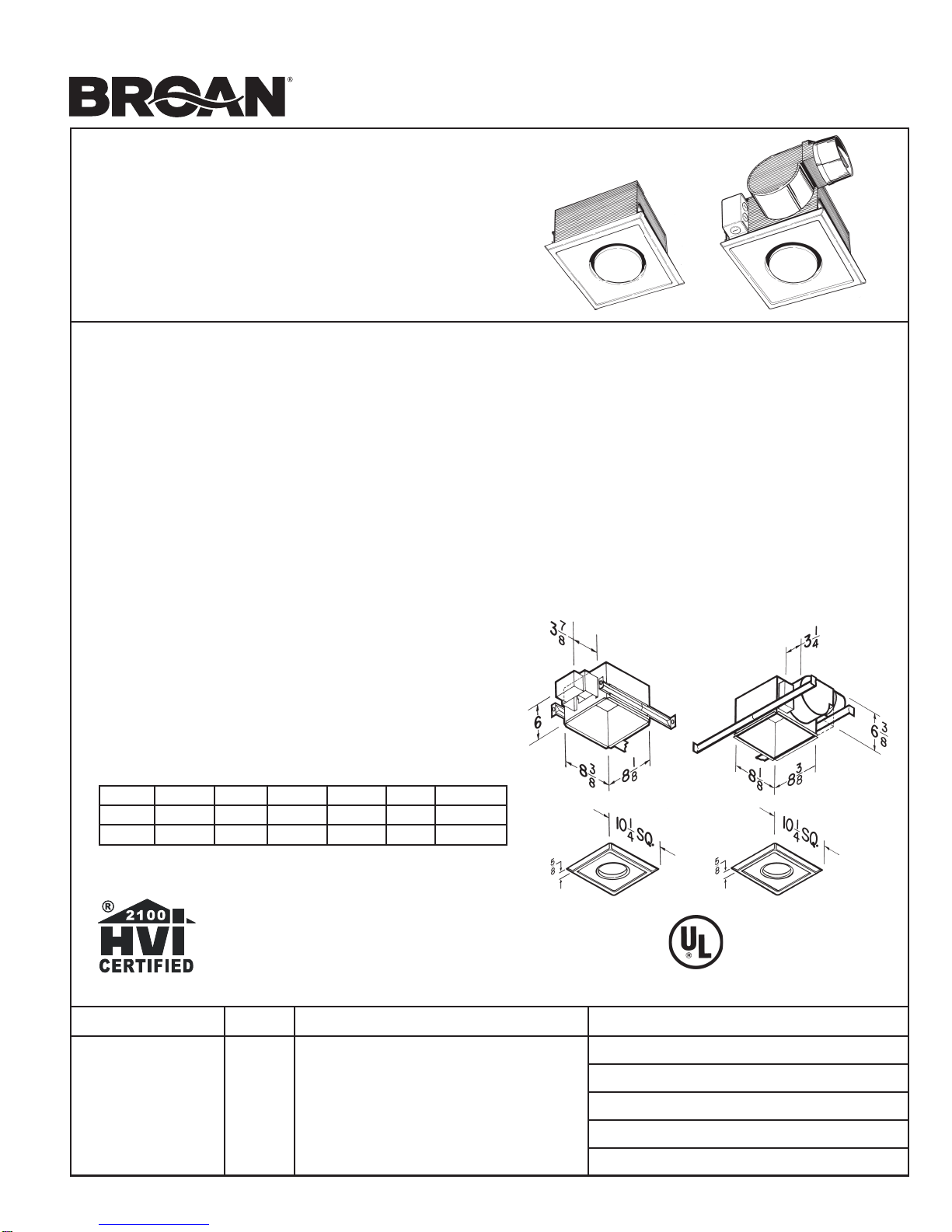

SPECIFICATION SHEET

REFERENCE QTY. REMARKS Project

Location

Architect

Engineer

Contractor

Submitted by Date

MODELS 161 & 162

INFRARED

BULB HEATERS

Silentwarmthandthechoiceofaddedventilationin

a compact design.

FEATURES

•White-white polymeric grille

•Sturdy steel housing

•Adjustable mounting brackets that span up to 24"

•Housing can be adjusted vertically after ceiling is finished

•Uses 250W BR40-size infrared bulb (not included)

•May be used with the following Broan controls:

Model 59W/V, 60-Minute Time Control

Model 61W/V, 15-Minute Time Control

Model 63W/V, 60-Minute Time Control w/ Toggle Switch

Model 64W/V, Heater-Fan Control w/Off Delay

Model 68W/V, Two-Function Control (Model 162 only)

MODEL 162 BULB HEATER/FAN ONLY:

•Plug-in, permanently lubricated motor

•Quiet, polymeric blower wheel

•Polymeric damper/duct connector with 1-5/8" long tapered

sleeve and no metallic clatter

•Heat and Vent functions may be controlled separately or

in combination

•Model 162 suitable for use in insulated ceilings (Type I.C.)

•Model 162H: Rough-in housing for Model 162F. Packed

4 per carton.

•Model 162F: Finish assembly for Model 162H. Packed 4

per carton.

SPECIFICATIONS

50F 99041436K

Model 162Model 161

MODEL VOLTS AMPS WATTS* SONES CFM DUCT

161 120 2.1 250** ---- ---- ----

162 120 2.5 300** 3.5 70 4" Round

* Total Connected Load

** BR40-size Infrared Bulbs. Use house wiring rated 75°C min. for Model

161, 60°C min. for Model 162.

TYPICALSPECIFICATION

Bulb heater shall be Broan Model 161 (Broan Model 162).

Heater shall have corrosion resistant steel housing and

adjustable mounting brackets.

Unit must use a 250W BR40-size infrared bulb. Bulb Heater

to be U.L. Listed.

MODEL 162 BULB HEATER/FAN ONLY:

Motor assembly to be removable and permanently lubricated.

Non-metallic damper/duct connector to be included.

Heater and ventilator to operate separately (or in combination).

Air delivery shall be no less than 70 CFM and sound level no

greater than 3.5 Sones. All air and sound ratings shall be

certified by HVI. Model 162 suitable for use in insulated

ceilings (Type I.C.)

Broan-NuTone LLC, 926 West State Street, Hartford, WI 53027 (1-800-637-1453)

HVI-2100 CERTIFIED RATINGS comply with new testing

technologies and procedures prescribed by the Home Ventilating

Institute, for off-the-shelf products, as they are available to

consumers. Product performance is rated at 0.1 in. static

pressure, based on tests conducted in AMCA’s state-of-the-art

test laboratory. Sones are a measure of humanly-perceived

loudness, based on laboratory measurements.
