Industrial Ethernet Switch

Network Management Guide

608MFX-ST

608MFXE-ST-15

608MFXE-ST-40

608MFXE-ST-80

578 Azalea Rd. Suite 105

Mobile, AL USA 36609

N-TRON Corp. is prohibited, except as allowed under copyright laws.

Ethernet is a registered trademark of Xerox Corporation. All other product names, company names,

logos or other designations mentioned herein are trademarks of their respective owners.

The information contained in this document is subject to change without notice. N-TRON Corp.

makes no warranty of any kind with regard to this material, including, but not limited to, the implied

warranties of merchantability or fitness for a particular purpose. In no event shall N-TRON Corp. be

liable for any incidental, special, indirect, or consequential damages whatsoever included but not

limited to lost profits arising out of errors or omissions in this manual or the information contained

herein.

Warning

Do not perform any services on the unit unless qualified to do so. Do not substitute unauthorized

parts or make unauthorized modifications to the unit.

Do not operate the unit with the top cover removed, as this could create a shock or fire hazard.

Do not block the air vents on the sides or the top of the unit.

Do not operate the equipment in the presence of flammable gasses or fumes. Operating electrical

equipment in such an environment constitutes a definite safety hazard.

Safety Warnings

ELECTRICAL SAFETY

WARNING: Disconnect the power cable before removing the enclosure

top.

WARNING: Do not operate the unit with the top cover removed.

WARNING: Do not work on equipment or cables during periods of

lightning activity.

WARNING: Do not perform any services on the unit unless qualified to do

so.

WARNING: Do not block the air vents.

WARNING: Observe proper DC Voltage polarity when installing power

input cables. Reversing voltage polarity can cause permanent damage to

the unit and void the warranty.

LASER SAFETY (608MFXE Versions Only)

WARNING: CLASS 1 Laser Product.

WARNING: Do not stare into the Laser Beam.

608MFX NETWORK CONFIGURATION

The N-TRON 608MFX is a product derivative of the OSM/ESM family jointly

manufactured by Siemens and N-TRON. Some of the software menus may refer to

the OSMTP62 (Optical Systems Module) or ESM (Electrical Systems Module) when

identifying the N-TRON 608MFX. These names are synonymous.

There are 3 main ways to configure and/or monitor the N-TRON 608MFX:

1. Command Line Interpreter - Serial Port

2. Command Line Interpreter - TELNET

3. SNMP (SNMP Host SW not supplied by N-TRON).

COMMAND LINE INTERPRETER (CLI)

You can configure and/or query all the important parameters of a 608MFX using a

command line interpreter. These functions may be accessed using the serial port

(marked V24) or via TELNET.

The CLI can be used for the following:

•To set the IP address and the subnet mask of the 608MFX.

•To assign new passwords for the 608MFX.

•To view/modify parameters of the 608MFX.

To access the CLI, connect a PC serial port to the 608MFX serial port (see HW

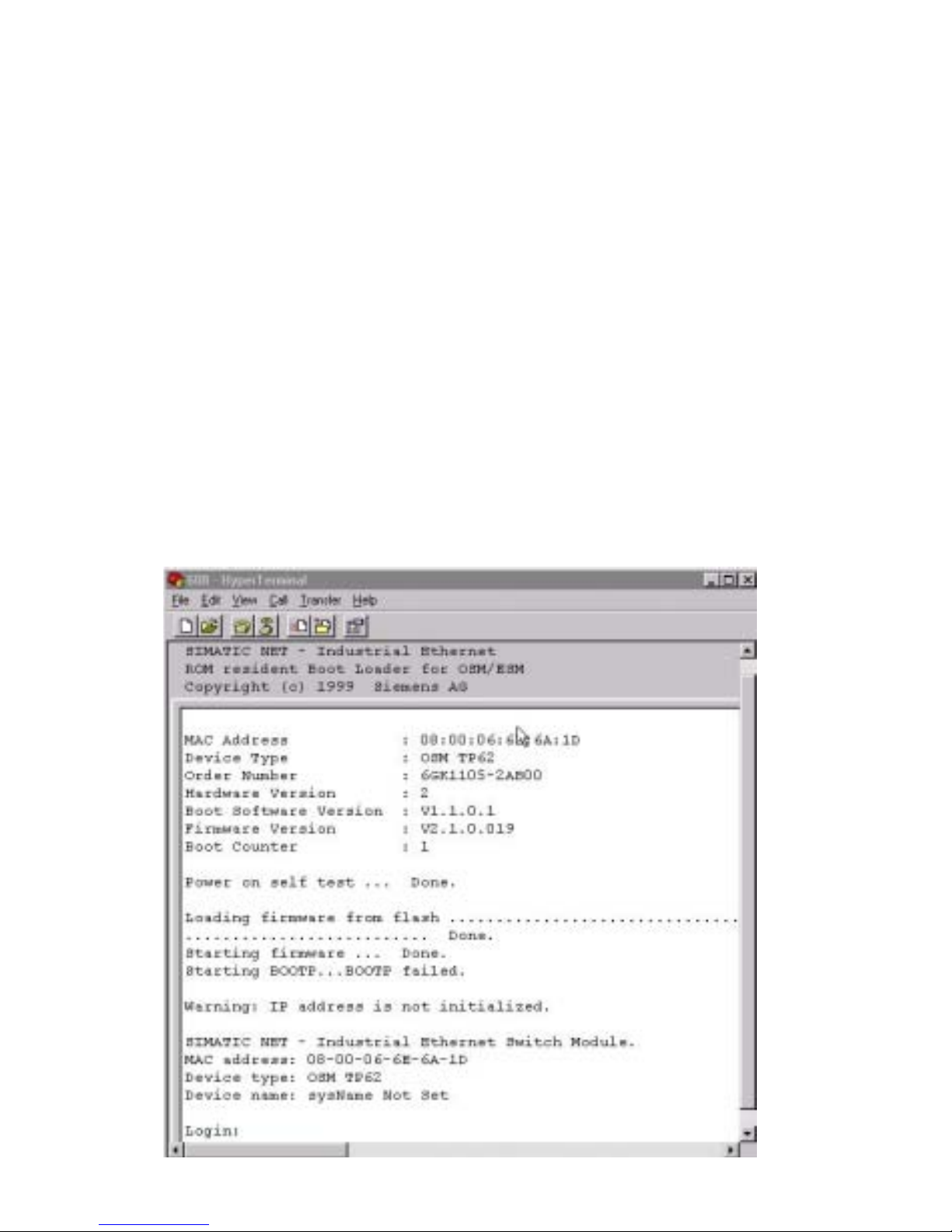

Installation guide). After a successful connection and reboot, the boot menu should

be displayed:

Password Protection

Access using the CLI is password–protected. You can log in as administrator or as

user (with different passwords). An administrator can read and modify 608MFX

parameters. a user can only read 608MFX settings. Note: The default admin

password is admin, and the default user password is user.

Once the connection has been established via the serial port or TELNET, the

following prompt appears:

Type in admin (for administrator) or user (for user) according to your access

permission and then press [Return].

Password:

Enter your administrator or user password and press [Return].

The CLI then displays the start menu and the prompt

CLI>

You can now activate the commands of the CLI.

Reset

You can reset the 608MFX by depressing and holding the Select/Set button. If

necessary, depress the Select/Set button until the diplay mode LEDs indicate the port

status (all diplay mode LEDs = OFF). Then, press the Select/Set button for at least 6

seconds. The diplay mode LEDs begin to flash after ~3 seconds, and then 2 seconds

later the 608MFX is reset (All LED’s go briefly on and then off again).

This also restores defaults to the 608MFX (except those that are persistent). The

reboot menu is displayed below.

CLI Commands

This section explains the commands of the CLI, their functions and syntax.

The commands that are available depend on the access level; in other words, whether

you logged in as user or as administrator. Table 3–2 contains an overview of the

commands available for the administrator and user. The command–line interface

provides functions comparable with those available in Web–Based Management.

Symbols

Table 3–1 explains the symbols used with the CLI commands.

Symbol Meaning

<> Mandatory entry

|Used to separate possible alternative input values in a command.

The factory default is shown on the extreme left. Only one of

the possible values can be selected.

Example:

aging <E|D>: You must either enter aging E (aging enabled) or

aging D (aging disabled), Eis the default.

[ ] Optional parameters. These options are used, for example, to be

able to address several port numbers at the same time. The

individual optional extensions are separated by commas; you

can address

groups using dashes.

Example:

If you enter the numbers 2,5- 8 in the [ports] field of a

command, this command applies to ports 2 and 5 to 8.

() Description of the commands.

Fast Input

To enter a command quickly, write the first letter or letters and then press the [Tab] key. If

the required command is not shown, press the [Tab] key again.

Example: The following example illustrates how to use CLI commands.

The command status <E | D> [ports] is used to enable or disable 608MFX ports. The user

enters the following: status followed by a blank and then the mandatory setting either E(=

enable) or D (= disable) and then the optional port numbers as described in Table 3–1. If you

do not enter a port number, the command applies to all ports.

•To enable the ports 2, 4, 6 to 8:

Enter status E 2,4,6-8 and confirm with [Return].

•To disable ports 1 and 5 to 8:

Enter status D 1,5-8 and confirm with [Return].

CLI Menus and Description

The following tables contain the commands, CLI menus and a brief description. If

there are several alternatives for a command parameter, the default is always the

value to the extreme left.

Start Menu

You can display all the other menus from the start menu. This is displayed

immediately after you login and includes the following commands:

Table 3–2 Start Menu Commands

Command Description Comment

/Returns you to the start menu

(available in every menu)

Home function

?Displays the current menu again

(available in every menu)

Refresh function

restart Restarts the 608MFX (available in

every menu).

Administrator only.

exit Closes the CLI/TELNET session.

(available in every menu.)

info Displays status information about

the 608MFX.

SYSTEM Opens the SYSTEM menu. The SYSTEM menu is

used to set the system

parameters.

Table 3–2 Start Menu Commands - Continued

OSM Opens the Optical Systems

Module menu.

You make the 608MFX–

specific settings (for

example fault mask) in

the OSM menu.

AGENT Opens the AGENT menu. You can enter the settings

for network management

(for example IP address)

in the agent menu.

SWITCH Opens the SWITCH menu. You can make global

settings for the 608MFX

in the switch menu.

PORT Opens the PORT menu. The port menu is used to

set the parameters of the

608MFX ports.

SERVICE Opens the SERVICE menu. In the SERVICE menu,

you can change the

password for

CLI/TELNET.

System Menu

In the System menu, you can make settings required for downloading new 608MFX

firmware from a TFTP server and for other system functions.

Table 3-3 Settings in the System Menu

Command Description Comment

info Displays the current system settings.

defaults Restores the defaults of the 608MFX

(complete reset).

Administrator only

The protected

settings are also

reset to their default

values.

Table 3-3 Settings in the System Menu – Continued

memreset Restores the defaults of the

608MFX. The device is

automatically restarted.

Administrator command

restores the factory settings of

the 608MFX. With the

exception of the ”protected

settings”, the settings made by

the user are reset to the default

values.

setsysc<string> Sets the syscontact MIB variable.

(To insert a blank in a string, use the

tilde (~) instead of a blank.)

Administrator only

setsysl <string> Sets the syslocation MIB variable.

(To insert a blank in a string, use the

tilde (~) instead of a blank.)

Administrator only

setsysn <string> Sets the sysname MIB variable. (To

insert a blank in a string, use the

tilde (~) instead of a blank.)

Administrator only

events

Show | Clear content of the event

log table.

Only the administrator can

delete the event log table.

The event log table contains all

the events that cause traps or

E–mails (when enabled). Other

fault/error events such as

communication errors are also

logged with the SMTP server.

The content of the event log

table is retained even when the

608MFX is turned off.

addlog <text> This command makes an entry in

the log of the 608MFX.

Administrator only

server

Sets the IP address of the TFTP

server from which the new firmware

for the 608MFX will be

downloaded.

Administrator only

fwname

< filename>

Enters the name of the file on the

TFTP server containing the new

608MFX firmware (max. 32

characters) possibly including

further path information (depending

on the configuration of the TFTP

server).

Administrator only

fwload Starts the firmware download from

the TFTP server.

Administrator only

Otros manuales para 608MFX-ST

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Cambiar de Ntron

Ntron

Ntron 524TX Manual de usuario

Ntron

Ntron 100-POE-SPL Instrucciones de instalación y funcionamiento

Ntron

Ntron 108M12 Manual de usuario

Ntron

Ntron 100-POE4 Instrucciones de instalación y funcionamiento

Ntron

Ntron 105TX-SL Manual de usuario

Ntron

Ntron 7018TX Instrucciones de instalación y funcionamiento

Ntron

Ntron 712FX4 Series Instrucciones de instalación y funcionamiento

Ntron

Ntron 604MFX-ST Manual

Ntron

Ntron NT24k Manual de usuario

Ntron

Ntron 709FX Series Instrucciones de instalación y funcionamiento

Ntron

Ntron ESERV-M12T Manual de usuario

Ntron

Ntron 710FX2 Series Instrucciones de instalación y funcionamiento

Ntron

Ntron 405FX-SC Manual de usuario

Ntron

Ntron 9000 Series Instrucciones de instalación y funcionamiento

Ntron

Ntron 716M12 Instrucciones de instalación y funcionamiento

Ntron

Ntron 608MFX-ST Manual de usuario

Ntron

Ntron 708M12 Instrucciones de instalación y funcionamiento

Ntron

Ntron 7506GX2 Series Instrucciones de instalación y funcionamiento

Ntron

Ntron 708 Series Manual del propietario

Ntron

Ntron 100-POE4-MDR Instrucciones de instalación y funcionamiento

Ntron

Ntron 7012FX2 Series Instrucciones de instalación y funcionamiento

Ntron

Ntron 105M12 Manual de usuario

Ntron

Ntron 7900 Series Instrucciones de instalación y funcionamiento

Ntron

Ntron 600 Series Manual de usuario

Manuales populares de Cambiar de otras marcas

URC

URC Total Control MFS-8 Manual de usuario

Azbil

Azbil HPQ-D11 Manual de usuario

Sony

Sony DFS-900M Manual de usuario

SICK

SICK i17S Manual de usuario

F&F

F&F SZR-277 Manual de usuario

Shure

Shure UAMS/BK Manual de usuario

Dräger

Dräger X-zone Switch Off Manual de usuario

Asco

Asco Joucomatic 349 Series Manual de usuario

BT Mini Hub Manual de usuario

D-Link

D-Link DES-1226G Manual de usuario

Johnson Controls

Johnson Controls FS80-C Manual de usuario

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Manual de usuario

MicroNet

MicroNet SP1200A Manual de usuario

Ruijie

Ruijie RG-PF2920 Series Manual de instalación y funcionamiento

Altinex

Altinex DA1914SX Manual de usuario

MiLAN

MiLAN MIL-SM2401M Manual de usuario

RJM

RJM MASTERMIND PBC/6X Manual de usuario

Atlas

Atlas MMK-KVM8 Manual de usuario
