Ntron NTSFP-LX-40 Instrucciones de instalación y funcionamiento
(Revised 2011-09-28)
1
1000 Series
Gigabit Media Converter &
Industrial Gigabit Ethernet Switch
User Manual &
Installation
Guide
(Revised 2011-09-28)
2
Industrial Gigabit Ethernet Switch Installation Guide
1002MC-SX 1000BaseSX multimode fiber media converter
1002MC-LX-YY 1000BaseLX singlemode fiber media converter
1003GX2-SX 1000BaseSX multimode fiber switch
1003GX2-LX-YY 1000BaseLX singlemode fiber switch
1003GX2-B Custom mix and match 1003GX2 switch
1005TX 5 port gigabit Ethernet switch
Where "YY" is: 10 for 10km max. fiber segment length
40 for 40km max. fiber segment length
80 for 80km max. fiber segment length
1003GX2-B SFP (Mini-GBIC) Fiber Transceivers:
NTSFP-SX (LC Style Connector, up to 550m)
NTSFP-LX-10 (LC Style Connector, up to 10km)
NTSFP-LX-40 (LC Style Connector, up to 40km)
NTSFP-LX-80 (LC Style Connector, up to 80km)
(Revised 2011-09-28)
3
Copyright, © N-TRON Corp., 2008
820 S. University Blvd., Suite 4E
Mobile, AL USA 36609
All rights reserved. Reproduction, adaptation, or translation without prior written permission from N-TRON
Corp. is prohibited, except as allowed under copyright laws.
Ethernet is a registered trademark of Xerox Corporation. All other product names, company names, logos
or other designations mentioned herein are trademarks of their respective owners.
The information contained in this document is subject to change without notice. N-TRON Corp. makes no
warranty of any kind with regard to this material, including, but not limited to, the implied warranties of
merchantability or fitness for a particular purpose. In no event shall N-TRON Corp. be liable for any
incidental, special, indirect or consequential damages whatsoever included but not limited to lost profits
arising out of errors or omissions in this manual or the information contained herein.
Contact Information :
N-TRON Corp.
820 South University Blvd.
Suite 4E
Mobile, AL 36609
TEL: (251) 342-2164
FAX: (251) 342-6353
Website: www.n-tron.com
Email: [email protected]
(Revised 2011-09-28)
4
ELECTRICAL SAFETY WARNINGS
This equipment is suitable for use in Class I, Division 2, Groups A, B, C, and D or non-hazardous locations
only.
This equipment must be used with a Listed UL Industrial Power Supply.
A Recognized or Listed fuse, rated maximum 3A, minimum 30VDC, must be installed on the line side of the
device.
WARNING –Explosion Hazard –Substitution of components may impair suitability for Class I, Division 2.
WARNING –Explosion Hazard –Do not disconnect while circuit is live unless area is known to be non-
hazardous.
WARNING –Explosion Hazard –Do not replace the device unless power has been switched off or the area is
known to be non-hazardous.
Use 110°C or higher rated copper wire, (0.22Nm) 2 lb/in tightening torque for field installed conductors.
WARNING: Do not operate the equipment in the presence of flammable gasses or fumes. Operating
electrical equipment in such an environment constitutes a definite safety hazard.
WARNING: If the equipment is used in the manner not specified by N-TRON Corp., the protection provided
by the equipment may be impaired.
WARNING: Do not perform any services on the unit unless qualified to do so. Do not substitute
unauthorized parts or make unauthorized modifications to the unit.
WARNING: Do not operate the unit with the end plates removed, as this could create a shock or fire
hazard.
WARNING: Properly ground the unit before connecting anything else to the unit. Units not properly grounded
may result in a safety risk and could be hazardous and may void the warranty. See the grounding technique
section of this user manual for proper ways to ground the unit.
WARNING: Do not operate the equipment in a manner not specified by this manual.
WARNING: Do not work on equipment or cables during periods of lightning activity.
WARNING: Observe proper DC Voltage polarity when installing power input cables. Reversing voltage
polarity can cause permanent damage to the unit and void the warranty.
.
WARNING: Install only in accordance with Local & National Codes of Authorities Having Jurisdiction.
(Revised 2011-09-28)
5
LASER SAFETY (1002MC and 1003GX2 Models)
CAUTION: CLASS 1 LASER PRODUCT. Do not stare into the laser!)
(Revised 2011-09-28)
6
ENVIRONMENTAL SAFETY WARNINGS
WARNING: Disconnect the power and allow to cool 5 minutes before touching.
1000 Series Industrial Gigabit Ethernet Switches
The 1000 Series Unmanaged Industrial Gigabit Ethernet Switches support high speed layer 2 switching
between ports. This series of switches are housed in a ruggedized aluminum enclosure, and provide
Category-5 compliant 10/100/1000Base-T connections for high performance network design, and
hub/repeater upgrades.
All fiber products utilize the IEEE compliant LC duplex connectors for fiber optic communications in a
convenient SFP modular design. All 10/100/1000Base-T ports utilize the RJ45 shielded connectors.
The 1002MC/MCE is a two port unmanaged media converter that converts 10/100/1000Base-T copper to
1000BaseSX/LX full duplex fiber.
The 1003GX2/GXE2 is a three port unmanaged switch that offers one 10/100/1000Base-T copper port and
two 1000BaseT/SX/LX full duplex copper/fiber ports.
The 1005TX is a five port unmanaged switch that offers five 10/100/1000Base-T copper ports.
Key Features
Compact Space Saving Package
Full IEEE 802.3 Compliance
Unmanaged Operation
Jumbo Frame Support
Extended Environmental Specifications
-40°C to 85°C Operating and Storage Temperature
Supports Full/Half Duplex Operation
Up to 10.0 Gb/s Maximum Throughput
MDIX Auto Sensing Cable
Auto Sensing Speed and Flow Control
Full Wire Speed Communication
Store-and-forward Technology
Redundant Power Inputs (10-30 VDC)
LED Link/Activity Status Indication
Hardened Metal Enclosure
Industry Standard 35mm DIN Rail Mounted Enclosure
(Revised 2011-09-28)
7
PACKAGE CONTENTS
Please make sure the package contains the following items:
1. 1000 Series Media Converter or Ethernet Switch
2. Product CD
Contact your carrier if any items are damaged.
UNPACKING
Remove all the equipment from the packaging, and store the packaging in a safe place. File any damage
claims with the carrier.
CLEANING
Clean only with a damp cloth.
INSTALLATION
Read the following warning before beginning the installation:
WARNING
Never install or work on electrical equipment or cabling during periods of lightning activity. Never connect
or disconnect power when hazardous gasses are present.
(Revised 2011-09-28)
8
DIN-Rail Mounting
Install the unit in a standard DIN rail. Recess the unit to allow at least 2” of horizontal clearance for CAT5e
cable bend radius or 5” of horizontal clearance for Fiber Optic cable bend radius.
To install the unit to 35mm industrial DIN rail,
place the top edge of the included mounting
bracket on the back of the unit against the DIN
rail at a 15° angle as shown. Rotate the bottom of
the unit to the back (away from you) until it
snaps into place.
To remove the unit from the 35mm industrial
DIN rail, pull forward on the unit until it
disengages from the bottom of the DIN rail.
Rotate the bottom of the unit towards you and up
at an approximate 15° upward angle to
completely remove the unit.
URMK 1000-PM
Most N-Tron™ products are designed to be mounted on industry standard 35mm DIN rail. However, DIN rail
mounting may not be suitable for all applications. Our Universal Rack Mount Kit (P/N: URMK) may be used to
mount the 1000 Series enclosures to standard 19" racks, and our Panel Mount Assembly (P/N: 1000-PM) may
be used to mount the 1000 Series enclosures to a panel or any other flat surface.
(Revised 2011-09-28)
9
FRONT PANEL
From Top to Bottom:
Green LED lights when Power is connected
LNK/ACT Link/Activity LED
SPD1000 1000 Speed LED
LEDs: The table below describes the operating modes:
LED
Color
Description
ON
Power is Applied.
OFF
Power is OFF.
LNK/ACT
ON
Link established, no Activity on cable.
BLINKING
Link established, Activity on cable
OFF
No link activity on cable.
SPD1000
ON
Link is 1000Mbps.
OFF
Link is 10/100Mbs.
(Revised 2011-09-28)
10

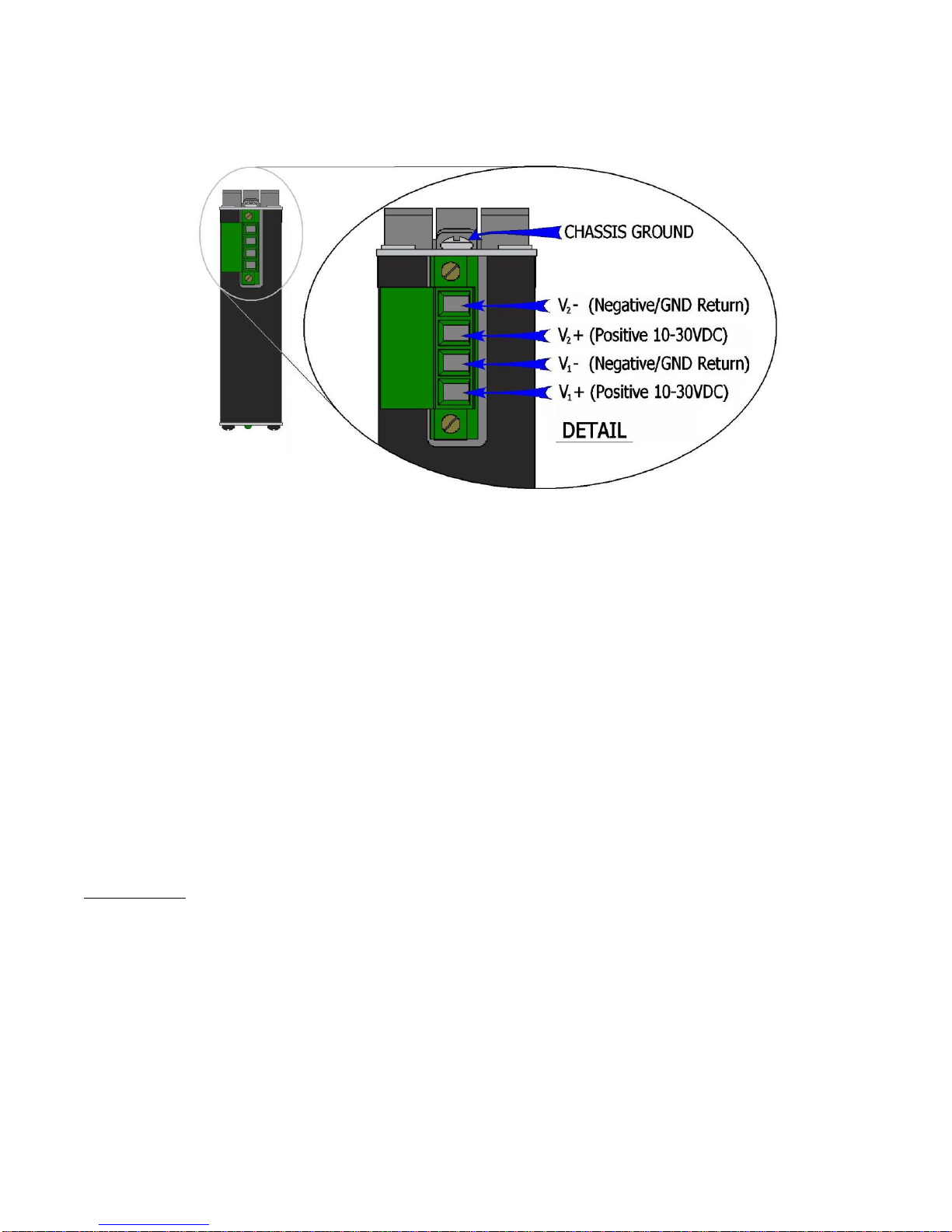

APPLYING POWER (Top View)
Unscrew & Remove the DC Voltage Input Plug from the top header.
Install the DC Power Cables into the Plug (observing polarity on unit).
Plug the Voltage Input Plug back into the top header.
Tightening torque for the terminal block power plug is 0.5 Nm/0.368 Pound Foot.
All LEDs will flash ON Momentarily.
Verify the Power LED stays ON (GREEN).
Note: Either V1or V2can be connected to power for minimal operation. For redundant power
operation, V1and V2plugs must be connected to separate DC Voltage sources. Use wire sizes of 12-24
gauge. The power cord should be limited to less than 10 meters in order to ensure optimum
performance.
Recommended 24V DC Power Supplies, similar to:
100-240VAC:
N-Tron NTPS-24-1.3, DC 24V/1.3A
