Novus MULTI HD NHDC-2VE-6101 Manual de usuario

NHDC-2VE-6101

NHDC-2VE-6302

NHDC-2H-6101

NHDC-2H-6101L

NHDC-2H-6302

User’s manual

NHDC-2VE-6101, NHDC-2VE-6302, NHDC-2H-6101L, NHDC-2H-6101, NHDC-2H-6302

User's manual version 1.0

DIRECTIVES AND PRELIMINARY INFORMATION

THE PRODUCT MEETS THE REQUIREMENTS CONTAINED IN THE FOLLOWING DIRECTIVES:

Information

The device, as an element of a professional CCTV system used for supervision and control, is not

intended for self-installation in households by people without specialist knowledge.

Obligation to consult the Manufacturer before performing an activity not provided for in the

operating manual or other documents:

Before performing an action that is not provided for in the User’s manual, other documents attached to

the Product or does not result from the normal purpose of the Product, please contact the Manufacturer

under the pain of excluding the Producer's liability for the consequences of such an action.

DIRECTIVE 2014/30/EU OF THE EUROPEAN PARLIMENT AND OF THE

COUNCIL of 26 February 2014 on the harmonization of the laws of the Member States

relating to electromagnetic compatibility (OJ L 96, 29.3.2014, p. 79–106, with changes)

DIRECTIVE 2012/19/EU OF THE EUROPEAN PARLIAMENT AND OF THE

COUNCIL of 4 July 2012 on waste electrical and electronic equipment (WEEE) (OJ L

197, 24.7.2012, p. 38–71,with changes)

DIRECTIVE 2011/65/EU OF THE EUROPEAN PARLIAMENT AND OF THE

COUNCIL of 8 June 2011 on the restriction of the use of certain hazardous substances in

electrical and electronic equipment (OJ L 174, 1.7.2011, p. 88–110, with changes)

Pictures in this publication showing camera views can be simulations. Actual camera

images may vary depending on the type, model, settings, observation area, or

environmental conditions.

NHDC-2VE-6101, NHDC-2VE-6302, NHDC-2H-6101L, NHDC-2H-6101, NHDC-2H-6302

User's manual version 1.0

IMPORTANT SAFEGUARDS AND WARNINGS

WARNING!

THE KNOWLEDGE OF THIS MANUAL IS AN INDESPENSIBLE CONDITION OF A PROPER

DEVICE OPERATION. YOU ARE KINDLY REQUSTED TO FAMILIRIZE YOURSELF WITH

THE MANUAL PRIOR TO INSTALLATION AND FURTHER DEVICE OPERATION.

WARNING!

USER IS NOT ALLOWED TO DISASSEMBLE THE CASING AS THERE ARE NO USER-

SERVICEABLE PARTS INSIDE THIS UNIT. ONLY AUTHORIZED SERVICE PERSONNEL

MAY OPEN THE UNIT INSTALLATION AND SERVICING SHOULD ONLY BE DONE BY

QUALIFIED SERVICE PERSONNEL AND SHOULD CONFORM TO ALL LOCAL

REGULATIONS

1. Prior to undertaking any action please consult the following manual and read all the safety and

operating instructions before starting the device.

2. Please keep this manual for the lifespan of the device in case referring to the contents of this manual

is necessary;

3. All the safety precautions referred to in this manual should be strictly followed, as they have a direct

influence on user’s safety and durability and reliability of the device;

4. All actions conducted by the servicemen and users must be accomplished in accordance with the

user’s manual;

5. The device should be disconnected from power sources during maintenance procedures;

6. Usage of additional devices and components neither provided nor recommended by the producer is

forbidden;

7. Mounting the device in places where proper ventilation cannot be provided (e. g. closed lockers etc.)

is not recommended since it may lead to heat build-up and damaging the device itself as a

consequence;

8. Mounting the camera on unstable surface or using not recommended mounts is forbidden.

Improperly mounted camera may cause a fatal accident or may be seriously damaged itself. The

camera must be mounted by qualified personnel with proper authorization, in accordance with this

user’s manual.

9. Device should be supplied only from a power sources whose parameters are in accordance with

those specified by the producer in the camera technical datasheet. Therefore, it is forbidden to

supply the camera from a power sources with unknown parameters, unstable or not meeting

producer’s requirements;

Due to the product being constantly enhanced and optimized, certain parameters and functions

described in the manual in question may change without further notice.

We strongly suggest visiting the www.novuscctv.com/en website in order to access the newest manual

NHDC-2VE-6101, NHDC-2VE-6302, NHDC-2H-6101L, NHDC-2H-6101, NHDC-2H-6302

User's manual version 1.0

GENERAL INFORMATION

1. Technical specification


Image Sensor NHDC-2H-6101, 2H-6101L, 2VE-6101: CMOS sensor 1/2.7” SUPERPIX

NHDC-2H-6302, 2VE-6302: CMOS sensor 1/2.9” SMARTSENS

Operang mode AHD 1080p, AHD 720p, TVI 1080p, TVI 720p, CVI 1080p, CVI 720p,

analog 960H

Number of Eecve Pixels 1920 (H) x 1080 (V)

Resoluon 1080p

Min. Illuminaon 0 lx (IR on) - B/W mode

S/N Rao > 52 dB (AGC o)

Electronic Shuer auto/manual: 1/50 s ~ 1/100000 s

Wide Dynamic Range (WDR) yes

Digital Noise Reducon (DNR) NHDC-2H-6101, NHDC-2H-6101L, NHDC-2VE-6101: 2D

NHDC-2H-6302, NHDC-2VE-6302: 2D, 3D

LENS

Lens Type NHDC-2H-6101, 2H-6101L, 2VE-6101: xed focal, f=2.8 mm/F2.2

NHDC-2H-6302, 2VE-6302: varifocal, f=2.8 ~ 12 mm/F1.4

DAY/NIGHT

Switching Type mechanical IR cut lter

Switching Mode auto, manual

Visible Light Sensor yes

OTHER FUNCTIONS

OSD languages: English, others

Image Processing Defecve Pixel Correcon (DPC), sharpening

Remote control Yes (COAX protocol)

IR LED

LED Number NHDC-2VE-6101, 2H-6101, 2H-6101L: 1

NHDC-2VE-6302, 2H-6302: 2

Range

NHDC-2H-6101L: 20 m

NHDC-2H-6101, 2VE-6101: 30 m

NHDC-2H-6302, 2VE-6302: 50 m

Smart IR yes (soware support)

INTERFACES

Video Output BNC, 1.0 Vp-p, 75 Ohm

INSTALLATION PARAMETERS

Degree of Protecon

NHDC-2H-6101L: IP 66

NHDC-2H-6101, 2VE-6101, 2H-6302, 2VE-6302: IP 67

(details in the user’s manual on page 7)

Power Supply 12 VDC

Power Consumpon 1 W, 4 W (IR on)

Operang Temperature -30°C ~ 50°C

Humidity max. 90%, relave (non-condensing)

NHDC-2VE-6101, NHDC-2VE-6302, NHDC-2H-6101L, NHDC-2H-6101, NHDC-2H-6302

User's manual version 1.0

GENERAL INFORMATION

2. Camera dimensions

NHDC-2H-6101L: plastic, white, fully cable managed wall mount bracket in-set included. Weight:

0.25 kg.

NHDC-2H-6101: aluminium, white, fully cable managed wall mount bracket in-set included. Weight:

0.37 kg.

NHDC-2H-6302: aluminium, white, fully cable managed wall mount bracket in-set included. Weight:

0.61 kg.

NHDC-2VE-6101, NHDC-2VE-6302, NHDC-2H-6101L, NHDC-2H-6101, NHDC-2H-6302

User's manual version 1.0

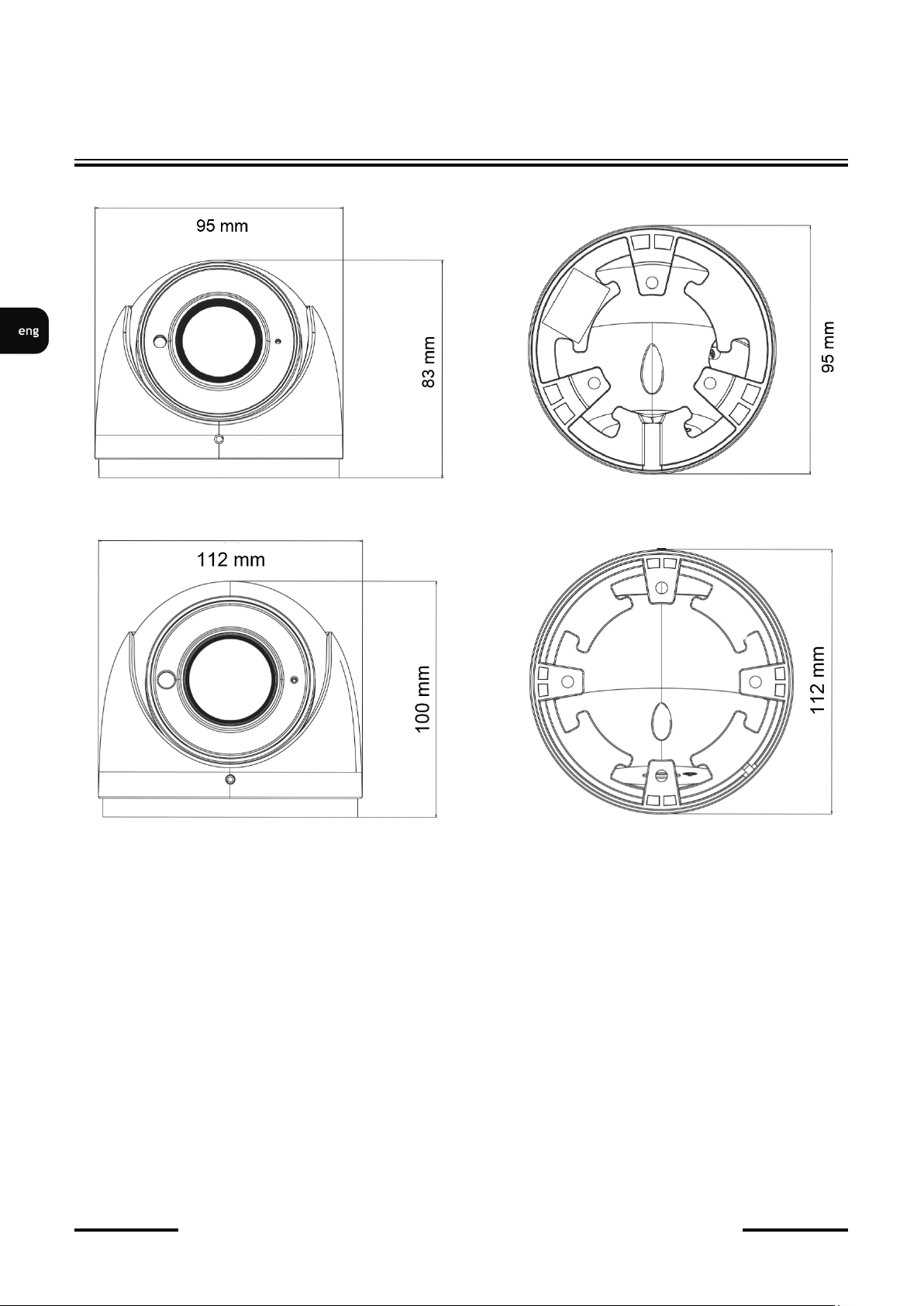

NHDC-2VE-6101: vandal proof, aluminium, white. Weight: 0.4 kg

NHDC-2VE-6302: vandal proof, aluminium, white. Weight: 0.62 kg.

3. Contents of the package

After opening, make sure that the package contains the following items:

• Camera

• Bag with mounting accessories

• User manual

If any of the items has been damaged in transit or is missing, pack the contents back into the original

packaging and contact the supplier.

Before starting the device, you should familiarize yourself with the description and role of individual

inputs, outputs and control elements that are equipped with cameras.

Caution:

If the device was brought from a room with a lower temperature, wait until it reaches the

temperature of the room in which it is to work. Do not switch the device on immediately after

bringing to a cooler place. The condensation of water vapor in the air can cause short circuits and

consequently damage the device.

GENERAL INFORMATION

NHDC-2VE-6101, NHDC-2VE-6302, NHDC-2H-6101L, NHDC-2H-6101, NHDC-2H-6302

User's manual version 1.0

4. Mounting

4.1. Bullet cameras

• Referring to the location of the holes in the foot of the camera or using the mounting template,

mark the points for future mounting holes and the signal cable

• Drill mounting holes and a hole for the signal cable.

• Fix the camera foot using the enclosed pegs and screws, and connect the wires.

• Loosen the foot clamp ring and adjust the position of the camera.

• In the NHDC-2H-6302 camera, unscrew the cover on the bottom of the casing and adjust the lens.

• After completing the adjustment, screw on the cover and tighten the foot clamp ring.

4.2. Vandal proof cameras

• Loosen the Allen screw locking the base.

• Remove the camera cover, take the camera out of the base.

• Referring to the location of the holes in the base of the camera or using the mounting template,

mark the points for future mounting holes and the cable gland.

• Drill mounting holes and a hole for the signal cable.

• Secure the base with the included dowels and screws, and connect the wires.

• In the NHDC-2VE-6302 camera, unscrew the cover in the housing and adjust the lens. After

completing the adjustment, screw the cover back on.

• Place the camera on the base, put on the cover and pre-tighten the base locking screw.

• Adjust the position of the camera, and then tighten the base locking screw until it stops.

The declared degree of protection applies to camera housing, and does not take into account the

possibility of moisture penetrating through the connectors and connecting cables. Protecting the

connectors and cables against moisture is the responsibility of the installer. The manufacturer is

not liable for damages resulting from failure to fulfill the above-mentioned obligation.

5. Electrical connections

The camera should be powered by a stabilized power supply with parameters compatible with the

camera power supply. For the output of the video signal, use a coaxial cable with an impedance of 75Ω,

terminated with a BNC plug.

INSTALLATION AND ELECTRICAL CONNECTIONS

- BNC socket, video signal output

- 12VDC power socket

NHDC-2VE-6101, NHDC-2VE-6302, NHDC-2H-6101L, NHDC-2H-6101, NHDC-2H-6302

User's manual version 1.0

6. Settings - camera’s menu

6.1. Access to the menu

Access to the camera menu is possible from the recorder menu:

• with the use of the PTZ menu: then entering the menu and confirming changes is done by

pressing the "Iris +" button and navigating the menu is possible using the directional buttons, or

• using the UTC remote control menu

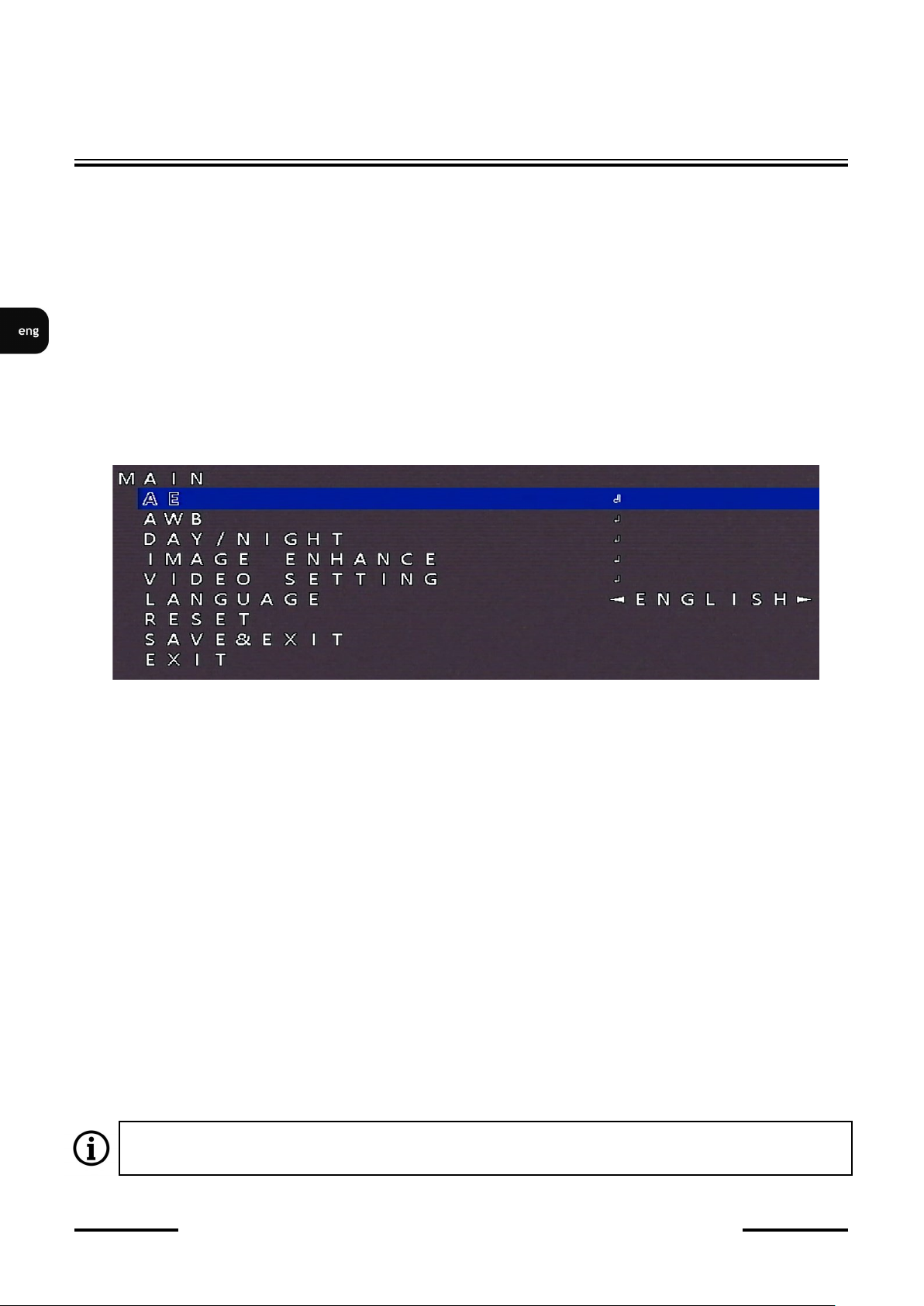

6.2. Camera’s menu

The menu is divided into several sections where user can configure various options.

AE - exposure settings menu. You can set the image brightness, exposure type, and enable BLC (Back

Light Compensation) or FLC (Front Light Compensation).

AWB - white balance settings menu. The possible settings are ATW (automatic white balance) and

MWB (manual color level adjustment).

DAY/NIGHT - camera mode settings menu. Possible settings are EXT (automatic day/night

switching), COLOR (color operation), B/W (black and white operation with IR illuminator on).

IMAGE ENHANCE - image settings menu. You can set the contrast, sharpness, color saturation and

enable 2D and 3D noise reduction mechanisms (in the NHDC-2H-6101L, NHDC-2H-6101 and

NHDC-2VE-6101 cameras, which are not equipped with 3D noise reduction, here it is possible to turn

on the wide dynamic range function DWDR)

VIDEO SETTINGS - menu for selecting the camera work standard (AHD, TVI, CVI and CVBS) and

resolution.

LANGUAGE - menu language change menu. The default language is English.

RESET - option to restore factory settings.

SETTINGS

After restoring the factory settings, save the changes using the SAVE&EXIT option

NHDC-2VE-6101, NHDC-2VE-6302, NHDC-2H-6101L, NHDC-2H-6101, NHDC-2H-6302

User's manual version 1.0

SAVE&EXIT - saves the changes and exits the menu.

EXIT - closes the menu without saving changes.

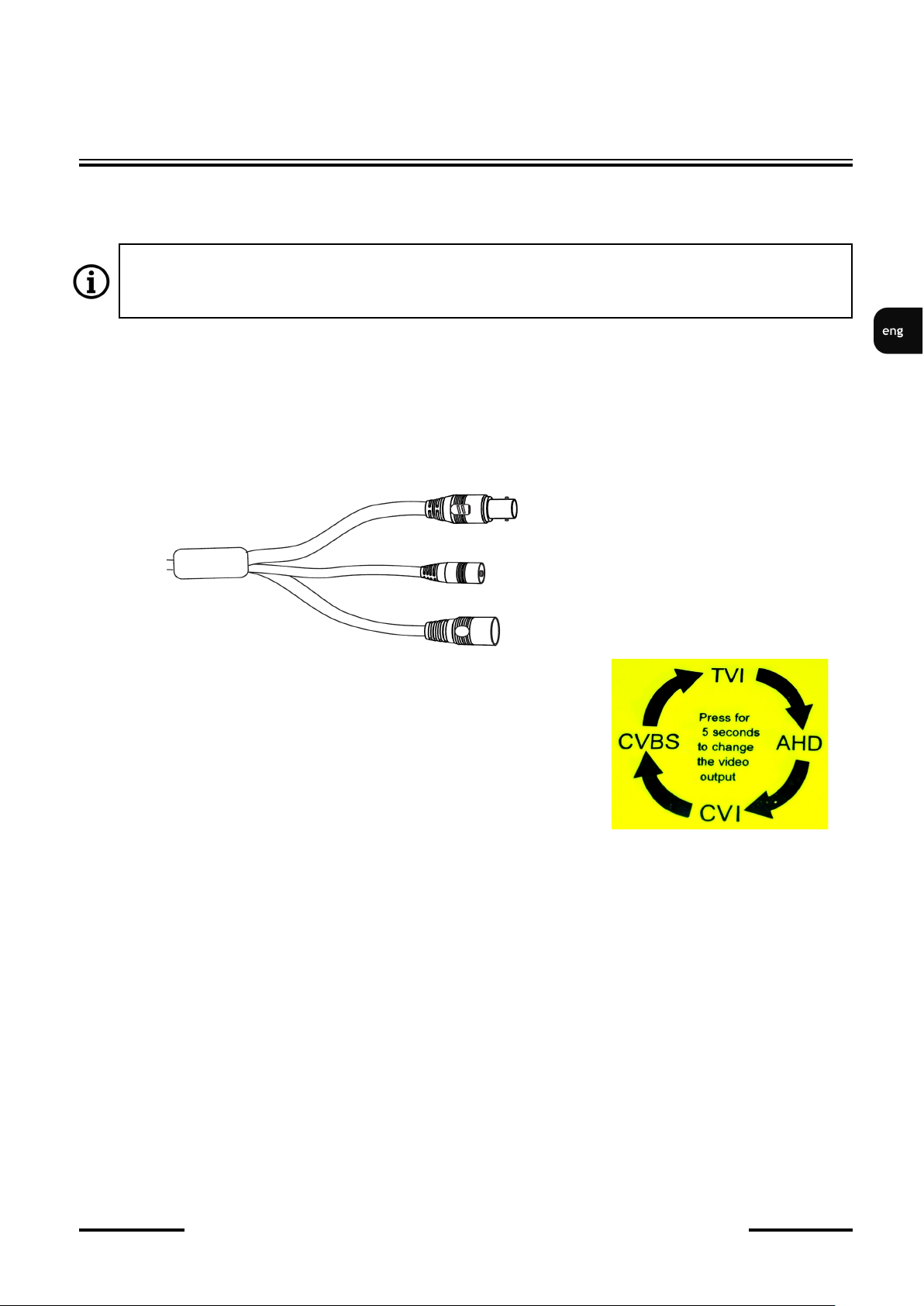

7. Selection of the camera video standard

The NHDC-2H-6302 and NHDC-2VE-6302 cameras, in addition to the option in the VIDEO

SETTINGS menu, have the option of changing the operating standard using the button located on the

camera cable, near the power and video sockets.

The standard is changed cyclically. Pressing and holding the button

for more than 5 seconds switches the video standard.

SETTINGS

Closing the menu with the EXIT option does not cancel the previously introduced changes.

These changes remain in effect until a reset is performed or the camera is powered off and on.

- video standard change buon

23.04.2021 TF, MK v1.0

AAT SYSTEMY BEZPIECZEŃSTWA Sp. z o.o.

431 Pulawska St., 02-801 Warsaw, Poland

tel.: +4822 546 0 546, [email protected]

www.novuscctv.com

Este manual sirve para los siguientes modelos

Tabla de contenidos

Idiomas:

Otros manuales de Cámara de seguridad de Novus

Novus

Novus NVC-GDN3810H/IR Manual de usuario

Novus

Novus NVAHD-2DN5102MH/IR-1 Manual de usuario

Novus

Novus NVAHD-2DN5100MC-3 Manual de usuario

Novus

Novus NVIP-4H-6511/F Manual de usuario

Novus

Novus NVIP-2Q-4201/PIR/W Manual de usuario

Novus

Novus NVIP-2DN3037V/IR-1P Manual de usuario

Novus

Novus NVIP-5DN3613V/IR-1P Manual de usuario

Novus

Novus NVIP-5DN2004H/IR-1P-II Manual de usuario

Novus

Novus NVIP-8H-6511/F Manual de usuario

Novus

Novus NVIP-2VE-6601-II Manual de usuario

Novus

Novus NVIP-5H-4201 Manual de usuario

Novus

Novus NVAHD-2DN3201MH/IR-1-II Manual de usuario

Novus

Novus NVIP-5H-4202 Manual de usuario

Novus

Novus NVIP-2H-6732M/LPR Manual de usuario

Novus

Novus NVIP-4DN2002V/IR-1P-II Manual de usuario

Novus

Novus NVIP-12DN7021V/IR-1P Manual de usuario

Novus

Novus NVIP-4SD-6540/25/F Manual de usuario

Novus

Novus NVIP-TDN2401D/IR/MPX1.0 Manual de usuario

Novus

Novus NVIP-5DN3612H/IR-1P/F Manual de usuario

Novus

Novus NVIP-6F-6301-II Manual de usuario

Novus

Novus NVAHD-2DN5102MV/IR-1 Manual de usuario

Novus

Novus NVIP-2DN3034V/IR-1P Manual de usuario

Novus

Novus NVIP-2DN5041V/IRH-1P Manual de usuario

Novus

Novus NVAHD-2DN3202MH/IR-1 Manual de usuario

Manuales populares de Cámara de seguridad de otras marcas

Okina USA

Okina USA SIR36-870VF650LP Manual de usuario

Divio

Divio NDR155PA Manual de usuario

Canon

Canon VB-C500D Manual de usuario

Easy Access

Easy Access EasyGuard Manual de usuario

Vivotek

Vivotek FD9389-EHV-v2 Manual de usuario

TUYA

TUYA COSMO W2 Manual de usuario

Eusso

Eusso UNC7500-IR Guía de configuración

urmet domus

urmet domus 1096/204 Manual de usuario

VC VC20 series Manual de usuario

Axis

Axis Q1614 Manual de usuario

ieGeek

ieGeek DD201 Manual de usuario

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Manual de usuario

Vicon

Vicon V662-D-1 Instrucciones de funcionamiento

Grundig

Grundig GCH-K0274P Manual de usuario

Lorex

Lorex VANTAGE LBC7032 Manual de usuario

4xem

4xem WPT Manual de usuario

Samsung

Samsung SCV-3082 Manual de usuario

Vitek

Vitek VTC-C544 Manual de usuario
