Notilo Plus Seasam Manual de usuario
Quick Start Guide
Seasam with ExploCam
December 2022
Content
I - EXPLOCAM INSTALLATION
●Installation of the ExploCam
II - STARTING UP
●Connecting the battery
●Connecting the WiFi Reel to the drone
●Starting up the equipment
●Connecting to the WiFi Reel
○Delivery after September 2021
○Delivery before September 2021
●Connection of the controller
●Choice of configuration
●Checking the connections
●Get both video feedback
III - USING SEASAM WITH THE EXPLOCAM
●Drone launching
●Switch the camera view
●Inspecting a Sea Chest
●At the end of the exploration
I - EXPLOCAM
INSTALLATION
Place the drone on its back and open the battery compartment.
Recover the cable from the drone and pull it out from the front of
the drone.
5
Installation of the ExploCam
I - EXPLOCAM INSTALLATION
Connect the ExploCam cable with the drone’s connector.
The two white dots must face each other and the two caps
closed together
The battery must not be connected
to the drone during this step
6
Securise the connection by clipping the two caps around the
attach at the front of the drone
Installation of the ExploCam
I - EXPLOCAM INSTALLATION
Position the foam on the metallic plate of the drone
●Smallest part of the foam must face the front of the drone.
●The open part of the foam is looking to the bottom of the drone
●Let the connectors pass through the foams
7
Installation of the ExploCam
I - EXPLOCAM INSTALLATION

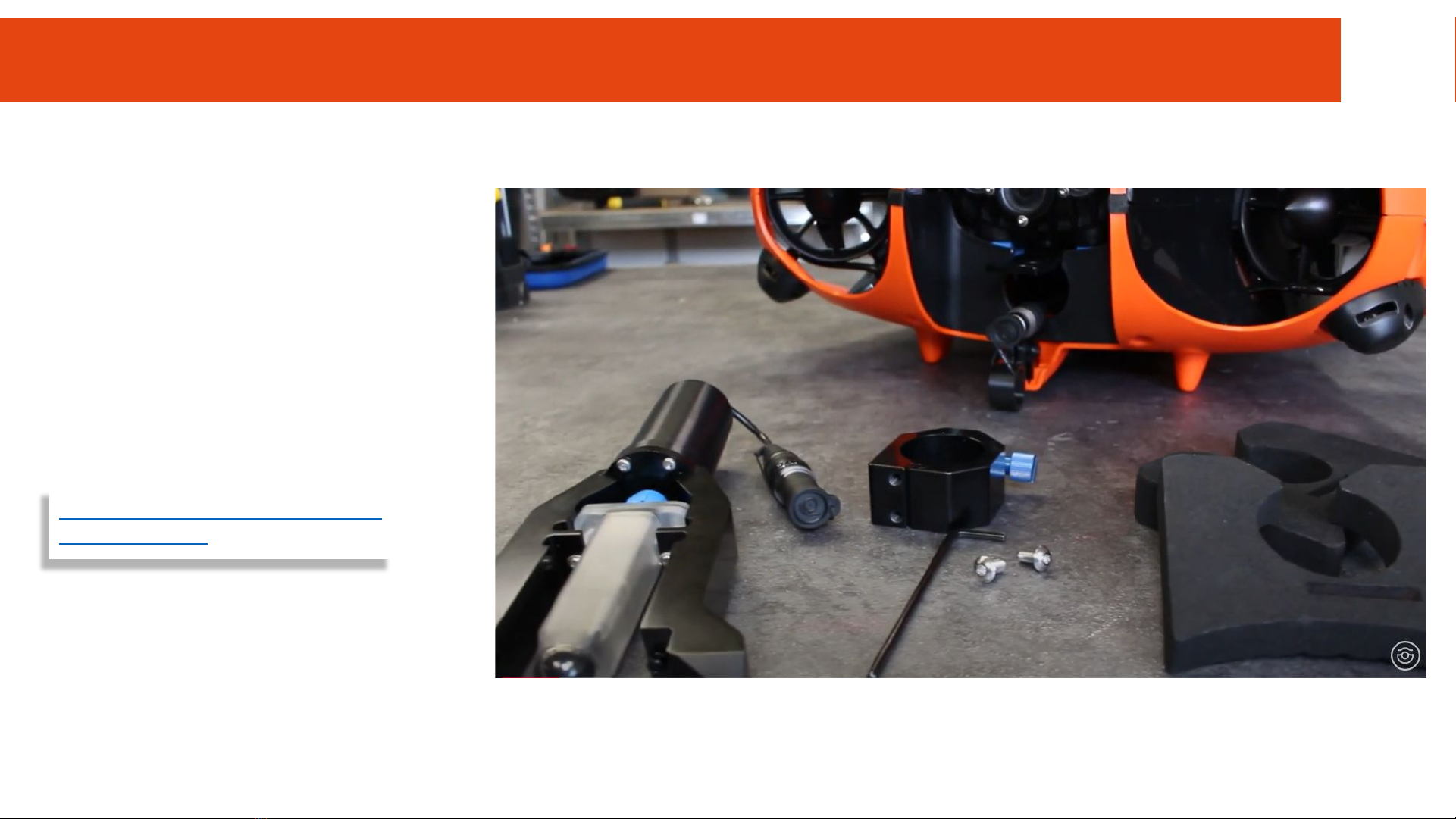

Position the ring with the two nuts around the arm
●Insert the connectors inside the arm
●Unscrew the two silver screws and place the ring around the arm
●Screw the blue screw to maintain the ring around the arm
●Slide the ring under the metallic plate and screw the 2 silver screw
8
Installation of the ExploCam
I - EXPLOCAM INSTALLATION
Position the ExploCam vertically or Horizontally according to the tack you need to perform
9
Installation of the ExploCam
I - EXPLOCAM INSTALLATION
You can now connect the battery.
Make sure the battery is never connected when
you connect or disconnect the gripper connector
under the drone.
10
Installation of the ExploCam
I - EXPLOCAM INSTALLATION
