Chapter 1

Getting Started

The Nortel Networks IP Phone 2001 brings voice and data to your desktop.

Introduction

This guide contains information about:

• telephone buttons and lights

• telephone display

• telephone setup

• how to make and answer calls

• how to offset the time on your telephone display

• how to use the navigation buttons

• how to program memory buttons

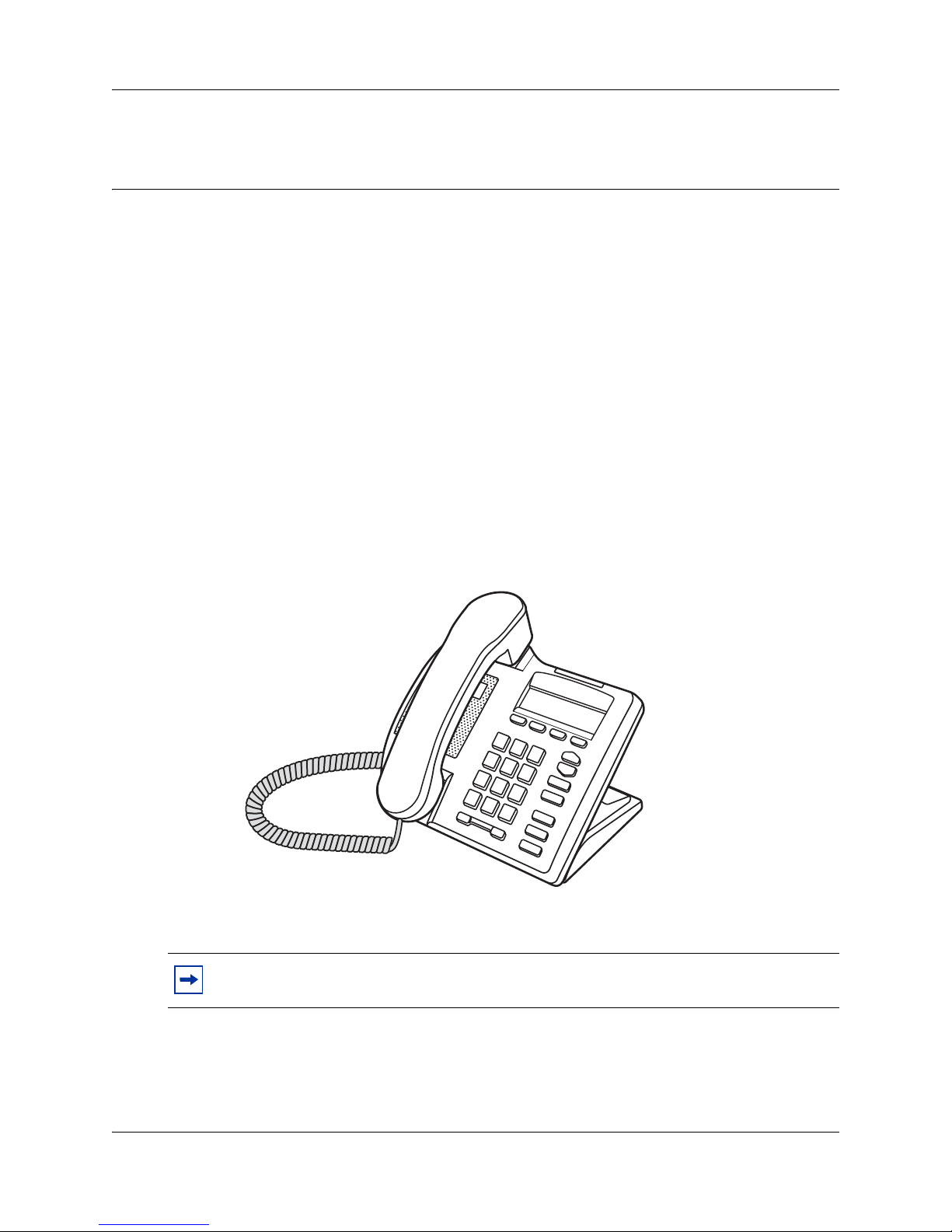

IP Phone 2001

Note: For information on telephone features and how to use them, refer to the BCM

Telephone Feature User Guide.

6Chapter 1 Getting Started

N0027313N0027313

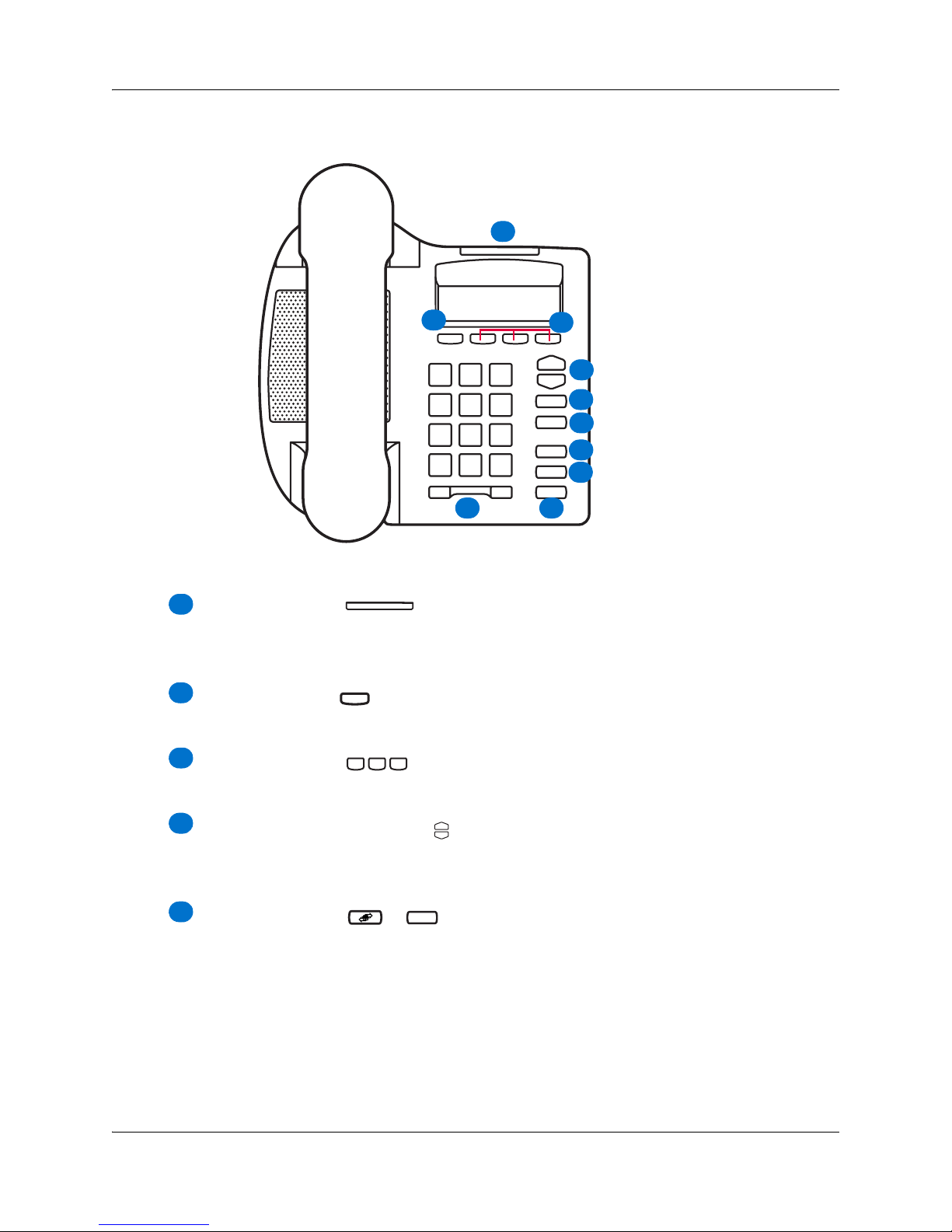

IP Phone 2001 default buttons and descriptions

Telephone light

Flashes when a call rings at the telephone.

Lights up when Message for you appears on the display.

Feature button

Starts or ends a feature.

Display buttons

Shows feature options.

Navigation cluster buttons

Allows you to view items stored in your Call Log.

For more information on the Call Log feature, refer to “Navigation buttons” on page 11.

Services button (programmable memory button)

Allows you to view the scrollable display menu for feature options (FEATURE *900),

including the hot desking feature.

For more information on hot desking and other IP feature options, refer to the BCM

Telephone Feature User Guide.

Note: Feature options in this menu are configured by your system administrator.

Services

Chapter 1 Getting Started 7

IP Phone 2001 User Guide

Telephone display

The following information appears on the display when the telephone is not in use:

- Set identification (number or name)

- Date and time

- Label for the Feature button

The following information appears on the display when the telephone is in use:

- Set identification (number or name)

- Label for the Feature button

- Call or feature information

- Labels for the display buttons

Button labels appear in capital letters directly above the display buttons. Button labels vary

depending on the type of call or feature in use.

Message button (programmable memory button)

Opens your mailbox on the internal voice message center.

For more information about mailbox options, refer to the documentation provided with the

internal voice message center.

Goodbye button

Ends an active call.

Hold button

Places an active call on hold

Line button (programmable memory button)

Allows you to make a call on an intercom line.

Volume bar

Adjusts the handset and ringer volume.

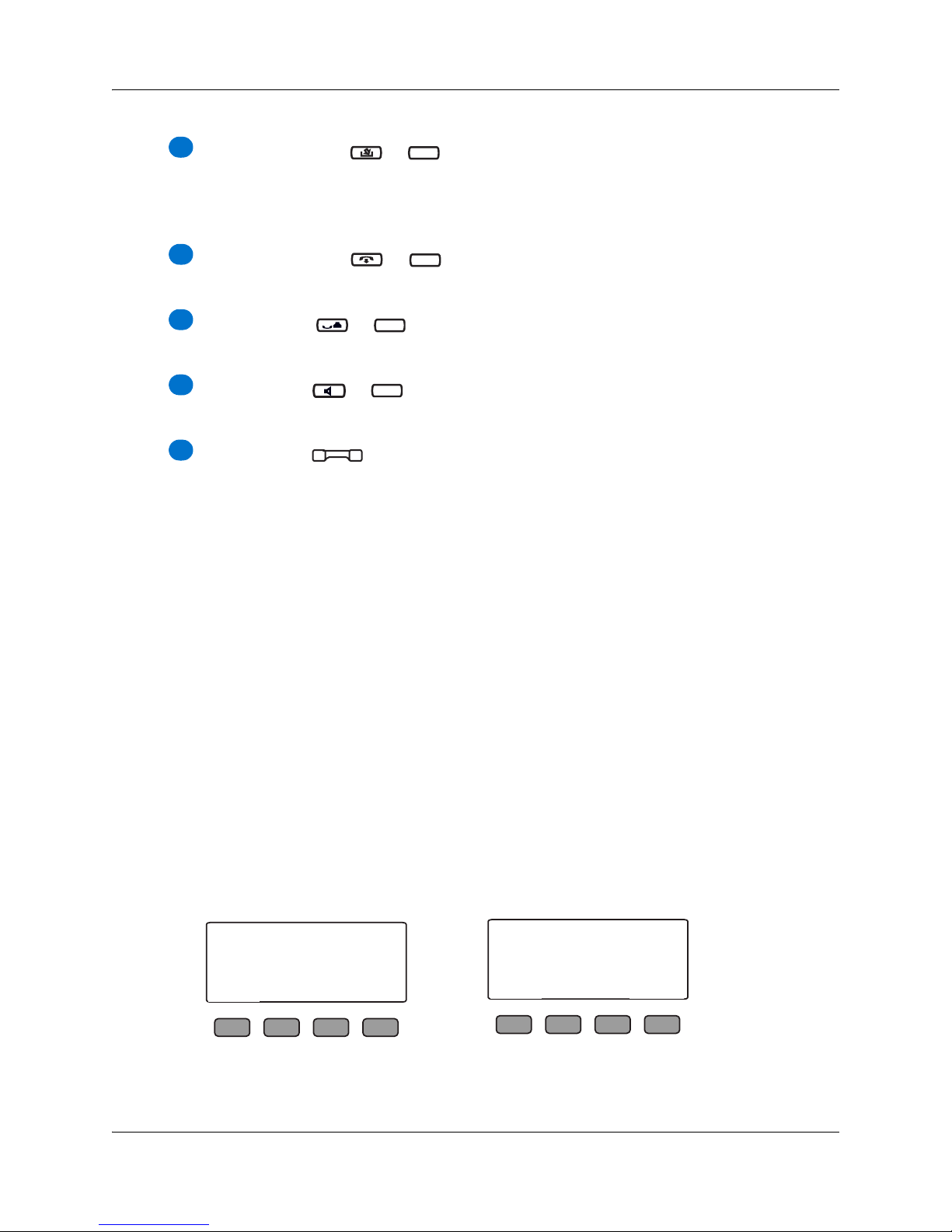

Display area examples

idle Active - internal call

Message

Goodbye

Hold

Line

DN: 2245

Feb 24 1:23 pm

Feature Feature

DN: 2245

2257

TRANSFE

8Chapter 1 Getting Started

N0027313N0027313

Telephone setup

Basic telephone setup features are:

• Display contrast

• Language choice

• Ring type

Display contrast level

Adjust the contrast for the telephone display:

1Press Feature •‡.

2Press DOWN and UP to view the levels.

3Press OK to select a level.

Language choice

Select the Primary Language for the telephone display.

1Press Feature •ﬁ‚⁄.

Select the Alternate Language for the telephone display.

1Press Feature •ﬁ‚¤.

Select the Alternate Language 2 for the telephone display.

1Press Feature

•ﬁ‚‹

Select the Alternate Language 3 for the telephone display.

1Press Feature

•ﬁ‚›

Ring type

Select a different ring type for your telephone.

1Press Feature

•

ﬂ.

2Press 1, 2, 3, 4, or NEXT or to hear the different ring types.

3Press OK to store the ring type.

IP Phone 2001 User Guide

Chapter 2

Features and buttons

This section describes some of the IP Phone 2001 buttons and call features:

• Basic call features

• Navigation buttons

• Programmable memory buttons

Basic call features

There are many ways to make a call depending on your telephone programming and the type of

call.

External calls

1Lift the handset.

2Enter the external code (or line pool code) to access an external line.

3Dial the external telephone number.

External calls using the Line button ( or )

1Press or .

2Enter the external code (or line pool code) to access an external line.

3Dial the external telephone number.

4Lift the handset to speak with the person you are calling.

Contact your system administrator to confirm what external code or line pool code to use on your

telephone.

Note: When entering a line pool access code on PRI lines you will not hear dial tone.

Internal calls

1Lift the handset.

2Dial the extension number.

Internal calls using the Line button ( or )

1Press or .

2Dial the extension number.

3Lift the handset to speak with the person you are calling.

Line

10 Chapter 2 Features and buttons

N0027313N0027313

Contact your system administrator for a list of extension numbers.

Answering calls

Lift the handset to answer a call when your telephone rings and the light flashes.

Hold ( or )

1While on a call, press or .

2To retrieve a held call, press or again.

Make or answer a second call

You can have two calls active at the same time. Use or to switch between calls.

To answer a second call while on another call

• Press or to answer the second call. The first call is automatically put on hold.

To hold a call and make a second call

• Press or to put the first call on hold and dial the telephone number of the second

call.

To return to the first call

• Press or again to return to the first call. The second call is automatically put on

hold.

Time offset

When your IP Phone 2001 is located in a different time zone from your system, the display shows

the system time not the local time. The Time Offset feature allows you to adjust the time that

appears on the display.

Before you begin, calculate the time difference, in hours, between the server time and local time.

To change the time that appears on your telephone display to local time:

1Press Feature •ﬁ⁄‚.

2Press CHANGE.

3Press •to switch between adding or subtracting time.

4Using the dialpad, enter the number of hours between local time and system time.

Note: Press £to enter half hour increments.

5Press OK.

Note: It may take up to one minute for the change to appear on the display.

Hold
