NordicTrack NTL15909.1 Manual de usuario

CAUT ON

Read all precautions and instruc-

tions in this manual before using

this equipment. Save this manual

for future reference.

QUEST ONS?

f you have questions, or if parts are

damaged or missing, DO NOT CON-

TACT THE STORE; please contact

Customer Care.

MPORTANT: Please register this

product (see the limited warranty

on the back cover of this manual)

before contacting Customer Care.

CALL TOLL-FREE:

1-888-825-2588

Mon.–Fri. 6 a.m.–6 p.m. MT

Sat. 8 a.m.–4 p.m. MT

ON THE WEB:

www.nordictrackservice.com

USER'S MANUAL

Model No. NTL15909.1

Serial No.

Write the serial number in the space

above for reference.

www.nordictrack.com

Serial Number

Decal

TABLE OF CONTENTS

WARNNGDECALPLACEMENT ..............................................................2

MPORTANTPRECAUTONS .................................................................3

BEFOREYOUBEGN .......................................................................5

ASSEMBLY ...............................................................................6

OPERATONANDADJUSTMENT ............................................................13

HOWTOMOVETHE NCLNETRANER.......................................................21

TROUBLESHOOTNG ......................................................................22

EXERCSEGUDELNES ...................................................................25

PARTLST ...............................................................................26

EXPLODEDDRAWNG .....................................................................28

ORDERNGREPLACEMENTPARTS ..................................................BackCover

LMTEDWARRANTY...............................................................BackCover

NordicTrack is a registered trademark of CON P, nc.

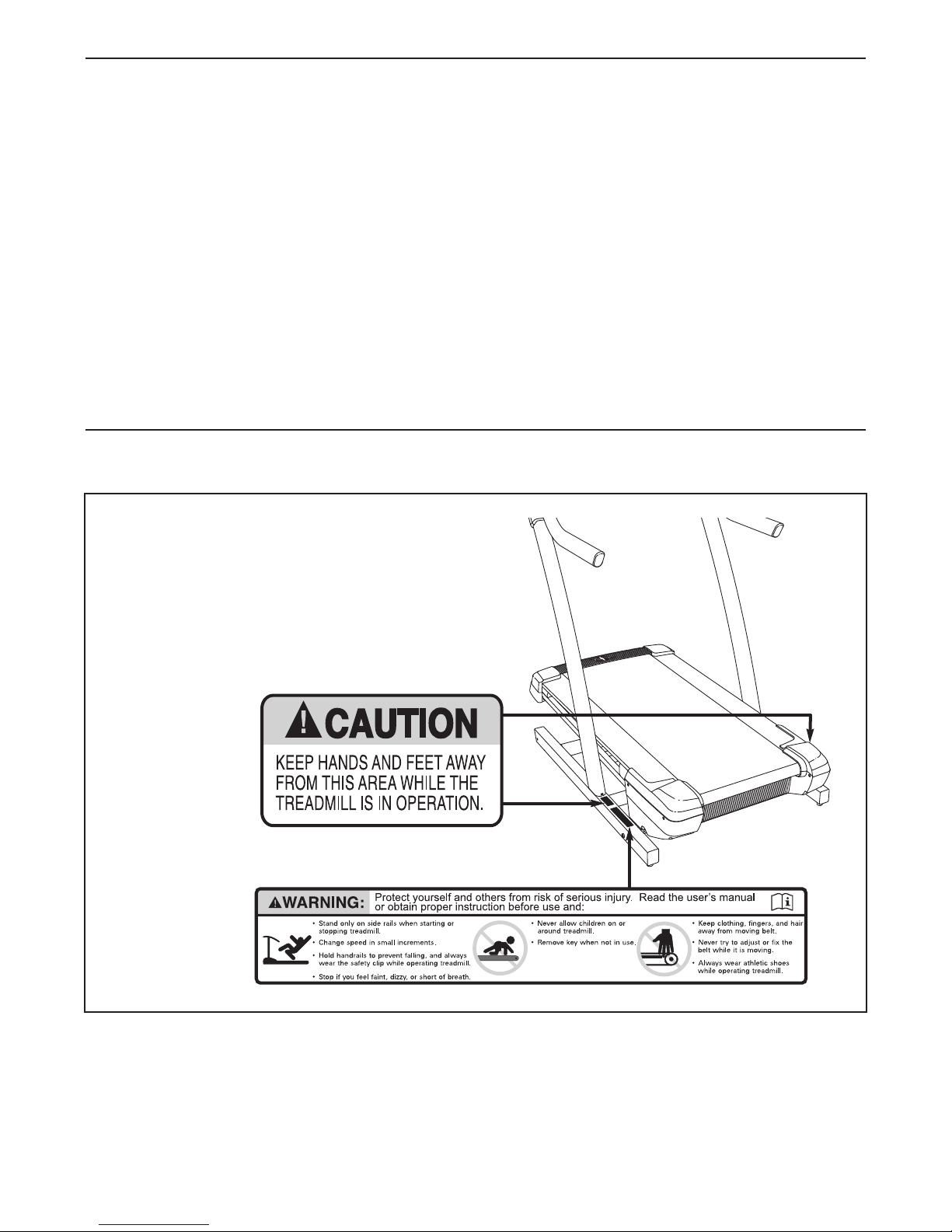

This drawing shows the locations of the warning decals.

f a decal is missing or illegible, call the telephone

number on the front cover of this manual and re-

quest a free replacement decal. Apply the decal in

the location shown. Note: The decals may not be

shown at actual size.

WARN NG DECAL PLACEMENT

1. Before beginning this or any exercise pro-

gram, consult your physician. This is espe-

cially important for persons over age 35 or

persons with pre-existing health problems.

2. t is the responsibility of the owner to ensure

that all users of this incline trainer are ade-

quately informed of all warnings and precau-

tions.

3. Use the incline trainer only as described.

4. Place the incline trainer on a level surface,

with at least 8 ft. (2.4 m) of clearance behind

it and 2 ft. (0.6 m) on each side. Do not place

the incline trainer on any surface that blocks

air openings. To protect the floor or carpet

from damage, place a mat under the incline

trainer.

5. Keep the incline trainer indoors, away from

moisture and dust. Do not put the incline

trainer in a garage or covered patio, or near

water.

6. Do not operate the incline trainer where

aerosol products are used or where oxygen

is being administered.

7. Keep children under age 12 and pets away

from the incline trainer at all times.

8. The incline trainer should be used only by

persons weighing 300 lbs. (136 kg) or less.

9. Never allow more than one person on the in-

cline trainer at a time.

10. Wear appropriate exercise clothes when

using the incline trainer. Do not wear loose

clothes that could become caught in the in-

cline trainer. Athletic support clothes are rec-

ommended for both men and women. Always

wear athletic shoes. Never use the incline

trainer with bare feet, wearing only stockings,

or in sandals.

11. When connecting the power cord (see page

13), plug the power cord into a surge suppres-

sor (not included) and plug the surge sup-

pressor into a grounded circuit capable of

carrying 15 or more amps. No other appliance

should be on the same circuit. Do not use an

extension cord.

12. Use only a single-outlet surge suppressor that

meets all of the specifications described on

page 13. To purchase a surge suppressor, see

your local NordicTrack dealer or call the tele-

phone number on the front cover of this man-

ual and order part number 146148, or see your

local electronics store.

13. Failure to use a properly functioning surge

suppressor could result in damage to the con-

trol system of the incline trainer. f the control

system is damaged, the walking belt may

slow, accelerate, or stop unexpectedly, which

may result in a fall and serious injury.

14. Keep the power cord and the surge suppres-

sor away from heated surfaces.

15. Never move the walking belt while the power

is turned off. Do not operate the incline

trainer if the power cord or plug is damaged,

or if the incline trainer is not working prop-

erly. (See TROUBLESHOOT NG on page 22 if

the incline trainer is not working properly.)

16. Read, understand, and test the emergency

stop procedure before using the incline

trainer (see HOW TO TURN ON THE POWER

on page 15).

17. Never start the incline trainer while you are

standing on the walking belt. Always hold the

handrails while using the incline trainer.

WARN NG: To reduce the risk of serious injury, read all important precautions and in-

structions in this manual and all warnings on your incline trainer before using your incline trainer.

CON assumes no responsibility for personal injury or property damage sustained by or through the

use of this product.

MPORTANT PRECAUT ONS

18. The incline trainer is capable of high speeds.

Adjust the speed in small increments to

avoid sudden jumps in speed.

19. The pulse sensor is not a medical device.

Various factors, including the user's move-

ment, may affect the accuracy of heart rate

readings. The pulse sensor is intended only

as an exercise aid in determining heart rate

trends in general.

20. Never leave the incline trainer unattended

while it is running. Always remove the key,

unplug the power cord, and switch the

reset/off circuit breaker to the “off” position

when the incline trainer is not in use. (See the

drawing on page 5 for the location of the

reset/off circuit breaker.)

21. Do not attempt to move the incline trainer until

it is properly assembled. (See ASSEMBLY on

page 6, and HOW TO MOVE THE NCL NE

TRA NER on page 21.) You must be able to

safely lift 45 lbs. (20 kg) to move the incline

trainer.

22. Do not change the incline of the incline

trainer by placing objects under the incline

trainer.

23. nspect and properly tighten all parts of the

incline trainer regularly.

24. Never insert or drop any object into any

opening on the incline trainer.

25. DANGER: Always unplug the power

cord immediately after use, before cleaning

the incline trainer, and before performing the

maintenance and adjustment procedures de-

scribed in this manual. Never remove the

motor hood unless instructed to do so by an

authorized service representative. Servicing

other than the procedures in this manual

should be performed by an authorized service

representative only.

26. The incline trainer is intended for in-home use

only. Do not use the incline trainer in any

commercial, rental, or institutional setting.

27. Over exercising may result in serious injury

or death. f you feel faint or if you experience

pain while exercising, stop immediately and

cool down.

SAVE THESE NSTRUCT ONS

Thank you for selecting the revolutionary NordicTrack®

NCL NE TRA NER X5i NTERACT VE. The NCL NE

TRA NER X5i NTERACT VE offers a selection of fea-

tures designed to make your workouts at home more

enjoyable and effective.

For your benefit, read this manual carefully before

using the incline trainer. f you have questions after

reading this manual, please see the front cover of this

manual. To help us assist you, note the product model

number and serial number before contacting us. The

model number and the location of the serial number

decal are shown on the front cover of this manual.

Before reading further, please familiarize yourself with

the parts that are labeled in the drawing below.

BEFORE YOU BEG N

Handrail

Console

Fan

Key/Clip

Reset/Off

Circuit Breaker

Walking Platform

Power Cord

Platform Cushion

Wheel

dler Roller

Adjustment Bolts

Accessory Tray

Walking Belt

Pulse Sensor

ASSEMBLY

Assembly requires two persons. Set the incline trainer in a cleared area and remove all packing materials. Do

not dispose of the packing materials until assembly is completed. Note: The underside of the incline trainer

walking belt is coated with high-performance lubricant. During shipping, some lubricant may be transferred to the

top of the walking belt or the shipping carton. This is normal and does not affect incline trainer performance. f

there is lubricant on top of the walking belt, simply wipe off the lubricant with a soft cloth and a mild, non-abrasive

cleaner.

Assembly requires the included hex keys and your own Phillips screwdriver ,

adjustable wrench , and scissors .

Use the drawings below to identify the assembly hardware. The number in parentheses below each drawing is

the key number of the part, from the PART L ST near the end of this manual. The number after the parentheses

is the quantity needed for assembly. Note: f a part is not in the hardware kit, check to see if it is preattached

to one of the parts to be assembled. To avoid damaging plastic parts, do not use power tools for assem-

bly. Extra hardware may be included.

#8 x 3/4"

Screw (1)–14

#8 x 1" Tek

Screw (2)–4

3/8" Nut (7)–2

3/8" Star

Washer (8)–8

5/16" Star

Washer (9)–8

Base Foot Spacer

(11)–4

3/8" x 3 1/2" Patch Bolt (5)–4

3/8" x 2 1/2" Bolt (6)–2

5/16" x 2 3/4" Bolt (4)–4

3/8" x 5" Patch Bolt (34)–4

5/16" x 1 3/8"

Bolt (3)–4

#8 x 1 1/2"

Screw (19)–2

1. Make sure that the power cord is unplugged.

With the help of a second person, tip the incline

trainer onto its left side. Have the second per-

son hold the incline trainer to prevent it from

tipping.

Attach four Base Feet (10) and four Base Foot

Spacers (11) to the Base (80) with four #8 x 1"

Tek Screws (2) in the locations shown. Be care-

ful not to overtighten the Tek Screws.

2. dentify the Right Upright (79), which is marked

with a “Right” sticker. Hold the Right Upright

near the incline trainer.

See the lower inset drawing. Tie the wire tie in

the Right Upright (79) around the end of the

Upright Wire (78). See the upper inset draw-

ing. Then, pull the other end of the wire tie until

the Upright Wire is routed out of the side hole in

the top of the Right Upright.

Orient the Right Upright (79) as shown. Attach

the Right Upright to the Base (80) with two 3/8"

x 3 1/2" Patch Bolts (5) and two 3/8" Star

Washers (8). Start both Patch Bolts before

tightening either of them. Be careful not to

pinch the Upright Wire (78).

With the help of a second person, tip the incline

trainer onto its right side. Have the second per-

son hold the incline trainer to prevent it from

tipping.

Attach the Left Upright (not shown) as de-

scribed above. Note: There are no wires on the

left side.

78 79

Wire

Tie

11 10

Wire

Tie

3. With the help of a second person, carefully tip

the incline trainer down so that the Base (80) is

flat on the floor.

Attach a Wheel (12) to each side of the Base

(80) with a 3/8" x 2 1/2" Bolt (6) and a 3/8" Nut

(7) (only one side is shown).

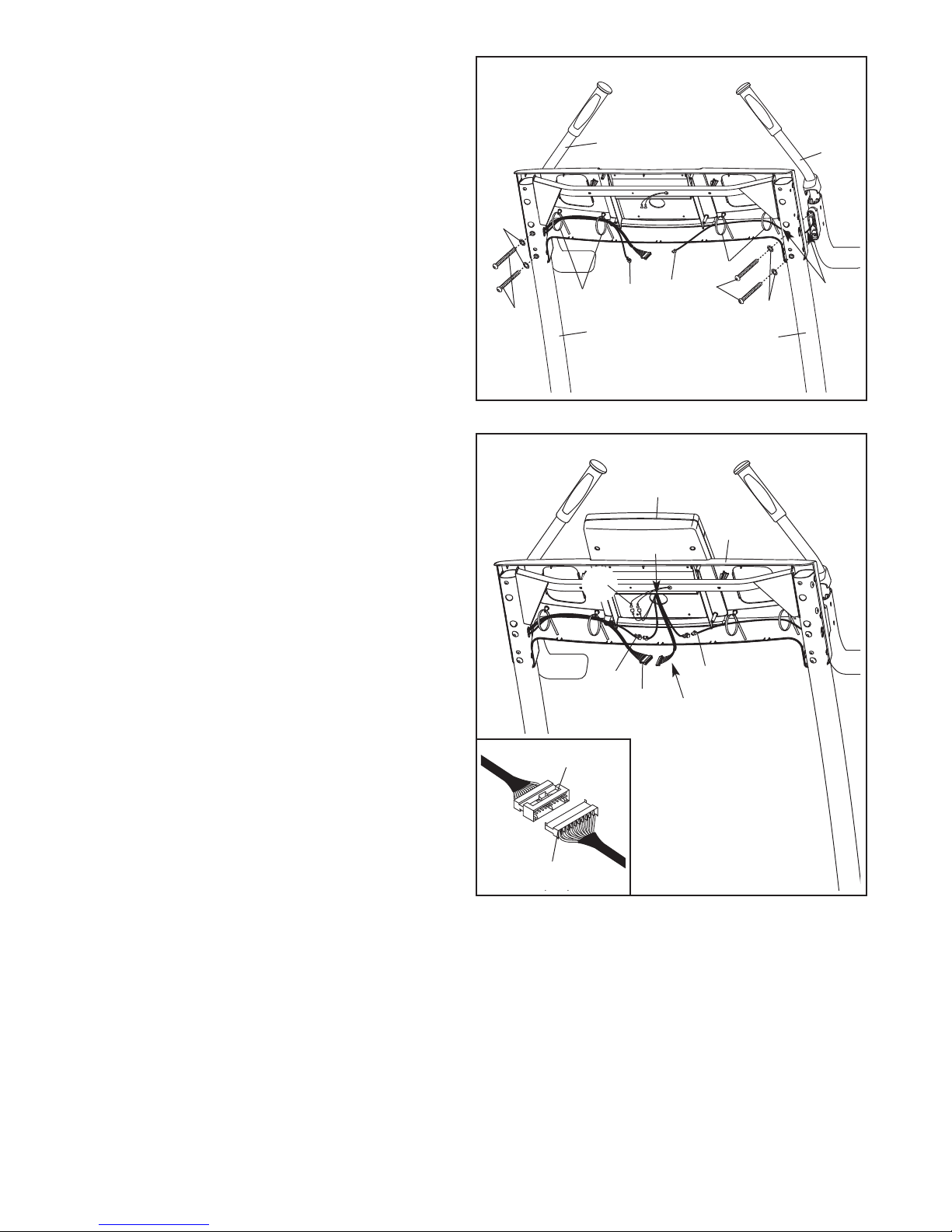

5. Position the Console Crossbar (103) between

the Uprights (77, 79) as shown. Attach the

Console Crossbar to the Uprights with four 5/16"

x 2 3/4" Bolts (4) and four 5/16" Star Washers

(9). Do not fully tighten the Bolts yet.

Remove the wire tie from the Upright Wire (78).

103

Wire Tie

4. Set the Console Cover (87) face down on a soft

surface. Remove the two #8 x 1 1/2" Screws

(19) from the Console Back (89). Save the

Screws for step 6. Separate the Console Back

from the Console Cover and remove the

Console Crossbar (not shown) from inside.

6. Set the Console Cover (87) on the Uprights (77,

79). Make sure that the Console Cover is ori-

ented with the wire ties toward the bottom as

shown.

Attach the Console Cover (87) with the two #8 x

1 1/2" Screws (19) that you removed in step 4.

Start both Screws before tightening either of

them. Do not overtighten the Screws.

nsert the Upright Wire (78) through the loops in

the ties.

Ties

7. dentify the Left and Right Pulse Handrails (86,

102).

Hold the Left Pulse Handrail (86) near a

Handrail (88). nsert the Left Pulse Wire (90)

into the top of the Handrail and out of the hole.

Slide the Left Pulse Handrail into the Handrail.

Be careful not to pinch the Left Pulse Wire.

Attach the Left Pulse Handrail (86) to the

Handrail (88) with two 5/16" x 1 3/8" Bolts (3)

and two 5/16" Star Washers (9). Note: See the

inset drawing. Use the two indicated bolt

holes.

Attach the Right Pulse Handrail (102) to the

other Handrail (88) as described above.

Hole

102

Hole

Bolt

Holes

8. Have a second person hold the Left Pulse

Handrail (86) near the Left Upright (77). nsert

the Left Pulse Wire (90) from the Left Pulse

Handrail through the hole in the Left Upright and

out of the hole in the side of the Left Upright.

Then, insert the Left Pulse Wire through the

loops in the ties.

Attach the Left Pulse Handrail (86) to the Left

Upright (77) with two 3/8" x 5" Patch Bolts (34)

and two 3/8" Star Washers (8). Start all four

Patch Bolts before firmly tightening any of

them.

Attach the Right Pulse Handrail (102) to the

Right Upright (79) as described above.

102 86

91 34

90 Hole

Ties

9. Have a second person hold the Console (85)

near the Console Cover (87). nsert the wires

from the Console through the indicated hole.

Connect the Upright Wire (78), the Left and

Right Pulse Wires (90, 91), and the Ground

Wires (97) to the wires extending from the

Console (85). See the inset drawing. The con-

nectors should slide together easily and

snap into place. f they do not, turn one con-

nector and try again. F THE CONNECTORS

ARE NOT CONNECTED PROPERLY, THE

CONSOLE MAY BE DAMAGED WHEN THE

POWER S TURNED ON.

Hole

Console Wire

Wires

Ties

Este manual sirve para los siguientes modelos

Otros manuales de Rueda de andar de NordicTrack

NordicTrack

NordicTrack NTTL18510 Manual de usuario

NordicTrack

NordicTrack T15.0 Treadmill Manual de usuario

NordicTrack

NordicTrack Viewpoint 3000 30704.0 Manual de usuario

NordicTrack

NordicTrack C2400 30703.0 Manual de usuario

NordicTrack

NordicTrack Reflex 4500 Pro Treadmill Manual de usuario

NordicTrack

NordicTrack PERFORMANCE 1450 Manual de usuario

NordicTrack

NordicTrack ELITE NTL15007.0 Manual de usuario

NordicTrack

NordicTrack T20.0 Treadmill Manual de operación y mantenimiento

NordicTrack

NordicTrack EXP 1000i NTTL09901 Manual de usuario

NordicTrack

NordicTrack T8.0 Treadmill Manual de usuario

NordicTrack

NordicTrack C1750PRO 24924.0 Manual de usuario

NordicTrack

NordicTrack Pro 3000 Treadmill Manual de operación y mantenimiento

NordicTrack

NordicTrack COMERCIAL 1750 Manual de usuario

NordicTrack

NordicTrack NTL77806.2 Manual de usuario

NordicTrack

NordicTrack T12 Si Cwl Treadmill Manual de usuario

NordicTrack

NordicTrack S 20 Manual de usuario

NordicTrack

NordicTrack E 3200 Manual de usuario

NordicTrack

NordicTrack T18.0 Treadmill Guía de inicio rápido

NordicTrack

NordicTrack T 4.0 Treadmill Manual de usuario

NordicTrack

NordicTrack T7si Treadmill Manual de usuario

NordicTrack

NordicTrack CTL8250 Manual de usuario

NordicTrack

NordicTrack NTL11920 Manual de usuario

NordicTrack

NordicTrack NTL14212.1 Manual de usuario

NordicTrack

NordicTrack NTL1095.3 Manual de usuario

Manuales populares de Rueda de andar de otras marcas

Treadly

Treadly TREADLY 2 Manual de usuario

HEALTH ONE

HEALTH ONE Walk Ro Manual de usuario

Gold's Gym

Gold's Gym ADVANTAGE GGTL12920 Manual de usuario

Merax

Merax MS282992 Manual de usuario

FYTTER

FYTTER RU-2SX Manual de usuario

Precor

Precor 903 Manual de usuario

FitLogic

FitLogic freewill d225 Manual de usuario

HOP-SPORT

HOP-SPORT ESTIMA HS-3200LB Manual de usuario

Horizon Fitness

Horizon Fitness Adventure 5 Plus Manual de usuario

Stamia

Stamia InMotion II Manual de usuario

Smooth Fitness

Smooth Fitness EVO 3i Manual de usuario

Schwinn

Schwinn 830/Journey 8.0 Manual de usuario

Keys Fitness

Keys Fitness HealthTrainer HT-740T Manual de usuario

Spirit

Spirit XT8 Manual de usuario

Master

Master F22 Manual de usuario

Precor

Precor PRECISION SERIES Manual técnico

Horizon Fitness

Horizon Fitness DT680 Manual de usuario

Matrix

Matrix T130 XI Manual de usuario
