NordicTrack A2105 Treadmill Manual de usuario

Serial Number

Decal

Model No. 30827.2

Serial No.

CAUTION

Read all precautions and instruc-

tions in this manual before using

this equipment. Save this manual

for future reference.

QUESTIONS?

As a manufacturer, we are com-

mitted to providing complete

customer satisfaction. If you

have questions, or if parts are

damaged or missing, PLEASE

DO NOT CONTACT THE STORE.

For assistance, contact our

Customer Service Department.

CALL TOLL-FREE:

1-888-936-4266

Mon.–Fri., 8:00 until 17:00 EST

(excluding holidays)

OR E-MAIL US:

customerservice@iconcanada.ca

www.nordictrack.com

Visit our website at

Write the serial number in the space

above for reference.

USER'S MANUAL

TABLE OF CONTENTS

WARNNGDECALPLACEMENT..............................................................2

MPORTANTPRECAUTONS ................................................................3

BEFOREYOUBEGN ......................................................................5

ASSEMBLY...............................................................................6

OPERATONANDADJUSTMENT ............................................................12

HOWTOFOLDANDMOVETHETREADMLL ..................................................24

TROUBLESHOOTNG .....................................................................26

EXERCSEGUDELNES ...................................................................29

PARTLST ..............................................................................30

EXPLODEDDRAWNG ....................................................................32

ORDERNGREPLACEMENTPARTS ..................................................BackCover

LMTEDWARRANTY ..............................................................BackCover

NordicTrack is a registered trademark of CON P, nc.

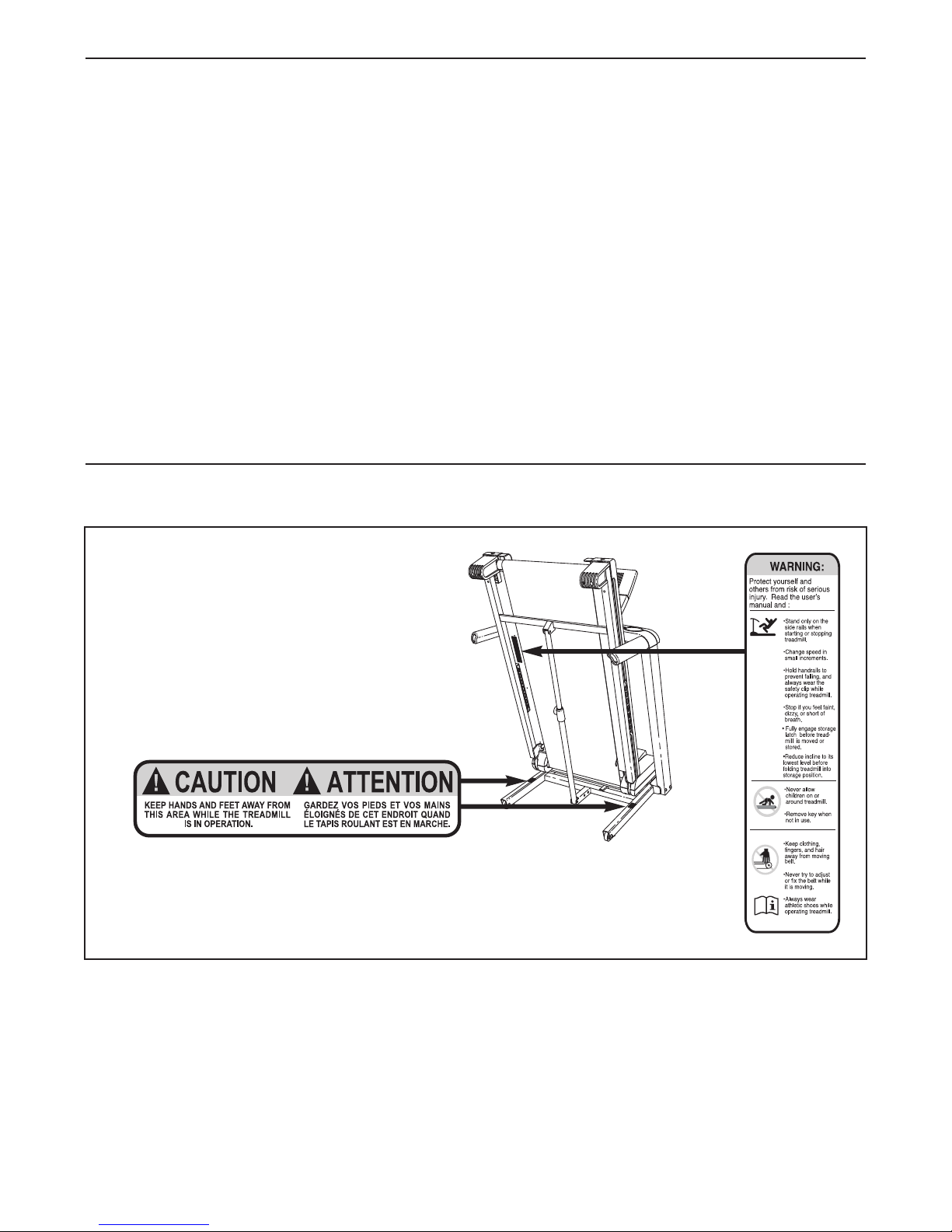

The decals shown here have been applied

in the locations shown. If a decal is miss-

ing or illegible, call the telephone num-

ber on the front cover of this manual

and request a free replacement decal.

Apply the decal in the location shown.

Note: The decals may not be shown at ac-

tual size.

WARNING DECAL PLACEMENT

1. Before beginning any exercise program, con-

sult your physician. This is especially impor-

tant for persons over the age of 35 or persons

with pre-existing health problems.

2. It is the responsibility of the owner to ensure

that all users of this treadmill are adequately

informed of all warnings and precautions.

3. Use the treadmill only as described.

4. Place the treadmill on a level surface, with at

least 8 ft. (2.4 m) of clearance behind it and 2

ft. (0.6 m) on each side. Do not place the

treadmill on any surface that blocks air open-

ings. To protect the floor or carpet from dam-

age, place a mat under the treadmill.

5. Keep the treadmill indoors, away from mois-

ture and dust. Do not put the treadmill in a

garage or covered patio, or near water.

6. Do not operate the treadmill where aerosol

products are used or where oxygen is being

administered.

7. Keep children under the age of 12 and pets

away from the treadmill at all times.

8. The treadmill should be used only by persons

weighing 300 lbs. (136 kg) or less.

9. Never allow more than one person on the

treadmill at a time.

10. Wear appropriate exercise clothes when

using the treadmill. Do not wear loose clothes

that could become caught in the treadmill.

Athletic support clothes are recommended

for both men and women. Always wear ath-

letic shoes. Never use the treadmill with bare

feet, wearing only stockings, or in sandals.

11. When connecting the power cord (see page

12), plug the power cord into a surge sup-

pressor (not included) and plug the surge

suppressor into a grounded circuit capable of

carrying 15 or more amps. No other appliance

should be on the same circuit. Do not use an

extension cord.

12. Use only a single-outlet surge suppressor that

meets all of the specifications described on

page 12.

13. Failure to use a properly functioning surge

suppressor could result in damage to the con-

trol system of the treadmill. If the control sys-

tem is damaged, the walking belt may change

speed, accelerate, or stop unexpectedly,

which may result in a fall and serious injury.

14. Keep the power cord and the surge suppres-

sor away from heated surfaces.

15. Never move the walking belt while the power

is turned off. Do not operate the treadmill if

the power cord or plug is damaged, or if the

treadmill is not working properly. (See TROU-

BLESHOOTING on page 26 if the treadmill is

not working properly.)

16. Read, understand, and test the emergency

stop procedure before using the treadmill (see

HOW TO TURN ON THE POWER on page 14).

17. Never start the treadmill while you are stand-

ing on the walking belt. Always hold the

handrails while using the treadmill.

18. The treadmill is capable of high speeds.

Adjust the speed in small increments to avoid

sudden jumps in speed.

19. The pulse sensor is not a medical device.

Various factors, including the user's move-

ment, may affect the accuracy of heart rate

readings. The pulse sensor is intended only

as an exercise aid in determining heart rate

trends in general.

WARNING: To reduce the risk of serious injury, read all important precautions and in-

structions in this manual and all warnings on your treadmill before using your treadmill. ICON as-

sumes no responsibility for personal injury or property damage sustained by or through the use of

this product.

IMPORTANT PRECAUTIONS

20. Never leave the treadmill unattended while it

is running. Always remove the key, unplug

the power cord, and switch the reset/off cir-

cuit breaker to the off position when the

treadmill is not in use. (See the drawing on

page 5 for the location of the circuit breaker.)

21. Do not attempt to raise, lower, or move the

treadmill until it is properly assembled. (See

ASSEMBLY on page 6, and HOW TO FOLD

AND MOVE THE TREADMILL on page 24.)

You must be able to safely lift 45 lbs. (20 kg)

to raise, lower, or move the treadmill.

22. When folding or moving the treadmill, make

sure that the storage latch is holding the

frame securely in the storage position.

23. Never insert any object into any opening on

the treadmill.

24. Inspect and properly tighten all parts of the

treadmill regularly.

25. DANGER: Always unplug the power

cord immediately after use, before cleaning the

treadmill, and before performing the mainte-

nance and adjustment procedures described in

this manual. Never remove the motor hood un-

less instructed to do so by an authorized ser-

vice representative. Servicing other than the

procedures in this manual should be performed

by an authorized service representative only.

26. This treadmill is intended for in-home use

only. Do not use this treadmill in a commer-

cial, rental, or institutional setting.

SAVE THESE INSTRUCTIONS

Thank you for selecting the revolutionary NordicTrack®

A2105 treadmill. The A2105 treadmill offers a selection

of features designed to make your workouts at home

more enjoyable and effective. And when youʼre not ex-

ercising, the unique A2105 treadmill can be folded up,

requiring less than half the floor space of other tread-

mills.

For your benefit, read this manual carefully before

using the treadmill. f you have questions after read-

ing this manual, please see the front cover of this man-

ual. To help us assist you, note the product model

number and serial number before contacting us. The

model number and the location of the serial number

decal are shown on the front cover of this manual.

Before reading further, please familiarize yourself with

the parts that are labeled in the drawing below.

BEFORE YOU BEGIN

Handrail

Upright

Accessory Tray

Key/Clip

Reset/Off

Circuit Breaker

Walking Belt

Platform Cushion

Foot Rail

Power Cord

Rear Roller

Adjustment Bolts

Console

Book Holder

Fan

Pulse Sensor

ASSEMBLY

Assembly requires two persons. Set the treadmill in a cleared area and remove all packing materials. Do not

dispose of the packing materials until assembly is completed. Note: The underside of the treadmill walking belt is

coated with high-performance lubricant. During shipping, lubricant may be transferred to the top of the walking

belt or the shipping carton. This is a normal condition. f there is lubricant on top of the walking belt, simply wipe

off the lubricant with a soft cloth and a mild, non-abrasive cleaner.

Assembly requires the included hex keys and your own Phillips screwdriver and

adjustable wrench .

Use the drawings below to identify the assembly hardware. The number in parentheses below each drawing is

the key number of the part, from the PART L ST near the end of this manual. The number after the parentheses

is the quantity needed for assembly. Note: f a part is not in the parts bag, check to see if it is preattached to one

of the parts to be assembled. To avoid damaging plastic parts, do not use power tools for assembly. Extra

hardware may be included.

1. Make sure that the power cord is unplugged.

With the help of a second person, carefully tip

the treadmill onto its left side. Partially fold the

Frame (56) so that the treadmill is more stable;

do not fully fold the Frame yet.

Remove and discard the two indicated bolts (A)

and the shipping bracket (B).

Cut the tie securing the Upright Wire (38) to the

Base (83). Locate the tie in the indicated hole in

the Base, and use the tie to pull the Upright Wire

out of the hole.

Attach a Base Pad (81) to the Base (83) in the

location shown with a Base Pad Spacer (13) and

a 1" Tek Screw (2). Then, attach another Base

Pad (81) with only a 1" Tek Screw (2).

3/8" Nut (8)–4

1" Tek Screw (2)–4

Base Pad Spacer

(13)–2

3/8" Star

Washer (9)–7

1/4" Star

Washer (10)–6

3/8" x 4 1/2" Bolt (6)–4

1/4" x 1/2"

Bolt (7)–6 3/8" x 1 1/4" Bolt (5)–3 3/8" x 2" Bolt (4)–4

Tie

Hole

3. dentify the Right Upright (78) and the Right

Upright Spacer (79), which are marked with

stickers. nsert the Upright Wire (38) through the

Right Upright Spacer as shown.

See the inset drawing. Tie the wire tie in the

Right Upright (78) securely around the end of

the Upright Wire (38). With the help of a second

person, hold the Right Upright near the Base

(83). Then, pull the other end of the wire tie until

the Upright Wire is routed completely through

the Right Upright.

2. Remove the 3/8" Nut (8), the 3/8" x 2" Bolt (4),

and the shipping bracket (C) from the Base (83).

Attach a Wheel (84) with the Bolt and the Nut

that you just removed. Do not overtighten the

Nut; the Wheel must turn freely. Discard the

shipping bracket.

Cut the tie off the Upright Wire (38).

Tie

Wire

Tie

4. Hold a Bolt Spacer (80) inside the lower end of

the Right Upright (78). nsert a 3/8" x 4 1/2" Bolt

(6) with a 3/8" Star Washer (9) into the Right

Upright and the Bolt Spacer. Repeat this step

with a second Bolt Spacer (80), 3/8" x 4 1/2"

Bolt (6), and 3/8" Star Washer (9).

Hold the Right Upright Spacer (79) and the

Right Upright (78) against the Base (83). Be

careful not to pinch the Upright Wire (38).

Finger tighten the 3/8" x 4 1/2" Bolts (6); do not

fully tighten the Bolts yet.

Press a Base Cap (77) into the Base (83).

6. With the help of a second person, hold a Bolt

Spacer (80) inside the lower end of the Left

Upright (74). nsert a 3/8" x 4 1/2" Bolt (6) with a

3/8" Star Washer (9) into the Left Upright and

the Bolt Spacer. Repeat this step with a second

Bolt Spacer (80), 3/8" x 4 1/2" Bolt (6), and 3/8"

Star Washer (9).

Orient the Left Upright (74) and the Left Upright

Spacer (76) as shown. Hold the Left Upright

Spacer and the Left Upright against the Base

(83). Finger tighten the two 3/8" x 4 1/2" Bolts

(6); do not fully tighten the Bolts yet.

Press a Base Cap (77) into the Base (83).

With the help of a second person, tip the tread-

mill so that the Base (83) is flat on the floor.

5. With the help of a second person, carefully tip

the treadmill onto its right side. Partially fold the

Frame (56) so the treadmill is more stable; do

not fully fold the Frame yet.

Remove and discard the two indicated bolts (A)

and the shipping bracket (B).

Attach a Base Pad (81) to the Base (83) in the

location shown with a Base Pad Spacer (13) and

a 1" Tek Screw (2). Then, attach another Base

Pad (81) with only a 1" Tek Screw (2).

Remove the 3/8" Nut (8), the 3/8" x 2" Bolt (4),

and the shipping bracket (C) from the Base (83).

Attach a Wheel (84) with the Bolt and the Nut

that you just removed. Do not overtighten the

Nut; the Wheel must turn freely. Discard the

shipping bracket.

7. Attach the Latch Bracket (109) to the Base (83)

with two 3/8" x 2" Bolts (4) and 3/8" Nuts (8).

With the help of a second person, tip the tread-

mill so that the Base (83) is flat on the floor.

109

9. nsert the indicated connectors into the Right

Upright (78).

Next, insert the fronts of the brackets on the

Bridge (95) into the Uprights (74, 78), and then

fully insert the brackets. Make sure that the plas-

tic edges of the Bridge (95) are inside the

Uprights.

Attach the Bridge (95) with six 1/4" x 1/2" Bolts

(7) and six 1/4" Star Washers (10); start the two

Bolts indicated by the arrows first before

starting the other four Bolts. Tighten all six

Bolts.

See steps 4 and 6. Tighten the four 3/8" x 4 1/2"

Bolts (6).

Connectors

Front

Edge

10. With the help of a second person, hold the con-

sole assembly near the Bridge (95). Connect the

Bridge Wire (52) to the console assembly wire.

Make sure to connect the connectors prop-

erly (see the inset drawing in step 7). The

connectors should slide together easily and

snap into place. f they do not, turn one con-

nector and try again. IF THE CONNECTORS

ARE NOT CONNECTED PROPERLY, THE

CONSOLE MAY BE DAMAGED WHEN THE

POWER IS TURNED ON.

Connect the Console Ground Wire (101) to the

console assembly ground wire. nsert the wires

into the console assembly.

Attach the console assembly with three 3/8" x

1 1/4" Bolts (5) and three 3/8" Star Washers (9).

Be careful not to pinch the wires.

Console

Assembly

101

8. Have a second person hold the Bridge (95) near

the Right Upright (78). Remove the wire tie from

the Upright Wire (38).

Connect the Upright Wire (38) to the Bridge Wire

(52). Make sure to connect the connectors

properly (see the inset drawing). The connec-

tors should slide together easily and snap

into place. f they do not, turn one connector and

try again. IF THE CONNECTORS ARE NOT

CONNECTED PROPERLY, THE CONSOLE

MAY BE DAMAGED WHEN THE POWER IS

TURNED ON.

Wire Tie

13. Make sure that all parts are properly tightened before you use the treadmill. f there are sheets of clear

plastic on the treadmill decals, remove the plastic. To protect the floor or carpet, place a mat under the tread-

mill. Note: Extra hardware may be included. Keep the included hex keys in a secure place; the large hex key

is used to adjust the walking belt (see page 27).

12. Raise the Frame (56) to the position shown.

Have a second person hold the Frame until

this step is completed.

Orient the Storage Latch (53) so that the large

barrel and the Latch Knob (54) are oriented as

shown.

Attach the Storage Latch (53) to the Latch

Bracket (109) with a 3/8" x 2" Bolt (4) and a 3/8"

Nut (8).

Attach the upper end of the Storage Latch (53)

to the bracket on the Frame (56) with a 3/8" x 2"

Bolt (4) and a 3/8" Nut (8). Note: t may be nec-

essary to move the Frame back and forth to

align the Storage Latch with the bracket.

Lower the Frame (56) (see HOW TO LOWER

THE TREADM LL FOR USE on page 25).

Large

Barrel

109

11. dentify the Storage Latch (53). Remove the tie

from the end of the tube. Make sure that the

sleeve has been slid over hole 1 and that the

Latch Knob (54) is locked into hole 1. Pull on

the sleeve to make sure that it is locked into

place.

Sleeve

Hole 1

Tube

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Rueda de andar de NordicTrack

NordicTrack

NordicTrack Reflex 4500 Pro Treadmill Manual de usuario

NordicTrack

NordicTrack 17.0 Treadmill Manual del sistema

NordicTrack

NordicTrack C 2000 NTL10841 Manual de usuario

NordicTrack

NordicTrack T 14.0 Treadmill Manual de usuario

NordicTrack

NordicTrack ELITE 3760 Manual de usuario

NordicTrack

NordicTrack NTL15909.1 Manual de usuario

NordicTrack

NordicTrack T18.0 Treadmill Guía de inicio rápido

NordicTrack

NordicTrack T5 Zi Treadmill Manual de usuario

NordicTrack

NordicTrack C1650 Manual de usuario

NordicTrack

NordicTrack 19.0 Treadmill Manual de instrucciones

NordicTrack

NordicTrack Ex3600 Treadmill Manual de usuario

NordicTrack

NordicTrack T 13.0 Treadmill Manual de usuario

NordicTrack

NordicTrack T18.0 Treadmill Guía del usuario

NordicTrack

NordicTrack NTL99010.3 Manual de usuario

NordicTrack

NordicTrack T16.0 Treadmill Manual de usuario

NordicTrack

NordicTrack Incline Trainer X11i Interact Treadmill Guía del usuario

NordicTrack

NordicTrack Pro 3000 Treadmill Guía de inicio rápido

NordicTrack

NordicTrack T12 Si Cwl Treadmill Manual de operación y mantenimiento

NordicTrack

NordicTrack EXP2000 NCTL11992 Manual de usuario

NordicTrack

NordicTrack NTL29221-INT.0 Manual de usuario

NordicTrack

NordicTrack T20.0 Treadmill Manual de instrucciones

NordicTrack

NordicTrack T10.0 Manual de usuario

NordicTrack

NordicTrack Incln Trainer X5i Intera Treadmill Manual de usuario

NordicTrack

NordicTrack T20.0 Treadmill Manual de usuario

Manuales populares de Rueda de andar de otras marcas

Treadly

Treadly TREADLY 2 Manual de usuario

HEALTH ONE

HEALTH ONE Walk Ro Manual de usuario

Gold's Gym

Gold's Gym ADVANTAGE GGTL12920 Manual de usuario

Merax

Merax MS282992 Manual de usuario

FYTTER

FYTTER RU-2SX Manual de usuario

Precor

Precor 903 Manual de usuario

FitLogic

FitLogic freewill d225 Manual de usuario

HOP-SPORT

HOP-SPORT ESTIMA HS-3200LB Manual de usuario

Horizon Fitness

Horizon Fitness Adventure 5 Plus Manual de usuario

Stamia

Stamia InMotion II Manual de usuario

Smooth Fitness

Smooth Fitness EVO 3i Manual de usuario

Schwinn

Schwinn 830/Journey 8.0 Manual de usuario

Keys Fitness

Keys Fitness HealthTrainer HT-740T Manual de usuario

Spirit

Spirit XT8 Manual de usuario

Master

Master F22 Manual de usuario

Precor

Precor PRECISION SERIES Manual técnico

Horizon Fitness

Horizon Fitness DT680 Manual de usuario

Matrix

Matrix T130 XI Manual de usuario
