NordicTrack E 7.1 Manual de usuario

CAUTION

Read all precautions and instruc-

tions in this manual before using

this equipment. eep this manual

for future reference.

Serial Number

Decal (under frame)

USERʼS MANUAL

www.nordictrack.com

Model No. NTEL07910.2

Serial No.

Write the serial number in the space

above for reference.

QUESTIONS?

If you have questions, or if parts are

damaged or missing, DO NOT

CONTACT THE STORE; please

contact Customer Care.

IMPORTANT: Please register this

product (see the limited warranty

on the back cover of this manual)

before contacting Customer Care.

CALL TOLL-FREE:

1-800-TO-BE-FIT

(1-800-862-3348)

Mon.–Fri., 6 a.m.–6 p.m. MT

Sat. 8 a.m.–4 p.m. MT

ON THE WEB:

www.nordictrackservice.com

All manuals and user guides at all-guides.com

all-guides.com

NORDICTRACK is a registered trademark of ICON IP, Inc.

TABLE OF CONTENTS

WARNINGDECALPLACEMENT ..............................................................2

IMPORTANTPRECAUTIONS ................................................................3

BEFOREYOUBEGIN ......................................................................4

ASSEMBLY ...............................................................................5

HOWTOUSETHEELLIPTICAL .............................................................14

MAINTENANCEANDTROUBLESHOOTING ...................................................22

EXERCISEGUIDELINES ...................................................................24

PARTLIST ..............................................................................27

EXPLODEDDRAWING ....................................................................29

ORDERINGREPLACEMENTPARTS ..................................................BackCover

LIMITEDWARRANTY ..............................................................BackCover

WARNING DECAL PLACEMENT

This drawing shows the location(s) of the warning

decal(s). If a decal is missing or illegible, see

the front cover of this manual and request a

free replacement decal. Apply the decal in the

location shown. Note: The decal(s) may not be

shown at actual size.

All manuals and user guides at all-guides.com

WARNING: To reduce the risk of serious injury, read all important precautions and

instructions in this manual and all warnings on your elliptical before using your elliptical. ICON

assumes no responsibility for personal injury or property damage sustained by or through the use of

this product.

IMPORTANT PRECAUTIONS

1. Before beginning any exercise program,

consult your physician. This is especially

important for persons over age 35 or

persons with pre-existing health problems.

2. Use the elliptical only as described in this

manual.

3. It is the responsibility of the owner to ensure

that all users of the elliptical are adequately

informed of all precautions.

4. The elliptical is intended for home use only.

Do not use the elliptical in a commercial,

rental, or institutional setting.

5. eep the elliptical indoors, away from

moisture and dust. Do not put the elliptical in

a garage or covered patio, or near water.

6. Place the elliptical on a level surface, with a

mat beneath it to protect the floor or carpet.

Make sure that there is at least 3 ft. (0.9 m) of

clearance in the front and rear of the elliptical

and 2 ft. (0.6 m) on each side.

7. Inspect and properly tighten all parts

regularly. Replace any worn parts

immediately.

8. eep children under age 12 and pets away

from the elliptical at all times.

9. The elliptical should not be used by persons

weighing more than 300 lbs. (136 kg).

10. Wear appropriate clothes while exercising;

do not wear loose clothes that could become

caught on the elliptical. Always wear athletic

shoes for foot protection while exercising.

11. Hold the handlebars or the upper body arms

when mounting, dismounting, or using the

elliptical.

12. The heart rate monitor is not a medical

device. Various factors may affect the

accuracy of heart rate readings. The heart

rate monitor is intended only as an exercise

aid in determining heart rate trends in

general.

13. The elliptical does not have a freewheel; the

pedals will continue to move until the

flywheel stops. Reduce your pedaling speed

in a controlled way.

14. eep your back straight while using the

elliptical; do not arch your back.

15. Over exercising may result in serious injury

or death. If you feel faint or if you experience

pain while exercising, stop immediately and

cool down.

All manuals and user guides at all-guides.com

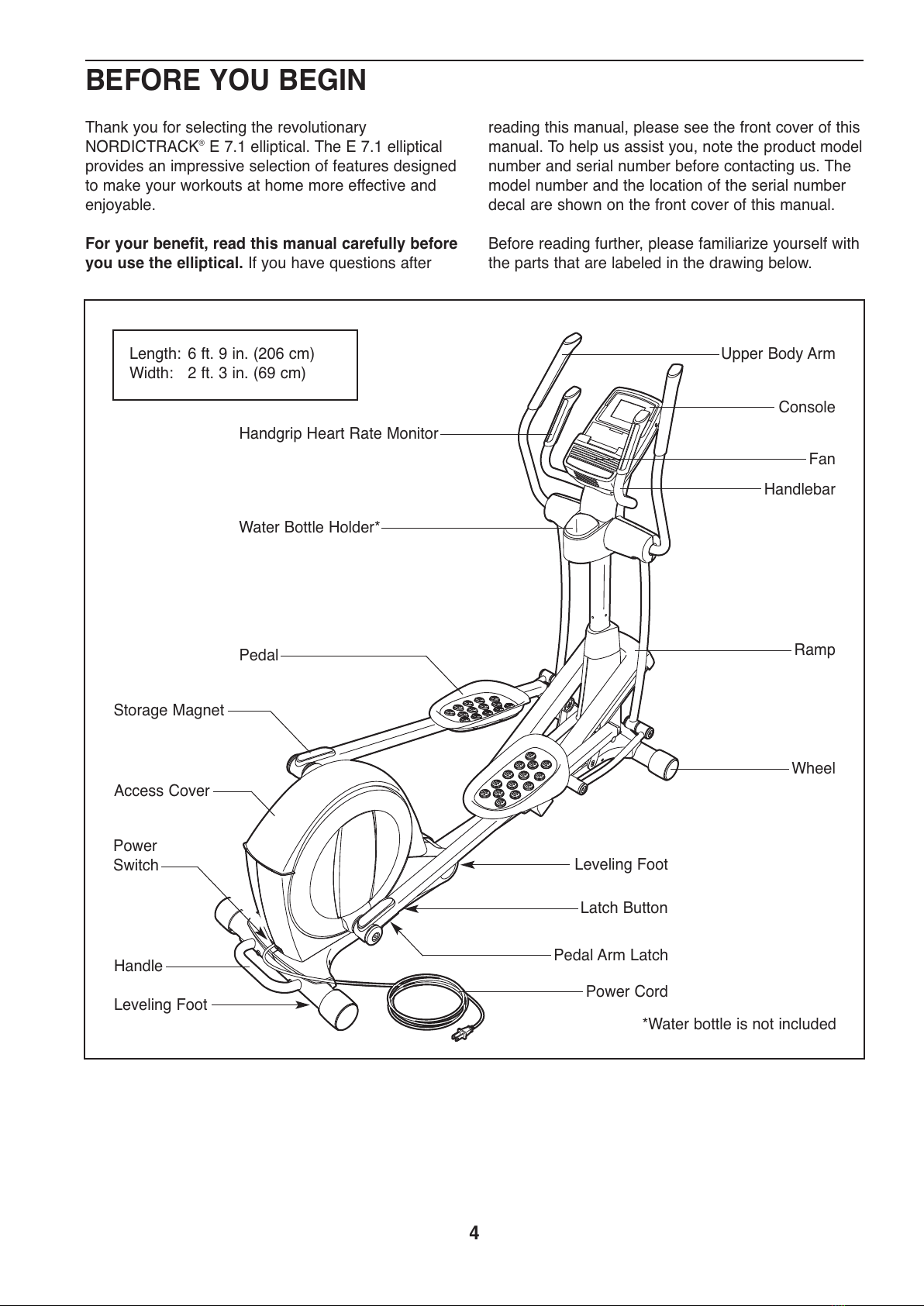

BEFORE YOU BEGIN

Thank you for selecting the revolutionary

NORDICTRACK®E7.1 elliptical. The E 7.1 elliptical

provides an impressive selection of features designed

to make your workouts at home more effective and

enjoyable.

For your benefit, read this manual carefully before

you use the elliptical. If you have questions after

reading this manual, please see the front cover of this

manual. To help us assist you, note the product model

number and serial number before contacting us. The

model number and the location of the serial number

decal are shown on the front cover of this manual.

Before reading further, please familiarize yourself with

the parts that are labeled in the drawing below.

Handgrip Heart Rate Monitor

Upper Body Arm

Access Cover

Wheel

Pedal

Water Bottle Holder*

Console

Leveling Foot

Handle

Power

Switch

Latch Button

Ramp

Storage Magnet

Fan

Handlebar

Pedal Arm Latch

*Water bottle is not included

Leveling Foot Power Cord

Length: 6 ft. 9 in. (206 cm)

Width: 2 ft. 3 in. (69 cm)

All manuals and user guides at all-guides.com

ASSEMBLY

Assembly requires two persons. Place all parts of the elliptical in a cleared area and remove the packing

materials. Do not dispose of the packing materials until assembly is completed.

In addition to the included tool(s) and grease packet(s), assembly requires a Phillips

screwdriver and a rubber mallet .

Use the drawings below to identify the small parts needed for assembly. The number in parentheses below each

drawing is the key number of the part, from the PART LIST near the end of this manual. The number following

the key number is the quantity needed for assembly. Note: If a part is not in the hardware kit, check to see if

it has been preassembled. To avoid damaging parts, do not use power tools for assembly.

M10 x 95mm Patch

Screw (100)–4

M8 Split Washer

(103)–14

M8 Washer

(95)–6

M8 x 16mm Patch

Screw (102)–16

Wave Washer

(118)–2

M6 Washer

(112)–8

M8 x 25mm Patch

Screw (121)–2

M6 x 50mm Patch

Screw (62)–4

M8 x 35mm Patch

Screw (149)–2

M4 x 19mm

Screw (156)–8

M6 x 12mm Patch

Screw (111)–4

All manuals and user guides at all-guides.com

Orient the Rear Stabilizer (4) as shown.

Attach the Rear Stabilizer (4) to the Folding

Frame (2) with two M10 x 95mm Patch Screws

(100).

Next, hold the handle on the Rear Stabilizer (4),

press the Latch Button (67), and lower the Rear

Stabilizer and the Folding Frame (2) to the floor.

To make assembly easier, read the

information on page 5 before you begin.

100

Handle

2. Orient the Front Stabilizer (3) so that the indi-

cated hole is facing the pin on the Main Frame

(1).

While a second person lifts the front of the Main

Frame (1), attach the Front Stabilizer (3) with

two M10 x 95mm Patch Screws (100).

100

Hole

All manuals and user guides at all-guides.com

all-guides.com

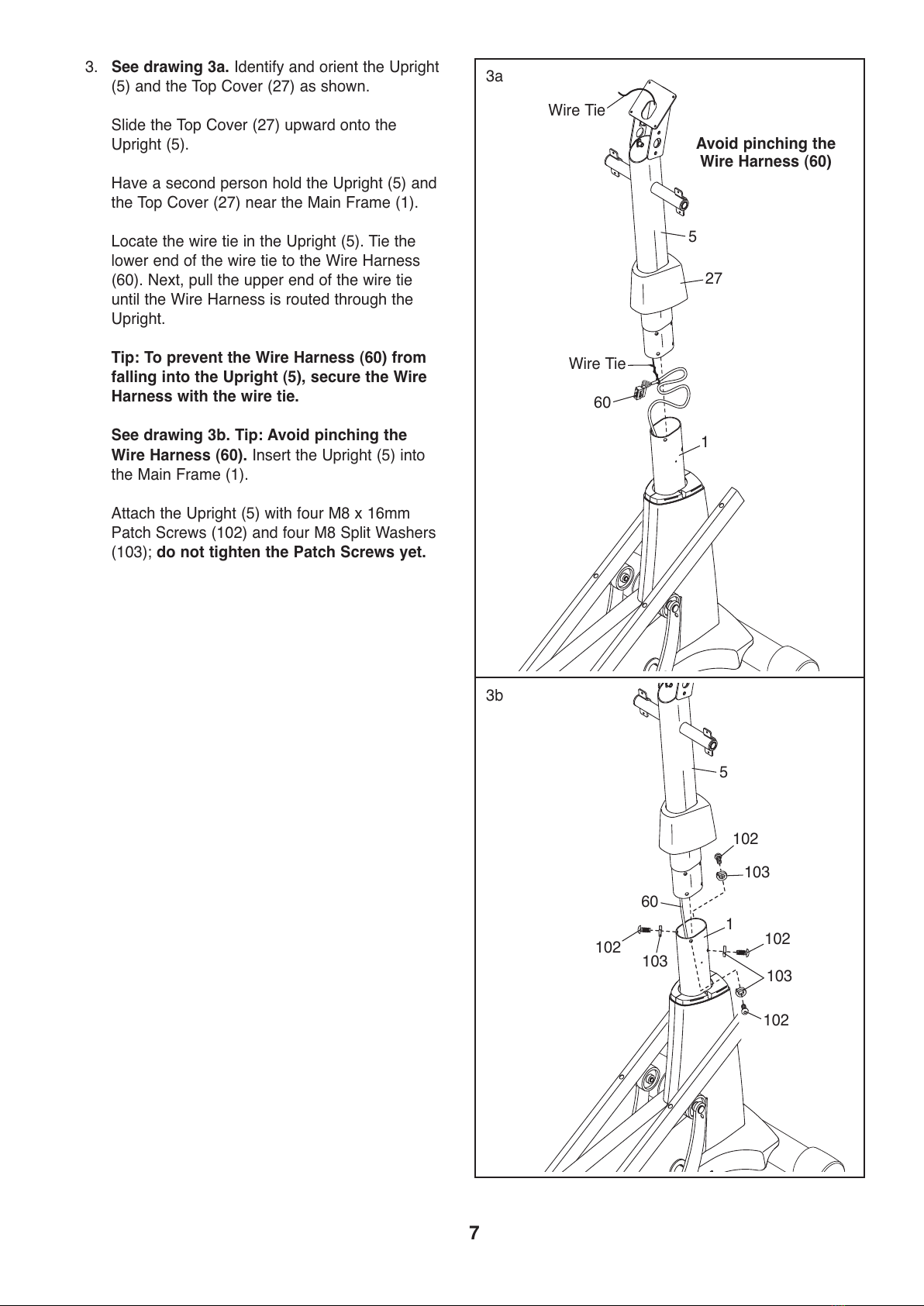

3. See drawing 3a. Identify and orient the Upright

(5) and the Top Cover (27) as shown.

Slide the Top Cover (27) upward onto the

Upright (5).

Have a second person hold the Upright (5) and

the Top Cover (27) near the Main Frame (1).

Locate the wire tie in the Upright (5). Tie the

lower end of the wire tie to the Wire Harness

(60). Next, pull the upper end of the wire tie

until the Wire Harness is routed through the

Upright.

Tip: To prevent the Wire Harness (60) from

falling into the Upright (5), secure the Wire

Harness with the wire tie.

See drawing 3b. Tip: Avoid pinching the

Wire Harness (60). Insert the Upright (5) into

the Main Frame (1).

Attach the Upright (5) with four M8 x 16mm

Patch Screws (102) and four M8 Split Washers

(103); do not tighten the Patch Screws yet.

Wire Tie

102

102 103

103

Avoid pinching the

Wire Harness (60)

All manuals and user guides at all-guides.com

4. Using a small plastic bag to keep your fingers

clean, apply a coat of the included grease to the

Upright Axle (48) and to two Wave Washers

(118).

Tip: Avoid damaging the Wire Harness (60).

Insert the Upright Axle (48) through the Upright

(5) and center it. Slide a Wave Washer (118)

onto each side of the Upright Axle.

Next, identify the Right and Left Upper Body

Legs (6, 7), which are marked with “Right” and

“Left” stickers, and orient them as shown.

Slide the Right and Left Upper Body Legs (6, 7)

onto the right and left sides of the Upright Axle

(48).

Tighten an M8 x 16mm Patch Screw (102) and

an M8 Washer (95) into each end of the Upright

Axle (48) at the same time.

Avoid damaging the

Wire Harness (60)

Grease

102

118

5. Identify the Right Pedal (14), the Right Pedal

Pad (151), and the Right Pedal Arm (12)

assembly, which are marked with “Right” stick-

ers, and orient them as shown.

Set the Right Pedal Pad (151) on the Right

Pedal Arm (12). Then, set the Right Pedal (14)

on the Right Pedal Pad.

Attach the Right Pedal (14) to the Right Pedal

Arm (12) with two M6 x 12mm Patch Screws

(111) and two M6 Washers (112); do not

tighten the Patch Screws yet.

Next, tighten two M6 x 50mm Patch Screws

(62) with two M6 Washers (112) into the Right

Pedal Arm (12) and the Right Pedal (14). Then,

tighten the two M6 x 12mm Patch Screws

(111).

Attach the Left Pedal (not shown) to the Left

Pedal Arm (not shown) assembly in the

same way.

151

111

112

112 62

All manuals and user guides at all-guides.com

7. See drawing 7a. Locate the Pedal Arm Roller

(32) on the Right Pedal Arm (12).

Set the Pedal Arm Roller (32) on the right side

of the Ramp (130).

See drawing 7b. Pull upward on the Latch (50)

on the Right Pedal Arm (12).

Press the Right Pedal Arm (12) onto the right

Pedal Arm Sleeve (46). Make sure that the

Right Pedal Arm latches into place.

Repeat this step on the other side of the

elliptical.

130

6. Apply grease to the axle on the right Crank Arm

(39).

Orient a Pedal Arm Sleeve (46) so that the flat

side is facing the elliptical. Slide the Pedal Arm

Sleeve onto the axle on the right Crank Arm

(39).

Attach the Pedal Arm Sleeve (46) with an M8 x

25mm Patch Screw (121), a Large Axle Cover

(113), and an M8 Washer (95). Tip: Avoid

damaging the Large Axle Cover when tight-

ening the Patch Screw.

Repeat this step on the other side of the

elliptical.

113

Flat

Side

121

Grease

All manuals and user guides at all-guides.com

9. Apply grease to a Link Arm Axle (114).

Insert the Link Arm Axle (114) into the Right

Upper Body Leg (6) and the Right Link Arm (43)

from the side shown.

Insert a hex key into the M8 x 35mm Patch

Screw (149) in the Link Arm Axle (114).

Using a second hex key, tighten another M8 x

35mm Patch Screw (149), a Small Axle Cover

(56), and an M8 Washer (95) into the other end

of the Link Arm Axle (114). Tip: Avoid damag-

ing the Small Axle Cover when tightening

the Patch Screw.

Repeat this step on the other side of the

elliptical.

8. Orient the Ramp Cover (131) around the

Upright (5) as shown.

Press the tabs on the Ramp Cover (131) into

the Ramp (130).

131

130

114

149

Grease

149

All manuals and user guides at all-guides.com

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Entrenador elíptico de NordicTrack

NordicTrack

NordicTrack FREESTRIDER 35 S Manual de usuario

NordicTrack

NordicTrack E10 Rear Drive Elliptical Guía del usuario

NordicTrack

NordicTrack E4.0 Elliptical Manual del sistema

NordicTrack

NordicTrack E4.0 Elliptical Manual de usuario

NordicTrack

NordicTrack CXT 990 Guía del usuario

NordicTrack

NordicTrack E4.1 Elliptical Manual

NordicTrack

NordicTrack E 9.5 Manual de usuario

NordicTrack

NordicTrack VGR 850 Manual de usuario

NordicTrack

NordicTrack NTEL12910 Manual de usuario

NordicTrack

NordicTrack E4.1 Elliptical Guía de referencia

NordicTrack

NordicTrack CLUB XI NTEL81507.0 Manual de usuario

NordicTrack

NordicTrack 130 Elliptical Manual de usuario

NordicTrack

NordicTrack A.c.t. 7 Elliptical Manual de usuario

NordicTrack

NordicTrack 9600 El Trainer Dom Span Elliptical Guía del usuario

NordicTrack

NordicTrack NTEL7906.2 Manual de usuario

NordicTrack

NordicTrack E4.1 Elliptical Manual

NordicTrack

NordicTrack 9600 Elliptical Trainer Manual de usuario

NordicTrack

NordicTrack Xlt 1200 Elliptcal Guía del usuario

NordicTrack

NordicTrack Audiostrider Cx650 Elliptical Manual del sistema

NordicTrack

NordicTrack NTCCEL59011 Manual de usuario

NordicTrack

NordicTrack E 11.7 Elliptical Manual de usuario

NordicTrack

NordicTrack CX 1055 NEL90952 Manual de usuario

NordicTrack

NordicTrack 30710.0 Manual de usuario

NordicTrack

NordicTrack E4.0 Elliptical Manual de usuario

Manuales populares de Entrenador elíptico de otras marcas

Weslo

Weslo Momentum 4.0 Elliptical Manual de operación y mantenimiento

Progear Fitness

Progear Fitness Air elliptical pro 1307 Manual de usuario

Torque Fitness

Torque Fitness XPLLP Manual de usuario

Octane Fitness

Octane Fitness PRO3700C Manual de usuario

Xterra

Xterra FS5.8e Manual de usuario

Bodyguard

Bodyguard E-40 Manual de usuario

Bonn Germany

Bonn Germany Concept 2.2 Manual de usuario

Precor

Precor Resolute RSL 620 Manual de usuario

Vision Fitness

Vision Fitness X6600iNetTV Manual de usuario

Matrix

Matrix MX-A5x Manual de usuario

SportsArt Fitness

SportsArt Fitness ECO-NATURAL Elite E874 Manual de usuario

Sears

Sears FREE SPIRIT C249 30737 0 Manual de usuario

True

True FS-64 Manual de usuario

Sport-thieme

Sport-thieme ST 310 Manual de usuario

VIRTUFIT

VIRTUFIT CTR 1.1 Manual de usuario

Kettler

Kettler GIRO C 1 Manual de usuario

CIRCLE FITNESS

CIRCLE FITNESS E7 Manual de usuario

Reebok

Reebok 1000 Zx Elliptical Manual de usuario
