Nokia BH-702 Manual de usuario

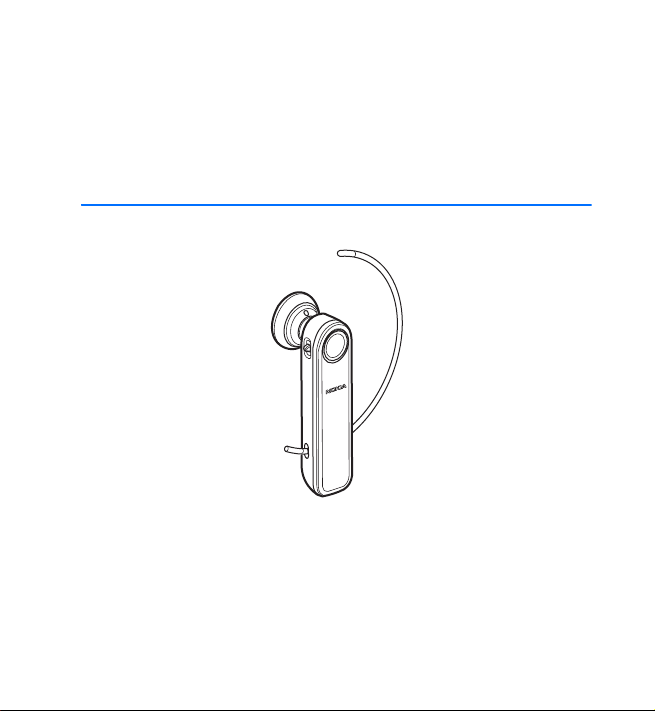

Nokia Bluetooth Headset BH-702
User Guide
9205362
Issue 1 EN
DECLARATION OF CONFORMITY
Hereby, NOKIA CORPORATION declares that this HS-100W product is in
compliance with the essential requirements and other relevant provisions of
Directive 1999/5/EC. A copy of the Declaration of Conformity can be found at
http://www.nokia.com/phones/declaration_of_conformity/.
© 2007 Nokia. All rights reserved.
Reproduction, transfer, distribution or storage of part or all of the contents in this document in
any form without the prior written permission of Nokia is prohibited.
Nokia and Nokia Connecting People are registered trademarks of Nokia Corporation. Other
product and company names mentioned herein may be trademarks or tradenames of their
respective owners.
Bluetooth is a registered trademark of Bluetooth SIG, Inc.
Nokia operates a policy of ongoing development. Nokia reserves the right to make changes and
improvements to any of the products described in this document without prior notice.
Under no circumstances shall Nokia be responsible for any loss of data or income or any
special, incidental, consequential or indirect damages howsoever caused.
The contents of this document are provided "as is". Except as required by applicable law, no
warranties of any kind, either express or implied, including, but not limited to, the implied
warranties of merchantability and fitness for a particular purpose, are made in relation to the
accuracy, reliability or contents of this document. Nokia reserves the right to revise this
document or withdraw it at any time without prior notice.
The availability of particular products may vary by region. Please check with the Nokia dealer
nearest to you.
Unauthorized changes or modifications to this device may void the user's authority to operate
the equipment.
Export Controls
This device may contain commodities, technology or software subject to export laws and
regulations from the US and other countries. Diversion contrary to law is prohibited.
9205362 / Issue 1 EN
4
Contents
1. Introduction ......................... 5
Bluetooth wireless technology........... 5
2. Get started ........................... 7
Overview................................................... 7
Chargers and batteries ......................... 7
Charge the battery ................................ 8
Switch the headset on or off.............. 9
Pair the headset ..................................... 9
Disconnect the headset ................. 10
Reconnect the headset .................. 10
Troubleshooting................................... 10
3. Basic use ............................. 12
Place the headset on the ear........... 12
Call handling ........................................ 13
Adjust the headset volume............... 13
Mute or unmute
the microphone ................................... 14
Switch the call between
headset and mobile device............... 14
Clear settings or reset........................ 14
4. Battery information ........... 15
Care and maintenance........... 16
Introduction
5
1. Introduction
With the Nokia Bluetooth Headset BH-702 you can make and receive calls
while on the move and use your mobile device hands free. You can use the
headset with compatible devices that support Bluetooth wireless
technology.
Read this user guide carefully before using the headset. Also read the user
guide for your mobile device, which provides important safety and
maintenance information. Keep the headset and its accessories out of
reach of small children.
■Bluetooth wireless technology
Bluetooth wireless technology allows
you to connect compatible devices
without cables. A Bluetooth connection
does not require that the mobile device
and the headset be in line of sight, but
the maximum distance between the
devices is 10 meters (33 feet). The closer
the mobile device and the headset are
to each other, the better is the
performance. The optimal operating
range is shown in dark grey in the
picture. The connection is subject to interference from distance and
obstructions (shown in light grey) or other electronic devices.
<10m
Introduction
6
The headset is compliant with the Bluetooth Specification 2.0 + EDR
supporting the following profiles: Headset Profile 1.1 and Hands-Free
Profile 1.5. Check with the manufacturers of other devices to determine
their compatibility with this device.
There may be restrictions on using Bluetooth technology in some
locations. Check with your local authorities or service provider.
Get started
7
2. Get started
■Overview
The headset contains the following parts:
• Earpiece (1)
• Indicator light (2)
• Charger connector (3)
• Volume key (4)
• Microphone (5)
• Earloop (6)
• Multifunction key (7)
Before you can start using the
headset, you must charge the battery and pair the headset with a
compatible device.
Parts of the headset are magnetic. Metallic materials may be attracted to the
headset. Do not place credit cards or other magnetic storage media near the
headset, because information stored on them may be erased.
■Chargers and batteries
Check the model number of any charger before using it with this headset. The
headset is intended for use with the AC-3, AC-4, and DC-4 chargers.
6
7
Get started
8
Warning: Use only batteries and chargers approved by Nokia for use
with this particular enhancement. The use of any other types may
invalidate any approval or warranty, and may be dangerous.
When you disconnect the power cord of any enhancement, grasp and pull the plug,
not the cord.
■Charge the battery
The headset has an internal, nonremovable, rechargeable battery. Do not
attempt to remove the battery from the headset, as you may damage the
headset.
1. Connect the charger to a wall outlet.
2. Connect the charger cable to the charger
connector. The indicator light is red while
charging. It may take a while before charging
starts. If charging does not start, disconnect
the charger, plug it in again, and retry. Charging the battery fully may
take up to 2 hours.
3. When the battery is fully charged, the indicator light turns green.
Disconnect the charger from the headset and the wall outlet.
The fully charged battery has power for up to 6 hours of talk time or up to
160 hours of standby time. However, the talk and standby times may vary
when used with different compatible Bluetooth devices, usage settings,
usage styles, and environments.
When battery power is low, the headset beeps at regular intervals, and the
indicator light flashes red.
Get started
9
■Switch the headset on or off
To switch on, press and hold the multifunction key until the headset beeps
and the indicator light turns on. When the headset tries to connect to a
paired device, the indicator light flashes green slowly. When the headset
is connected to a paired device and is ready for use, the indicator light
flashes blue slowly. If the headset has not been paired with a device, it
automatically enters the pairing mode (see “Pair the headset,” p. 9).
To switch off, press and hold the multifunction key for at least 5 seconds
until the indicator light turns red.
■Pair the headset
1. Ensure that your mobile device is switched on.
2. To pair the headset if it has not been previously paired with a device,
switch on the headset. The headset enters the pairing mode, and the
indicator light starts to flash blue quickly.
To pair the headset if it has been previously paired with another
device, ensure that the headset is switched off, and press and hold the
multifunction key until the indicator lights starts to flash blue quickly.
3. Activate the Bluetooth feature on the mobile device, and set it to
search for Bluetooth devices. See the user guide of your device for
instructions.
4. Select the headset (Nokia BH-702) from the list of found devices.
5. Enter the passcode 0000 to pair and connect the headset to your
device. In some mobile devices, you may need to make the connection
Get started
10
separately after pairing. See the user guide of your device for details.
You only need to pair the headset with your device once.
If the pairing is successful, the headset appears in the menu of the mobile
device where you can view the currently paired Bluetooth devices.
Disconnect the headset
To disconnect the headset from your mobile device, switch off the
headset, or disconnect the headset in the Bluetooth menu of your device.
You do not need to delete the pairing with the headset to disconnect it.
Reconnect the headset
To connect the headset to your mobile device, make the connection in the
Bluetooth menu of your device; or switch on the headset, and press and
hold the multifunction key for about 2 to 3 seconds until you hear a short
beep.
You can set your device to connect with the headset automatically when
the headset is switched on. To do this in Nokia devices, change your paired
device settings in the Bluetooth menu.
■Troubleshooting
If you cannot connect the headset to your mobile device, do as follows:
• Ensure that the headset is charged, switched on, and paired with your
device.
• Ensure that the Bluetooth feature is activated on your device.
