Nokia Bluetooth Headset BH-609
Issue 2.0
ENGLISH
DECLARATION OF CONFORMITY
Hereby, NOKIA CORPORATION declares that
this BH-609 product is in compliance with
the essential requirements and other
relevant provisions of Directive 1999/5/EC. A
copy of the Declaration of Conformity can be
found at http://www.nokia.com/phones/
declaration_of_conformity/.
© 2010-2011 Nokia. All rights reserved.
Nokia, Nokia Connecting People and the
Nokia Original Accessories logo are
trademarks or registered trademarks of
Nokia Corporation. Nokia tune is a sound
mark of Nokia Corporation. Other product
and company names mentioned herein may
be trademarks or tradenames of their
respective owners.
Reproduction, transfer, distribution, or
storage of part or all of the contents in this
document in any form without the prior
written permission of Nokia is prohibited.
Nokia operates a policy of continuous
development. Nokia reserves the right to
make changes and improvements to any of
the products described in this document
without prior notice.
Bluetooth is a registered trademark of
Bluetooth SIG, Inc.
To the maximum extent permitted by
applicable law, under no circumstances shall
Nokia or any of its licensors be responsible
for any loss of data or income or any special,
incidental, consequential or indirect
damages howsoever caused.
The contents of this document are provided
"as is". Except as required by applicable law,
no warranties of any kind, either express or
implied, including, but not limited to, the
implied warranties of merchantability and
fitness for a particular purpose, are made in
relation to the accuracy, reliability or
contents of this document. Nokia reserves
the right to revise this document or
withdraw it at any time without prior notice.
The availability of products may vary by
region. For more information, contact your
Nokia dealer. This device may contain
commodities, technology or software
subject to export laws and regulations from
the US and other countries. Diversion
contrary to law is prohibited.
ENGLISH
Introduction
With the Nokia Bluetooth Headset
BH-609, you can make and answer
calls hands-free with your compatible
mobile device. The headset is provided
with wind noise reduction and noise
cancellation that helps you handle
calls in noisy environments.
Read this user guide carefully before
using the headset. Also, read the user
guide for the device that you connect
to the headset.
This product may contain small parts.
Keep them out of the reach of small
children.
The surface of this device is nickel-
free.
My own key
The headset has a shortcut key that
you can set to perform different
functions on a compatible Nokia
device. To define the functions, use
the Nokia Accessory Setup
Application.
With the application, you can also
view headset information and define
headset settings when the headset is
connected to your device. For details,
see the help of the application.
If the application is not already
installed in your mobile device, check
the availability of the application for
your device from the support pages of
this headset at www.nokia.com/
support.
If the application is not available for
your Nokia device, you can use the
shortcut key to mute the microphone
during a call.
ENGLISH
Bluetooth wireless technology
Bluetooth wireless technology allows
you to connect compatible devices
without cables. The headset and the
other device do not need to be in line
of sight, but they should be within 10
metres (33 feet) of each other.
Connections may be subject to
interference from obstructions, such
as walls, or other electronic devices.
The headset is compliant with the
Bluetooth Specification 2.1 + EDR
supporting the Headset Profile 1.1 and
Hands-Free Profile 1.5. Check with the
manufacturers of other devices to
determine their compatibility with
this device.
Get started
The headset contains the following
parts shown on the title page:
indicator light (1), volume key (2), My
own key (3), multifunction key (4),
microphones (5), earloop (6), charger
connector (7), and earpiece (8).
Before using the headset, you must
charge the battery and pair the
headset with a compatible device.
Parts of the device are magnetic. Metallic
materials may be attracted to the device.
Do not place credit cards or other
magnetic storage media near the device,
because information stored on them may
be erased.
Charge the battery
Before charging the battery, carefully
read “Battery and charger
information”.
1. Connect the charger to a wall
outlet.
ENGLISH
2. Connect the charger cable to the
charger connector. The red
indicator light is displayed during
charging.
Charging the battery fully may take
up to 1 hour. Charging the battery
with the AC-15 charger for 15
minutes provides up to 2 hours of
talk time.
3. When the battery is fully charged,
the green indicator light is
displayed.
Disconnect the charger from the
headset, then from the wall outlet.
This saves energy, as chargers
consume a small amount of power
when connected to a wall outlet,
even when not charging.
The fully charged battery has power
for up to 6 hours of talk time or up to
180 hours of standby time.
To check the battery charge when the
headset is not connected to a charger,
press the multifunction key when the
headset is connected to a mobile
device. If the indicator light is green,
the charge level is sufficient. If the
light is yellow, you may need to
recharge the battery soon. If the light
is red, recharge the battery.
When the battery charge is low, the
headset beeps every 5 minutes and
the red indicator light flashes.
Switch on or off
To switch on, press and hold the
multifunction key for about 2 seconds.
The headset beeps, and the green
indicator light flashes slowly while the
headset tries to connect to the last or
two last connected devices. When the
headset is connected to at least one
device and is ready for use, the blue
indicator light flashes slowly. If the
headset has not been paired with a
device, it automatically enters pairing
mode.
ENGLISH
To switch off, press and hold the
multifunction key for about 5 seconds.
The headset beeps, and the red
indicator light is briefly displayed. If
the headset is not connected to a
device within about 30 minutes, it
switches off automatically.
Pair and connect the headset
Before using the headset, you must
pair and connect it to a compatible
device.
You can pair the headset with up to
eight devices, but you can connect it
to a maximum of two devices at a
time.
1. Make sure your mobile device is
switched on and the headset is off.
2. If the headset has not been
previously paired with a device,
switch on the headset. The headset
enters pairing mode, and the blue
indicator light starts to flash
quickly.
If the headset has been previously
paired with a device, make sure the
headset is switched off, and press
and hold the multifunction key for
about 5 seconds until the blue
indicator light starts to flash
quickly.
3. Within about 3 minutes, activate
the Bluetooth feature on your
device, and set it to search for
Bluetooth devices. For details, see
the user guide of your mobile
device.
4. Select the headset from the list of
found devices.
5. If necessary, enter the passcode
0000 to pair and connect the
headset to your device.
In some devices, you may need to
make the connection separately
after pairing.
ENGLISH
When the headset is connected to at
least one device and is ready for use,
the blue indicator light flashes slowly.
To manually connect the headset to
the last or two last used devices, press
and hold the multifunction key for
about 2 seconds (when no devices are
connected), or make the connection in
the Bluetooth menu of the desired
device. If you have a device connected
to the headset and want to connect a
second device, make the connection in
the Bluetooth menu of the device.
You may be able to set your device so
that the headset connects to it
automatically. To activate this feature
in a Nokia device, modify the paired
device settings in the Bluetooth menu.
Basic use
Change the earpad
The headset is provided with different
sized earpads. Select the earpad that
fits the best and is the most
comfortable for your ear.

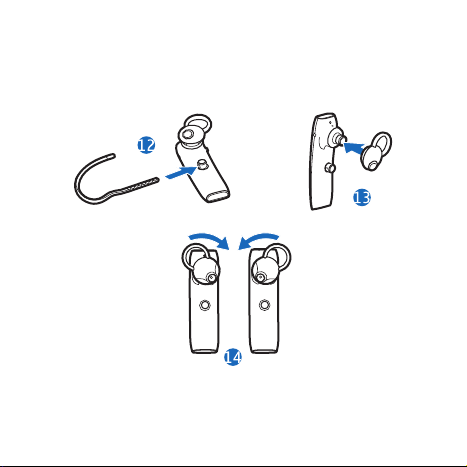

To change the earpad, pull the current
earpad from the earpiece, and push
the new earpad into place (13).
Place the headset on the ear
To place the headset on the ear, gently
push the earpiece against your ear.
Point the headset towards your mouth
(11). You can rotate the earpad to keep
the headset securely in the ear (14).
For example, if you use the headset on
the right ear, you may need to rotate
the earpad to the right for the best fit.
If you wear an earring, make sure it is
ENGLISH
not accidentally attached to the
earpad.
To use the headset with the earloop,
attach the earloop (12). To detach the
earloop, gently pull it from the
headset.
To place the headset on the ear when
you use the earloop, push the earloop
with your finger (9), and slide the
earloop behind your ear (10). Gently
push the earpiece against your ear.
Point the headset towards your mouth
(11). Push or pull the earloop to set its
length.
Change the volume
Slide the volume key up or down. To
change the volume quickly, slide and
hold the key.
The selected volume level is saved for
the device that is currently connected
to the headset.
Calls
To make a call, use your mobile device
in the normal way when the headset is
connected to it.
To redial the number you last called (if
your mobile device supports this
feature with the headset), when no
call is in progress, press the
multifunction key twice.
To activate voice dialling (if your
mobile device supports this feature
with the headset), when no call is in
progress, press and hold the
multifunction key for about 2 seconds.
Proceed as described in the user guide
of the mobile device.
To answer or end a call, press the
multifunction key. To reject a call,
press this key twice.
To mute or unmute the microphone
during a call, press the middle of the
volume key. The headset beeps, and a
ENGLISH
related icon is displayed on your
device (if supported by the device).
To switch a call between the headset
and a compatible connected device,
press and hold the multifunction key
for about 2 seconds.
Manage two calls
To manage two calls with the headset
at the same time, your mobile device
must support the Bluetooth Hands-
Free Profile 1.5, and call waiting must
be activated in the device. Call
waiting is a network service and is
available when the headset is
connected to only one device.
To answer a waiting call and end the
active call, press the multifunction
key.
To answer a waiting call and put the
active call on hold, press and hold the
multifunction key for about 2 seconds.
To end the active call and make the
call on hold active, press the
multifunction key.
To switch between the active call and
the call on hold, press and hold the
multifunction key for about 2 seconds.
Connect to two devices
You can connect the headset to two
devices at the same time.
By default, the headset can only be
connected to one device at a time. To
allow the headset to connect to two
devices, switch off the headset, and
press and hold the multifunction key,
and slide and hold the volume key up
for about 5 seconds. The green
indicator light flashes once.
To allow the headset to connect to
only one device, switch off the
headset, and press and hold the
multifunction key, and slide and hold
the volume key down for about 5
Tabla de contenidos
Otros manuales de Auriculares de Nokia
Nokia
Nokia BH 212 - Headset - Over-the-ear Dimensiones
Nokia
Nokia BH-106 Black Manual de usuario
Nokia
Nokia BH-101 Manual de usuario
Nokia
Nokia HS-12W Manual de usuario
Nokia
Nokia BH-310 Manual de usuario
Nokia
Nokia HS 36W Manual de usuario
Nokia
Nokia BH 300 - Headset - Over-the-ear Manual de usuario
Nokia
Nokia BH-608 Manual de usuario
Nokia
Nokia DAB Manual de usuario
Nokia
Nokia BH-215 Manual de usuario
Nokia
Nokia Comm Band Pro Manual de usuario
Nokia
Nokia HS 36W Manual de usuario
Nokia
Nokia BH 300 - Headset - Over-the-ear Manual de usuario
Nokia
Nokia WH 600 - Headset - Binaural Manual de usuario
Nokia
Nokia Bluetooth Headset BH-701 Manual de usuario
Nokia
Nokia BH-200 Manual de usuario
Nokia
Nokia BH 211 - Headset - Over-the-ear Manual de usuario
Nokia
Nokia BH-504 Manual de usuario
Nokia
Nokia BH105 - Bluetooth Headset Ice Manual de usuario
Nokia
Nokia BH 212 - Headset - Over-the-ear Manual de usuario
