Nokia BH-503 Manual de usuario

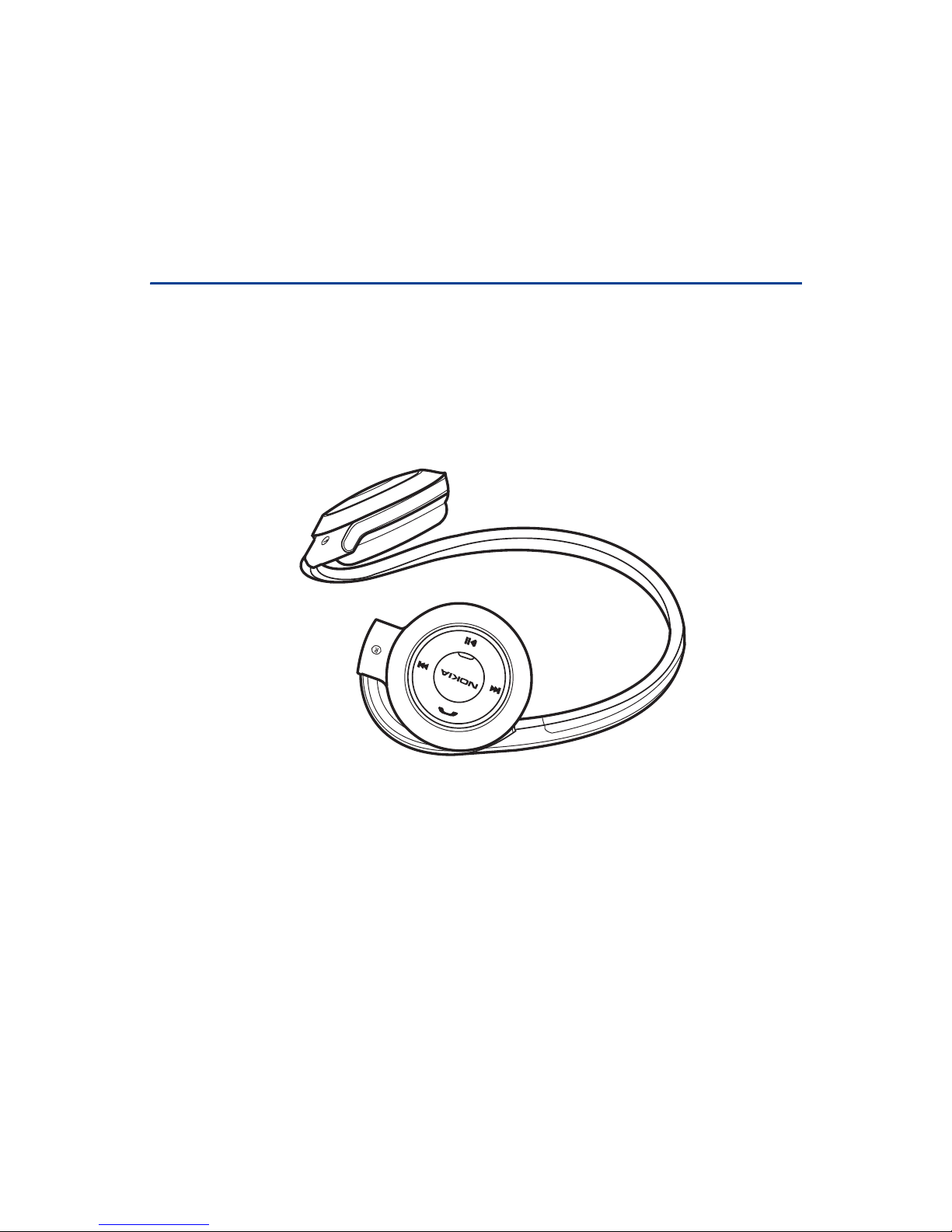

Nokia Bluetooth Stereo Headset

BH-503 User Guide

Issue 1 EN

DECLARATION OF CONFORMITY

Hereby, NOKIA CORPORATION declares that this HS-95W product is in compliance with the

essential requirements and other relevant provisions of Directive 1999/5/EC.

A copy of the Declaration of Conformity can be found at http://www.nokia.com/phones/

declaration_of_conformity/.

Reproduction, transfer, distribution or storage of part or all of the contents in this document in

any form without the prior written permission of Nokia is prohibited.

Nokia and Nokia Connecting People are registered trademarks of Nokia Corporation. Other

product and company names mentioned herein may be trademarks or tradenames of their

respective owners.

Bluetooth is a registered trademark of Bluetooth SIG, Inc.

Nokia operates a policy of ongoing development. Nokia reserves the right to make changes and

improvements to any of the products described in this document without prior notice.

Under no circumstances shall Nokia be responsible for any loss of data or income or any

special, incidental, consequential or indirect damages howsoever caused.

The contents of this document are provided "as is". Except as required by applicable law, no

warranties of any kind, either express or implied, including, but not limited to, the implied

warranties of merchantability and fitness for a particular purpose, are made in relation to the

accuracy, reliability or contents of this document. Nokia reserves the right to revise this

document or withdraw it at any time without prior notice.

The availability of particular products may vary by region. Please check with the Nokia dealer

nearest to you.

Unauthorized changes or modifications to this device may void the user's authority to operate

the equipment.

Export Controls

This device may contain commodities, technology or software subject to export laws and

regulations from the US and other countries. Diversion contrary to law is prohibited.

Issue 1 EN

Contents

English

Contents

1. Introduction .......................... 4

Bluetooth wireless technology........... 4

2. Get started ............................ 5

Overview................................................... 5

Chargers.................................................... 5

Charge the battery................................. 6

Switch the headset on or off.............. 6

Switch on.............................................. 6

Switch off ............................................. 7

Pair and connect the headset............. 7

Pair and connect the headset

with a mobile phone that has

a music player feature ...................... 7

Pair and connect the headset

with a music player ...........................

Disconnect the headset .................... 8

Reconnect the headset ..................... 8

3. Basic use............................... 9

Place the headset over the ears......... 9

Adjust the volume.................................. 9

Call handling ........................................... 9

Listen to music..................................... 10

Clear the settings or

reset the headset ............................... 10

4. Battery information........... 11

Care and maintenance........... 12

Introduction

1. Introduction

With the Nokia Bluetooth Stereo Headset BH-503, you can listen to music

from your compatible music player and make and receive hands-free calls

using your mobile phone. The music player can be the music player

feature of your mobile phone or a separate music device.

You can use the headset with compatible devices that support Bluetooth

wireless technology.

Read this user guide carefully before using the headset. Also read the user

guide for your mobile phone, which provides important safety and

maintenance information, and the user guide for your music device. Keep

the headset and its accessories out of reach of small children.

■Bluetooth wireless technology

Bluetooth wireless technology allows

you to connect compatible devices

without cables. A Bluetooth connection

does not require that the headset and

the other device be in line of sight, but

the maximum distance between the

devices is 10 meters (33 feet). The closer

the devices are to each other, the better

is the performance. The optimal

operating range is shown in dark grey in

the picture. The connection is subject to

interference from distance and obstructions (shown in light grey) or other

electronic devices.

The headset is compliant with Bluetooth Specification 2.0 + EDR

supporting the following profiles: Headset Profile 1.1, Hands-Free Profile

1.5, Advanced Audio Distribution Profile (A2DP) 1.0, and Audio Video

Remote Control Profile 1.0. Check with the manufacturers of other

devices to determine their compatibility with this device.

There may be restrictions on using Bluetooth technology in some

locations. Check with your local authorities or service provider.

<10m

Get started

English

2. Get started

■Overview

The headset contains the following parts:

• Volume down key (1)

• Volume up key (2)

• Multifunction key (3)

• Indicator light (4)

• Charger connector (5)

• Rewind key (6)

• Play/pause key (7)

• Fast forward key (8)

• Microphone (9)

Before you can start using the headset, you must charge the battery and

pair the headset with a compatible mobile phone.

Parts of the headset are magnetic. Metallic materials may be attracted to

the headset. Do not place credit cards or other magnetic storage media

near the headset, because information stored on them may be erased.

■Chargers

Check the model number of any charger before using it with this headset.

The headset is intended for use with the AC-4, AC-5, and DC-4 chargers.

Warning: Use chargers approved by Nokia for use with this particular

enhancement. The use of any other types may invalidate any approval or

warranty, and may be dangerous.

When you disconnect the power cord of any enhancement, grasp and pull

the plug, not the cord.

789

Get started

■Charge the battery

The headset has an internal, nonremovable, rechargeable battery. Do not

attempt to remove the battery from the headset, as you may damage the

headset.

1. Connect the charger to a wall outlet.

2. Connect the charger cable to the charger connector. The indicator

light is red while charging. It may take a while before charging starts.

If charging does not start, disconnect the charger, plug it in again, and

retry.

Charging the battery fully may take up to 1 hour and 15 minutes.

3. When the battery is fully charged, the indicator light turns green.

Disconnect the charger from the headset and the wall outlet.

The fully charged battery has power for up to 13 hours of talk time, up to

10 days of standby time, or up to 13 hours of music playing time (or 75

minutes of music playing time with 20 minutes charging). However, the

times may vary with different compatible Bluetooth devices, usage

settings, usage styles, and environments.

When battery power is low, the headset beeps at regular intervals, and the

indicator light slowly flashes red. Recharge the battery.

■Switch the headset on or off

Switch on

To switch on, press and hold the multifunction key for about 2 seconds.

The headset beeps, and the green indicator light is briefly displayed.

When the headset tries to connect to the paired mobile phone or music

player that you have last used with it, the indicator light slowly flashes

green. When the headset is connected to a paired device and is ready for

use, the indicator light slowly flashes blue. If the headset has not been

paired with a device, it automatically enters the pairing mode (see “Pair

and connect the headset,” p. 7).

If you connect the headset to a device but do not use it for a while, switch

off the headset to save power.

Get started

English

Switch off

To switch off, press and hold the multifunction key for about 5 seconds.

The headset beeps, and the red indicator light is briefly displayed.

■Pair and connect the headset

Pair and connect the headset with a mobile phone that

has a music player feature

If your phone supports the A2DP Bluetooth profile and has a music player

feature, you can use the phone to make and receive calls and to play

music with the headset.

1. Ensure that your phone is switched on.

2. If the headset has not been previously paired with a device, switch on

the headset. The headset enters the pairing mode, and the indicator

light starts to flash blue quickly.

If the headset has been previously paired with another device, switch

off the headset, and press and hold the multifunction key until the

indicator light starts to flash blue quickly.

3. Activate the Bluetooth feature on the phone, and set it to search for

Bluetooth devices. See the user guide of your phone for instructions.

4. Select the headset from the list of found devices.

5. Enter the passcode 0000 to pair and connect the headset to your

phone. In some phones, you may need to make the connection

separately after pairing. You only need to pair the headset with your

phone once.

If pairing is successful, the headset appears in the menu of the mobile

phone where you can view the currently paired Bluetooth devices.

When the headset is connected with your mobile phone and ready for use,

the indicator light of the headset slowly flashes blue.

Get started

Pair and connect the headset with a music player

If your phone does not support the A2DP Bluetooth profile, you can

separately pair the headset with the phone and a music player that

supports this Bluetooth profile.

If you have paired and connected the headset with your phone,

disconnect the headset from it before pairing the headset with a music

player.

To pair the headset with a music player, follow the instructions in “Pair

and connect the headset with a mobile phone that has a music player

feature,” p. 7. If your music player does not have a keypad, it may use the

Bluetooth passcode 0000 by default. If this is not the case, see the user

guide of your music player to change the default Bluetooth passcode to

0000.

If pairing is successful and the headset is connected with your music

player, the indicator light of the headset slowly flashes blue.

Disconnect the headset

To disconnect the headset from your device, switch off the headset, or

disconnect it in the Bluetooth menu of your device.

You do not need to delete pairing with the headset to disconnect it.

Reconnect the headset

To connect the headset to the phone or music player that you have last

used with it, switch on the headset, or make the connection in the

Bluetooth menu of your device.

In your device, you may be able to allow the headset to connect to it

automatically when the headset is switched on. To do this in Nokia

devices, change your paired device settings in the Bluetooth menu.

Basic use

English

3. Basic use

■Place the headset over the ears

Lower the neckband behind your head. Place the

headset over your ears so that the speaker pads rest

comfortably on your ears.

Place the pad indicated with L on the left ear and

the pad with R on the right ear.

Warning: When using the headset your ability

to hear outside sounds may be affected. Do not use the headset where it

can endanger your safety.

■Adjust the volume

To adjust the headset volume, press the volume up key to increase or the

volume down key to decrease the volume during a call or while listening

to music.

■Call handling

To make a call, use your mobile phone in the normal way when the

headset is connected to it.

If your phone supports redialing with the headset, press the multifunction

key twice quickly when no call is in progress.

If your phone supports voice dialing with the headset, press and hold the

multifunction key for about 2 seconds until the phone starts voice dialing,

and proceed as instructed in the user guide of the phone. Voice dialing

cannot be used during a call.

To answer a call, press the multifunction key, or use the keys of the phone.

To reject the call, press the multifunction key twice quickly.

To end a call, press the multifunction key, or use the keys of the phone.

To mute or unmute the microphone during a call, press the play/pause

key.

Basic use

To switch the call from the headset to a connected phone, press and hold

the play/pause key for about 2 seconds. To switch the call back to the

headset, press the multifunction key once.

■Listen to music

To listen to music, connect the headset to a compatible music player such

as a mobile phone with a music player feature or other music device. The

music player must support the A2DP Bluetooth profile.

When the headset is connected to a phone but not to a separate music

device, the headset can only be used to make and receive calls if the

phone does not have a music player feature.

The available music functions depend on your music player.

If you receive or make a call while listening to music, the music is paused

until you end the call.

Warning: Listen to music at a moderate level. Continuous exposure to

high volume may damage your hearing.

To play a track, select it in the music player, and press the play/pause key.

To pause or resume playing, press the play/pause key. To stop playing,

press and hold the play/pause key for about 2 seconds.

To select the next track, press the fast forward key. To select the previous

track, press the rewind key. To scroll through the current track quickly

during playback, press and hold either key.

■Clear the settings or reset the headset

To clear the pairing and volume settings, switch off the headset, and press

and hold the multifunction key and press the volume up key until the

indicator light alternates red, green, and blue three times.

To reset the headset if it stops functioning, although it is charged, plug

the charger into the headset, and press and hold the multifunction key

and press the volume up key. The reset does not clear the headset settings.

Este manual sirve para los siguientes modelos

Tabla de contenidos

Idiomas:

Otros manuales de Auriculares de Nokia

Nokia

Nokia BH-217 Manual de usuario

Nokia

Nokia BH 213 - Headset - Over-the-ear Manual de usuario

Nokia

Nokia BH-905 Manual de usuario

Nokia

Nokia HDW-1 Manual de usuario

Nokia

Nokia BH 211 - Headset - Over-the-ear Manual de usuario

Nokia

Nokia BH-607 Manual de usuario

Nokia

Nokia HS 36W Manual de usuario

Nokia

Nokia BH-216 Manual de usuario

Nokia

Nokia BH-109 Manual de usuario

Nokia

Nokia 02719B5 Manual de usuario

Nokia

Nokia HS 36W Manual de usuario

Nokia

Nokia BH-902 Manual de usuario

Nokia

Nokia BH 604 - Headset - Binaural Manual de usuario

Nokia

Nokia N75 Manual de usuario

Nokia

Nokia Hs-45 - And Ad-57 Xpressmusic Stereo Headset 5310 3.5mm... Manual de usuario

Nokia

Nokia BH-215 Manual de usuario

Nokia

Nokia HDW 3 - Headset - Over-the-ear Manual de usuario

Nokia

Nokia BH 202 - Headset - Over-the-ear Manual de usuario

Nokia

Nokia HS-82 Manual de usuario

Nokia

Nokia BH 604 - Headset - Binaural Manual de usuario

Nokia

Nokia BH-204 Manual de usuario

Nokia

Nokia BH-501 Manual de usuario

Nokia

Nokia HS HS 4W Manual de usuario

Nokia

Nokia HS-69 - Headset - Ear-bud Guía de inicio rápido

Manuales populares de Auriculares de otras marcas

Sena

Sena SMH10 Manual de usuario

IASUS

IASUS Stealth IA-NT4-BASIC-BT Manual de usuario

Sennheiser

Sennheiser EPOS ADAPT 230 Manual de usuario

Doro

Doro Flexus HS2005 Manual de usuario

GE 98971 Manual de usuario

Hama

Hama 00184070 Manual de usuario

Plantronics

Plantronics Blackwire 3200 Series Manual de usuario

Blue Tiger

Blue Tiger Advantage PLUS Manual de usuario

Jawbone

Jawbone Icon Manual de usuario

Jabra

Jabra FR 20 Manual de usuario

Roxcore

Roxcore Flow A+ Manual de usuario

Turtle Beach

Turtle Beach XP 510 Manual de usuario

Philips

Philips SHB6101 Manual de usuario

Jabra

Jabra PRO 9460 Duo Manual de usuario

HyperX

HyperX HyperX Cloud Flight Manual de usuario

Bose

Bose MIE2 Mobile Manual de usuario

Jabra

Jabra Steel Manual de usuario

HyperX

HyperX cloud ii Manual de usuario
