Notes on Safety Operations

CAUTION

Do not disassemble

Touching the internal parts of the camera or lens could result in injury. Repairs should

be performed only by qualified technicians. Should the camera or lens break open as

the result of a fall or other accident, take the product to a Nikon-authorized service

representative for inspection after unplugging the product and/or removing the battery.

Turn off immediately in the event of malfunction

Should you notice smoke or an unusual smell coming from the camera or lens, remove the

battery immediately, taking care to avoid burns. Continued operation could result in injury.

After removing or disconnecting the power source, take the product to a Nikon-authorized

service representative for inspection.

Do not use the camera or lens in the presence of flammable gas

Operating electronic equipment in the presence of flammable gas could result in an

explosion or fire.

Do not look at the sun through the lens or viewfinder

Viewing the sun or other strong light sources through the lens or viewfinder could cause

permanent visual impairment.

Keep out of reach of children

Particular care should be taken to prevent infants from putting the batteries or other small

parts into their mouths.

Observe the following precautions when handling the camera

and lens

• Keep the camera and lens unit dry. Failure to do so could result in fire or electric shock.

• Do not handle or touch the camera or lens unit with wet hands. Failure to do so could

result in electric shock.

• When shooting with back-lighting, do not point the lens at the sun or allow sunlight to

pass directly down the lens as this may cause the camera to overheat and possibly cause

a fire.

• When the lens will not be used for an extended period of time, attach both front and

rear lens caps and store the lens away from direct sunlight. Failure to do so could result

in a fire, as the lens may focus sunlight onto a flammable object.

Nomenclature

Lens hood mounting index (P. 21)

Rubber grip

Focus ring (P. 18)

Distance scale (P. 20)

Distance index line

Zoom ring (P. 20)

Focal length scale

Focal length scale index line

Tripod collar ring rotating index (P. 20)

0

Position indexes (90˚) (P. 20)

Tripod collar ring (P. 20)

Mounting index

Lens mount rubber gasket (P. 23)

CPU contacts (P. 23)

Lens hood (P. 21)

Lens hood setting index (P. 21)

Lens hood attachment index (P. 21)

Lens hood lock release button (P. 21)

(

Focus mode switch (P. 18)

)

Focusing limit switch (P. 18)

Vibration reduction ON/OFF switch (P. 19)

Vibration reduction mode switch (P. 19)

Tripod collar ring fastening screw (P. 20)

Tripod collar lock release lever (P. 20)

Tripod collar mounting foot (P. 20)

Tripod collar lock screw (P. 20)

Tripod collar (P. 20)

( ): reference page

Thank you for purchasing the AF-S NIKKOR 70-200mm f/2.8G ED VR

Ⅱ

lens. Before using this lens, please read these instructions and refer to

your camera's User's Manual.

Major features

• The Nano Crystal Coat deposited on some of the lens elements ensures that

fine, clear images can be reproduced under various shooting conditions, from

the sunny outdoors to spotlighted interior scenes.

• By enabling vibration reduction (VR

Ⅱ

), slower shutter speeds (approximately

four stops*) can be used, thus increasing the range of usable shutter speeds

and zoom positions, particularly when hand-holding the camera. (*Based

on results achieved under Nikon measurement conditions. The effects of

vibration reduction may vary according to shooting conditions and use.)

• Two vibration reduction modes are available: (1) the NORMAL mode for

reducing camera shake, and (2) the ACTIVE mode for reducing strong

camera shake such as when taking pictures from a moving vehicle. Vibration

reduction is also effective for panning, as the lens automatically distinguishes

panning from camera shake to enable vibration reduction to work effectively

(in NORMAL mode).

•

This lens employs a Silent Wave Motor to drive the focusing mechanism, making

autofocusing smooth, silent and almost instantaneous. The focus mode switch is

provided for simple selection of autofocus (AF) or manual focus (MF) operation.

•

Autofocus can be overridden by setting the focus mode switch to A/M or M/A and

manually focusing with the focus ring.

• Superior optical performance and rendering characteristics are maximized

with the use of seven extra-low dispersion (ED) glass elements, which

ensure correction of chromatic aberration. In addition, the rounded aperture

produces soft and pleasing blur characteristics in picture areas that are out of

focus.

• The closest focusing distance possible is 1.4 m (4.6 ft.)

• Up to four Wireless Remote Speedlight SB-R200s can be mounted on the edge

of the lens.

• AF-I/AF-S Teleconverters TC-14E/TC-14E

Ⅱ

/TC-17E

Ⅱ

/TC-20E/TC-20E

Ⅱ

are

usable. Even when a teleconverter is attached, both vibration reduction and

autofocus functions work properly.

Important

• When mounted on Nikon digital SLR (Nikon DX format) cameras, such as the

D300-Series and D90, the lens’ picture angle becomes 22°50’-8° and its 35mm

equivalent focal length is approx. 105-300 mm.

Usable cameras and available functions

There may be some restrictions or limitation for available functions. Refer to camera's

User's Manual for details.

Cameras Function Exposure mode

VR AF P*1 6$0

D3-Series, D700, D2-Series, D1-Series, D300-Series, D200,

D100, D90, D80, D70-Series, D5000, D3000, D60, D50,

D40-Series, F6, F5, F100, F80-Series/N80-Series*,

F75-Series/N75-Series*, F65-Series/N65-Series*

3 3 3333

Pronea 600i/6i*, Pronea S*2 —3 3333

F4-Series, F90X/N90s*, F90-Series/N90*, F70-Series/N70* — 333

——

F60-Series/N60*, F55-Series/N55-Series*,

F50-Series/N50*, F-401x/N5005*, F-401s/N4004s*,

F-401/N4004*

——3333

F-801s/N8008s*, F-801/N8008*, F-601M/N6000* — — 33

——

F3AF, F-601/N6006*, F-501/N2020**,

Nikon MF cameras (except F-601M/N6000*) — —————

3: Possible

—

: Not possible VR: Vibration reduction AF: Autofocus

*: Sold exclusively in the USA

**: Sold exclusively in the USA and Canada

*1: P includes AUTO and Vari-Program System.

*2: Manual (M) is not available.

• If this lens is used with cameras that do not have the vibration reduction

function, set the vibration reduction ON/OFF switch to OFF. With the Pronea

600i/6i camera, in particular, battery power may become quickly depleted if

this switch is left ON.

Focusing

Set your camera’s focus mode selector according to the chart below:

Cameras

Camera

focus

mode

Lens’ focus mode switch

A/M M/A M

D3-Series, D700, D2-Series, D1-Series,

D300-Series, D200, D100, D90, D80,

D70-Series, D5000, D3000, D60, D50,

D40-Series, F6, F5, F4-Series, F100,

F90X/N90s*, F90-Series/N90*, F80-Series/

N80-Series*, F75-Series/N75-Series*,

F70-Series/N70*, F65-Series/N65-Series*,

Pronea 600i/6i*, Pronea S

(C/S)

Autofocus

with manual

override

(AF priority)

Autofocus

with manual

override

(MF priority)

Manual

focus

(Focus assist

is available.)

MF Manual focus

(Focus assist is available.)

F60-Series/N60*, F55-Series/N55-Series*,

F50-Series/N50*, F-801s/N8008s*,

F-801/N8008*, F-601M/N6000*,

F-401x/N5005*, F-401s/N4004s*,

F-401/N4004*

(C/S)

Manual focus

(Focus assist is available,

except with the F-601M/N6000*.)

* Sold exclusively in the USA

AF: Autofocus MF: Manual focus

A/M (Autofocus with manual override. AF priority) mode and M/A

(Autofocus with manual override. MF priority) mode

M/A: Autofocus can be overridden by manually focusing with

the focus ring.

A/M: Autofocus can be overridden by manually focusing with

the focus ring, but focus ring detection sensitivity is lower

than in M/A mode. Use this mode to avoid canceling the

AF setting by unintentionally moving the focus ring.

aSet the focus mode switch to A/M or M/A.

bYou can manually override autofocus by operating the focus ring while

pressing the shutter release button halfway down or the AF-ON button on

the camera.

cPressing the shutter release button halfway down or pressing the AF-ON

button on the camera again will cancel manual override and return to

autofocus mode.

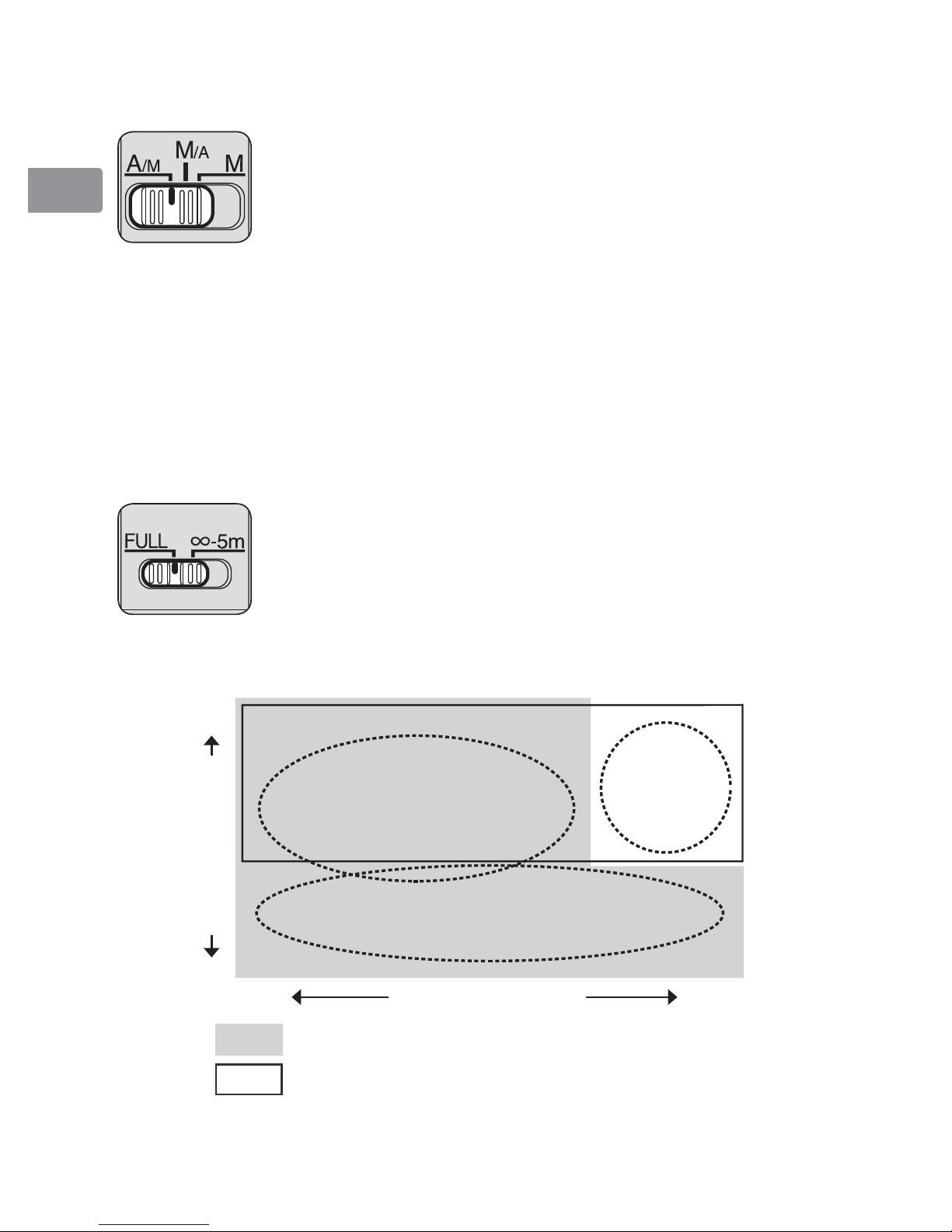

To limit the range of autofocus

This function is only available with autofocus.

• With AF operation, if the subject is always more than 5 m

(16.4 ft.) away, set the focusing limit switch to –5m to

reduce focusing time.

• If the subject is sometimes 5 m (16.4 ft.) or closer, set it to

FULL.

Vibration reduction mode

Basic concept of vibration reduction

Strength of vibrations Strong

Weak

Set the vibration reduction mode switch to NORMAL.

Panning shots

Camera shake

Set the vibration reduction mode switch to ACTIVE.

Number of vibrations

Low High

Strong

camera shake

when taking

pictures

from a moving

vehicle

When taking pictures

When taking panning shots

When taking pictures from

a moving vehicle

Set the vibration reduction mode switch to

either NORMAL or ACTIVE.

Set the vibration reduction mode switch

to NORMAL.

Set the vibration reduction mode switch

to ACTIVE.

Setting the vibration reduction ON/OFF switch

ON: Vibration is reduced while the shutter-release button

is pressed halfway and also at the instant the shutter

is released. Because vibration is reduced in the

viewfinder, auto/manual focusing and exact framing

of the subject are easier.

OFF: Vibration is not reduced.

Setting the vibration reduction mode switch

First, set the vibration reduction ON/OFF switch ON, then select the following

mode:

NORMAL: The vibration reduction mechanism primarily

reduces camera shake, making smooth panning

shots possible.

ACTIVE: The vibration reduction mechanism reduces

more noticeable camera shake, such as that

which occurs when taking pictures from a

moving vehicle. In this mode, the lens does not

automatically distinguish panning from camera

shake.

Notes on using vibration reduction

• After pressing the shutter-release button halfway, wait until the image in the

viewfinder stabilizes before pressing the shutter-release button the rest of the

way down.

• Due to the characteristics of the vibration reduction mechanism, the image

in the viewfinder may be blurred after the shutter is released. This is not a

malfunction.

• When taking panning shots, be sure to set the vibration reduction mode

switch to NORMAL. If the camera is panned in a wide arc, compensation for

camera shake in the panning direction is not performed. For example, when

panning the camera in a horizontal direction, vertical camera shake is reduced.

This stabilizes the image whilst allowing the desired panning effect to be realized.

• Do not turn the camera off or remove the lens from the camera while vibration

reduction is operating. Failure to observe this note could result in the lens

sounding and feeling as if an internal component is loose or broken when it is

shaken. This is not a malfunction. Turn the camera on again to correct this.

• With cameras featuring a built-in flash, vibration reduction does not function

while the built-in flash is charging.

• With autofocus cameras featuring an AF-ON button, vibration reduction does

not function when the AF-ON button is pressed.

• When the camera is mounted on a tripod, set the vibration reduction ON/OFF

switch to OFF. However, it is recommended that the switch be set to ON when

using the camera on an unsecured tripod head or with monopod.

Focusing, zooming, and depth of field

Before focusing, rotate the zoom ring to adjust the focal length until the desired

composition is framed. If your camera has a depth-of-field preview (stopdown)

button or lever, depth of field can be previewed through the camera viewfinder.

• This lens is equipped with the Internal Focusing (IF) system. As the shooting

distance decreases, the focal length also decreases.

• The distance scale does not indicate the precise distance between the subject

and the camera. Values are approximate and should be used only as a general

guide. When shooting distant landscapes, depth of field may influence

operation and the subject may appear be in focus at a position that is closer

than infinity.

• For more information, see p.170.

Setting the aperture

Use the camera to adjust the aperture setting.

Using a tripod

When using a tripod, attach it to the lens’ tripod collar instead of the camera.

CAUTION

When using a tripod, be sure to fully tighten the tripod collar lock screw,

otherwise the lens may fall off the tripod accidentally and cause bodily injury.

Attaching the tripod

 Insert the tripod collar mounting foot into the tripod collar

(1), then fully tighten the tripod collar lock screw (2).

Changing the camera’s position

 Loosen the tripod collar ring fastening screw (1).

Depending on the camera’s position (vertical or horizontal),

turn the lens to an appropriate position index on the tripod

collar ring by aligning the tripod collar ring rotating index

on the lens (2), then tighten the screw (3).

Detaching the tripod

 Fully loosen the tripod collar lock screw (1). While holding

down the tripod collar lock release lever (2), slide the

tripod collar mounting foot (3).

The built-in flash and vignetting

To prevent vignetting, do not use the lens hood.

Cameras Supported focal length/Shooting distance

F70-Series/N70* • 85 mm/2 m (6.6 ft.) or greater

• 105 mm or longer/No restriction

F60-Series/N60* • 105 mm/2.5 m (8.2 ft.) or greater

• 135 mm or longer/No restriction

F50-Series/N50* • 135 mm/2.5 m (8.2 ft.) or greater

• 200 mm/No restriction

F65-Series/N65-Series*,

F55-Series/N55-Series*

• 105 mm/3 m (9.8 ft.) or greater

• 135 mm or longer/No restriction

F75-Series/N75-Series*,

Pronea 600i/6i*

• 85 mm/2.5 m (8.2 ft.) or greater

• 105 mm or longer/No restriction

Pronea S • 200 mm/2 m (6.6 ft.) or greater

*Sold exclusively in the U.S.A.

Using the lens hood

Lens hoods minimise stray light and protect the lens.

Attaching the hood

• Be sure that the lens hood mounting index ( ) is aligned

with the lens hood setting index ( ) (3).

• To facilitate attachment or removal of the hood, hold

it by the base (near the lens hood attachment index

(

))

rather than its outer edge.

• If the lens hood is not correctly attached, vignetting

may occur.

• To store the lens hood, attach it in the reverse

position.

Detaching the hood

While holding down the lens hood lock release button

(1), turn the hood clockwise (as viewed from the

camera side) (2, 3).

Recommended focusing screens

Various interchangeable focusing screens are available for certain Nikon SLR

cameras to suit any picture-taking situation. The ones recommended for use

with this lens are:

Screen

EC-B

G1 G2 G3 G4

Camera ABCE

EC-E JL

F5+DP-30

F5+DA-30 

Ⴟ: Excellent focusing

Ⴜ: Acceptable focusing

Slight vignetting or moire patterns appear in the viewfinder, but not on the

film.

—

: Not available

( ): Indicates degree of exposure compensation needed (center-weighted

metering only). For F6 cameras, compensate by selecting “Other screen“ in

Custom Setting “b6: Screen comp.“ and setting the EV level to -2.0 to +2.0

in 0.5 EV steps. When using screens other than type B or E, “Other screen“

must be selected even when the required compensation value is “0“ (no

compensation required). For F5 cameras, compensate using Custom Setting

#18 on the camera body.

See instruction manual of the camera body for more details.

Blank box means not applicable. Since type M screen can be used for

both macrophotography at a magnification ratio of 1:1 or above and for

photomicrography, it has different applications than other screens.

Important

• For F5 cameras, only EC-B, EC-E, B, E, J, A, L focusing screens are usable in

Matrix Metering.

• When using the B and E focusing screens in cameras other than those listed

above, refer to the columns for the B and E screens.

Otros manuales para NIKKOR

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Lente de la cámara de Nikon

Nikon

Nikon 18-135mm f/3.5-5.6G IF-ED Manual de usuario

Nikon

Nikon JAA79551 Instrucciones de funcionamiento

Nikon

Nikon AF-S VR 28-300mm f/3.5-5.6GED Manual de usuario

Nikon

Nikon Nikkor 13mm f/5.6 Manual de usuario

Nikon

Nikon NIKKOR Manual de usuario

Nikon

Nikon NIKKOR Z 24-200mm f/4-6.3 VR Manual de usuario

Nikon

Nikon AF-S NIKKOR 16-35mm f/4G ED VR Manual de usuario

Nikon

Nikon AF-S DX NIKKOR 18-105mm f/3.5-5.6 ED VR Manual de usuario

Nikon

Nikon Nikkor 45mm f/2.8P Manual de usuario

Nikon

Nikon AF-S DX NIKKOR 18-105mm f/3.5-5.6 ED VR Instrucciones de funcionamiento

Nikon

Nikon Reflex-Nikkor 500mm f/8 Manual de usuario

Nikon

Nikon AI-S Zoom-Nikkor 100-300mm f/5.6 Manual de usuario

Nikon

Nikon AF-S Nikkor 600mm f/4D IF-ED II Manual de usuario

Nikon

Nikon JAA79201 Instrucciones de funcionamiento

Nikon

Nikon AF Zoom-Nikkor 18-35mm f/3.5-4.5D IF-ED Manual de usuario

Nikon

Nikon AF-S OX Zoom-Nikkor ED 12-24mm f/4G IF Manual de usuario

Nikon

Nikon AF Nikkor 50mm f/1.8D Manual de usuario

Nikon

Nikon AF-S DX 18-55mm f/3.5-5.6GVR ED Manual de usuario

Nikon

Nikon AF Micro-Nikkor 60 mm f/2.8D Manual de usuario

Nikon

Nikon AF-S NIKKOR 70-200mm f/2.8E FL ED VR Manual de usuario

Nikon

Nikon AF-S NIKKOR 24-70mm f/2.8G ED Manual de usuario

Nikon

Nikon NIKKOR Z 70-200mm f/2.8 VR S Manual de usuario

Nikon

Nikon AF Zoom-Nikkor ED 80–200mm f/2.8D Manual de usuario

Nikon

Nikon MEP-30 FS-MRAD Manual de usuario

Manuales populares de Lente de la cámara de otras marcas

THORLABS

THORLABS ELL15 Manual de usuario

FUJICA

FUJICA ZC1000 Manual de usuario

Tamron

Tamron A09 Manual

Sony

Sony SEL-55210 Manual de usuario

Sony

Sony VCL-HG2037 Manual de usuario

Honeywell

Honeywell HLM25V6F12 Manual de usuario

Sony

Sony VCL-ST30 Manual de usuario

Canon

Canon FD 35 - 70 mm Manual de usuario

Sony

Sony SAL-85F14Z - 85mm f1.4 Carl Zeiss Planar T Coated Telephoto... Manual de usuario

ARRI

ARRI Lenses Manual de usuario

Panasonic

Panasonic LUMIX G X Vario 45-175mm f/4.0-5.6 Manual de usuario

Rokinon

Rokinon DS50M-C Manual de usuario

Olympus

Olympus M.Zuiko Digital ES 300mm f4.0 IS PRO Manual de usuario

Sony

Sony VCL-DE07T Manual de usuario

Canon

Canon FD Lens Manual

Tamron

Tamron A036 Manual de usuario

Samsung

Samsung 20-50mm F3.5-5.6 ED II Manual de usuario

Tamron

Tamron 272E Manual de usuario
