Instruction manual

High Intensity LED Stroboscope Digital Tachometer

DT-361/365

Be sure to read before use.

Before use, please carefully read these safety precautions as well as instructions,

and follow them for proper use.

98585D

99 Washington Street

Melrose, MA 02176

Phone 781-665-1400

Toll Free 1-800-517-8431

Visit us at www.TestEquipmentDepot.com

Safety Requirements Be sure to observe

Before operation, maintenance and inspection, please carefully read this instruction manual and

follow it for proper use. Please carefully read all information related to this unit's safety precautions

before use.

This instruction manual provides two grades of safety warnings: Danger and Caution.

Each of them is an important description related to safety. Be sure to follow them.

DANGER This indicates the possibility of re, severe injury and even death if a user disregards the instruction

and operates the unit improperly.

CAUTION

This indicates a potential situation that could produce a minor injury or damage to material if it is

improperly handled.

However, depending on the circumstances, there could be a possibility that it may cause more

serious results. Be sure to follow them.

Protection categories are explained and separated by the following symbols

Not allowed -prohibited

Mandatory Must follow

DANGER

Do not use this product in an atmosphere

with risk of re and/or explosion.

Failure to follow this could result in re.

Do not look directly at the light emitting

section.

Failure to follow this could result in injury to the eyes.

CAUTION

Do not apply strong impact to the unit, or

drop it.

Failure to follow this could result in abnormal

operation.

Do not use and/or store the unit in the

following places.

•Where water may come in contact

•Where direct sunlight come in contact

•Where high humidity environment may be present

•Where dust, dirt, salt, and/or iron may be present

•Where oil, water, and/or chemicals come in contact

•Where a re or explosion may exist or occur.

Never disassemble, repair, and remodel

the unit.

Failure to follow this could result in injury due to

abnormal operation.

Use the unit within the proper operating

temperature range (32 - 104°

F).

Failure to follow this could result in malfunction.

Do not use any volatile chemicals, such as benzene,

thinner, or alcohol.Wipe clean the unit with a soft dry

cloth if it gets dirty. Or immerse a cloth in water

diluted neutral detergent, wring it, and wipe clean the

unit with it.

Since continuously emitting light for long time

causes the unit's housing to be very hot, x

the LED strobe using a tripod, etc. and use the

unit (avoid direct skin contact with the unit,

such as holding it by hand).

Failure to follow this could result in mild burns.

- Contents -

1 Overview 4

2 Before use 4

2.1 Checking the contents 4

2.2 Peel off the protection sheet 5

2.3 Charging (only for DT-365) 5

2.3.1 Charging method 5

2.3.2 Indication of low battery voltage 6

2.3.3 Battery replacement 6

3 Part names and functions 7

3.1 Main unit 7

3.2 Operation section 7

3.3 Display 8

3.3.1 Part names 8

3.3.2 Number display 8

3.3.3 Unit display 8

3.3.4 Emission setting display 8

3.3.5 Mode display 8

3.3.6 Memory number display 8

3.3.7 Charging lamp (only for DT-365) 8

4 Functions and operations 9

4.1 Power ON/OFF 9

4.2 Emission setting 10

4.3 Internal oscillation emission 11

4.3.1 Display of internal oscillation emission 11

4.3.2 Switching the modes 11

4.3.3 Switching the unit display 11

4.3.4 Emission count mode 12

4.3.4.1 Emission count setting 12

4.3.4.2 Changing the emission count (frequency) to double or half 13

4.3.5 Emission duration mode 14

4.3.6 Phase mode 15

4.4 External synchronous emission 16

4.4.1 Emission count mode 16

4.4.2 Emission duration mode 17

4.4.3 Phase mode 18

4.4.3.1 How to set the delay 19

4.5 Memory function 20

4.5.1 Saving each setting value 20

4.5.1.1 Saving on internal oscillation emission 21

4.5.1.2 Saving on external synchronous emission 22

4.5.1.3 Saving the setting value when the power is OFF 22

4.5.2 Reading out each setting value 23

4.5. 2.1 Reading out on internal oscillation emission 23

4.5.2.2 Reading out on external synchronous emission 24

4.6 Function mode 25

4.6.1 Moving to the function mode 25

4.6.2 Measurement range setting (Function mode 1) 26

4.6.3 Trigger edge setting (Function mode 2) 27

4.6.4 Auto emission stop time setting (Function mode 3) 29

4.6.5 Input signal setting (Function mode 4) 30

4.7 External I/O connector 31

4.7.1 SpecicationsforexternalI/Oconnectorandpinassignment31

4. 7. 2 External pulse input 32

4.7.3 External trigger pulse output 32

5 Specications33

6 External dimensions 34

7 Trouble shooting 35

1 Overview

A stroboscope tachometer is a measurement instrument to measure the speed (cycle) of rotating

objects that rotate at a constant speed, or moving objects that repeatedly operate at a constant

cycle.Whentherotation(motion)cyclematchestheashcyclewhilethestrobeashisperiodically

applied on a rotating or moving object, the rotating (moving) object image appears to stand still. This

stroboscopetachometerisnon-contactandcanbeusedtoreadtheashfrequencywhensuchastill

image appears. Also, a stroboscope can be used to make images of rotating or moving objects stand

still or slightly move in order to observe their appearances.

Main features

Wide-range measurement of 60 to120,000 fpm

Refer to 4.3.4.1 Emission count setting for details



Simply pressing the x2 or ÷2 key can change the emission count (frequency) to double or half

respectively

Refer to 4.3.4.2 Changing the emission count (frequency) to double or

half for details

The emission time (duty) can be changed by 0.1º within the range between 0.1º/ 360º to 3.6º/ 360º

Refer to 4.3.5 ash duration mode for details

The emission timing (phase) can be adjusted

Refer to 4.3.6 Phase mode for details

The external I/O function is implemented which enables emission in synchronization with the external

pulse, and enables the pulse signal in synchronization with the strobe emission to be output.

Refer to 4.4 External synchronous emission for details

2 Before use

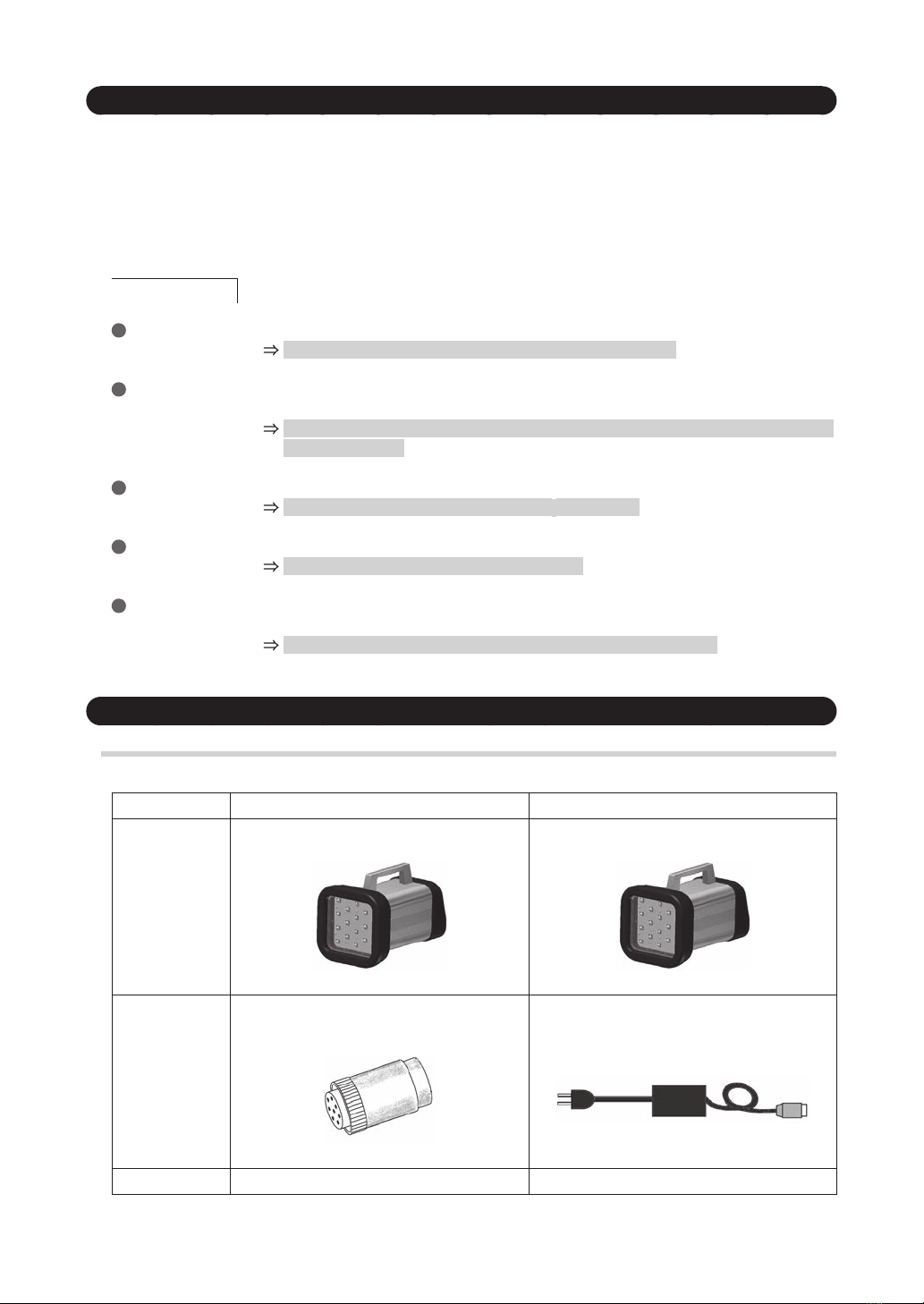

2.1 Checking the contents

Check that the three items in the table below are supplied.

M odel DT-361 (AC power input model) DT-365 (Charging battery built-in model)

Main unit

DT-361 x 1 DT-365 x 1

Accessories

External signal I/O connector (8 pin) x 1

RM15WTPZA-8S(71)

Dedicated AC adapter x 1

Instruction manual

This document x 1 This document x 1

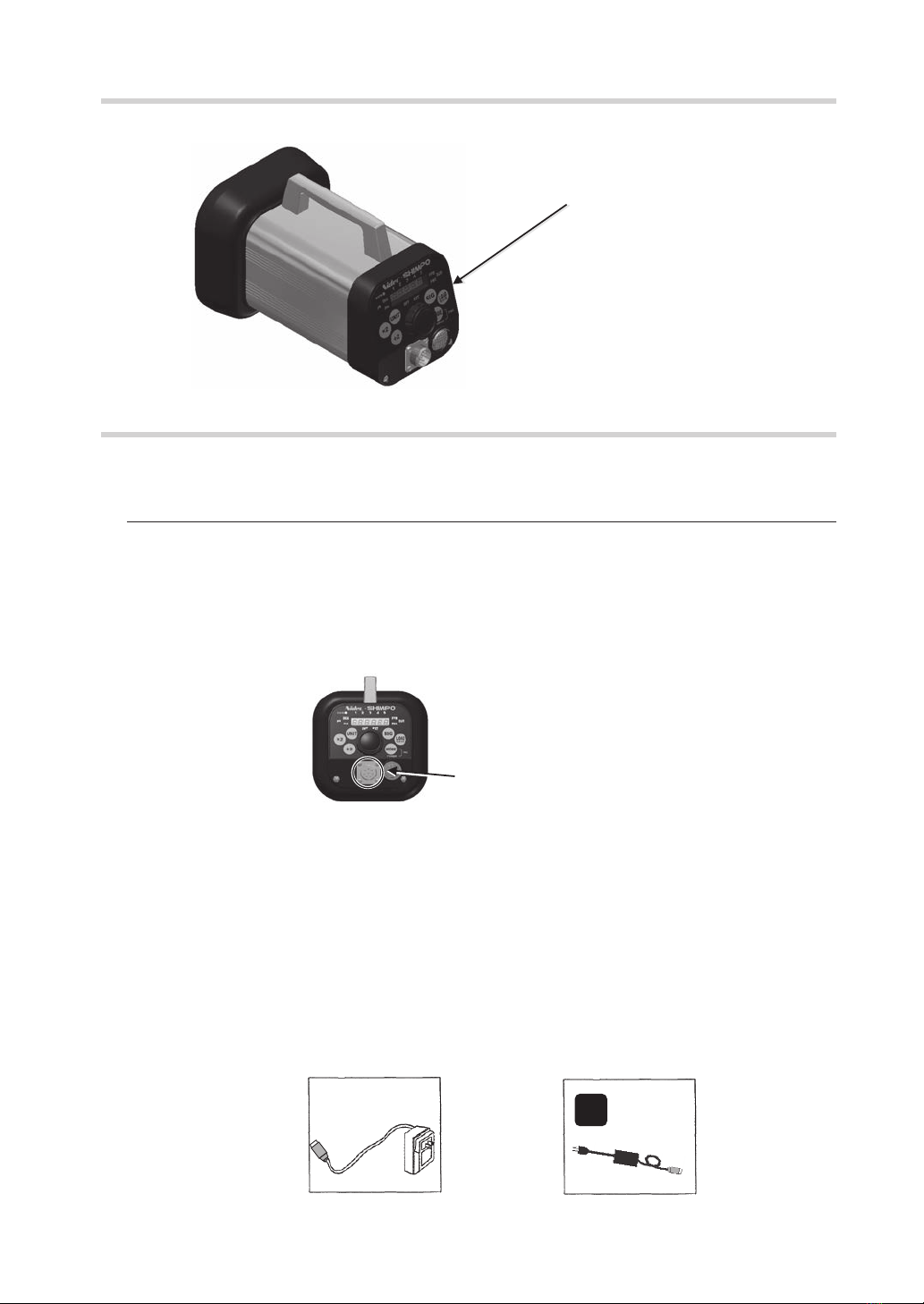

2.2 Peel off the protection sheet

Peel off the protection sheet on the operation section.

O p erat i o n sect i o n

P eel o f f t h e ( t ransp arent )

p ro t ect i o n sh eet

2.3 Charging (only for DT-365)

Be sure to charge the battery before initial use. Before charging, be sure to check that the power is

turned OFF.

2.3.1 Charging method

Turn the power OFF and connect the supplied AC adapter's connector to the main unit. Next insert

the AC adapter's AC plug into an outlet. The battery lamp lights up and charging starts.

Charging is complete in approximately 2.5 hours. Then the battery charging lamp turns off.

* Be sure to use only the supplied AC adapter.

When the power is turned ON with the supplied AC adapter connected, charging ends and

operation starts.

* Note that operation and charging cannot be performed simultaneously.

C onnect the sup p l ied A C adap ter

Note 1) Since the battery current is automatically shut off when charging is complete, there is no need

to worry about overcharging.

Note 2) When the power is turned ON during charging, charging is canceled and emission starts. When

the unit uses the AC adapter as its power source, it is not charged.

Note 3) To extend battery life and charging capacity, it is recommended to deplete the battery fully

before charging. ( LLLLLL is indicated on the number display)

Note 4) If the unit is charged immediately after long periods of usage at a high ambient temperature,

the temperature rise protection circuit will turn on and the charging lamp may not light up. In

that case, disconnect the AC adapter and let the unit cool. When the product temperature is

decreased, connect the AC adapter again to start charging.

Note 5) Never charge the unit under the following conditions.

A dap ter of

another dev ice

•C har g ing near f l ammab l e mater ial s

•U sing another A C adap ter than sup p l ied.

O il

2.3.2 Indication of low battery voltage

If the remaining battery power drops to near zero, the number display alternates between the

process setting and LLLLLL. However, operation can be performed even when the battery is in this

low condition.

If the remaining battery power decreases further, the number display indicates only LLLLLL, which

then stops operation. Press the power switch and shut off the power immediately.

In either case, charge the unit according to the procedure in 2.3.1 Charging method .

•Indicationoflowbatteryvoltage

I ndicates al ter natel y

•Indicationofstoppedoperation

2.3.3 Battery replacement

Ifthefullychargedbatterycontinuallydecreases,pleasereplaceitwiththespeciedreplacement

battery. Please contact your local dealer for details.

1. Remove 4 screws located on the bottom of DT-365 and take out the battery assembly.

2. Remove the screws on the connector and the battery supporter and replace with the new

battery.

3. Fix the new battery with the screws and connect the connector.

4. Install the new battery assembly to DT-365.

C onnector

B attery

S crews

Fix with the hole facing the front.

3 Part names and functions

3.1 Main unit

S up er l uminosity L ED ( 1 8 l ig hts)

Pow er sw itch

Ex ter nal I / O connector

O p er ation

section

* T he imag e is f or D T - 3 6 5 .

3.2 Operation section

󰴥

󰴤

󰴦

󰴧

󰴫

󰴩

󰴪

󰴨

* T he imag e is f or D T - 3 6 5 .

No. Name Function description

󰴤Power switch Turns the power ON/OFF.

󰴥D ial Used to change the emission frequency or emission duration.

󰴦MODE key

Each press of this key switches the number display in the following order: Emission

frequency (FPM), Emission duration, Emission delay duration (PHA), Emission

frequency (FPM)...

󰴧

LOAD (SAVE) key

Reads the saved setting value.

Also, saves the current setting value by pressing and holding it.

󰴨SIG key Switches the internal oscillation emission and external synchronous emission.

󰴩UNIT key

Switches to indicate the emission time when the emission duration is indicated. When

the delay duration is indicated, each press of this key switches indication of the delay

time and angle.

󰴪x2 key Each press of this key during on internal oscillation emission alters allows the

performance of emission by double the current set emission count (frequency).

󰴫÷2 key Each press of this key during on internal operation mode drops the current emission by

half the count (frequency).

3.3 Display

3.3.1 Part names

N umer ical disp l ay

U nit disp l ay

M ode disp l ay

Emission setting

disp l ay

M emor y numb er disp l ay

C har g ing l amp ( onl y f or D T - 3 6 5 )

3.3.2 Number display

•Indicatesthesettingvalueoftheemissioncount(frequency)ininternaloscillationemissionmode.

•Indicatestheexternalsignalfrequencyinexternalsynchronousemissionmode.

•Eachsettingvalueisindicatedinthefunctionsettingmode.

* For details about the function setting mode, refer to 4.6 Function mode.

3.3.3 Unit display

Indicates the unit of the value on the number display.

Emission dur ation ( ang l e)

D el ay dur ation ( p hase)

Emission dur ation ( time) D el ay time

3.3.4 Emission setting display

Indicates the emission setting.

I nter nal oscil l ation emission Ex ter nal sy nchr onous emission

3.3.5 Mode display

Indicates the mode on the number display.

Emission count mode Emission dur ation mode Phase mode

3.3.6 Memory number display

Indicates the memory number on the number display.

When all the numbers go off the memory number 0 (free mode) is assigned and the previous

setting value is indicated.

3.3.7 Charging lamp (only for DT-365)

Lights up while charging and goes off when charging is complete.

4 Functions and operations

4.1 Power ON/OFF

Press the power switch when the power is OFF to turn the power ON.

When the power is turned ON, the model is indicated, followed by internal oscillation emission or

external synchronous emission.

Operation D isplay

When the power is

OFF

Press the power

switch

The indication of internal oscillation

emission is indicated and emission

starts.

Internal oscillation emission

when the power was last OFF

External synchronous emission

when the power was last OFF

The indication of external synchronous

emission is indicated and the unit

enters the standby mode for the

external signal.

* When DT-365 is used, the indication may go off immediately after the power is turned ON. In that case,

charge the unit because the remaining battery level is low. For details about charging, refer to 2.3

Charging.

Press the power switch when the power is ON to turn the power OFF, then the indication goes off.

Operation D isplay

When the power is ON

Press the power

switch

I ndicated l etter s g o of f .

* When the power is turned ON, the following indication may be displayed.

The following is the error message showing EEPROM read failure. Press the x2 key to return to the normal

emission screen from the error message display.

Operation D isplay

Press the x2 key R etur ns to the nor mal

setting scr een

Er r or disp l ay

EEPR O M r ead f ail ur e

4.2 Emission setting

Each press of the SIG key switches between internal oscillation emission and external synchronous

emission.

Operation D isplay

Each press switches

the emission settings

I nter nal oscil l ation emission Ex ter nal sy nchr onous emission

Otros manuales para DT-361

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Instrumento de medición de Nidec

Nidec

Nidec TNP Series Manual de usuario

Nidec

Nidec ST-1100 Manual de usuario

Nidec

Nidec TNX Series Manual de usuario

Nidec

Nidec DT-200LR-S12 Manual de usuario

Nidec

Nidec ST-1100 Manual de usuario

Nidec

Nidec FG-7000L Manual de usuario

Nidec

Nidec DT-105A Manual de instalación

Nidec

Nidec MT-100 Manual de instalación

Nidec

Nidec Kato Engineering KRM2000 Manual de usuario

Nidec

Nidec Shimpo MT-200 Manual de usuario

Nidec

Nidec PG-35H Series Manual de usuario

Nidec

Nidec TNP Series Manual de usuario

Nidec

Nidec PT-120 Manual de usuario

Nidec

Nidec DT-361 Manual de usuario

Nidec

Nidec MF-2 Manual de usuario

Nidec

Nidec PG-100B Series Manual de usuario

Nidec

Nidec FG-7000T Manual de usuario

Nidec

Nidec DT-501X Manual de usuario

Nidec

Nidec FG-3000R Series Manual de usuario

Nidec

Nidec FG-3000R-S Manual de usuario

Nidec

Nidec PG-100N Series Manual de usuario

Nidec

Nidec FG -3000 Series Manual de usuario

Nidec

Nidec FG-7000TA Manual de usuario

Nidec

Nidec SHIMPO DT-5TXR Manual de usuario

Manuales populares de Instrumento de medición de otras marcas

Suaoki

Suaoki D40 Manual de usuario

Elster

Elster BK-G1.6 Manual de usuario

Endress+Hauser

Endress+Hauser Deltabar FMD71 Manual

Duratool

Duratool D03128 Manual de usuario

Vega

Vega VEGAPULS 65 Manual de usuario

Tonghui

Tonghui TH2618B Manual de usuario

Tenmars

Tenmars TM-801 Manual de usuario

MSR

MSR 145 Manual de usuario

TPS

TPS WP-82 Manual de usuario

ELMETRON

ELMETRON CP-511 Manual de usuario

PCB Piezotronics

PCB Piezotronics 003C30 Manual de usuario

Tenma

Tenma 72-10465 Manual de usuario

Endress+Hauser

Endress+Hauser Proline Promag 50 Especificaciones técnicas

Siemens

Siemens SITRANS F Coriolis FCT030 Manual de lista de piezas

KLINGER

KLINGER CMF V Series Manual de usuario

EXFO

EXFO FTB-2 Manual de operación y mantenimiento

Keysight

Keysight M8290A Manual de usuario

ADTEK

ADTEK MW-5 Manual de usuario
