Installer manual

LEK

NIBE™ F1245

Ground source heat pump

IHB GB 1412-3

231611

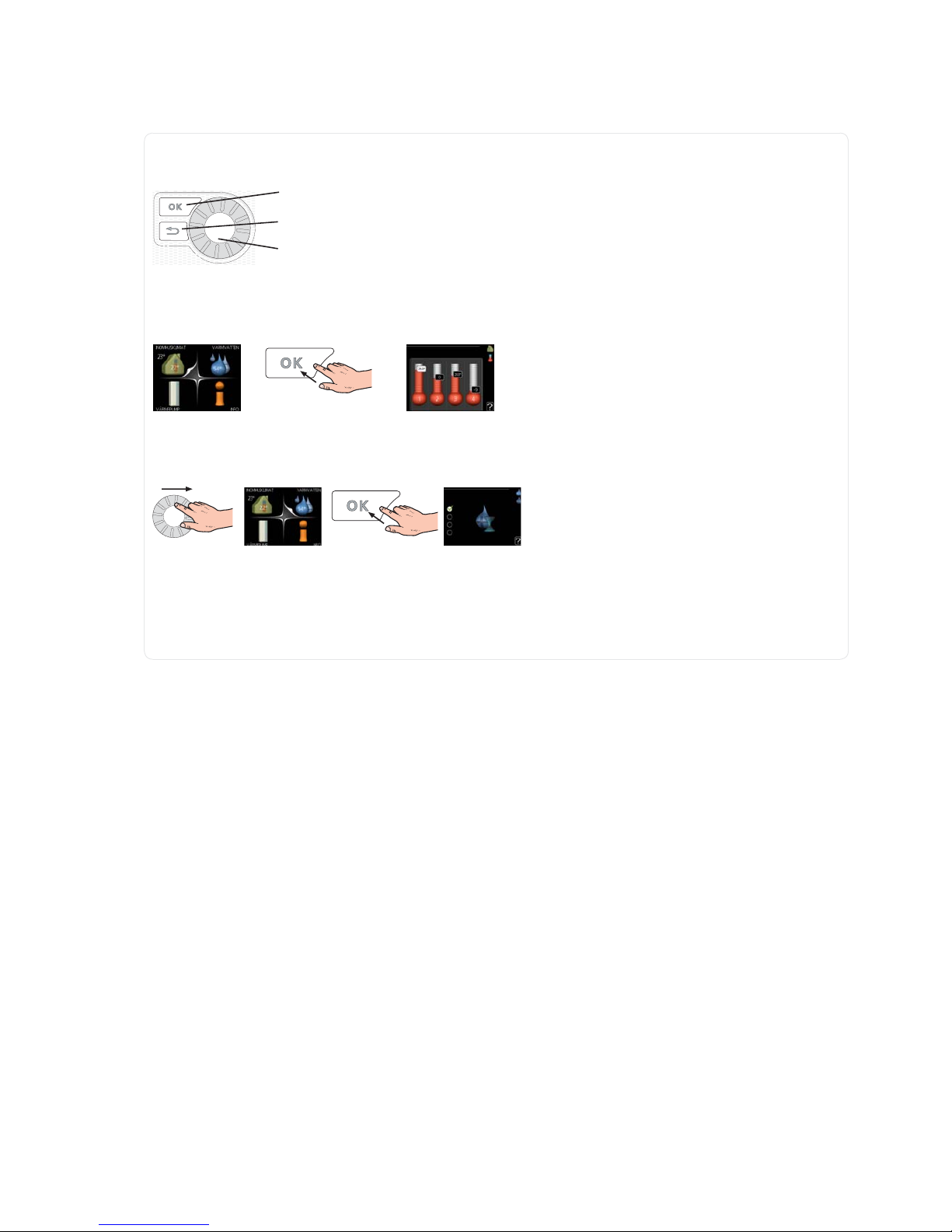

4XLFN JXLGH

1DYLJDWLRQ

2N EXWWRQ FRQILUPVHOHFW

%DFN EXWWRQ EDFNXQGRH[LW

&RQWURO NQRE PRYHLQFUHDVHUHGXFH

A detailed explanation of the button functions can be found on page 34.

How to scroll through menus and make different settings is described on page 36.

6HW WKH LQGRRU FOLPDWH

;

The mode for setting the indoor temperature is reached, when in the start mode in the main menu, by pressing

the OK button twice. Read more about the settings on page 38.

,QFUHDVH KRW ZDWHU YROXPH

;

;

To temporarily increase the amount of hot water, first turn the control knob to mark menu 2 (water droplet) and

then press the OK button twice. Read more about the settings on page 46.

In event of disturbances in comfort

If a disturbance in comfort of any type occurs there are some measures that can be taken before you need to

contact your installer. See page 69 for instructions.

Table of Contents

1 Important information 2

Safety information 2

2 Delivery and handling 5

Transport 5

Assembly 5

Supplied components 6

Removing the covers 6

Removing parts of the insulation 7

3 The heat pump design 8

General 8

Electrical cabinets 10

Cooling section 12

4 Pipe connections 13

General 13

Dimensions and pipe connections 14

Brine side 14

Heating medium side 15

Hot water heater 15

Docking alternatives 15

5 Electrical connections 18

General 18

Connections 20

Settings 22

Optional connections 24

Connecting accessories 28

6 Commissioning and adjusting 29

Preparations 29

Filling and venting 29

Start guide 30

Post adjustment and venting 31

7 Control - Introduction 34

Display unit 34

Menu system 35

8 Control - Menus 38

Menu 1 - INDOOR CLIMATE 38

Menu 2 - HOT WATER 46

Menu 3 - INFO 48

Menu 4 - HEAT PUMP 49

Menu 5 - SERVICE 54

9 Service 63

Service actions 63

10 Disturbances in comfort 69

Info-menu 69

Manage alarm 69

Troubleshooting 69

11 Accessories 71

12 Technical data 73

Dimensions and setting-out coordinates 73

Technical specifications 74

Item register 80

1Table of Contents |NIBE™ F1245

Safety information

This manual describes installation and service proced-

ures for implementation by specialists.

This appliance can be used by children

aged from 8 years and above and per-

sons with reduced physical, sensory or

mental capabilities or lack of experience

and knowledge if they have been given

supervision or instruction concerning

use of the appliance in a safe way and

understand the hazards involved. Chil-

dren shall not play with the appliance.

Cleaning and user maintenance shall

not be made by children without super-

vision.

Rights to make any design or technical

modifications are reserved.

©NIBE 2013.

Symbols

NOTE

This symbol indicates danger to machine or

person.

Caution

This symbol indicates important information

about what you should observe when main-

taining your installation.

TIP

This symbol indicates tips on how to facilitate

using the product.

Marking

The CE marking means that NIBE ensures that the

product meets all regulations that are placed on it

based on relevant EU directives. The CE mark is obligat-

ory for most products sold in the EU, regardless where

they are made.

Serial number

The serial number can be found at the bottom right of

the front cover and in the info menu (menu 3.1).

6HULDO QXPEHU

Caution

Always give the product's serial number (14

digits) when reporting a fault.

Country specific information

Installer manual

This installer manual must be left with the customer.

NIBE™ F1245Chapter 1 | Important information2

1 Important information

Inspection of the installation

Current regulations require the heating installation to be inspected before it is commissioned. The inspection must

be carried out by a suitably qualified person. Fill in the page for information about installation data in the User

manual.

DateSignatureNotesDescription

✔

Brine (page 14)

System flushed

System vented

Antifreeze

Level/Expansion vessel

Particle filter

Safety valve

Shut off valves

Circulation pump setting

Heating medium (page 15)

System flushed

System vented

Expansion vessel

Particle filter

Safety valve

Shut off valves

Circulation pump setting

Electricity (page 18)

Fuses heat pump

Fuses property

Outside sensor

Room sensor

Current sensor

Safety breaker

Earth circuit-breaker

Setting of emergency mode thermostat

Miscellaneous

Guarantee submitted

3Chapter 1 | Important informationNIBE™ F1245

Contact information

KNV Energietechnik GmbH, Gahberggasse 11, 4861 SchörflingAT

Tel: +43 (0)7662 8963-0 Fax: +43 (0)7662 8963-44 E-mail: mail@knv.at www.knv.at

NIBE Wärmetechnik AG, Winterthurerstrasse 710, CH-8247 FlurlingenCH

Tel: (52) 647 00 30 Fax: (52) 647 00 31 E-mail: inf[email protected] www.nibe.ch

Druzstevni zavody Drazice s.r.o, Drazice 69, CZ - 294 71 Benatky nad JizerouCZ

Tel: +420 326 373 801 Fax: +420 326 373 803 E-mail: [email protected] www.nibe.cz

NIBE Systemtechnik GmbH, Am Reiherpfahl 3, 29223 CelleDE

Tel: 05141/7546-0 Fax: 05141/7546-99 E-mail: inf[email protected] www.nibe.de

Vølund Varmeteknik A/S, Member of the Nibe Group, Brogårdsvej 7, 6920 VidebækDK

Tel: 97 17 20 33 Fax: 97 17 29 33 E-mail: inf[email protected] www.volundvt.dk

NIBE Energy Systems OY, Juurakkotie 3, 01510 VantaaFI

Puh: 09-274 697 0 Fax: 09-274 697 40 E-mail: inf[email protected] www.nibe.fi

AIT France, 10 rue des Moines, 67000 HaguenauFR

Tel : 03 88 06 24 10 Fax : 03 88 06 90 15 E-mail: inf[email protected] www.nibe.fr

NIBE Energy Systems Ltd, 3C Broom Business Park, Bridge Way, Chesterfield S41 9QGGB

Tel: 0845 095 1200 Fax: 0845 095 1201 E-mail: inf[email protected] www.nibe.co.uk

NIBE Energietechniek B.V., Postbus 2, NL-4797 ZG WILLEMSTAD (NB)NL

Tel: 0168 477722 Fax: 0168 476998 E-mail: inf[email protected] www.nibenl.nl

ABK AS, Brobekkveien 80, 0582 Oslo, Postadresse: Postboks 64 Vollebekk, 0516 OsloNO

Tel. sentralbord: +47 23 17 05 20 E-mail: [email protected] www.nibeenergysystems.no

NIBE-BIAWAR Sp. z o. o. Aleja Jana Pawła II 57, 15-703 BIAŁYSTOKPL

Tel: 085 662 84 90 Fax: 085 662 84 14 E-mail: sekretariat@biawar.com.pl www.biawar.com.pl

Tel./fax +7 831 419 57 06 E-mail: [email protected] www.nibe-evan.ru

NIBE AB Sweden, Box 14, Hannabadsvägen 5, SE-285 21 MarkarydSE

Tel: +46-(0)433-73 000 Fax: +46-(0)433-73 190 E-mail: inf[email protected] www.nibe.se

For countries not mention in this list, please contact Nibe Sweden or check www.nibe.eu for more information.

NIBE™ F1245Chapter 1 | Important information4

Transport

F1245 should be transported and stored vertically in a

dry place. When being moved into a building, F1245

may be leant back 45 °. Note! Can be tail heavy.

TIP

The side panels can be removed for easier in-

stallation in the building.

Pulling out the cooling module

To simplify transport and service, the heat pump can

be separated by pulling the cooling module out from

the cabinet.

See page 65 for instructions about the separation.

Assembly

႑Position F1245 on a firm base that can take the

weight, preferably on a concrete floor or foundation.

Use the product's adjustable feet to obtain a horizont-

al and stable set-up.

30 - 50 mm

႑The area where F1245 is located must be equipped

with floor drainage.

႑Install with its back to an outside wall, ideally in a

room where noise does not matter, in order to elim-

inate noise problems. If this is not possible, avoid

placing it against a wall behind a bedroom or other

room where noise may be a problem.

႑Wherever the unit is located, walls to sound sensitive

rooms should be fitted with sound insulation.

႑Route pipes so they are not fixed to an internal wall

that backs on to a bedroom or living room.

Installation area

Leave a space of 800 mm in front of the product. Ap-

prox 50 mm free space is required in order to open the

side hatches. The hatches do not need to be opened

during service, all service on F1245 can be carried out

from the front. Leave space between the heat pump

and wall behind (and any routing of supply cables and

pipes) to reduce the risk reproduction of any vibration.

(50) (50)





* A normal installation needs 300 - 400 mm (any side) for connec-

tion equipment, i.e. level vessel, valves and electrical equipment.

5Chapter 2 | Delivery and handlingNIBE™ F1245

2 Delivery and handling

Supplied components

LEK

Room sensorCurrent sensor (not

1x230V) (not

1x230V or 3x230V)

Outside sensor

LEK

O-ringsSafety valve

(0.3 MPa) (3 bar)

Level vessel

Location

The kit of supplied items is placed in packaging on top

of the heat pump.

Removing the covers

Front cover

LEK

1. Remove the screws from the lower edge of the

front cover.

2. Lift the cover out at the bottom edge and up.

Side covers

LEK

The side covers can be removed to facilitate the install-

ation.

1. Remove the screws from the upper and lower

edges.

2. Twist the cover slightly outward.

3. Move the cover backwards and slightly to the side.

4. Pull the cover to one side.

5. Pull the cover forwards.

NIBE™ F1245Chapter 2 | Delivery and handling6

Removing parts of the insula-

tion

Parts of the insulation can be removed to facilitate the

installation.

Insulation, top

1. Disconnect the cable from the motor and remove

the motor from the shuttle valve as illustrated.

LEK

2. Grip the handle and pull straight out as illustrated.

LEK

Insulation, immersion heater

NOTE

Electrical installation and service must be car-

ried out under the supervision of a qualified

electrician. Electrical installation and wiring

must be carried out in accordance with the

stipulations in force.

1. Remove the cover for the junction box according

to the description on page 19.

2. Grip the handle and pull the insulation carefully

towards you as illustrated.

LEK

7Chapter 2 | Delivery and handlingNIBE™ F1245

General

F1245

BT7

QN10

BT2

EB1

UB1

QM34

XL1

XL6 XL7

XL4 XL3 XL2

FR1

PF1

PF3

BT6

UB2

QM32

QM33

PF2

QM22

UB3

AA4

W130

QM31

AA4-XJ3

SF1

View from above

;/ %7

View from behind

%)

NIBE™ F1245Chapter 3 | The heat pump design8

3 The heat pump design

Otros manuales para F1245

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Bomba de calor de Nibe

Nibe

Nibe F1155 Series Guía del usuario

Nibe

Nibe F110 Manual de usuario

Nibe

Nibe F1255 Series Guía del usuario

Nibe

Nibe F750 Guía del usuario

Nibe

Nibe F1255PC BE Manual de usuario

Nibe

Nibe F470 Guía del usuario

Nibe

Nibe AP-BW30 Manual de usuario

Nibe

Nibe SOLAR 40 Guía del usuario

Nibe

Nibe SPLIT ACVM 27 Manual de usuario

Nibe

Nibe F370 Guía del usuario

Nibe

Nibe S1155 Manual de usuario

Nibe

Nibe AMS 10 Series Guía del usuario

Nibe

Nibe F110 Manual de usuario

Nibe

Nibe S2125 Manual de usuario

Nibe

Nibe F2030 Guía del usuario

Nibe

Nibe AHP 10-300 Guía del usuario

Nibe

Nibe DRAZICE TJ 2 EHP 6 kW Hoja de especificaciones

Nibe

Nibe F1145 series Guía del usuario

Nibe

Nibe F370 Guía del usuario

Nibe

Nibe F1155 Series Guía del usuario

Nibe

Nibe AirSite GreenMaster-HP 12 Series Guía del usuario

Nibe

Nibe F470 Guía del usuario

Nibe

Nibe NIBE F1X26 Manual de funcionamiento original

Nibe

Nibe F1255 Series Guía del usuario

Manuales populares de Bomba de calor de otras marcas

MICROWELL

MICROWELL HP 1000 GREEN Manual de usuario

Sanyo

Sanyo SAP120FCH Manual de usuario

Daikin

Daikin EHYHBH05AA Manual de usuario

Panasonic

Panasonic WH-SDF03E3E5 Guía

Bryant

Bryant 544B Manual de usuario

Airxcel

Airxcel 45000 Series Manual

Mitsubishi Electric

Mitsubishi Electric PUZ-SWM60VAA Manual de usuario

Dimplex

Dimplex LI 16I-TUR Guía del usuario

Carrier

Carrier WSHP Open v3 Guía de configuración rápida

TGM

TGM CTV14CN018A Manual de usuario

Carrier

Carrier 38MGQ Series Manual de usuario

Kokido

Kokido K2O K880BX/EU Guía de solución de problemas

Viessmann

Viessmann VITOCAL 300-G PRO Type BW 2150 Guía rápida

Carrier

Carrier 48EZN Manual de usuario

Viessmann

Viessmann KWT Vitocal 350-G Pro Series Instrucciones de funcionamiento

Ariston

Ariston NIMBUS Manual de usuario

Weishaupt

Weishaupt WWP L 7 Guía del usuario

GE Zoneline AZ85H09EAC Manual de usuario
