Nibe FLM Guía del usuario

Installer manual

LEK

NIBE FLM

Exhaust air module

IHB GB 1014-2

031375

LEK

Table of Contents

1 Important information 2

Safety information 2

2 Delivery and handling 5

Transport 5

Assembly 5

Supplied components 5

Removing the covers 5

3 The design of the exhaust air mod-

ule 6

4 Pipe and ventilation connec-

tions 8

General pipe connections 8

Dimensions and pipe connections 8

Brine side 9

Condensation water hose 11

General ventilation connection 12

Ventilation flow 12

Adjusting ventilation 12

5 Electrical connections 13

General 13

Connections 13

6 Commissioning and adjusting 15

Preparations 15

Filling and venting 15

Start-up and inspection 16

7 Service 19

Service actions 19

8 Disturbances in comfort 20

Info-menu (F1145/F1245) 20

Manage alarm (F1145/F1245) 20

Troubleshooting 20

9 Accessories 22

Brackets 22

10 Technical data 23

Dimensions and setting-out coordinates 23

Technical specifications 24

Electrical circuit diagram 25

Item register 26

1Table of Contents |NIBE FLM

Safety information

This manual describes installation and service procedures

for implementation by specialists.

This appliance is not intended for use by persons (includ-

ing children) with reduced physical, sensory or mental

capabilities, or lack of experience and knowledge, unless

they have been given supervision or instruction concern-

ing use of the appliance by a person responsible for their

safety.

Children should be supervised to ensure that they do not

play with the appliance.

Rights to make any design or technical modifications are

reserved.

©NIBE 2010.

Symbols

NOTE

This symbol indicates danger to machine or

person.

Caution

This symbol indicates important information

about what you should observe when maintain-

ing your installation.

TIP

This symbol indicates tips on how to facilitate

using the product.

Marking

This exhaust air module is CE marked and fulfils IP21.

The CE marking means that NIBE ensures that the product

meets all regulations that are placed on it based on relev-

ant EU directives. The CE mark is obligatory for most

products sold in the EU, regardless where they are made.

IP21 means that the product can be touched by hand,

that objects with a diameter larger than or equivalent to

12.5 mm cannot penetrate and cause damage and that

the product is protected against vertically falling drops.

Serial number

The serial number can be found at the bottom left inside

the front cover.

LEK

6HULDO QXPEHU

Caution

Always give the product's serial number when

reporting a fault.

Country specific information

Installer manual

This installer manual must be left with the customer.

NIBE FLMChapter 1 | Important information2

1 Important information

Inspection of the installation

Current regulations require the exhaust air module to be inspected before it is commissioned. The inspection must be

carried out by a suitably qualified person. Fill in the page for information about installation data in the User manual.

DateSignatureNotesDescription

✔

Ventilation (page 12)

Setting the ventilation flow

Brine (page 9)

Non-return valve

System flushed

System vented

Antifreeze

Expansion vessel

Particle filter

Safety valve

Shut off valves

Circulation pump setting

Checking the condensation water seal

Trim valve

Electricity (page 13)

Supply connected 230 V

Circuit fuses

3Chapter 1 | Important informationNIBE FLM

..........................................................................................................................................................................................................................................................................................................................................................................................

Contact information

KNV Energietechnik GmbH, Gahberggasse 11, 4861 SchörflingAT

Tel: +43 (0)7662 8963-0 Fax: +43 (0)7662 8963-44 E-mail: [email protected] www.knv.at

NIBE Wärmetechnik AG, Winterthurerstrasse 710, CH-8247 FlurlingenCH

Tel: (52) 647 00 30 Fax: (52) 647 00 31 E-mail: [email protected] www.nibe.ch

Druzstevni zavody Drazice s.r.o, Drazice 69, CZ - 294 71 Benatky nad JizerouCZ

Tel: +420 326 373 801 Fax: +420 326 373 803 E-mail: [email protected] www.nibe.cz

NIBE Systemtechnik GmbH, Am Reiherpfahl 3, 29223 CelleDE

Tel: 05141/7546-0 Fax: 05141/7546-99 E-mail: [email protected] www.nibe.de

Vølund Varmeteknik, Filial af NIBE AB, Brogårdsvej 7, 6920 VidebækDK

Tel: 97 17 20 33 Fax: 97 17 29 33 E-mail: [email protected] www.volundvt.dk

NIBE – Haato OY, Valimotie 27, 01510 VantaaFI

Puh: 09-274 697 0 Fax: 09-274 697 40 E-mail: [email protected] www.haato.fi

NIBE Energy Systems Ltd, 3C Broom Business Park, Bridge Way, Chesterfield S41 9QGGB

Tel: 0845 095 1200 Fax: 0845 095 1201 E-mail: [email protected] www.nibe.co.uk

NIBE Energietechniek B.V., Postbus 2, NL-4797 ZG WILLEMSTAD (NB)NL

Tel: 0168 477722 Fax: 0168 476998 E-mail: [email protected] www.nibenl.nl

NIBE AB, Fekjan 15F, 1394 NesbruNO

Tel: 22 90 66 00 Fax: 22 90 66 09 E-mail: [email protected] www.nibevillavarme.no

NIBE-BIAWAR Sp. z o. o. Aleja Jana Pawła II 57, 15-703 BIAŁYSTOKPL

Tel: 085 662 84 90 Fax: 085 662 84 14 E-mail: [email protected] www.biawar.com.pl

Tel./fax +7 831 419 57 06 E-mail: [email protected] www.nibe-evan.ru

NIBE AB Sweden, Box 14, Järnvägsgatan 40, SE-285 21 MarkarydSE

Tel: +46-(0)433-73 000 Fax: +46-(0)433-73 190 E-mail: [email protected] www.nibe.se

For countries not mention in this list, please contact Nibe

Sweden or check www.nibe.eu for more information.

NIBE FLMChapter 1 | Important information4

Transport

The exhaust air module should be transported and stored

in the dry.

Assembly

NIBE FLM is installed on top of the ground heat pump or

freestanding on brackets. Noise from the circulation pump

or fan can be transferred to the brackets.

႑Install with its back to an outside wall, ideally in a

room where noise does not matter, in order to elim-

inate noise problems. If this is not possible, avoid

placing it against a wall behind a bedroom or other

room where noise may be a problem.

႑Wherever the unit is located, walls to sound sensitive

rooms should be fitted with sound insulation.

႑Route pipes so they are not fixed to an internal wall

that backs on to a bedroom or living room.

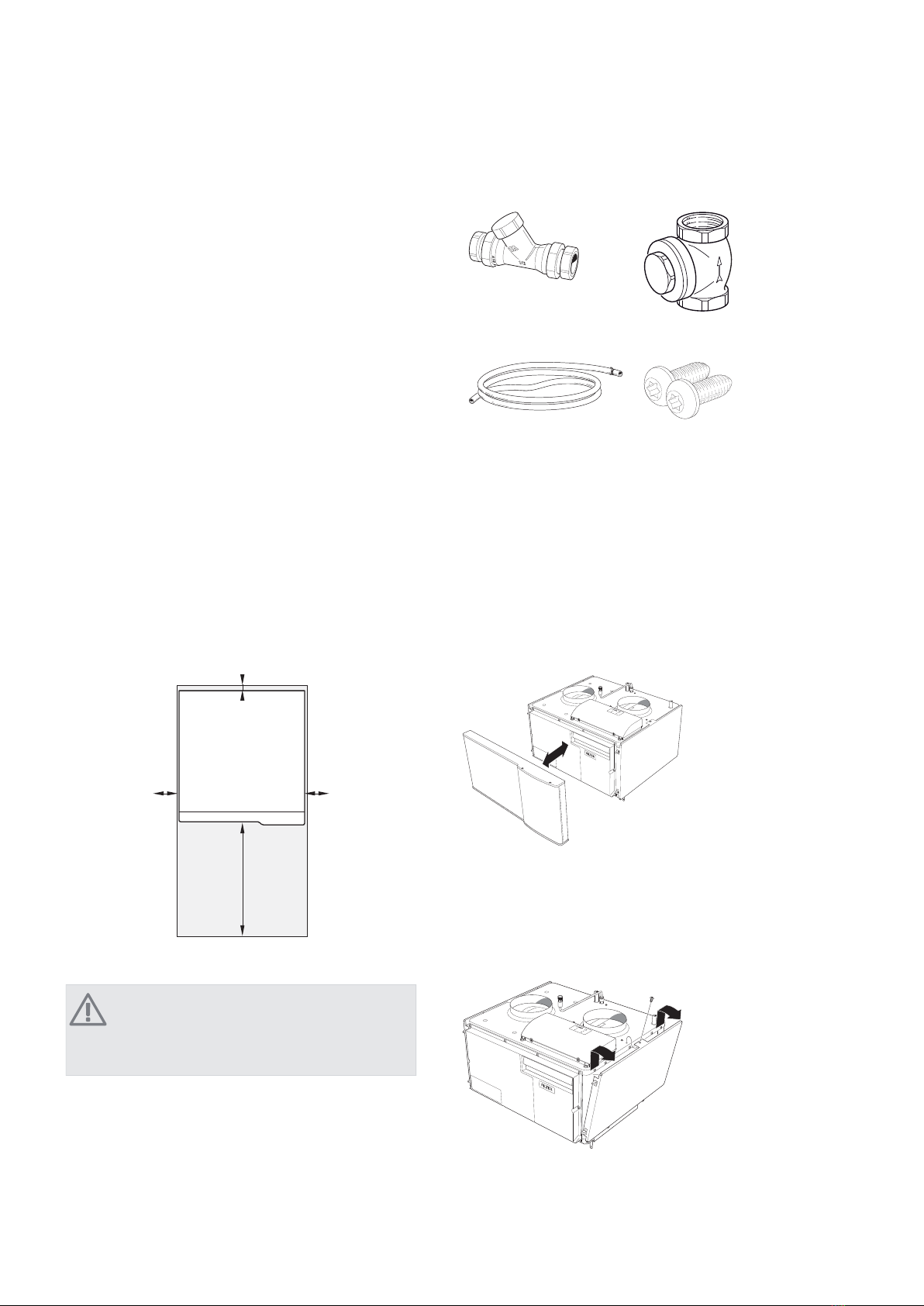

Installation area

Leave a space of 500 mm in front of the exhaust air

module. Approximately 50 mm free space is required on

each side in order to open the side hatches. The hatches

do not need to be opened during service, all service on

NIBE FLM can be carried out from the front.

500

10–25*

(50) (50)

*Depending on routing of supply cables and pipes.

NOTE

Ensure that there is sufficient space (300 mm)

above the exhaust air module for installing

ventilation hoses.

Supplied components

LEK

Non-return valve Ø 32 mmTrim valve Ø 15 mm

LEK

2 x screws (T25) for in-

stalling NIBE FLM on

F1145/F1245

Condensation water hose Ø

20 mm

Location

The bag of supplied items is placed on top of NIBE FLM.

Removing the covers

Front cover

1. Remove the service cover by pulling it straight out.

LEK

Side covers

1. Undo the screws at the upper edge

2. Lift the side hatches upwards and twist the cover

outwards slightly.

3. Assembly takes place in the reverse order.

LEK

5Chapter 2 | Delivery and handlingNIBE FLM

2 Delivery and handling

LEK

$$

6) $$6

LEK

;/ %7

+4

;/

$$

40

3) 

%7

LEK

:

6) 6)

;/:

LEK

*4(3

;/ ;/

*3

%7 %7

NIBE FLMChapter 3 | The design of the exhaust air module6

3 The design of the exhaust air module

Exhaust air module

NIBE FLMAZ

Pipe connections

Connection, brine in, compression ring Ø 15 mmXL6

Connection, brine out, compression ring Ø 15

XL7

Ventilation connection exhaust air, Ø 160 mmXL31

Ventilation connection extract air, Ø 160 mmXL32

Drip-pan drainXL40

HVAC components

Venting brineQM21

Circulation pumpGP2

Heat exchangerEP16

Sensors etc.

Temperature sensor, exhaust airBT20

Temperature sensor, extract airBT21

Temperature sensor, collector inBT26

Temperature sensor, collector outBT27

Electrical components

Accessory cardAA5

Dip switchAA5-S2

Joint cardAA100

Switch, position0-1,main switchSF1

Switch, position0-1,circulation pumpSF2

PotentiometerSF3

Cord with connection plugW1

Control cableW6

Ventilation

FanGQ2

Air filterHQ10

Miscellaneous

Type platePF1

Designations in component locations according to

standard IEC 81346-1 and 81346-2.

7Chapter 3 | The design of the exhaust air moduleNIBE FLM

General pipe connections

Pipe installation must be carried out in accordance with

current norms and directives.

Lowest permitted temperature on incoming brine is -5

°C.

Symbol key

MeaningSymbol

Venting valve

Shut-off valve

Non-return valve

Control valve

Shunt / shuttle valve

Safety valve

Temperature sensor

Pressure gauge

Circulation pump

Particle filter

Fan

Compressor

Heat exchanger

Dimensions and pipe connec-

tions

320

408

100

NIBE FLMChapter 4 | Pipe and ventilation connections8

4 Pipe and ventilation connections
