USER GUIDE
NI DAQPad -6016 OEM
This document provides dimensions, connector pinouts, and information
about the LEDs, switches, chassis ground, and connectors of the following
NI DAQPad-6016 OEM devices:
•111 mm ×163 mm Version—For information about this version of
the DAQPad-6016 OEM device, refer tothe DAQPad-6016 OEM
(111 mm
×
163 mm Version) section of this document.
•191 mm ×163 mm Version—For information about this version of
the DAQPad-6016 OEM device, refer to the DAQPad-6016 OEM
(191 mm
×
163 mm Version) section of this document.
Caution There are no product safety, electromagnetic compatibility (EMC), or
CE marking compliance claims made for the NI DAQPad-6016 OEM devices. Conformity
to any and all compliance requirements rests with the end product supplier.
DAQPad-6016 OEM (111 mm ×163 mm Version)
Figure 1 shows the 111 mm ×163 mm version of the DAQPad-6016 OEM
device.
For specifications and more information about the DAQPad-6016 OEM
device, refer to the E Series Help at ni.com/manuals.
Figure 1. DAQPad-6016 OEM Device (111 mm ×163 mm Version)
™
NI DAQPad-6016 OEM User Guide 2 ni.com
Dimensions
Figure 2 shows the dimensions of the 111 mm ×163 mm version of the
DAQPad-6016 OEM device.
Figure 2. DAQPad-6016 OEM Dimensions in Inches and Millimeters
(111 mm ×163 mm Version)
4.354 (110.59)
0.000 (0.00)
0.150 (3.81)
0.390 (9.91)
0.550 (13.98)
3.180 (80.77)
3.220 (81.79)
3.280 (83.31)
1.057 (26.85)
0.390 (9.91)
0.000 (0.00)
2.145 (54.48)
2.606 (66.19)
3.080 (78.23)
6.200 (157.48)
–0.055 (–1.4)
0.515 (13.08)
0.362 (9.19)
0.162 (4.11)
–0.100 (–2.54)
–0.215 (–5.45)
6.010 (152.65)
4.070 (103.38)
3.730 (94.74)
3.614 (91.83)
3.524 (89.55)
0.436 (11.07)
0.392 (9.96)
0.000 (0.00)
4X φ0.125 (3.18)
0.304 (7.72)
0.200 (5.08)
5.850 (148.59)
6.400 (162.63)
0.000 (0.00)
–0.203 (–5.16)
Full 50-Pin
I/O Connector
Pin 1 Pin 49
Pin 2 Pin 50
Pin 1 Pin 49
Pin 2 Pin 50
Extended
DIO 50-Pin
I/O Connector
3.949 (100.30)
©National Instruments Corporation 3 NI DAQPad-6016 OEM User Guide
I/O Connector Pinouts
Table 1 shows the two 50-pin I/O connector pinouts on the DAQPad-6016
OEM device.
For more information about the DAQPad-6016 OEM signals and how to
connect them, refer to the E Series Help at ni.com/manuals.
Table 1. DAQPad-6016 OEM I/O Connector Pinouts
Full 50-Pin I/O Connector Extended DIO 50-Pin I/O Connector
CTR 0 OUT
PFI 8/CTR 0 SRC
PFI 6/AO START TRIG
CTR 1 OUT
PFI 3/CTR 1 SRC
PFI 1/AI REF TRIG
EXT STROBE
+5 V
D GND
P0.3
P0.2
P0.1
P0.0
AO GND
AO 1
AI SENSE
AI 7
AI 6
AI 5
AI 4
AI 3
AI 2
AI 1
AI 0
AI GND
FREQ OUT
PFI 7/AI SAMP CLK
PFI 5/AI SAMP CLK
PFI 2/AI CONV CLK
PFI 0/AI START TRIG
AI HOLD COMP
+5 V
PFI 9/CTR 0 GATE
PFI 4/CTR 1 GATE
P0.7
P0.6
P0.5
P0.4
D GND
NC
AO 0
AI 15
AI 14
AI 13
AI 12
AI 11
AI 10
AI 9
AI 8
AI GND
49
47
45
43
41
39
37
35
33
31
29
27
25
23
21
19
17
15
13
11
9
7
5
3
1
50
48
46
44
42
40
38
36
34
32
30
28
26
24
22
20
18
16
14
12
10
8
6
4
2
+5 V
P1.0
P1.1
P1.2
P1.3
P1.4
P1.5
P1.6
P1.7
P2.0
P2.1
P2.2
P2.3
P2.4
P2.5
P2.6
P2.7
P3.0
P3.1
P3.2
P3.3
P3.4
P3.5
P3.6
P3.7
D GND
D GND
D GND
D GND
D GND
D GND
D GND
D GND
D GND
D GND
D GND
D GND
D GND
D GND
D GND
D GND
D GND
D GND
D GND
D GND
D GND
D GND
D GND
D GND
D GND
49
47
45
43
41
39
37
35
33
31
29
27
25
23
21
19
17
15
13
11
9
7
5
3
1
50
48
46
44
42
40
38
36
34
32
30
28
26
24
22
20
18
16
14
12
10
8
6
4
2
NI DAQPad-6016 OEM User Guide 4 ni.com
LEDs
The DAQPad-6016 OEM has two LEDs that reflect the state of the device.
The green READY LED indicates whether the device is powered on and
configured as a USB device. The yellow ACTIVE LED indicates whether
there is activity over the USB bus. Figure 3 shows the pins that connect the
LEDs to the device.
Figure 3. DAQPad-6016 OEM LEDs (111 mm ×163 mm Version)
The READY LED has two sets of pins. The first set of pins labeled 1a and
the resistor labeled R5 are used to connect to the onboard LED. The 220 Ω
R5 resistor drives enough current to power on the LED.
The second set of pins labeled 1b allow you to connect an external LED
circuit to the device. You can solder wires to these pins.
The set of pins labeled 2 and the 220 Ωresistor labeled R6 are used for the
ACTIVE LED. The ACTIVE LED does not have a separate set of pins to
connect to an external LED circuit.
R5
R6
1a–1a+
2–2+
Resistor to adjust
current through
ACTIVE LE
D
D
Resistor to adjust
current through
READY LED
Positive Connection
f
f
f
or REA
ff
or REA
D
DY LE
D
D
Ne
g
atiNegative Connection
f
f
f
or REA
ff
or READY LED
1b+ 1b–
+VE GND
E1 E2
Positive Connection for
External READY LED
Negative Connection
for ACTIVE LED
Positive Connection
for ACTIVE LED
Negative Connection for
External READY LED
©National Instruments Corporation 5 NI DAQPad-6016 OEM User Guide
Table 2 shows the schematics of the onboard ACTIVE and READY LEDs,
and how to connect an external READY LED circuit to the device.
Power Switch (111 mm ×163 mm Version)
The power switch on the DAQPad-6016 OEM powers the device on and
off. Figure 4 shows the pins on the power switch.
Figure 4. DAQPad-6016 OEM Power Switch (111 mm ×163 mm Version)
Table 2. Schematics of the DAQPad-6016 OEM LEDs
Onboard
ACTIVE LED
Onboard
READY LED
External READY
LED Circuit
2+
R6
2–
LED
1a+
R5
1a–
LED
1b+
1b–
Switch
SW1
Provides
Power to
Device
VDC Comes
from Fuse
XF1
J10
32
45
1
Connects to
D GND
NI DAQPad-6016 OEM User Guide 6 ni.com
Pin 1 is connected to VDC through the fuse (reference designator XF1).
The VDC is the voltage provided by the power supply through the power
connector (reference designator J10) and must be 9–25 V.
Pin 2 provides power to the circuitry on the DAQPad-6016 OEM. When
the switch is in the On position, the VDC power supply from pin 1 is routed
to pin 2.
Pin 3 connects pin 2 to ground when the switch is in the Off position.
This allows the charge on the DAQPad-6016 OEM to leak to ground when
it is powered off.
Figure 5 shows a schematic of the switch.
Figure 5. Schematic of the DAQPad-6016 OEM Switch
NRSE/RSE Switch (111 mm ×163 mm Version)
The DAQPad-6016 OEM device can make differential or single-ended
analog input measurements.
In nonreferenced single-ended (NRSE) mode, the ground reference signal
is provided by the user on the AI SENSE pin. In referenced single-ended
(RSE) mode, the ground reference signal is AI GND, the ground of the
DAQPad-6016 OEM device.
SW1 XF1
FUSE
3
Power to
Device
J10
Power
Connector
1
2
©National Instruments Corporation 7 NI DAQPad-6016 OEM User Guide
Table 3 shows how to set the NRSE/RSE switch (S1).
Chassis Ground
Chassis ground provides a connection between the enclosure and USB
ground.
D GND is connected to the chassis ground at the bottom edge of the board
through two 0 Ωresistors. The chassis ground directly connects to USB
ground, which connects to earth ground. Figure 6 shows where the different
grounds are connected.
Table 3. NRSE/RSE (S1) Settings
Mode
Ground
Reference
Signal S1 Position
NI-DAQmx
Setting1
NRSE (default) AI SENSE NRSE
RSE AI GND NRSE2
1In NI-DAQmx, set the Analog Input Terminal Configuration property of your AI Task to this setting. For more information,
refer to the Analog Input Terminal Configuration topic in the E Series Help, available at ni.com/manuals.
2To make RSE measurements, you must set the Analog Input Terminal Configuration property of your AI Task to NRSE in
NI-DAQmx. Even though RSE mode is not exposed in the software, setting S1 to RSE and setting the Analog Input Terminal
Configuration property of your AI Task to NRSE will allow you to make RSE measurements.
J7
S1
J7
S1
NI DAQPad-6016 OEM User Guide 8 ni.com
Figure 6. DAQPad-6016 OEM Ground Connections (111 mm × 163 mm Version)
Device Components
Table 4 contains information about the components used for interfacing
and interacting with the NI DAQPad-6016 OEM.
Table 4. NI DAQPad-6016 OEM Components
Component
Reference
Designator(s)
on PCB Manufacturer
Manufacturer
Part Number
LEDs DS1 Dialight 553-0332
50-pin connectors J7, J8 3M 2550-6002UB
USB connector J9 AMP 787780-1
Power connector J10 Switchcraft 722RA
On/off switch SW1 ITT Industries, Cannon E101J1A3QE2
F 2A L 250V fuse XF1 Littelfuse 217.002
NRSE/RSE switch S1 EAO/SECME 09-03201-02
Chassis ground
connects to USB
cable gr
ou
n
roun
d
Mounting hole connected
to chassis ground
Holes for USB connector pins
connected to chassis ground
Board ground
connects to
chassis ground
through 0 Ω
resistors
©National Instruments Corporation 9 NI DAQPad-6016 OEM User Guide
DAQPad-6016 OEM (191 mm ×163 mm Version)

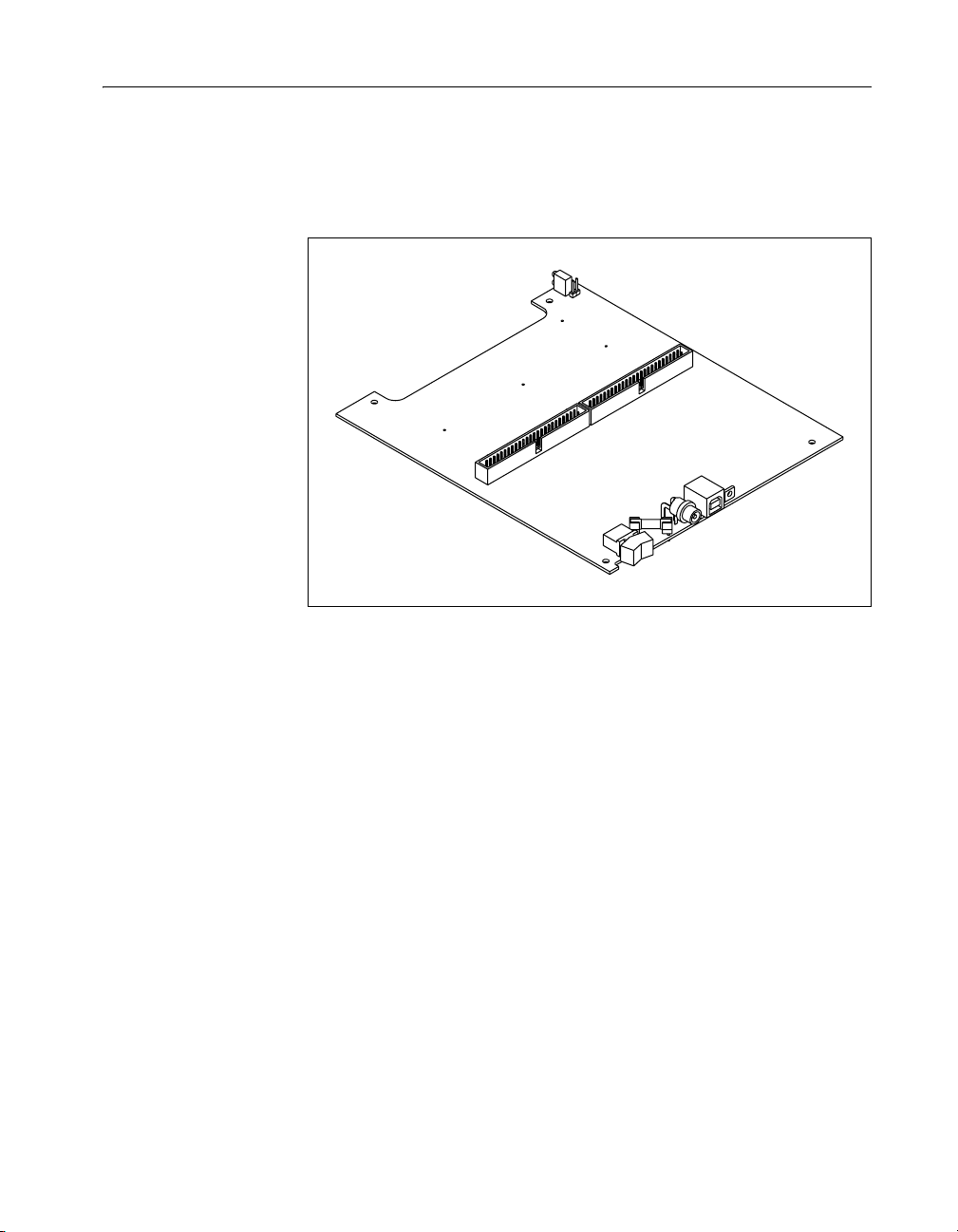

Figure 7 shows the 191 mm ×163 mm version of the DAQPad-6016 OEM
device.
For specifications and more information about the DAQPad-6016 OEM
device, refer to the E Series Help at ni.com/manuals.
Figure 7. DAQPad-6016 OEM Device (191 mm ×163 mm Version)
Dimensions
Figure 8 shows the dimensions of the 191 mm ×163 mm version of the
DAQPad-6016 OEM device.
NI DAQPad-6016 OEM User Guide 10 ni.com
Figure 8. DAQPad-6016 OEM Dimensions in Inches and Millimeters
(191 mm × 163 mm Version)
0.515 (13.08)
0.215 (5.45)
4X Ø 0.125 (3.18)
0.055 (1.40)
7.563 (192.10)
0.262 (6.65)
0.436 (11.07)
0.392 (9.96)
0.000 (0)
0.000 (0)
0.393 (9.98) 0.390 (9.91)
0.800 (20.32)
3.220 (81.79)
5.600 (142.24)
6.100 (154.94)
5.930 (150.62)
1.057 (26.85)
2.145 (54.48)
2.606 (66.19)
3.296 (83.72)
6.400 (162.56)
5.850 (148.59)
0.200 (5.08)
0.000 (0)
0.000 (0)
–0.203 (–5.16)
0.304 (7.72)
3.730 (94.74)
7.250 (184.15)
7.500 (190.50)
3.080 (78.23)
4-40 Tapped
Pin 1
Pin 2
Pin 49
Pin 50
Pin 1
Pin 2
Pin 49
Pin 50
Full 50-Pin
I/O Connector
Extended DIO 50-Pin
I/O Connector
Tabla de contenidos
Otros manuales de Unidad de control de NI
NI
NI PXIe-4304 Manual
NI
NI PXIe-7975 Manual de usuario
NI
NI ELVIS RIO Manual de usuario
NI
NI USB-6008 Manual de usuario
NI
NI SPEEDY-33 Manual de usuario
NI
NI 9231 Manual de usuario
NI
NI FieldPoint cFP-RLY-423 Manual de usuario
NI
NI PXIe-1435 Manual de usuario
NI
NI USB-6008 Manual de lista de piezas
NI
NI PXI-4204 Manual de usuario
NI
NI PXIe-5673E Manual de usuario
NI
NI NI-9205 Manual de usuario
NI
NI SCC-RLY01 Manual de usuario
NI
NI NI-9853 Manual de usuario
NI
NI 9247 Manual de usuario
NI
NI 9229 Manual
NI
NI 9350 Manual de usuario
NI
NI IMAQ PCI-1409 Manual de usuario
NI
NI PXI-6682H Manual de usuario
NI
NI GPIB Series Instrucciones de instalación
Manuales populares de Unidad de control de otras marcas
Festo
Festo Compact Performance CP-FB6-E Manual de lista de piezas
Elo TouchSystems
Elo TouchSystems DMS-SA19P-EXTME Manual de usuario
JS Automation
JS Automation MPC3034A Manual de usuario
JAUDT
JAUDT SW GII 6406 Series Guía rápida
Spektrum
Spektrum Air Module System Manual de usuario
BOC Edwards
BOC Edwards Q Series Manual de usuario
