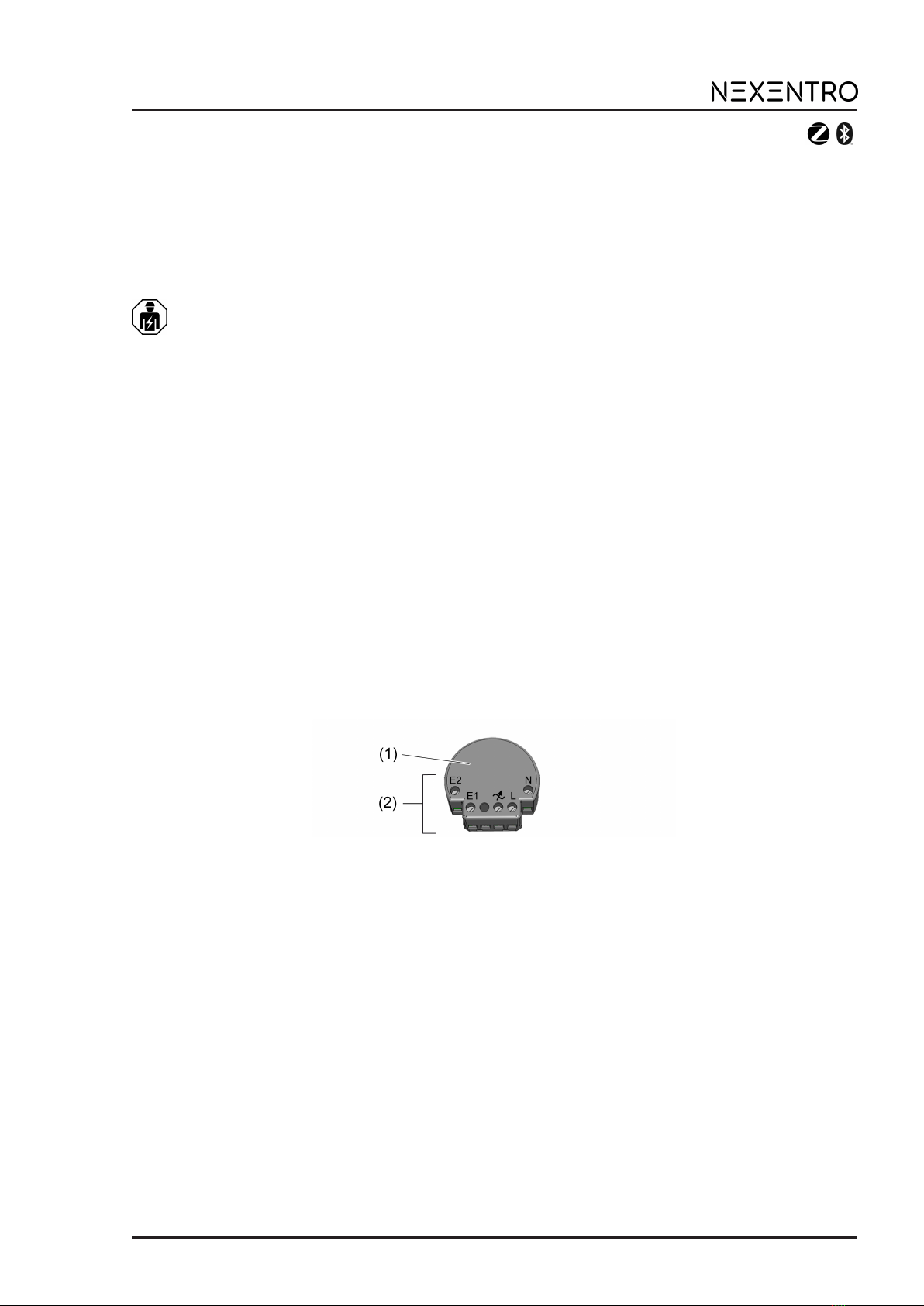

Zigbee Pushbutton Interface 2-gang 230 V
7 Commissioning
Commissioning is carried out via the NEXENTRO Config App, which step by step guides you
through the commissioning. This requires a mobile end device (smartphone or tablet) with a
Bluetooth interface and the Android or iOS operating systems.
The NEXENTRO Config App for the operating systems Android or iOS must be down-
loaded from the App Store (iOS) or Google Play Store (Android) and then installed.
App functions
– Joining an existing network
– Setting up your own network
– Assigning a device name
– Setting device parameters: Operating mode, venetian blind movement direction, scenes,
switch-on behaviour (dimming level, colour temperature)
– Connect the push-button interface to Zigbee actuators and Zigbee lamps
– Displaying the switching status of the connected switches or push-buttons
– Displaying device information: Device type, software version, hardware version
– Performing a software update
– Resetting to the default setting
The following operating modes can be set via the app:
–Control: For operation with one or two push-buttons for switching on and off and dimming
lights (default setting).
–Switch: For operation with one or two switches for switching loads on and off.
–Scene: For operation with two push-buttons for opening individual scenes.
–OFF: Input unused.
–Blinds: For operation with two push-buttons for operating a venetian blind or a shutter.
Coupling and registering new devices
The coupling of new devices is always possible for approx. 5 minute after mains voltage
return to prevent unauthorised access. Coupling is possible at any time with devices re-
gistered in the app.
￭ Couple the end device via Bluetooth with the device.
￭ Add the new device to the list of registered devices.
￭ Assign a device name.
Performing Zigbee configuration
The push-button interface can be added to an existing Zigbee network that already contains
Zigbee devices to be controlled. If no Zigbee network exists, the push-button interface can cre-
ate an own Zigbee network.
Adding a push-button interface to the Zigbee network of a gateway:
With certain gateways, adding to a network is done via the Touchlink function.
￭ Start the search mode for new devices in the Zigbee system. The function call depends
on the gateway, e.g. "Search devices".
￭ Set the operating mode for the two inputs of the push-button interface.
￭ Select the Join Network function.
The push-button interface is displayed in the app for some gateways.
According to the current operating mode, the NEXENTRO Config App displays all avail-
able Zigbee devices to which the push-button interface can be connected.
￭ Select the devices to be controlled with the respective input of the push-button interface.
Creating an own Zigbee network with the push-button interface:
￭ Set the operating mode for the two inputs of the push-button interface.
￭ Select the Create Network function.
