Newco LITTLE JOE COMPONENT ACCESS Manual de usuario

ACCESS INSTRUCTIONS PN 153264 20230519 MMF

Technical Service 1-800-556-3926

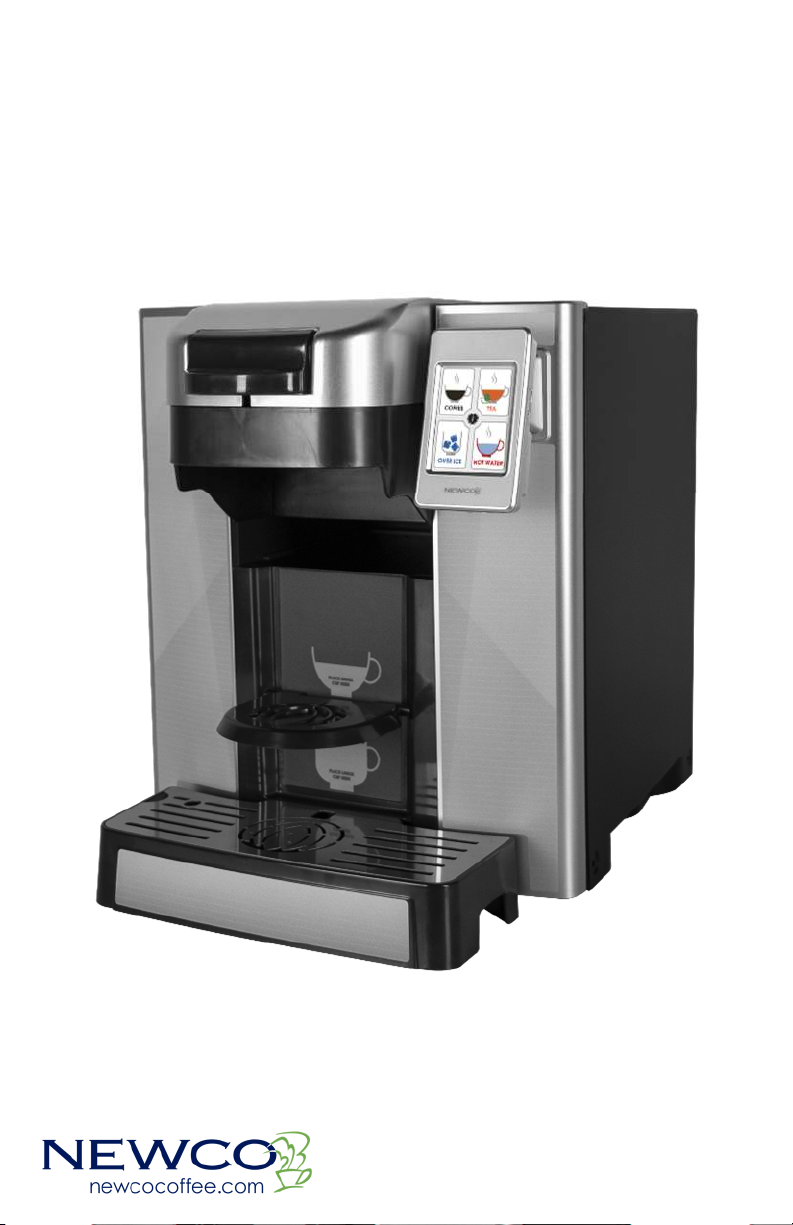

LITTLE JOE

COMPONENT ACCESS

All servicing and repairs are to be

done by an authorized Service Technician.

2 Technical Service 1-800-556-3926

TABLE OF CONTENTS

MAIN COMPONENT ACCESS

DISASSEMBLY ------------------------------------ 3

REASSEMBLY ------------------------------------- 7

BREW MECH COMPONENT ACCESS

DISASSEMBLY ----------------------------------- 12

REASSEMBLY ------------------------------------ 17

COMPLETE DISASSEMBLY AND REASSEMBLY

INSTRUCTIONS

DISASSEMBLY ----------------------------------- 20

REASSEMBLY ------------------------------------ 28

WARNING:

Unplug machine power and read through all

instructions carefully before servicing your machine. Failure to

follow instructions may void your machine warranty.

Ensure machine is powered off, has no water in it, and has

cooled completely.

LITTLE JOE ACCESS INSTRUCTIONS PN 153264 20230519

If power cord was removed

from back panel, thread it

back through the opening

shown above.

Align hooks on the sides and

bottom of the back panel to

slots on the sides and

bottom of the back of the

machine. Slide back panel

up about 1/4” to engage

the hooks into the slots.

Insert and tighten 3 screws. Replace Waste Bin and Drip

Tray.

38 Technical Service 1-800-556-3926

Front panel hook detail. Left

and right front panels have

mirrored hooks.

On the right front panel,

push wire connection into

display board, ensure the

locking tab is on the right

and the connector is secure.

Place each front panel flush

against the machine, with

the top of each front panel

about 1/4” above the top of

the machine cover.

Align front panel hooks

about 1/4” above machine

tabs. Slide panels down into

place.

LITTLE JOE ACCESS INSTRUCTIONS PN 153264 20230519

MAIN COMPONENT ACCESS

DISASSEMBLY

Remove drip tray, then

remove waste bin.

Remove 3 screws (circled)

then slide the back panel

down about 1/4” to

disengage the locking tabs,

then pull away from the

machine.

Open the brew mechanism,

leave open for front panel

removal.

Remove 1 screw (circled)

4 Technical Service 1-800-556-3926

Lift the right front panel up

about 1/4”, then pull away

from the machine,

disengaging locking tabs. Be

careful with display wiring.

Press on the locking tab on

the harness connector and

pull to release it from the

display board.

Remove 3 screws (circled).

Slide the right side panel

towards the back of the

machine about 1/4” to

disengage locking tabs,

then pull away.

LITTLE JOE ACCESS INSTRUCTIONS PN 153264 20230519

Align upper and lower side

panel hooks. Slide right side

panel forward about 1/4” to

the front of the machine to

lock in place.

Insert and tighten 3 screws.

Open brew mechanism for

reassembly of front panels.

Detail of slots on machine

and right side panel. Left

and right side panels have

mirrored slots.

36 Technical Service 1-800-556-3926

Note the end of the trim

plate will need to slide into

trim plate retaining notches,

pointed to with arrows in the

next image.

Reattach trim plate and

handle cover by inserting

and tightening 4 screws.

Detail of side panel hooks

and machine slots.

Right side panel hooks

inserted into machine slots.

LITTLE JOE ACCESS INSTRUCTIONS PN 153264 20230519

Side view

6 Technical Service 1-800-556-3926

Back view

LITTLE JOE ACCESS INSTRUCTIONS PN 153264 20230519

Align the screws into the

widest part of the keyhole

slots and press the brew

mech cover onto the brew

mechanism.

Slide brew mech cover

down and back into the

machine to fully seat the

screws into the narrow part

of the keyhole slots.

Insert and tighten two

circled screws. If screws do

not tighten, ensure the brew

mech cover screws are fully

seated into the brew

mechanism keyholes.

Tighten 4 keyhole screws.

34 Technical Service 1-800-556-3926

Note You may need to slide

the silver hood back and

forth to catch the keyholes

with the screws.

Note you will need to align

the screws on the brew

mech cover with the

keyholes on the brew

mechanism.

Raise the brew mechanism

to meet the brew mech

cover, aligning the handle

into the front slot in the brew

mech cover.

Fully open the brew

mechanism and brew mech

cover together to view the

screws and keyhole slots.

LITTLE JOE ACCESS INSTRUCTIONS PN 153264 20230519

REASSEMBLY

Detail of side panel hooks

and machine slots.

Right side panel hooks

inserted into machine slots.

Align upper and lower side

panel hooks. Slide right side

panel forward about 1/4”

to the front of the machine

to lock in place.

Insert and tighten 3 screws.

8 Technical Service 1-800-556-3926

Open brew mechanism for

reassembly of front right

panel.

Detail of slots on machine

and right side panel.

Front panel hook detail. Push wire connection into

display board, ensure the

locking tab is on the right

and the connector is

secure.

LITTLE JOE ACCESS INSTRUCTIONS PN 153264 20230519

Install reservoir into its

location on the left side

panel. Ensure reservoir is fully

seated, then close the lid.

With the brew mechanism

closed, lift the bushing guide

panel.

With the bushing guide

panel lifted, align the

bushings into the bushing

guide.

Tilt the brew mech cover

front up and slide it into the

bushing guide panel.

32 Technical Service 1-800-556-3926

Set the reservoir detection

switch fully to the right to set

it into the left side panel

opening. Then tighten the 2

screws on its bracket.

Insert and tighten one screw

on the left side panel near

the front of the machine,

gently pressing down on the

top cover to ensure correct

alignment.

Place keyhole over screw

then slide L bracket to the

left. Do not tighten screw

yet. Hold the L bracket in

place to align with the

screw hole in the next step.

Insert and tighten one screw

on the left side panel near

the back of the machine,

gently pressing down on the

top cover to ensure correct

alignment. Tighten the

screw on the L bracket from

the previous step.

LITTLE JOE ACCESS INSTRUCTIONS PN 153264 20230519

Place front panel flush

against the machine, with

the top of the front panel

about 1/4” above the top

of the machine cover.

Slide front panel down into

place, engaging panel

hooks with slots on the

machine and on the side

panel. Tighten screw.

If power cord was

removed from back panel,

thread it back through the

opening shown above.

Align hooks on the sides

and bottom of the back

panel to slots on the sides

and bottom of the back of

the machine. Slide back

panel up about 1/4” to

engage the hooks into the

slots.

10 Technical Service 1-800-556-3926

Insert and tighten 3 screws.

Replace Waste Bin and

Drip Tray.

LITTLE JOE ACCESS INSTRUCTIONS PN 153264 20230519

With bushing guide panel

lifted, align the top cover

cutout around the bushing

guide panel.

Lower and slide the top

cover forward to align

locking tabs.

Ensure screw hole tabs are

over the stainless steel plates

on the front and back of the

left side of the machine.

Screw holes will be aligned

in a later step.

Gently press down to snap

top cover into place,

engaging the locking tabs.
