PLEASE READ AND SAVE THESE INSTRUCTIONS

NewAir AC-10000E, AC-10000H

Portable Air Conditioner

Owner's Manual

GENERAL SAFETY INSTRUCTIONS:

ALWAYS OPERATE THE UNIT IN AN

UPRIGHT POSITION AND PLACE IT ON

A FLAT, LEVEL SURFACE AT LEAST 14"

(36CM) AWAY FROM ANY OTHER

OBJECTS (FIG 1 & 4).

DO NOT PLACE OBJECTS ON THE

UNITAND DO NOT COVER OR

OBSTRUCT THE INLET OR OUTLET

GRILLES (FIG. 2).

THIS APPLIANCE IS NOT INTENDED

FOR USE BY PERSONS (INCLUDING

CHILDREN) WITH REDUCED PHYSICAL,

SENSORY OR MENTAL CAPABILITIES,

OR LACK OF EXPERIENCE AND

KNOWLEDGE, UNLESS THEY HAVE

BEEN GIVEN SUPERVISION OR

INSTRUCTION CONCERNING ITS USE

BYA PERSON RESPONSIBLE FOR

THEIR SAFETY. CHILDREN SHOULD BE

SUPERVISED TO ENSURE THAT THEY

DO NOT PLAY WITH THE APPLIANCE.

ELECTRICAL SAFETY:

• THIS APPLIANCE IS FOR INDOOR

USE ONLY.

• ALWAYS SWITCH OFF THE UNITAND

UNPLUG IT WHEN NOT IN USE.

• DO NOT USE THIS UNIT IN

EXCESSIVELY HUMID OR WET

ENVIRONMENTS (FIG 3)

• DO NOT PULL OR PLACE STRAIN ON

THE POWER CORD WHEN MOVING

THE APPLIANCE.

• IF THE POWER CORD IS DAMAGED,

IT MUST BE REPLACED BYAN

ELECTRICIAN OR SPECIALIZED

TECHNICIAN AUTHORIZED BY THE

MANUFACTURER IN ORDER TO

PREVENT FIRE.

FIG. 1

FIG. 3

FIG. 2

FIG. 4

FOR MAXIMUM EFFICENCY:

Make sure doors and windows are closed while the portable air conditioner is in use.

Also keep curtains and blinds closed during the sunniest parts of the day while it is in

operation.

Frequently clean the filters.

Once the room or area has reached your desired comfort level, be sure to reduce the

unit's temperature and ventilation settings.

Front Back

1. Display window

2. Control panel

3. Control buttons

4. Louvers

5. Carrying handle

6. Casters

7. Cord wrap

8. Air filter

9. Air inlet

10. Exhaust air outlet

11. Air inlet

12. Water plug/drainage port

FIG.6

Accessories

13. Hose adaptor (goes over hose and

into the window kit)

14. Exhaust hose

15. Activated carbon filter

16. Extendable window kit

17. Hose for continuous drainage

18. Remote control

FIG.7

Installing the Exhaust Hose

FIG.8

Open the window and insert the window kit into the open gap.

Close the window until the window kit is held securely. You may need to adjust the

size of the window kit and secure it with screws. This technique may also be used

for sash windows.

Fit the exhaust hose into the exhaust air outlet located at the back of the air

conditioner.

4. Attach the hose adapter onto the exhaust hose.

5. Attach the hose adapter to the window kit.

Positioning the Exhaust Hose

Insert the exhaust hose into

the back of the unit and tighten

it into place.

Avoid kinks and bends in the

exhaust hose. These can

cause expelled moist air to

accumulate, resulting in

overheating and unexpected

shut offs (See Fig 9 & 10).

The exhaust hose may be

extended from 12 inches (300

mm) to 59 inches (1500 mm),

but for maximum cooling

efficiency, use the shortest

length possible.

FIG. 9

FIG. 10

FIG. 11

WARNING:

The included exhaust hose is

specially designed to fit the

specifications of this unit. Do not

extend it with your own hose, as

this can cause the air conditioner to

malfunction. FIG. 12

Installing the Activated Carbon Filter

1. Remove the filter frame from the

unit.

2. Remove the activated carbon filter

from its plastic bag.

3. Insert the activated carbon filter

into the back of the unit.

.Reattach the filter frame onto the

unit.

FIG.13

Control Panel

1. ON/OFF (power) button

2. Timer button

3. Timer indicator light

4. Temperature increase button

5. Compressor indicator light

6. Full water tank indicator light

7. Temperature decrease button

8. Low ventilation indicator light

9. High ventilation indicator light

10. Heating mode indicator light (only for

AC-10000H)

11. Fan mode indicator light

12. Cooling mode indicator light

13. Automatic mode indicator light

14. Mode selection button

15. Fan speed (ventilation) button

16. Display window

17. Remote control receiver

FIG.14

Turning the Unit On and Off

1. Press the ON/OFF button.

The unit will start automatically. If the ambient temperature is:

Higher than 74°F, the unit will operate in cooling mode.

Higher than 68°F but below or equal to 74°F, the unit will operate in fan mode.

Equal to or below 68°F, the unit will operate in heating mode (heating mode is only

available on model # AC-10000H).

The indicator lights showing any functions will turn on. Please note that the display window

will only show ambient room temperatures ranging from 32°F to 122°F.

To turn the unit off, press the ON/OFF button again.

Setting the Mode/Function

1. Press the MODE button to select the desired mode (cooling, heating, fan or automatic).

2. The selected mode's indicator light will turn on.

Setting the Temperature

1. Press the UP or DOWN button to change the set temperature.

2. The display window will then indicate the set temperature. If no temperature is set, the

display will show the room's ambient temperature.

3. Please note that the default cooling temperature of this portable air conditioner is 75° F.

Setting the Fan/Ventilation Speed

,Press the SPEED button to select the desired fan speed (high or low). The appropriate

indicator light (high or low) will turn on accordingly.

,If the unit is in AUTO mode, the fan speed will be automatically set according to the ambient

temperature (the appropriate indicator light will turn on). Please note that when the unit is

in AUTO mode, the speed setting cannot be changed.

Setting the Timer

,Press the TIMER button to set the desired number of operating hours (from 1 to 12 hours).

When the set time has been reached, the machine will automatically turn off. The display

window will show the number of hours being set as you press the TIMER button. If the

TIMER is not set, the unit will work continuously.

,By pressing the TIMER button without selecting any other modes or settings, you can set

the number of hours to be delayed before the unit turns on. For example, if you press the

TIMER to "2", the unit will automatically turn on after 2 hours.

Heating Mode (only for model no. AC-IOOOOH)

When the air conditioner is in heating mode, ambient warm air is recycled and used to heat your

immediate area. The exhaust pipe will still need to be fitted onto the unit in order for the

cold air to be removed. When in heating mode, the machine can be set on HIGH or LOW

speed.

All of the above functions can also be performed with

the included remote control.

The remote control requires 2 AAA batteries to operate.

FIG. 15

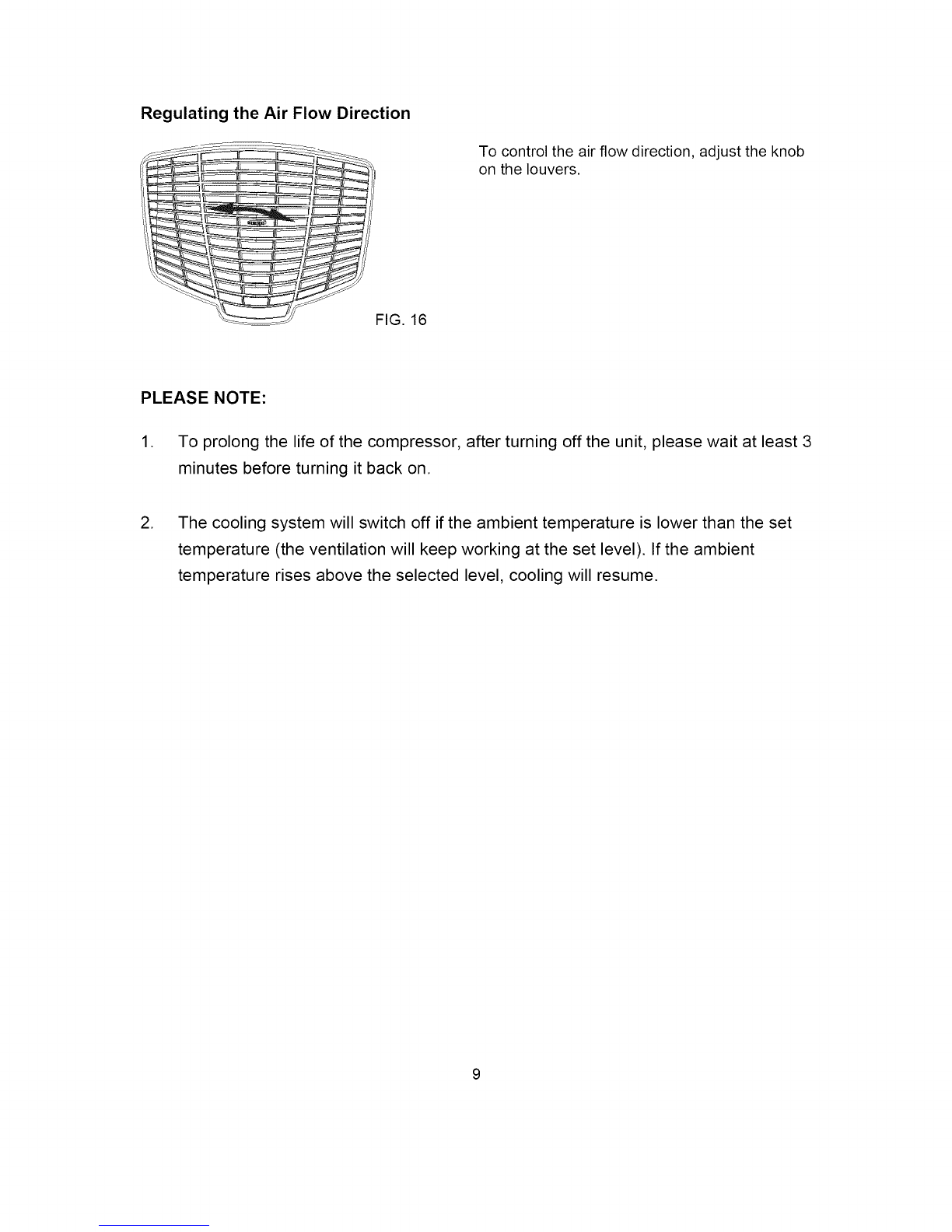

Regulating the Air Flow Direction

FIG. 16

To control the air flow direction, adjust the knob

on the louvers.

PLEASE NOTE:

1. To prolong the life of the compressor, after turning off the unit, please wait at least 3

minutes before turning it back on.

.The cooling system will switch off if the ambient temperature is lower than the set

temperature (the ventilation will keep working at the set level). If the ambient

temperature rises above the selected level, cooling will resume.
