Netopia 45413 Manual de usuario
Version 2.2
2002 MegaPath Networks Inc. All Rights Reserved.
DSL Equipment Installation Guide
Netopia45413 Router
Installation Guide for Customer Self Install, Windows 9x/ME/NT/2000/Mac Page 2
2002 MegaPath Networks Inc. All rights reserved.
Table of Contents
Follow Steps 1 through 5 to complete the DSL Equipment Installation
Step 1: Verify Your System Requirements and Documents 3
Step 2: Verify the Contents of Your DSL Equipment Kit 4
Step 3: Install a Telephone Filter on Every Telephone Line 5
Step 4: Install the Netopia® DSL Router 7
Step 5: Configure Your Computer
Windows
95 and 98 Dynamic Configuration 8
Windows
95 and 98 Static Configuration 11
Windows
2000 Dynamic Configuration 15
Windows
2000 Static Configuration 17
Windows
NT Dynamic Configuration 19
Installing TCP/IP for Windows 22
Macintosh DHCP Configuration 26
Macintosh Static Configuration 29
Customer Support: 1-877-611-6342
IMPORTANT NOTE: This guide portrays the typical steps for the installation process. Please
follow the instructions. Some computer or network configurations may cause software windows
to appear that are not depicted in this guide. Please read and follow the instructions on those
screens to continue the installation process. Verify that you are installing your DSL equipment
AFTER the “Phone Company Commit Date” given to you when you ordered your DSL Internet
Service. MegaPath Networks Inc. and its affiliates have no responsibility for any personal injury
or property damage which may result from your installation of DSL Equipment as discussed in
this guide. MegaPath Networks and its affiliates specifically disclaim any liability for such injury or
damage. By proceeding with this installation, you assume all risk of personal injury or property
damage. Please consult the documentation provided by your PC vendor to identify any impact on
your warranty.
Installation Guide for Customer Self Install, Windows 9x/ME/NT/2000/Mac Page 3
2002 MegaPath Networks Inc. All rights reserved.
Welcome to MegaPath DSL service. You will find everything you need to install your
DSL service in this kit. It is important to carefully and exactly follow the step-by-step
instructions for your operating system. Note: Do NOT use the instructions that came
with your Netopia.
Step 1: Verify Your System Requirements and Documents
This MegaPath DSL kit was designed for installation on computers operating with Microsoft
Windows
2000, Windows
ME, Windows98, Windows95, Windows
NT, and Macintosh computers with
operating system version 8.2 and higher.
PC System Requirements: You must also meet the requirements listed below in order to successfully
complete the installation of your MegaPath DSL kit.
o PC with a Pentium-class processor
o CD-ROM Drive
o 166 MHz
o 25 Mb free disk space
o 32 Mb RAM
o Built-in Network Interface Card; consult your system’s documentation for details. Please note:
Many systems already have a Network Interface Card installed. If your system already has
a card installed, and it is not currently in use, you DO NOT need to install an additional NIC
Card.
Macintosh System Requirements:
o System 8.2 or higher
You must install this kit AFTER the “Phone Company Commit Date” given to you when you ordered your
DSL Internet Service from MegaPath.
Installation Guide for Customer Self Install, Windows 9x/ME/NT/2000/Mac Page 4
2002 MegaPath Networks Inc. All rights reserved.
Netopia Router
Step 2: Verify the Contents of Your DSL Equipment
1-2 way
Phone
S
p
litter 4-Phone Line
Filters
Power
Cord
1-Standard
Phone Cord
Ethernet/Data
Cable
Netopia
Router
Serial Port
Cable
Ethernet/Data
Cable
Serial Port
Cable
Phone
Cord
Installation Guide for Customer Self Install, Windows 9x/ME/NT/2000/Mac Page 5
2002 MegaPath Networks Inc. All rights reserved.
Step 3: Install a Telephone Filter on Every Telephone Line
IMPORTANT: Install filters on every phone jack on your DSL line that
will be used for an analog device to prevent interference from the
digital signal provided by DSL service. A filter is required between all
phones, answering machines, fax machines, Caller ID units or analog
routers and the phone jack for the DSL line. Connect the phone line
connected to your router to the side of the filter labeled “ADSL HPN”
a. Desktop Phones and Analog Devices
Phone
Line
Jack
Phone Line
Filter
Phone Cord Phone or Analog
Equipment (Answering
Machine, Fax, Caller ID
Unit, etc.)
b. Wall Mounted Phones
*
Wall Mounted
Phone Jack Wall
Mounted
Phone Filter Wall
Mounted
Phone
*Some wall-mounted phones connect
directly to the filter and will not need
this cord.
Installation Guide for Customer Self Install, Windows 9x/ME/NT/2000/Mac Page 6
2002 MegaPath Networks Inc. All rights reserved.
c. DSL Router and Analog Device on the Same Jack
1. 1. Connect the filter to
your phone jack.
2. A filter is required
between all phones,
answering machines,
fax machines, Caller ID
units or analog routers
and the phone jack for
the DSL line.
3. Connect the phone
line connecter to your
router to the side of
the filter labeled “ADSL
HPN”.
2.
3.
d. DSL Router Running Directly from the Wall Jack with No Shared Devices
1. Connect the router to
your phone jack.
2. No filter is required if
the Netopia does not
share the line with an
analog device.
1.
2.
e. A NIC (Ethernet) card is required to complete this installation. If you do not have an available NIC
card, contact your computer vendor or authorized technician to arrange for installation.
NOTE: The NIC card must be properly installed before beginning the installation of the DSL kit
components.
Warnings and Cautions:
Refer to your PC manual for instructions on opening your PC to install
new hardware. Follow all safety warnings and precautions as specified
by your PC manufacturer.
In Addition:
• Back up any important files on your hard drive.
• Turn off your PC and unplug the power cord.
• Unplug all cables connecting your PC to the peripheral devices.
Note the port location of each device so you can easily reconnect
the cables later.
Installation Guide for Customer Self Install, Windows 9x/ME/NT/2000/Mac Page 7
2002 MegaPath Networks Inc. All rights reserved.
Step 4: Install the Netopia45413 DSL Router
Insert the connector
from the power
adapter to the power
port, and plug the
other end into an
electrical outlet.
Connect one end of the
phone cord to the jack
labeled “DSL” on your
router, and the other
end to the side of the
filter labeled “ADSL
HPN”. This is not
necessary if the router
does not share the jack
with another analog
device such as a phone,
answering machine, fax
machine, etc. Use Serial Port cable to transfer
data between your Router and the
PC if you wish to reconfigure the
Router. (This step is not needed
for normal installation. Call
MegaPath Networks at 1-877-
611-6342 before you start to
reconfigure the Router.)
Plug one end
of the Ethernet
cable into one
of the empty
ports labeled
Ethernet.
Connect the other end of the Ethernet cable to the
Ethernet port on your computer.
Installation Guide for Customer Self Install, Windows 9x/ME/NT/2000/Mac Page 8
2002 MegaPath Networks Inc. All rights reserved.
PC Environment
Step 5: Configuring Your Computer
Windows® 95 and Windows® 98 Dynamic Configuration (Recommended)
Before you use your new DSL connection, you must have TCP/IP set up on your computer. If you
do not see TCP/IP listed in your Network Components, go to page 22 and follow the instructions
for installing TCP/IP.
Windows95 and Windows98 Dynamic Configuration (Recommended)
1. Find the Network Neighborhood icon on your desktop. Right click on Network Neighborhood and select
Properties. Once highlighted, left click once on your mouse.
2. Highlight TCP/IP and click Properties. If you do not see TCP/IP in the list, go to the section in this guide titled
Installing TCP/IP.
Installation Guide for Customer Self Install, Windows 9x/ME/NT/2000/Mac Page 9
2002 MegaPath Networks Inc. All rights reserved.
3. Select the IP Address tab. Click Obtain an IP Address automatically.
4. Click on the Gateway tab. If the box under Installed Gateways contains any IP addresses, highlight the IP
addresses and click Remove.
Installation Guide for Customer Self Install, Windows 9x/ME/NT/2000/Mac Page 10
2002 MegaPath Networks Inc. All rights reserved.
5. Click on the DNS Configuration tab. Click Disable DNS. Click OK.
6. When prompted, reboot the computer. Click OK.
7. To check the success of your setup, open a web browser and visit www.megapath.net.While there, you will find
more information about additional services as well as setup and other support information.
Tabla de contenidos
Otros manuales de Enrutador de red de Netopia
Netopia
Netopia R5100 Hoja de información del producto
Netopia
Netopia Routers R-Series Manual de usuario
Netopia
Netopia 3347NWG-VGx Manual de instrucciones
Netopia
Netopia R2020 Hoja de información del producto
Netopia
Netopia 3356-ENT Manual de usuario
Netopia
Netopia 4752 2A4NA Manual de instrucciones
Netopia
Netopia 4553 Hoja de información del producto
Netopia
Netopia 3346N-ENT Manual de usuario
Netopia
Netopia 4622-XL Manual de usuario
Netopia
Netopia 4522 T1 Manual de usuario
Netopia
Netopia 4686-XL Manual de usuario
Netopia
Netopia 3341-ENT Manual de usuario
Netopia
Netopia 3341-ENT Manual de usuario
Netopia
Netopia R7200 Hoja de información del producto
Netopia

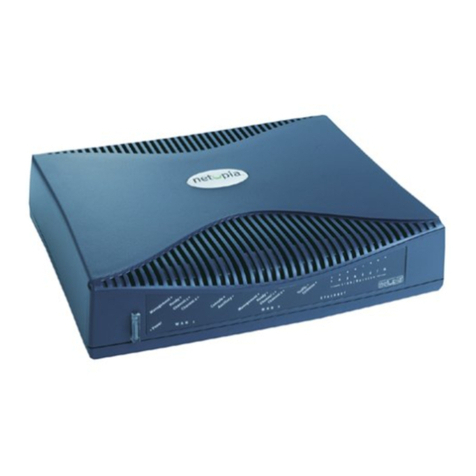

Netopia R6100 Manual de usuario
