Overview

The Netopia 4522 T1 Router is a full-featured, stand-alone T1 router for connecting diverse local area networks

(LANs) to the Internet and other remote networks. The Netopia 4522 T1 Router uses a high performance T1

line to provide your whole network with a high-speed connection to the outside world.

This section covers the following topics:

■

“Features and Capabilities” on page 1-1

■

“How to Use this Guide” on page 1-2

Features and Capabilities

The Netopia 4522 T1 Router provides the following features:

■

Integrated T1 CSU/DSU for fractional or full T1 data service

■

Permanent connection to the Internet or remote sites at up to T1 speeds (1.54 Mbps)

■

Wire-speed routing (up to 1.54 Mbps) for all packet sizes

■

Supports all major T1 deployment models, including ATM, HDLC, Frame Relay, PPP, and PPP over Frame

Relay

■

DS0 auto-detection for channelized T1 deployments

■

A single 10/100BaseT Ethernet port connects easily to an existing LAN environment

■

Business-class routing features, such as RIP1, RIP2, static routes, and support for multiple subnets on the

LAN

■

Network Address Translation (NAT), NAPT, and MultiNAT for ﬂexible use of IP addresses and server hosting

■

DHCP client, server, and relay agent for scalable deployment and private IP address management

■

Various QoS parameters, including ATM: UBR and CBR; IP: TOS bit prioritization

■

High availability solutions via LAN connected back-up default gateway router or dial-back via a modem

connected to the console port

■

Built-in ﬁrewall, packet ﬁltering on source/destination address, service, and protocol; up to 255 rules in up

to 8 ﬁlter sets

■

IPSec VPN Gateway, supporting DES, 3DES encryption, along with IKE or manual key management

■

PPTP VPN Gateway, supporting client or server termination

■

Up to 15 IPSec or PPTP VPN security associations (tunnels)

■

Menu-driven interface via Telnet

1-2 Getting Started Guide

■

Easy Setup with menu-driven interface

■

Console Tiered Access, 2 levels of conﬁguration access

■

Conﬁguration Management, up to 3 backup conﬁgurations

■

System diagnostics and logs

■

SNMP V1 and V2

■

TFTP or X-Modem download/upload of new ﬁrmware and conﬁguration ﬁles

■

Utilities: ICMP ping, trace route, Telnet client, and Syslog client

■

LEDs: power, WAN, and Ethernet; link, status, and activity indications for easy monitoring and

troubleshooting

■

Wall-mountable, bookshelf (side-stackable), or desktop-stackable design for efﬁcient space usage

■

Command-line interface

How to Use this Guide

In addition to the documentation contained in the accompanying

Firmware User’s Guide

, this guide is designed

to get you up and running and connected to your local area network and the Internet. It is intended to be viewed

on-line, using the powerful features of the Adobe Acrobat Reader. The information display has been deliberately

designed to present the maximum information in the minimum space on your screen. You can keep this

document open while you perform any of the procedures described, and ﬁnd useful information about the

procedure you are performing.

You can also print out all of the manual, or individual sections, if you prefer to work from hard copy rather than

on-line documentation. The pages are formatted to print on standard 8 1/2 by 11 inch paper. We recommend

that you print on 3-hole punched paper, so that you can put the pages in a binder for future reference.

This guide is organized into chapters describing the Netopia 4522’s advanced features. You may want to read

each chapter’s introductory section to familiarize yourself with the various features available.

Making the Physical Connections 2-1

CChh

hhaa

aapp

pptt

ttee

eerr

rr 22

MMaa

aakk

kkiiiinn

nngg

gg tt

tthh

hhee

ee PP

PPhh

hhyy

yyss

ssiiiicc

ccaa

aallll CC

CCoo

oonn

nnnn

nnee

eecc

cctt

ttiiiioo

oonn

nnss

This section tells you how to make the physical connections to your Netopia 4522 T1 Router. This section

covers the following topics:

■

“Find a Location” on page 2-1

■

“What You Need” on page 2-1

■

“Identify the Connectors and Attach the Cables” on page 2-3

■

“Netopia 4522 T1 Router Status Lights” on page 2-5

Find a Location

When choosing a location for the Netopia T1 Router, consider:

■

Available space and ease of installation

■

Physical layout of the building and how to best use the physical space available for connecting your Netopia

T1 Router to the LAN

■

Available wiring and jacks

■

Distance from the point of installation to the next device (length of cable or wall wiring)

■

Ease of access to the front of the unit for conﬁguration and monitoring

■

Ease of access to the back of the unit for checking and changing cables

■

Cable length and network size limitations when expanding networks

For small networks, install the Netopia 4522 near one of the LANs. For large networks, you can install the

Netopia 4522 in a wiring closet or a central network administration site.

What You Need

Locate all items that you need for the installation.

Included in your router package are:

■

The Netopia 4522 T1 Router

■

A power adapter and cord with a mini-DIN8 connector

■

One Category 5 Ethernet cable

■

One Category 5 WAN (or Line) cable

■

A DB-9 to DB-9 console cable

■

The Netopia CD containing software and documentation

2-2 Getting Started Guide

You will need:

■

A Windows–based PC or a Macintosh computer with Ethernet connectivity for conﬁguring the Netopia 4522.

This may be built-in Ethernet or an add-on card, with TCP/IP installed and conﬁgured. See “Sharing the

Connection” on page 4-1.

■

A T1 wall outlet wired for a connection to a telephone carrier who supports T1 connections.

Important Safety Instructions

CAUTION: Depending on the power supply provided with the product, either the direct plug-in power supply

blades, power supply cord plug or the appliance coupler serves as the main power disconnect. It is

important that the direct plug-in power supply, socket-outlet or appliance coupler be located so it is readily

accessible.

CAUTION (North America Only): For use only with a CSA Certiﬁed or UL Listed Limited Power Source or

Class 2 power supply, rated 12Vdc, 1.5A.

TELECOMMUNICATION INSTALLATION CAUTIONS

When using your telephone equipment, basic safety precautions should always be followed to reduce the

risk of ﬁre, electric shock and injury to persons, including the following:

1. Do not use this product near water, for example, near a bathtub, wash bowl, kitchen sink or laundry

tub, in a wet basement or near a swimming pool.

2. Avoid using a telephone (other than a cordless type) during an electrical storm. There may be a remote

risk of electrical shock from lightning.

3. Do not use the telephone to report a gas leak in the vicinity of the leak.

SAVE THESE INSTRUCTIONS

Making the Physical Connections 2-3

Identify the Connectors and Attach the Cables

Identify the connectors and switches on the back panel and attach the necessary Netopia Router cables.

The ﬁgure below displays the back of the Netopia 4522 T1 Router.

Power

10/100

Ethernet

WAN

2T1

1 Ethernet Power

1 Computer

1 Netopia Router

Console

Connect your computer, T1

line, and power source as

shown.

1. For a direct computer to

router Ethernet connection,

use a crossover cable (not

included), or connect through

a hub or switch with a

standard Ethernet cable.

2. Use the supplied line

cable to connect the router

to your T1 wall outlet.

3. Connect the supplied

power brick to a power outlet

and the mini-DIN8 connector

end to the router.

2-4 Getting Started Guide

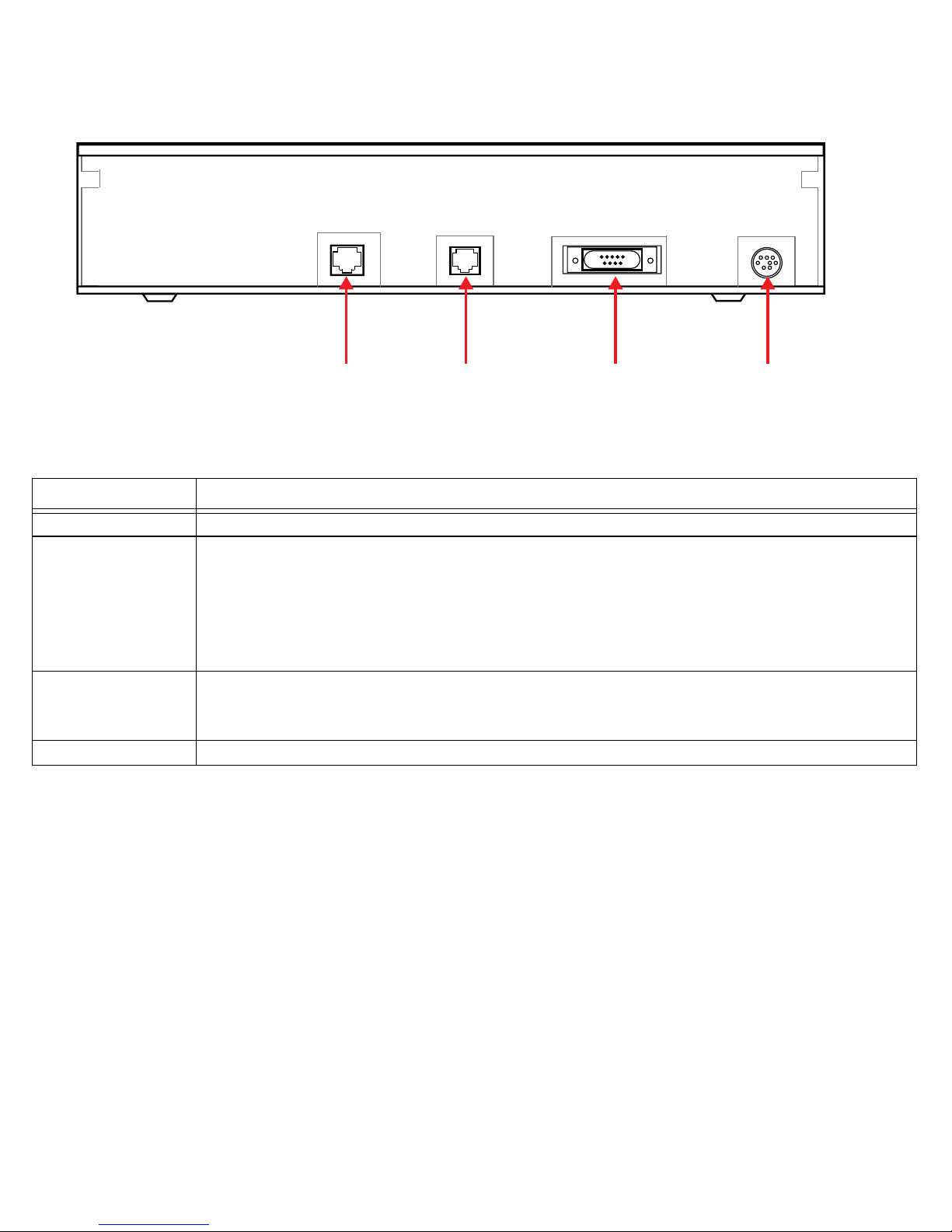

Netopia 4522 back panel

1. Connect the mini-DIN8 connector from the power adapter to the power port, and plug the other end into an

electrical outlet.

2. Connect one end of the Category 5 cable to the T1 port, and the other end to your T1 wall outlet.

3. Connect the Ethernet cable to the Ethernet port on the router and the other end to your computer.

You should now have: the power adapter plugged in; the Ethernet cable connected between the router and

your computer; and the T1 cable connected between the router and the T1 wall outlet.

Port Description

T1 WAN port An RJ-48 jack labeled WAN for your T1 connection.

Ethernet port RJ-45 10/100Base-T Ethernet jack. You will use this to conﬁgure the Netopia 4522. For

a new installation, use an Ethernet connection. Alternatively, you can use the console

connection to run console-based management using a direct serial connection. You can

either connect your computer directly to the Ethernet port using a crossover Ethernet

cable (not supplied), or connect both your computer and the Netopia 4522 to an existing

LAN environment.

Console port A DB-9 console port for a direct serial connection to the console screens. You can use

this if you are an experienced user. See “Connecting a Console Cable to Your Router” on

page 5-3.

Power port A mini-DIN8 power adapter cable connection.

WAN 10/100 Console Power

T1 port Ethernet port Console port Power port

Ethernet

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Enrutador de red de Netopia

Netopia

Netopia R5100 Hoja de información del producto

Netopia

Netopia 3347W Manual de usuario

Netopia

Netopia R7200 Hoja de información del producto

Netopia

Netopia R5000 Hoja de información del producto

Netopia

Netopia 3346N-ENT Manual de usuario

Netopia

Netopia R3100-U Hoja de información del producto

Netopia

Netopia Firmware 4000-Series Guía de inicio rápido

Netopia

Netopia 3341-ENT Manual de instrucciones

Netopia

Netopia 3341-ENT Manual de usuario

Netopia

Netopia D3000-I Manual de usuario

Netopia

Netopia R6100 Manual de usuario

Netopia

Netopia R2121 Hoja de información del producto

Netopia

Netopia 3366-ENT Manual de usuario

Netopia

Netopia TP4-CU Manual de usuario

Netopia

Netopia 3341-ENT Manual de usuario

Netopia

Netopia 4522 Manual de instrucciones

Netopia

Netopia 3346-ENT Manual de usuario

Netopia

Netopia 4741 2A4NA Manual de usuario

Netopia

Netopia Cayman 3386-ENT Manual de usuario

Netopia

Netopia Extreme 3347-02 Manual de usuario

Netopia

Netopia Cayman 3341 Manual de usuario

Netopia

Netopia 3346N-ENT Manual de usuario

Netopia

Netopia D3232 Manual de usuario

Netopia

Netopia CLI 874 Manual de usuario

Manuales populares de Enrutador de red de otras marcas

Allnet

Allnet ALL0333AU Manual de usuario

HomeSeer

HomeSeer HT-SEL Manual de usuario

Sercomm

Sercomm Genesis OC3505D Manual de usuario

Billion

Billion BIPAC 5102 Series Manual de usuario

TP-Link

TP-Link TD-8817 Manual de usuario

Motorola

Motorola MR1900 Manual de usuario

Digi

Digi IX14 Manual de usuario

Cisco

Cisco NCS 540 Manual

XAVi

XAVi X8821e Manual de usuario

BEC

BEC 6200WZL Manual de usuario

MikroTik

MikroTik hAP ac3 Series Manual de usuario

Korenix

Korenix JetNet 5428G Series Manual de usuario

NETGEAR

NETGEAR FS526T - Switch Manual de usuario

Korenix

Korenix JetNet 5710G Series Manual de usuario

Automated Logic

Automated Logic ZN551 Manual del propietario

Cisco

Cisco ASR 1000 Series Manual del operador

EnGenius

EnGenius ESR-9710 Manual de usuario

Cisco

Cisco 805 Series Instrucciones de funcionamiento y seguridad
