Netopia 3387W-ENT Manual de usuario

Netopia

3387W-ENT

Cable/DSL Wireless Router

Getting Started Guide

This manual and any associated artwork, software, and product designs are copyrighted with

part, without the prior written consent of Netopia, Inc. Under the law, copying includes

translation to another language or format.

Netopia, Cayman, and “Making Broadband Work” are registered trademarks of Netopia, Inc.

Netopia, Inc.

6001 Shellmound Street, 4th Floor

Emeryville, CA 94608

U.S.A.

Part Number

Netopia part number 6161161-00-01

Contents 3

Chapter 1 — Introduction..........................................................1-5

Overview ....................................................................... 1-5

Features and Capabilities............................................... 1-5

How to Use this Guide.................................................... 1-6

Chapter 2 — Making the Physical Connections..........................2-1

Find a Location.............................................................. 2-1

What You Need.............................................................. 2-1

Important Safety Instructions ......................................... 2-2

POWER SUPPLY INSTALLATION .............................. 2-2

Identify the Connectors and Attach the Cables ................. 2-3

Netopia 3387W-ENT Cable/DSL Wireless Router

Status Lights................................................................. 2-5

Chapter 3 — Connecting to Your Local Area Network.................3-1

Readying Computers on Your Local Network..................... 3-1

Connecting to an Ethernet Network ................................. 3-2

Chapter 4 — Conﬁguring TCP/IP...............................................4-5

Conﬁguring TCP/IP on Windows-based Computers............ 4-5

Microsoft Windows......................................................... 4-5

Conﬁguring TCP/IP on Macintosh Computers ................... 4-7

Macintosh MacOS 8 or higher or Mac OS X...................... 4-7

Chapter 5 — Telnet-Based Management....................................5-1

Connecting through a Telnet Session............................... 5-2

Conﬁguring Telnet software ................................... 5-2

Navigating through the Telnet Screens............................. 5-3

Chapter 6 — Easy Setup ...........................................................6-1

Easy Setup Telnet Screens ............................................. 6-1

Accessing the Easy Setup Telnet screens............... 6-1

Quick Easy Setup Connection Path.................................. 6-2

1. WAN Ethernet Conﬁguration .............................. 6-4

2. Easy Setup Proﬁle ............................................ 6-5

3. IP Easy Setup .................................................. 6-6

CCoo

oonn

nntt

ttee

eenn

nntt

ttss

4 Getting Started Guide

4. Easy Setup Security Conﬁguration ..................... 6-7

Chapter 7 — Wireless LAN Conﬁguration...................................7-1

Wireless Conﬁguration ................................................... 7-1

Appendix A — Technical Speciﬁcations and Safety Information ..A-1

Description.................................................................... A-1

Power requirements ............................................. A-1

Environment ........................................................ A-1

Software and protocols......................................... A-1

Agency approvals........................................................... A-2

Regulatory notices ............................................... A-2

Manufacturer’s Declaration of Conformance .................... A-3

Important Safety Instructions ......................................... A-4

FCC Part 68 Information................................................. A-5

Electrical Safety Advisory ............................................... A-6

Introduction 1-5

CChh

hhaa

aapp

pptt

ttee

eerr

rr 11

IIIInn

nntt

ttrr

rroo

oodd

dduu

uucc

cctt

ttiiiioo

oonn

Overview

The Netopia 3387W-ENT Cable/DSL Wireless Router is a full-featured Ethernet router for connecting both wired

and wireless local area networks (LANs) to the Internet and other remote networks. The Netopia 3387W-ENT

Cable/DSL Wireless Router connects easily to the Ethernet port of your cable or DSL modem to provide your

whole network with a high-speed connection to the outside world.

This section covers the following topics:

•

“Features and Capabilities” on page 1-5

•

“How to Use this Guide” on page 1-6

Features and Capabilities

The Netopia 3387W-ENT Cable/DSL Wireless Router provides the following features:

•

10/100-BaseT Ethernet WAN port to connect to any broadband modem, such as DSL or Cable

•

LAN interface: four port 10/100BaseTX RJ-45 Ethernet switch with Auto-crossover support,

Wi-Fi CERTIFIED™ 802.11b wireless support for high-speed wireless LAN connections

•

Dual tuned (internal/external) antennas for 3D-Reach wireless networking

•

Point-to-Point Protocol (PAP/CHAP authentication)

•

PPP over Ethernet Gateway

•

PPP over Ethernet pass-through

•

Transparent bridging option

•

Support for IP routing for Internet connectivity

•

Numbered or unnumbered WAN interface

•

Support for Ethernet LANs with up to eight Ethernet IP subnets

•

NAT/NAPT, Multi-NAT, and DHCP (client, server, and relay) for security and convenience

•

DNS proxy

•

IP Multicast Forwarding, IGMP V1, V2

•

RIP1 and RIP2, static routes

•

IP QoS: TOS bit prioritization

•

VPN Pass-through for PPTP and IPSec

1-6 Getting Started Guide

•

Built-in VPN gateway features offer support for up to 15 PPTP or IPSec VPN tunnels

•

IPSec implementation supports DES or 3DES encryption, MD5 or SHA1 encapsulation, and manual or IKE

keying

•

Built-in ﬁrewall protects LAN resources from Internet intruders

•

Backup Default Gateway feature with an external router enables high-availability solutions

•

Menu-driven or CLI interfaces via Telnet

•

Easy Setup with menu-driven interface

•

Tiered Access, 2 levels of conﬁguration access

•

Conﬁguration Management, up to 3 backup conﬁgurations

•

TFTP download/upload of new ﬁrmware and conﬁguration ﬁles

•

System diagnostics and logs

•

SNMP V1 and V2 (read/write access)

•

Management utilities: ICMP ping, trace route, Telnet client, and Syslog client

•

Status lights (LEDs) for easy monitoring and troubleshooting

•

Wall-mountable, Bookshelf (Side-stackable), or Desktop-stackable design for efﬁcient space usage

How to Use this Guide

In addition to the documentation contained in the accompanying

Firmware User’s Guide

, this guide is designed

to get you up and running and connected to your local area network and the Internet. It is intended to be viewed

on-line, using the powerful features of the Adobe Acrobat Reader. The information display has been deliberately

designed to present the maximum information in the minimum space on your screen. You can keep this

document open while you perform any of the procedures described, and ﬁnd useful information about the

procedure you are performing.

You can also print out all of the manual, or individual sections, if you prefer to work from hard copy rather than

on-line documentation. The pages are formatted to print on standard 8 1/2 by 11 inch paper. We recommend

that you print on 3-hole punched paper, so that you can put the pages in a binder for future reference.

This guide is organized into chapters describing the Netopia 3387W-ENT’s advanced features. You may want to

read each chapter’s introductory section to familiarize yourself with the various features available.

Use the guide’s table of contents and index to locate informational topics.

Making the Physical Connections 2-1

CChh

hhaa

aapp

pptt

ttee

eerr

rr 22

MMaa

aakk

kkiiiinn

nngg

gg tt

tthh

hhee

ee PP

PPhh

hhyy

yyss

ssiiiicc

ccaa

aallll CC

CCoo

oonn

nnnn

nnee

eecc

cctt

ttiiiioo

oonn

nnss

This section tells you how to make the physical connections to your Netopia 3387W-ENT Cable/DSL Wireless

Router. This section covers the following topics:

•

“Find a Location” on page 2-1

•

“What You Need” on page 2-1

•

“Identify the Connectors and Attach the Cables” on page 2-3

•

“Netopia 3387W-ENT Cable/DSL Wireless Router Status Lights” on page 2-5

Find a Location

When choosing a location for the Netopia Cable/DSL Wireless Router, consider:

•

Available space and ease of installation

•

Physical layout of the building and how to best use the physical space available for connecting your Netopia

Cable/DSL Wireless Router to the LAN

•

Available wiring and jacks

•

Distance from the point of installation to the next device (length of cable or wall wiring)

•

Ease of access to the front of the unit for conﬁguration and monitoring

•

Ease of access to the back of the unit for checking and changing cables

•

Cable length and network size limitations when expanding networks

WhatYou Need

Locate all items that you need for the installation.

Included in your router package are:

•

The Netopia 3387W-ENT Cable/DSL Wireless Router

•

A power adapter and cord

•

One yellow Category 5 Ethernet cable

•

One gray RJ-45 Modem cable

•

The Netopia CD containing software and documentation

2-2 Getting Started Guide

You will need:

•

A Windows–based PC or a Macintosh computer with Ethernet connectivity for conﬁguring the Netopia

3387W-ENT. This may be built-in Ethernet or an add-on card, with TCP/IP installed and conﬁgured. See

“Conﬁguring TCP/IP” on page 4-5.

•

An installed and functioning cable or DSL (broadband) modem with an Internet connection to connect to the

WAN port on your Netopia 3387W-ENT Cable/DSL Wireless Router.

Important Safety Instructions

POWER SUPPLY INSTALLATION

Connect the power supply cord to the power jack on the Cayman Router. Plug the power supply into an

appropriate electrical outlet.

CAUTION: Depending on the power supply provided with the product, either the direct plug-in power supply

blades, power supply cord plug or the appliance coupler serves as the main power disconnect. It is

important that the direct plug-in power supply, socket-outlet or appliance coupler be located so it is readily

accessible.

CAUTION (North America Only): For use only with a CSA Certiﬁed or UL Listed Limited Power Source or

Class 2 power supply, rated 12Vdc, 1.5A.

CAUTION (Europe Only): For use only with a GS approved Limited Power Source, rated 12Vdc, 1.5A.

(Sweden) Apparaten skall anslutas till jordat uttag när den ansluts till ett nätverk

(Norway) Apparatet må kun tilkoples jordet stikkontakt.

TELECOMMUNICATION INSTALLATION CAUTIONS

When using your telephone equipment, basic safety precautions should always be followed to reduce the

risk of ﬁre, electric shock and injury to persons, including the following:

1. Do not use this product near water, for example, near a bathtub, wash bowl, kitchen sink or laundry

tub, in a wet basement or near a swimming pool.

2. Avoid using a telephone (other than a cordless type) during an electrical storm. There may be a remote

risk of electrical shock from lightning.

3. Do not use the telephone to report a gas leak in the vicinity of the leak.

SAVE THESE INSTRUCTIONS

Making the Physical Connections 2-3

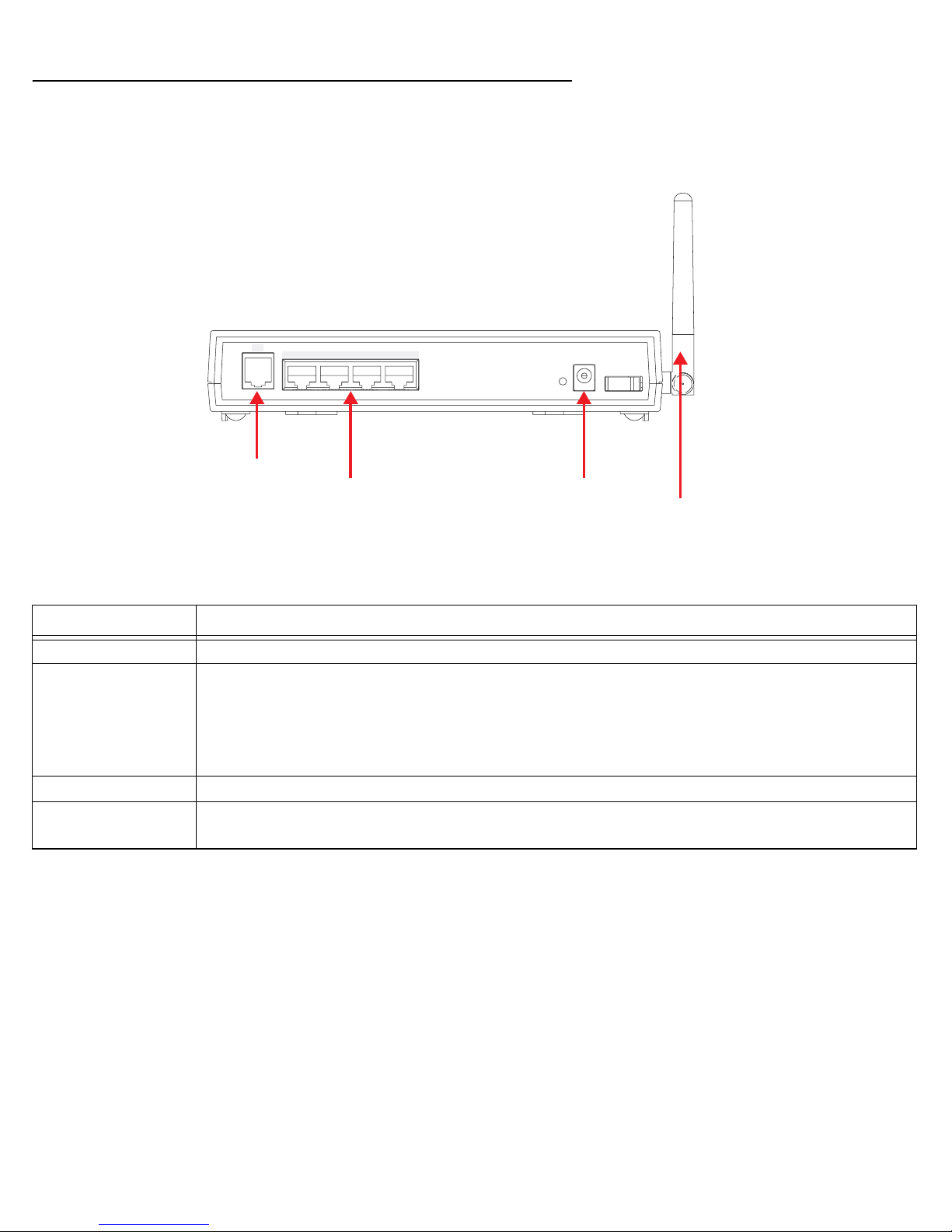

Identify the Connectors and Attach the Cables

Identify the connectors on the back panel and attach the necessary Netopia Router cables.

Netopia 3387W-ENT back panel

Port Description

Modem port An RJ-45 jack labeled Modem to connect to your DSL or cable modem’s Ethernet port.

Ethernet ports Four RJ-45 10/100Base-T Ethernet jacks. You can use one of these to conﬁgure the

Netopia 3387W-ENT. You can either connect your computer directly to an Ethernet port

using the supplied Category 5 Ethernet cable, or connect both your computer and the

Netopia 3387W-ENT to an existing LAN environment. The Ethernet ports are

auto-sensing, eliminating the need for a crossover cable.

Power port A DC power adapter cable connection.

Wireless antenna An 802.11b wireless antenna to send and receive trafﬁc from your wireless LAN

computers.

Power Off / On

LAN

Modem 41

Modem port Ethernet

ports Power port

Wireless antenna

2-4 Getting Started Guide

Connect your computer, DSL line, and power source as shown.

1. For a direct computer to router Ethernet connection, use the standard Ethernet cable included with your

router.

2. Use the supplied RJ-45 Modem cable to connect the router to your cable or DSL modem’s Ethernet port.

Be sure your cable or DSL modem is correctly installed according to its instructions.

3. Connect the supplied power brick to a power outlet and the connector end to the router.

4. Each computer using the wireless network requires its own Wi-Fi CERTIFIED™ 802.11b adapter to be

installed in the computer.

This may be purchased from any Wi-Fi CERTIFIED™ manufacturer for your particular computer.

You should now have: the power adapter plugged in; the Ethernet cable connected between the router and your

computer; and the telephone cable connected to its appropriate wall jack.

Power Off / On

LAN

Modem 41

ModemEthernet DC Power

DSL or Cable

Modem

Tabla de contenidos

Otros manuales de Enrutador de red de Netopia

Netopia

Netopia Cayman 3341 Manual de usuario

Netopia

Netopia R5100 Hoja de información del producto

Netopia

Netopia 4753 2A4NA Manual de instrucciones

Netopia

Netopia R7100-C Hoja de información del producto

Netopia

Netopia Cayman 3386-ENT Manual de usuario

Netopia

Netopia R2020 Hoja de información del producto

Netopia

Netopia R910 Hoja de información del producto

Netopia

Netopia 3381-ENT Manual de usuario

Netopia

Netopia R6100 Manual de usuario

Netopia

Netopia 4541 Hoja de información del producto

Netopia

Netopia Router PN Series Manual de usuario

Netopia

Netopia D3232 Manual de usuario

Netopia

Netopia 3341-ENT Manual de usuario

Netopia

Netopia 4752 2A4NA Manual de instrucciones

Netopia

Netopia 3347W Manual de usuario

Netopia

Netopia 3341-ENT Manual de usuario

Netopia

Netopia 4553 Hoja de información del producto

Netopia

Netopia 3341-ENT Manual de usuario

Netopia

Netopia 3346N-ENT Manual de usuario

Netopia

Netopia 3346-ENT Manual de usuario

Netopia

Netopia 3356-ENT Manual de usuario

Netopia

Netopia R310 Hoja de información del producto

Netopia

Netopia 4741 2A4NA Manual de instrucciones

Netopia

Netopia TP4-CU Manual de usuario

Manuales populares de Enrutador de red de otras marcas

Allnet

Allnet ALL0333AU Manual de usuario

HomeSeer

HomeSeer HT-SEL Manual de usuario

Sercomm

Sercomm Genesis OC3505D Manual de usuario

Billion

Billion BIPAC 5102 Series Manual de usuario

TP-Link

TP-Link TD-8817 Manual de usuario

Motorola

Motorola MR1900 Manual de usuario

Digi

Digi IX14 Manual de usuario

Cisco

Cisco NCS 540 Manual

XAVi

XAVi X8821e Manual de usuario

BEC

BEC 6200WZL Manual de usuario

MikroTik

MikroTik hAP ac3 Series Manual de usuario

Korenix

Korenix JetNet 5428G Series Manual de usuario

NETGEAR

NETGEAR FS526T - Switch Manual de usuario

Korenix

Korenix JetNet 5710G Series Manual de usuario

Automated Logic

Automated Logic ZN551 Manual del propietario

Cisco

Cisco ASR 1000 Series Manual del operador

EnGenius

EnGenius ESR-9710 Manual de usuario

Cisco

Cisco 805 Series Instrucciones de funcionamiento y seguridad
