This chapter describes the features of the NETGEAR DG834 ADSL Modem Router. The DG834

ADSL Modem Router is a combination of a built-in ADSL modem, modem router, 4-port switch,

and firewall which enables your entire network to safely share an Internet connection that

otherwise would be used by a single computer.

About the Modem Router

The DG834 ADSL Modem Router provides continuous, high-speed 10/100 Ethernet access

between your Ethernet devices. With minimum setup, you can install and use the modem router

within minutes.

The DG834 ADSL Modem Router provides multiple Web content filtering options, plus e-mail

alerts and logging. Parents and network administrators can establish restricted access policies

based on time of day, Web site addresses, and address keywords. They can also share high-speed

ADSL Internet access for up to 253 personal computers. The included firewall and Network

Address Translation (NAT) features protect you from hackers.

The DG834 also supports Trend Micro Home Network Security, a bundle of services that includes

router-based Parental Controls and network-wide protection from viruses, Trojans, spyware, spam,

and other Internet threats.

Note: If you are unfamiliar with networking and routing, refer to “Internet Networking

and TCP/IP Addressing:” in Appendix C to become more familiar with the terms

and procedures used in this manual.

Reference Manual for the ADSL Modem Router DG834

2-2 Introduction

v2.1, November 2005

Key Features

The DG834 ADSL Modem Router provides the following features:

• A built-in ADSL modem

• A powerful, true firewall

• Easy, Web-based setup for installation and management

• Extensive Internet protocol support

• Trustworthy VPN Communications over the Internet

• VPN Wizard for easy VPN configuration

• Auto Sensing and Auto Uplink™ LAN Ethernet connections

• Content filtering

• Support for Trend Micro Home Network Security

These features are discussed below.

A Powerful, True Firewall

Unlike simple Internet sharing NAT routers, the DG834 is a true firewall, using stateful packet

inspection to defend against hacker attacks. Its firewall features include:

• Denial of Service (DoS) protection

Automatically detects and thwarts Denial of Service (DoS) attacks such as Ping of Death,

SYN Flood, LAND Attack and IP Spoofing.

• Blocks unwanted traffic from the Internet to your LAN.

• Blocks access from your LAN to Internet locations or services that you specify as off-limits.

• Logs security incidents

The DG834 will log security events such as blocked incoming traffic, port scans, attacks, and

administrator logins. You can configure the modem router to email the log to you at specified

intervals. You can also configure the modem router to send immediate alert messages to your

email address or email pager whenever a significant event occurs.

Reference Manual for the ADSL Modem Router DG834

Introduction 2-3

v2.1, November 2005

Easy Installation and Management

You can install, configure, and operate the DG834 within minutes after connecting it to the

network. The following features simplify installation and management tasks:

• Browser-based management

Browser-based configuration allows you to easily configure your modem router from almost

any type of personal computer, such as Windows, Macintosh, or Linux. A user-friendly Setup

Wizard is provided and online help documentation is built into the browser-based Web

Management Interface.

• Smart Wizard

A wizard built into the modem router automatically senses the type of Internet connection,

asking you only for the information required for your type of ISP account.

• Remote management

The modem router allows you to log in to the Web management interface from a remote

location via the Internet. For security, you can limit remote management access to a specified

remote IP address or range of addresses, or you can choose a nonstandard port number.

• Diagnostic functions

The modem router incorporates built-in diagnostic functions such as Ping, DNS lookup, and

remote reboot. These functions allow you to test Internet connectivity and reboot the modem

router. You can use these diagnostic functions directly from the DG834 when you are

connected on the LAN or when you are connected over the Internet via the remote

management function.

• Visual monitoring

The modem router’s front panel LEDs provide an easy way to monitor its status and activity.

• Flash erasable programmable read-only memory (EPROM) for firmware upgrades.

Protocol Support

The DG834 supports Transmission Control Protocol/Internet Protocol (TCP/IP) and Routing

Information Protocol (RIP). “Internet Networking and TCP/IP Addressing:” in Appendix C

provides further information on TCP/IP.

• The Ability to Enable or Disable IP Address Sharing by NAT

The DG834 allows several networked PCs to share an Internet account using only a single IP

address, which may be statically or dynamically assigned by your Internet service provider

(ISP). This technique, known as Network Address Translation (NAT), allows the use of an

inexpensive single-user ISP account. This feature can also be turned off completely while

using the DG834 if you want to manage the IP address scheme yourself.

Reference Manual for the ADSL Modem Router DG834

2-4 Introduction

v2.1, November 2005

• Automatic Configuration of Attached PCs by DHCP

The DG834 dynamically assigns network configuration information, including IP, modem

router, and domain name server (DNS) addresses, to attached PCs on the LAN using the

Dynamic Host Configuration Protocol (DHCP). This feature greatly simplifies configuration

of PCs on your local network.

• DNS Proxy

When DHCP is enabled and no DNS addresses are specified, the modem router provides its

own address as a DNS server to the attached PCs. The modem router obtains actual DNS

addresses from the ISP during connection setup and forwards DNS requests from the LAN.

• Classical IP (RFC 1577)

Some Internet service providers, in Europe for example, use Classical IP in their ADSL

services. In such cases, the modem router is able to use the Classical IP address from the ISP.

• PPP over Ethernet (PPPoE)

PPP over Ethernet is a protocol for connecting remote hosts to the Internet over an ADSL

connection by simulating a dial-up connection. This feature eliminates the need to run a login

program such as EnterNet or WinPOET on your computer.

• PPP over ATM (PPPoA)

PPP over ATM is a protocol for connecting remote hosts to the Internet over an ADSL

connection by simulating an ATM connection.

• Dynamic DNS

Dynamic DNS services allow remote users to find your network using a domain name when

your IP address is not permanently assigned. The modem router contains a client that can

connect to many popular Dynamic DNS services to register your dynamic IP address.

• Universal Plug and Play (UPnP)

UPnP is a networking architecture that provides compatibility between networking

technologies. UPnP compliant routers provide broadband users at home and small businesses

with a seamless way to participate in online games, videoconferencing and other peer-to-peer

services.

Reference Manual for the ADSL Modem Router DG834

Introduction 2-5

v2.1, November 2005

Virtual Private Networking (VPN)

The DG834 ADSL Modem Router provides a secure encrypted connection between your local

area network (LAN) and remote networks or clients. It includes the following VPN features:

• Supports 8 VPN connections.

• Supports industry standard VPN protocols

The DG834 ADSL Modem Router supports standard Manual or IKE keying methods,

standard MD5 and SHA-1 authentication methods, and standard DES and 3DES encryption

methods. It is compatible with many other VPN products.

• Supports 3DES encryption for maximum security.

• VPN Wizard based on VPNC recommended settings.

Auto Sensing and Auto Uplink™ LAN Ethernet Connections

With its internal 4-port 10/100 switch, the DG834 can connect to either a 10 Mbps standard

Ethernet network or a 100 Mbps Fast Ethernet network. The local LAN ports are autosensing and

capable of full-duplex or half-duplex operation.

The modem router incorporates Auto UplinkTM technology. Each local Ethernet port will

automatically sense whether the Ethernet cable plugged into the port should have a ‘normal’

connection such as to a computer or an ‘uplink’ connection such as to a switch or hub. That port

will then configure itself to the correct configuration. This feature also eliminates the need to

worry about crossover cables, as Auto Uplink will accommodate either type of cable to make the

right connection.

Content Filtering

With its content filtering feature, the DG834 prevents objectionable content from reaching your

PCs. The modem router allows you to control access to Internet content by screening for keywords

within Web addresses. You can configure the modem router to log and report attempts to access

objectionable Internet sites.

Trend Micro Home Network Security

This service bundle from Trend Micro has three components:

•Trend Micro dashboard

This component is free for unlimited use. From the dashboard you can:

— Scan your computer and entire network for security vulnerabilities

— View individual computer and network-wide security reports

Reference Manual for the ADSL Modem Router DG834

2-6 Introduction

v2.1, November 2005

— Detect and remove spyware

— View attempts to access content restricted by Parental Controls

— Purchase subscriptions for Parental Controls and Trend Micro Internet Security

•Trend Micro Internet Security

You can install this program on up to 10 computers and try it free for 60 days. Its features

include:

— Real-time and scheduled scanning to remove viruses, Trojans, spyware, and other Internet

threats

— Personal firewall

— Network intruder detection

—Anti-spam

•Router-based Parental Controls

This service restricts home network users from viewing inappropriate Web content. It is free

for 60 days, and when you register your free trial of Trend Micro Internet Security, your free

use of Parental Controls is automatically extended to one year.

For instructions on activating these services, refer to “Trend Micro Home Network Security” on

page 3-15.

What’s in the Box?

The product package should contain the following items:

• DG834 ADSL Modem Router

• AC power adapter (varies by region)

• Category 5 (Cat 5) Ethernet cable

• Telephone cable with RJ-11 connector

• Microfilters (quantity and type vary by region)

•ADSL Modem Router Resource CD, including this guide

• A Printed Quick Installation Guide

• Warranty and Support Information Cards

• Two plastic feet that can be used to stand the DG834 ADSL Modem Router on end.

If any of the parts are incorrect, missing, or damaged, contact your NETGEAR dealer. Keep the

carton, including the original packing materials, in case you need to return the product for repair.

Reference Manual for the ADSL Modem Router DG834

Introduction 2-7

v2.1, November 2005

The Modem Router’s Front Panel

The DG834 ADSL Modem Router front panel shown below contains status LEDs.

You can use the LEDs to verify various conditions. Table 2-1 lists and describes each LED on the

front panel of the modem router. These LEDs are green when lit.

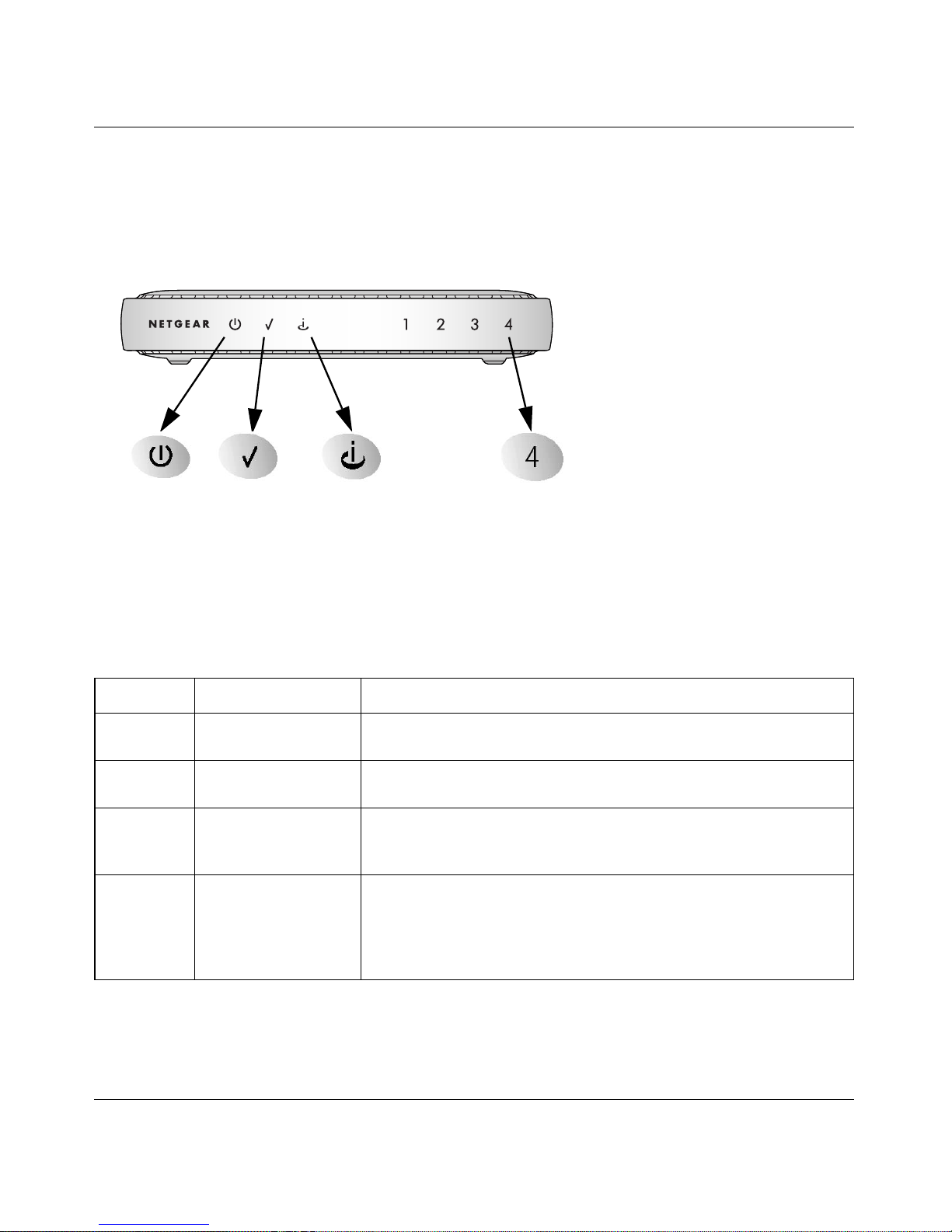

Figure 2-1

Table 2-1. LED Descriptions

Label Activity Description

1. Power On

Off Power is supplied to the modem router.

Power is not supplied to the modem router.

2. Test On

Off The system is initializing.

The system is ready and running.

3. Internet Blink — Amber

On — Green

Blink — Green

Indicates ADSL training.

The Internet port has detected a link with an attached device.

Data is being transmitted or received by the Internet port.

4. LAN

On (Green)

Blink (Green)

On (Amber)

Blink (Amber)

Off

The Local port has detected a link with a 100 Mbps device.

Data is being transmitted or received at 100 Mbps.

The Local port has detected a link with a 10 Mbps device.

Data is being transmitted or received at 10 Mbps.

No link is detected on this port.

1234

Reference Manual for the ADSL Modem Router DG834

2-8 Introduction

v2.1, November 2005

The Router’s Rear Panel

The rear panel of the DG834 ADSL Modem Router (Figure 2-2) contains port connections.

Viewed from left to right, the rear panel contains the following elements:

1. AC power adapter outlet

2. Four Local Ethernet RJ-45 LAN ports for connecting the firewall to the local computers

3. Factory Default Reset push button

4. RJ-11 ADSL port for connecting the firewall to an ADSL line

Figure 2-2

Power Reset

Power

ADSL

LAN

Reset

Internet

Reference Manual for the ADSL Modem Router DG834

Introduction 2-9

v2.1, November 2005

Connecting the Router to the Internet

To connect your DG834 ADSL Modem Router to the Internet, refer to the on the ADSL Modem

Router Resource CD or online as shown in the following table.

Table 2-1.

Language URL

Dutch http://documentation.netgear.com/dg834/nld/208-10011-01/

English http://documentation.netgear.com/dg834/enu/208-10005-01/

French http://documentation.netgear.com/dg834/fra/208-10006-01/

German http://documentation.netgear.com/dg834/deu/208-10007-01/

Italian http://documentation.netgear.com/dg834/ita/208-10008-01/

Spanish http://documentation.netgear.com/dg834/esp/208-10009-01/

Swedish http://documentation.netgear.com/dg834/sve/208-10010-01/

Reference Manual for the ADSL Modem Router DG834

2-10 Introduction

v2.1, November 2005

Otros manuales para DG834 - ADSL Firewall Router

Tabla de contenidos

Otros manuales de Enrutador de red de NETGEAR

NETGEAR

NETGEAR Orbi RBR20 Manual de usuario

NETGEAR

NETGEAR JWNR3000 Manual de usuario

NETGEAR

NETGEAR MS70 Manual de usuario

NETGEAR

NETGEAR CA 95054 Guía del usuario

NETGEAR

NETGEAR DG834 - ADSL Firewall Router Manual de usuario

NETGEAR

NETGEAR RT311 Manual de usuario

NETGEAR

NETGEAR BR500 Manual

NETGEAR

NETGEAR R6260 Manual de usuario

NETGEAR

NETGEAR MR1100EE Manual de usuario

NETGEAR

NETGEAR Nighthawk AXE1000 Manual de usuario

NETGEAR

NETGEAR Nighthawk X4S AC2600 Manual de usuario

NETGEAR

NETGEAR Orbi Pro WiFi 6 Mini router Manual de usuario

NETGEAR

NETGEAR Nighthawk XR300 Manual de usuario

NETGEAR

NETGEAR XEB1004 - 85 Mbps Powerline EN Switch Manual de usuario

NETGEAR

NETGEAR DM111PSP - ADSL2+ Ethernet Modem Manual de usuario

NETGEAR

NETGEAR R6250 Manual de usuario

NETGEAR

NETGEAR Orbi RBK20 Manual de usuario

NETGEAR

NETGEAR MBR1515 Manual de usuario

NETGEAR

NETGEAR RBK762S Manual de usuario

NETGEAR

NETGEAR DGN1000 - Wireless-N Router With Built-in DSL... Manual de usuario

NETGEAR

NETGEAR XE102 - Wall-Plugged EN Bridge Manual de usuario

NETGEAR

NETGEAR FVG318 - ProSafe 802.11g Wireless VPN Firewall 8... Manual de usuario

NETGEAR

NETGEAR orbi RBK652S Manual de usuario

NETGEAR

NETGEAR RT328 Manual de usuario

Manuales populares de Enrutador de red de otras marcas

Allnet

Allnet ALL0333AU Manual de usuario

HomeSeer

HomeSeer HT-SEL Manual de usuario

Sercomm

Sercomm Genesis OC3505D Manual de usuario

Billion

Billion BIPAC 5102 Series Manual de usuario

TP-Link

TP-Link TD-8817 Manual de usuario

Motorola

Motorola MR1900 Manual de usuario

Digi

Digi IX14 Manual de usuario

Cisco

Cisco NCS 540 Manual

XAVi

XAVi X8821e Manual de usuario

BEC

BEC 6200WZL Manual de usuario

MikroTik

MikroTik hAP ac3 Series Manual de usuario

Korenix

Korenix JetNet 5428G Series Manual de usuario

Korenix

Korenix JetNet 5710G Series Manual de usuario

Automated Logic

Automated Logic ZN551 Manual del propietario

Cisco

Cisco ASR 1000 Series Manual del operador

EnGenius

EnGenius ESR-9710 Manual de usuario

Cisco

Cisco 805 Series Instrucciones de funcionamiento y seguridad

LevelOne

LevelOne FBR-1416 Manual de usuario
