NETGEAR LTE Bridge 1110 Series Manual de usuario

Quick Start

NETGEAR LTE Bridge 1110

LB1110-111AJS

LB1110-111NAS

LB1110-111PES

1. Install the micro SIM card.

Note: To obtain a micro SIM card, contact

your mobile broadband Internet service

provider.

a. Ensure that power to the bridge is o.

b. Remove the SIM card cover on the

bottom of the bridge.

c. Unlock the SIM card door.

d. Carefully slide the micro SIM card into the

slot.

e. Lock the SIM card door.

f. Close the SIM card cover.

2. Provide power to the bridge.

If you power your bridge through the power

adapter, do the following:

a. Connect the power adapter to the bridge

and plug it into an electrical outlet.

b. Press the power On/O button on the

bridge.

c. Wait for the Power LED to light green.

If you connect your bridge to a router that

provides Power over Ethernet (PoE), do the

following:

a. Connect one end of the yellow Ethernet

cable to the bridge Gigabit Ethernet port.

b. Connect the other end of the yellow

Ethernet cable to the Internet or WAN

port on the router. The port must provide

PoE.

c. Make sure that your router is receiving

power.

d. Wait for the Power LED to light green.

Package Contents

3. Connect the bridge to a router or directly

to a computer.

To connect the bridge to a router, do the

following (skip steps a and b if you already

connected the bridge to a router that

provides PoE):

a. Connect one end of the yellow Ethernet

cable to the bridge Gigabit Ethernet port.

b. Connect the other end of the yellow

Ethernet cable to the Internet or WAN

port on the router.

c. Use another Ethernet cable (not

provided) to connect your computer to a

LAN port on the router.

To connect the bridge directly to a computer,

do the following:

a. Connect one end of the yellow Ethernet

cable to the bridge Gigabit Ethernet port.

b. Connect the other end of the yellow

Ethernet cable to an Ethernet port on

your computer.

4. Launch a web browser.

NETGEAR genie displays.

If you do not see genie, do the following:

a. In the address ﬁeld of the web browser,

enter http://192.168.5.1.

b. When prompted, enter password for the

password.

October 2015

NETGEAR, Inc.

350 East Plumeria Drive

San Jose, CA 95134, USA

trademarks are used for reference purposes only.

Mobile Broadband Internet Connection

By default, when the bridge powers up with a SIM card installed, it

automatically searches for and connects to your network provider’s mobile

broadband network. This process might take several minutes. The SIM card

that is installed determines the mobile broadband network to which the

bridge connects. However, if the bridge does not automatically connect

to your network provider’s mobile broadband network, you might need to

contact your network provider to get the access point name (APN) proﬁle

information and add a custom APN proﬁle in the bridge. For information

about adding a custom APN proﬁle, see the user manual.

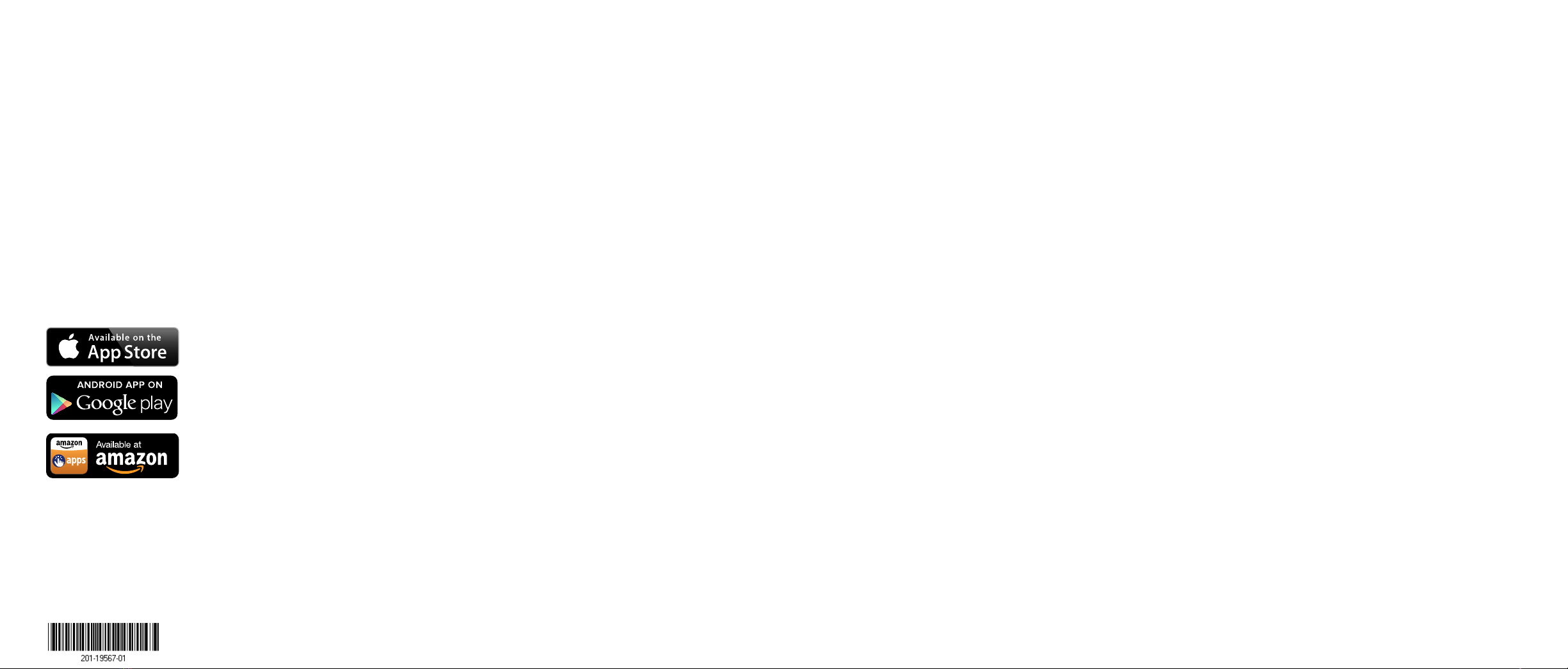

Download the NETGEAR AirCard App for

Smartphones and Tablets

Download and use the complimentary

NETGEAR AirCard app to view your connection,

settings, and data usage from your smartphone

or tablet.

Search the app store for NETGEAR AirCard at

http://www.netgear.com/aircardapps.

To manage all bridge settings, use the bridge’s

web pages at http://192.168.5.1.

Support

Thank you for purchasing this NETGEAR product. You can visit

www.netgear.com/support to register your product, get help, access the latest

downloads and user manuals, and join our community. We recommend that you

use only ocial NETGEAR support resources.

For the current EU Declaration of Conformity, visit

http://support.netgear.com/app/answers/detail/a_id/11621/.

For regulatory compliance information, visit

http://www.netgear.com/about/regulatory/.

See the regulatory compliance document before connecting the power supply.

You can get the user manual online at http://downloadcenter.netgear.com or

through a link in the bridge’s web pages.
