Quick Start Guide

M2M CDMA Router

NWL-11

| Wireless M2M

NetCommWireless

Quick Start Guide

This quick start guide is designed to get you up and running quickly

with your new NWL-11 M2M CDMA router. More advanced set up

instructions can be found in the user manual which can be downloaded

from http://www.netcommwireless.com/product/m2m/nwl-11

Package contents

This package includes

1 x NetComm Wireless NWL-11 router

1 x 1.5m Yellow Ethernet cable 8P8C

1 x DIN rail mounting bracket

1 x DC terminal block

1 x Quick start guide

| Wireless M2M

NWL-11 - M2M CDMA Router

Device overview

ITEM DESCRIPTION

Main antenna socket SMA female connector for an optional external antenna.

Two-way captive power Terminal block for connecting power cable.

Operates in the 8-35V DC range.

Reset button Press and hold for less than 5 seconds to reboot to normal mode.

Press and hold for 5 to 15 seconds to reboot to recovery mode.

Press and hold for 15 to 20 seconds to reset the router to factory

default settings.

RJ45 PoE Ethernet port Connect one or several devices via a network switch here. This

port can also optionally receive Power over Ethernet (802.3af PoE)

in which case the DC power supply can serve as a backup power

source if required.

| Wireless M2M

NetCommWireless

Getting started

Depending on your individual setup, you may need certain components

to congure your device correctly.

External power supply unit for the NetComm Wireless NWL-11

(not included).

Flathead screwdriver (no. 3) for terminating power input wires.

Notebook or PC for advanced conguration.

Additional fasteners and screwdrivers for specic wall or

rail mounting.

Mounting options

The NetComm Wireless NWL-11 router can be installed quickly and

easily in a variety of locations.

MOUNT TYPE DESCRIPTION BENEFITS

Wall mount a) Flat against the wall Slimline form factor, close to wall

b) Perpendicular to the wall Small wall footprint

c) Mount via DIN rail bracket Easy to remove

C Section DIN rail mount Slide onto a rail Simplicity

Top hat DIN rail mount Mount on a bracket and

slide onto a rail

Simplicity. Can mount in between

other devices

Desk mount Stand on a desk Simplicity, versatility

| Wireless M2M

NWL-11 - M2M CDMA Router

Wall mount

a) Flat against the wall

b) Perpendicular to the wall

| Wireless M2M

NetCommWireless

c) Mounted via DIN rail bracket

DIN Rail mounting bracket

1Push to release

2V Bend allows you to snap the DIN bracket onto the

middle of a DIN rail, rather than sliding it onto the end.

| Wireless M2M

NWL-11 - M2M CDMA Router

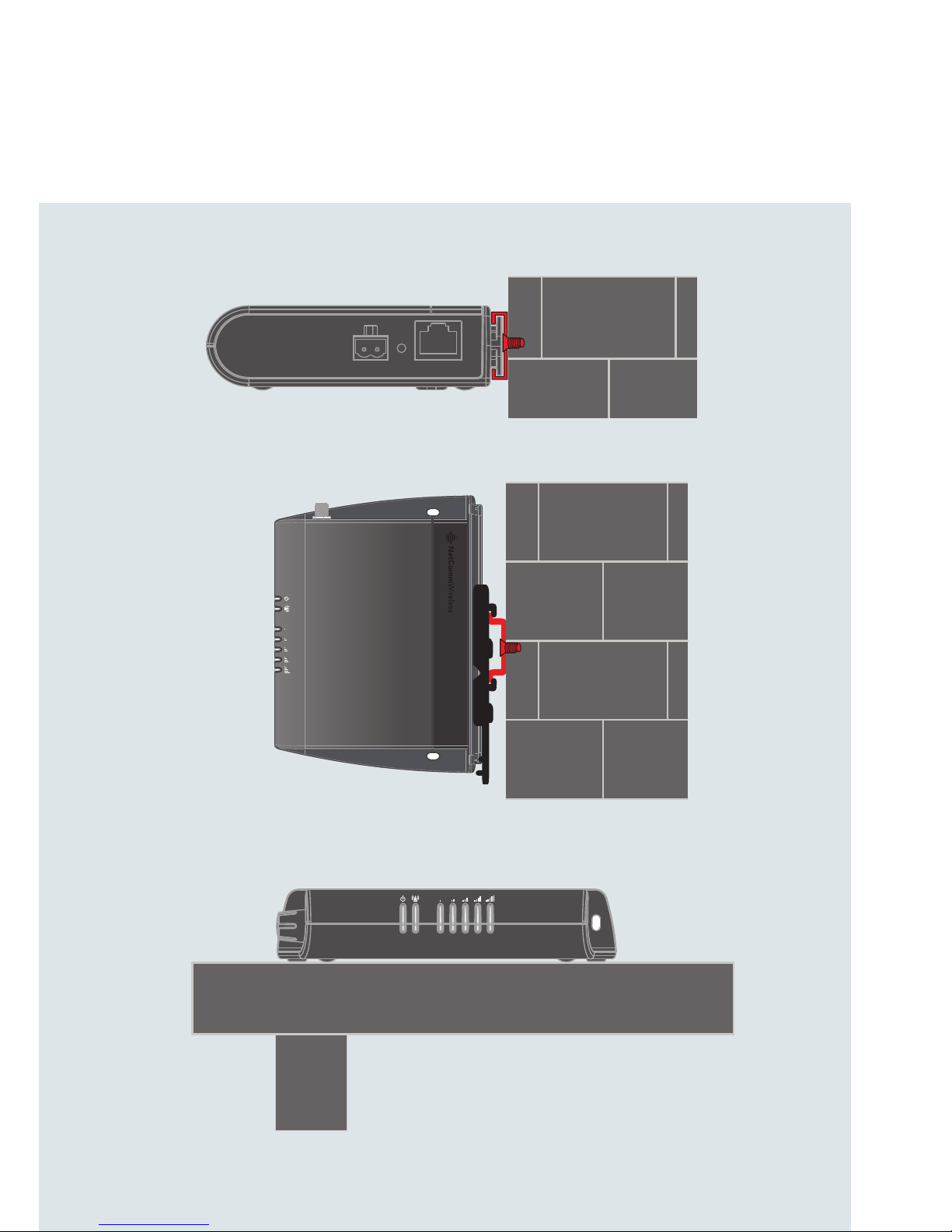

C Section DIN rail mount

Top hat DIN rail mount

Desk mount

| Wireless M2M

NetCommWireless

Overview of LED indicators

LED ICON NAME COLOR STATE DESCRIPTION

Power Off Power off

Double ash Powering up

On Power on

On Power on in recovery mode

Slow ashing Hardware error

Network On Connected via WWAN

Blinking Trafc via WWAN

Slow ashing Connecting data session

On Registered network

Slow ashing Registering network

On Can’t connect

Slow ashing Not activated

Signal

strength

On EVDO coverage

On CDMA 1x coverage

| Wireless M2M

NWL-11 - M2M CDMA Router

Installing your device

Step 1

Mount your router in a suitable location using the options listed in the

Mounting options section of this guide.

When selecting a location to mount the NWL-11 router, keep in mind

that it houses two high performance internal antennas designed to

provide optimum signal strength in a wide range of environments. If you

nd the signal strength is weak, try moving the router to a different place

or mounting it differently. If signal strength doesn’t improve, you may

need to attach an external antenna (not included) to the router’s female

SMA connector.

Note: If you connect an external antenna to the female SMA connector, the

main internal antenna disables automatically but the auxiliary internal

antenna remains connected to provide (where possible) diversity

assistance.

Step 2

Connect power to your router using one of three options.

Power over Ethernet (802.3af PoE)

Connect your router to a PoE injector or PoE network switch using the

bundled yellow Ethernet cable 8P8C. This method uses the Ethernet

connection to power and transfer data to and from the router.

DC power via 2-pin connector

Remove the attached green terminal block from your router and connect

to the router’s power socket using a DC power supply, sold separately.

| Wireless M2M

NetCommWireless

DC power via eld terminated power source

If an 8-35V DC power supply is available, you can insert the wires into

the supplied terminal block to power your router. Use a no. 3 athead

screwdriver to tighten the terminal block screws and secure the power

wires, making sure the polarity of the wires are correctly matched, as

illustrated below.

Polarity for the two-way terminal block

The green power LED on the router lights up when a power source

is connected.

Tip: You can connect both the PoE and DC power sources at the same time.

When both are connected, the DC power acts as backup to the PoE input.
