NENUTEC NAFA Series Manual de usuario

NAFA – SPRING RETURN DAMPER ACTUATOR

3 Nm | 2-POINT CONTROL, SPRING RETURN

www.nenutec.pl

The appearance of the product may differ from the illustration. Technical specifications are subject to change.

NAFA...03 (S) SERIES

NAFA series Spring Return actuators are developed for general air

damper application, rotary valve and other devices which require a fail-

safe function. During normal operation, the actuator motorized the

device. In the event of power outage, the actuator springs back to its

original position.

■ Torque: 3 Nm

■ Damper size 0.6 m2

■ Power supply 24 VAC/DC and 230 VAC

■ 2-point control

■ Shaft dimensions – Ø 10...16 mm / square 7...11 mm

■ Minimum shaft length 40 mm

■ Adjustable angle of rotation

■ Direction of rotation selectable by reversing actuator during

installation

■ Actuator with 1 m connection cable

■ Optional 1 fixed and 1 adjustable SPDT auxiliary switches

MODEL SELECTION TABLE

Model/type Torque Power supply Running time Auxiliary switches

NAFA 1-03 3 Nm 24 VAC/DC ± 10% 25...55 s (spring return <20 s) -

NAFA 1-03S 3 Nm 24 VAC/DC ± 10% 25...55 s (spring return <20 s) 2 x SPDT (fixed + adjustable)

NAFA 2-03 3 Nm 230 VAC ± 10% 25...55 s (spring return <20 s) -

NAFA 2-03S 3 Nm 230 VAC ± 10% 25...55 s (spring return <20 s) 2 x SPDT (fixed + adjustable)

NAFA – SPRING RETURN DAMPER ACTUATOR

3 Nm | 2-POINT CONTROL, SPRING RETURN

www.nenutec.pl

ACTUATOR DIMENSIONS

[mm]

TECHNICAL SPECIFICATION

NAFA 1-03 (S) NAFA 2-03 (S)

Torque 3 Nm 3 Nm

Damper size 0.6 m² 0.6 m²

Shaft dimensions Ø 10...16 mm /  7...11 mm Ø 10...16 mm /  7...11 mm

Power supply 24 VAC/DC ± 10% 230 VAC ± 10%

Frequency 50...60Hz 50...60Hz

Control signal 2-point control 2-point control

Power consumption

 In operation 7.2 W 7.2 W

 End position 1.2 W 1.2 W

Rated power 10.0 VA 10.0 VA

Electrical connections Cable 1 m Cable 1 m

Auxiliary switch rating 3 (1.5) A / 250 VAC 3 (1.5) A / 250 VAC

Protection class Class III Class II

Angle of rotation 90° (95° mechanical limitation) 90° (95° mechanical limitation)

Weight <1.8 kg <1.9 kg

Durability 60,000 rotations 60,000 rotations

Sound level 40 dB 40 dB

IP protection class IP54 IP54

Working temperature range -20°C...50°C as per IEC 721-3-3 -20°C...50°C as per IEC 721-3-3

Storage temperature -30°C...+60°C / IEC 721-3-2 -30°C...+60°C / IEC 721-3-2

Ambient humidity 5...95% rH (non condensing) / EN 5...95% rH (non condensing) / EN

Maintenance Maintenance free Maintenance free

Principle of operation Type 1 (acc. to EN 60730-1) Type 1 (acc. to EN 60730-1)

Electromagnetic compatibility CE & ISO 9000 to EN / EEC CE & ISO 9000 to EN / EEC

NAFA – SPRING RETURN DAMPER ACTUATOR

3 Nm | 2-POINT CONTROL, SPRING RETURN

www.nenutec.pl

WIRING DIAGRAM NAFA...03 (S)

POWER SUPPLY 24 VAC/DC / 230 VAC

CHANGING DIRECTION OF ROTATION NAFA... 03 (S)

WIRING DIAGRAM NAFA... 03 (S)

AUXILIARY SWITCH

>5°

AUXILIARY SWITCH NAFA... 03 (S)

Switch a factory-set at 5º. The auxiliary switch can be adjusted in the

range 0°...90°.

Switch a factory-set at 5º.

Switch b adjustable 0˚...90˚.

Black Red

Blue Brown

Yellow Green Blue

24 VAC ±10%

24 VDC ±10%

230 VAC ±10%

3 (1.5) A / 250 V

Actuator at 0° position

N L1

Purple

Gray

White

3. Reverse Actuator

1. Release

secure

ring

2. Remove adapter

5. Fasten

secure ring

4. Insert

adapter

2-point

NAFA – SPRING RETURN DAMPER ACTUATOR

3 Nm | 2-POINT CONTROL, SPRING RETURN

www.nenutec.pl

■ Angle of rotation limiting 5º...85º adjustment

■ Installation instruction

IMPORTANT REMARKS

This actuator includes electrical and electronic components and may not be disposed as household waste.

Please consider the local valid legislation.

24 VAC/DC: Connect via safety isolating transformer.

230 VAC: To isolate from the main power supply, the system must incorporate a device which disconnects

the phase conductor (with at least a 3mm contact gap.)

Consult NENUTEC representatives for specific requirements and material selections for your intended application.

The entire content of this technical datasheet is protected by copyright.

All rights are reserved ©.

The performance specifications are nominal and conform to acceptable industry standards. Nenutec shall not be

liable for damages resulting from misapplication or misuse of its products.

CUSTOMISED VERSION

NENUTEC offers you actuators in customised

versions, e.g. with your own brand name, with colour-

coordinated applications and with your particular

demand on request.

For further information please contact us or our local

representative.

Nenutec Polska

00-236 Warszawa

ul. Świętojerska 5/7

tel.: +48-(0)-504-050225

[email protected]

Wrong!

Secure ring

Turn adapter negative 45°

For 5°...45° Adjustment (Fig. 1)

 Loosen screw of the mechanical limiter

plate.

 Move the limiter plate to the appropriate

position.

 Tighten the screw.

For 45°...85° Adjustment

(Fig. 2)

 Release the secure ring of the

adapter.

 Remove the adapter and turn it

CCW 45° as shown.

 Insert adapter and secure the

adapter.



Loosen screw of the mechanical

limiter plate.

 Move the limiter plate

to the appropriate position.

 Tighten the screw.

For 5°...45° Adjustment

(Fig. 1)

For 45°...85° Adjustment

(Fig. 2)

NENUTEC AIR - ROTARY DAMPER ACTUATOR

WITH SPRING RETURN SAFETY FUNCTION 3 Nm | MODULATED CONTROL

www.nenutec.pl

The appearance of the product may differ from the illustration. Technical specifications are subject to change.

NESM24.2-03(S)

NENUTEC spring return damper actuators have been developed to

operate and position air dampers of different sizes that perform safety

functions. For several application as frost hygiene and smoke control in

technical building installations.

■ Damper size 0.5 m2

■ Power supply 24 VAC/DC

■ Control 0…10 VDC

■ 2 auxiliary switches (SPDT)

■ Shaft dimensions Ø 6 to 12 mm round / 6 to 8 mm square

■ Minimum shaft length 24 mm.

■ Adjustable angle of rotation (mechanical end stop).

■ Actuator with 1000 mm connection cable.

■ Customised versions and functions (on request).

MODEL SELECTION TABLE

Torque Running time

(motor)

(spring return)

Power supply Auxiliary switches Model/type

3 Nm 65 s 25 s 24 VAC/DC ±15% – NESM24.2-03

3 Nm 65 s 25 s 24 V AC/DC

±15%

2 x SPDT NESM24.2-03S

NENUTEC AIR - ROTARY DAMPER ACTUATOR

WITH SPRING RETURN SAFETY FUNCTION 3 Nm | MODULATED CONTROL

www.nenutec.pl

ACTUATOR DIMENSIONS [mm]

TECHNICAL SPECIFICATION

NESM24.2-03(S)

Torque 3 Nm

Damper size 0.5 m2

Shaft dimensions Ø 6 to 12 mm round / 6 to 8 mm square

Power supply 24 VAC / 24 VDC ± 15%

Frequency 50 -60 Hz

Control signal Y (input) 0…10 VDC

Feedback position U (output) 0…10 VDC

Power consumption

– Operating 2.5 W

– End position 1.6 W

Rated power 5 VA

Auxiliary switch rating 3 A 230 VAC

yes (review performance data)

Protection class III

Angle of rotation 0° ... 90° (max. 95°)

Limiting angle of rotation 45° ... 90° in 5° steps

Weight 1 kg

Life cycle Min. 60,000 emergency settings

Sound pressure level Motor 45 dB (A) / spring return 65 dB (A)

Protection degree IP 54 (dust protected & protected against splash water)

Working temperature range -20°…+50°C / IEC 721-3-3

Storage temperature -30°…+80°C / IEC 721-3-2

Ambient humidity 5...95% rH (non condensing)

Maintenance Maintenance free

Principle of operation Type 1 (acc. to EN 60730-1)

Electromagnetic compatibility CE according to 2004/108/EC

Low voltage directive CE according to 2006/95/EC

UL-Listing UL 873

NENUTEC AIR - ROTARY DAMPER ACTUATOR

WITH SPRING RETURN SAFETY FUNCTION 3 Nm | MODULATED CONTROL

www.nenutec.pl

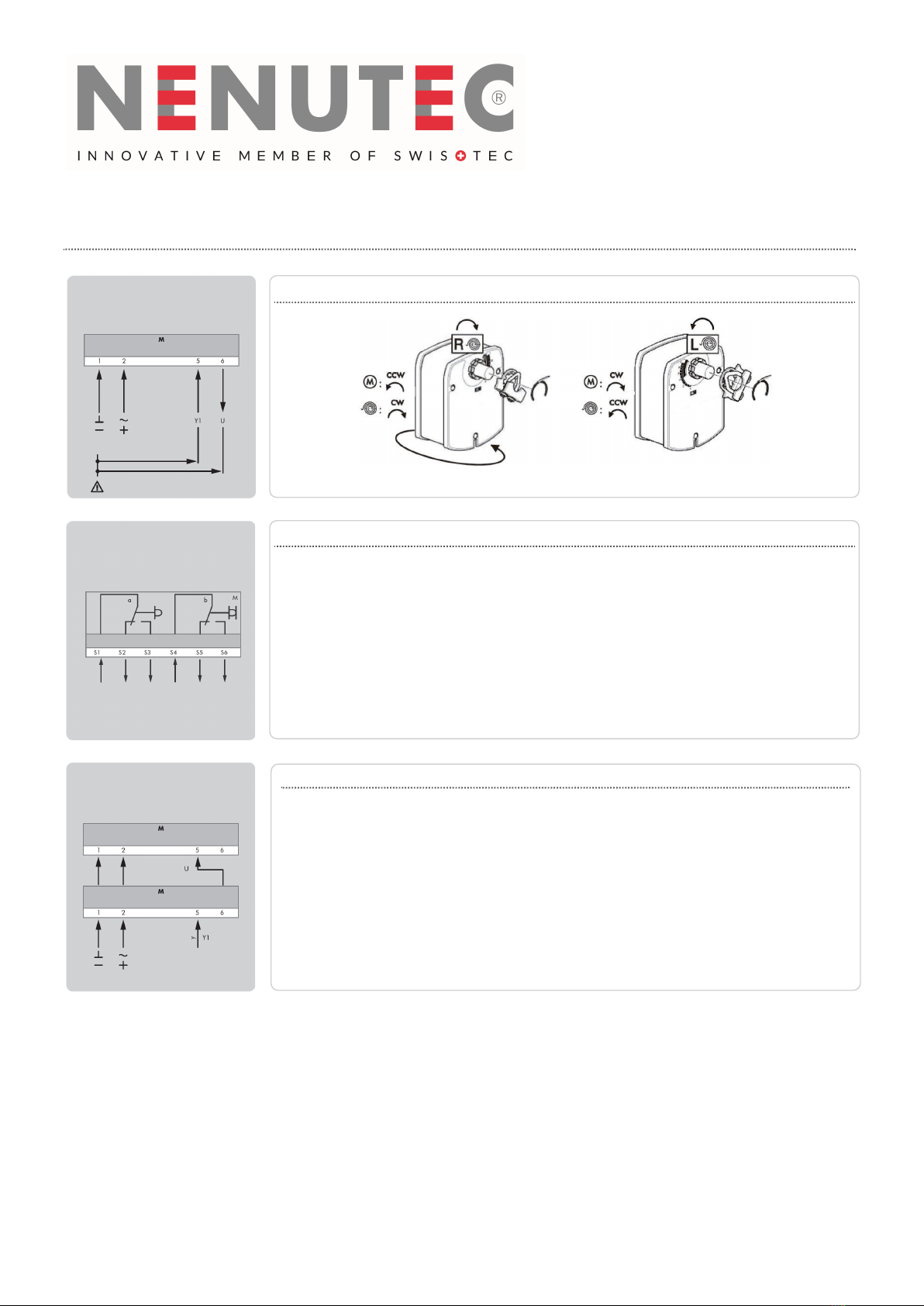

■ Changing direction of rotation NESM...03(S)

■ Auxililary switches

The auxiliary switches for NESM-03S actuators are not adjustable.

The switching points are fixed at 5° for switch a and at 85° for switch b.

■ Note

Parallel connection of maximum five NESM-03(S) actuators is possible. The power consumption and

distance between master and slave must be observed.

For more details of installation and commissioning, please observe our mounting instruction manual

M-NESM-03(S).

Wiring diagram NESM24.2-03(S)

Power supply 24 VAC / DC

24 VAC ±15%

24 VDC ±15%

Connect via safety isolating transformer

Wiring diagram NESM24.2-03(S)

Parallel connection

Wiring diagram auxiliary switches

NESM...-03S

3 A / 230 VAC

red

black

blue

green

yellow

magenta

grey

white orange

grey

0…10 VDC

0…10 V

AC 24 V ±15%

24 VDC ±15%

red

black

orange

0…10 VDC

grey

Master

Slave

NENUTEC AIR - ROTARY DAMPER ACTUATOR

WITH SPRING RETURN SAFETY FUNCTION 3 Nm | MODULATED CONTROL

www.nenutec.pl

■ Mechanical limiting angle of rotation NESM…-03 series

Adjustment of mechanical limiter.

1. Take limiting element and screw delivered with the actuator.

2. Place limiting element at appropriate position.*

3. Tighten the screw.

* Working range of 90º can be reduced up to 45º.

■ The NE… actuators are not allowed to be used outside the specified field of application as described at the front page of this data sheet.

■ Installation works may be performed only by trained and qualified personnel. Local regulations, codes and standards must be observed

during installation.

■ The NE… actuator may only opened by NENUTEC manufacturer site. Device does not contain any parts that can be replaced by user.

■ The electrical connection cable must not be removed from the NE... actuator.

■ This actuator includes electrical and electronic components and may not be disposed as household waste. Please consider the local valid

legislation.

■ 24 VAC 50/60 Hz, 24 VDC: Connect via safety isolating transformer.

■ 230 VAC: To isolate from the main power supply, the system must incorporate a device which disconnects the phase conductor (with at least

a 3 mm contact gap.)

IMPORTANT REMARKS

This actuator includes electrical and electronic components and may not be disposed as

household waste. Please consider the local valid legislation.

24 VAC/DC: Connect via safety isolating transformer. 230 VAC: To isolate from the main power supply,

the system must incorporate a device which disconnects the phase conductor (with at least a 3 mm

contact gap.)

Consult NENUTEC representatives for specific requirements and material selections for your

intended application. The entire content of this technical datasheet is protected by copyright. All

rights are reserved ©.

The performance specifications are nominal and conform to acceptable industry standards.

NENUTEC shall not be liable for damages resulting from misapplication or misuse of its products.

CUSTOMISED VERSION

NENUTEC offers you actuators in customised

versions, e.g. with your own brand name, with

colour-coordinated applications and with your

particular demand on request.

For further information please contact us or

our local representative.

Nenutec Polska

00-236 Warszawa

ul. Świętojerska 5/7

tel.: +48-(0)-504-050225

[email protected]

SAFETY NOTES

NAFA – SPRING RETURN DAMPER ACTUATOR

5 Nm | 2-POINT CONTROL, SPRING RETURN

www.nenutec.pl

The appearance of the product may differ from the illustration. Technical specifications are subject to change.

NAFA...05 (S1) SERIES

NAFA series Spring Return actuators are developed for general air

damper application, rotary valve and other devices which require a fail-

safe function. During normal operation, the actuator motorized the

device. In the event of power outage, the actuator springs back to its

original position.

■ Torque: 5 Nm

■ Damper size 1.0 m2

■ Power supply 24 VAC/DC and 230 VAC

■ 2-point control

■ Shaft dimensions – Ø 10...16 mm / square 7...11 mm

■ Minimum shaft length 40 mm

■ Adjustable angle of rotation

■ Direction of rotation selectable by reversing actuator during

installation

■ Actuator with 1 m connection cable

■ Optional 1 adjustable SPDT auxiliary switch

MODEL SELECTION TABLE

Model/type Torque Power supply Running time Auxiliary switches

NAFA 1-05 5 Nm 24 VAC/DC ± 10% 50...80 s (spring return <25 s) -

NAFA 1-05S1 5 Nm 24 VAC/DC ± 10% 50...80 s (spring return <25 s) 1 x SPDT (adjustable)

NAFA 2-05 5 Nm 230 VAC ± 10% 50...80 s (spring return <25 s) -

NAFA 2-05S1 5 Nm 230 VAC ± 10% 50...80 s (spring return <25 s) 1 x SPDT (adjustable)

NAFA – SPRING RETURN DAMPER ACTUATOR

5 Nm | 2-POINT CONTROL, SPRING RETURN

www.nenutec.pl

ACTUATOR DIMENSIONS

[mm]

TECHNICAL SPECIFICATION

NAFA 1-05 (S1) NAFA 2-05 (S1)

Torque 5 Nm 5 Nm

Damper size 1.0 m² 1.0 m²

Shaft dimensions Ø 10...16 mm /  7...11 mm Ø 10...16 mm /  7...11 mm

Power supply 24 VAC/DC ± 10% 230 VAC ± 10%

Frequency 50...60Hz 50...60Hz

Control signal 2-point control 2-point control

Power consumption

 In operation 7.2 W 7.2 W

 End position 2.5 W 2.5 W

Rated power 10.0 VA 10.0 VA

Electrical connections Cable 1 m Cable 1 m

Auxiliary switch rating 3 (1.5) A / 250 VAC 3 (1.5) A / 250 VAC

Protection class Class III Class II

Angle of rotation 90° (95° mechanical limitation) 90° (95° mechanical limitation)

Weight <1.8 kg <1.8 kg

Durability 60,000 rotations 60,000 rotations

Sound level 40 dB 40 dB

IP protection class IP54 IP54

Working temperature range -20°C...50°C as per IEC 721-3-3 -20°C...50°C as per IEC 721-3-3

Storage temperature -30°C...+60°C / IEC 721-3-2 -30°C...+60°C / IEC 721-3-2

Ambient humidity 5...95% rH (non condensing) / EN 5...95% rH (non condensing) / EN

Maintenance Maintenance free Maintenance free

Principle of operation Type 1 (acc. to EN 60730-1) Type 1 (acc. to EN 60730-1)

Electromagnetic compatibility CE & ISO 9000 to EN / EEC CE & ISO 9000 to EN / EEC

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Controladores de NENUTEC

NENUTEC

NENUTEC NAFA 1-05 Manual de usuario

NENUTEC

NENUTEC NEAA 08 Series Manual de usuario

Manuales populares de Controladores de otras marcas

Digiplex

Digiplex DGP-848 Instrucciones de funcionamiento

YASKAWA

YASKAWA SGM series Manual de usuario

Sinope

Sinope Calypso RM3500ZB Manual de usuario

Isimet

Isimet DLA Series Style 2 Manual de instalación

LSIS

LSIS sv-ip5a Manual de usuario

Rockwell Automation

Rockwell Automation 1769-L31 Manual de usuario

Airflow

Airflow Uno hab Manual de usuario

ABB

ABB ACS580-01 drives Manual de usuario

Panasonic

Panasonic GM1 Series Manual de usuario

Emerson

Emerson SW93 Manual de usuario

AutoAqua

AutoAqua Smart ATO micro SATO-120P Manual de usuario

Panasonic

Panasonic FP? Positioning Unit RTEX Manual de usuario

Samson

Samson Type 5824 Manual de servicio

Alpha IP

Alpha IP MIOB 21001 Manual de usuario

Siemens

Siemens OpenAir GMA 1 Series Manual de usuario

Surecom

Surecom SR-629 Manual de usuario

Fishman

Fishman TriplePlay Manual de usuario

Regulus

Regulus SRS1 T Manual de usuario
