NEC SV8100 Telephone System User Guide

(for SV8100 12-button and 24-button phones)

KEYS AND BUTTONS ON YOUR PHONE

Incoming Call/Message Waiting indicator light

Flashes red quickly when a call is ringing your phone; flashes green slowly when there

is a new message in your voicemail box. Found on upper right of tilting display panel.

LCD display

Shows date and time, name and extension, when the phone is idle; incoming caller ID;

outbound number dialed; duration of call; number of new voicemail messages;

message timestamp when in voicemail; and soft keys (more info on these below).

Exit/Help

Use the Help key to identify the programming of function keys; the Exit key brings the

LCD display back to normal when in Help or Menu mode. Exit/Help keys found on left

and right just under display panel.

Soft Keys (4)

The four “soft keys” below your telephone’s display are provided as shortcuts to many

of your phone’s features and functions. Below is a list of some of the most useful

ones. Keep in mind, the soft keys are interactive and will change their function as you

press them to navigate features.

VMsg Use this soft key to access your voicemail box. Once pressed, other soft

keys appear, allowing you to visually access mailbox features.

List Use this key to view recent calls. Outbound calls you have placed can

be seen in the Redial menu. Incoming Caller ID can be seen in the CID

menu. Use the arrows to scroll through the numbers. Press the Dial soft

key to place a call to the number displayed.

Dir Use the Directory menu to dial stored numbers. Use the arrows to scroll

through the numbers.

SPD Common (system-wide) speed dial numbers

EXT Internal extensions

STA Personal speed dial numbers

Use the Exit button to return your phone’s display to normal mode after using

the soft key menus.

Function keys (12 or 24)

Programmable keys used for a variety of telephone features, eg: lines, other

extensions (hotline), headset.

Keypad

As on any phone, dialing digits 0 –9, #, *.

Recall

To move quickly between calls, use this key to disconnect one call and immediately

get dial tone.

Feature

Used occasionally to access telephone feature setup.

Answer

Press to answer a second call ringing at your phone. First call will be put on hold

automatically; to return to first call, press flashing line key.

Mic

Press to turn microphone on (key will light up) or off. You must turn on the

microphone in order to respond handsfree to a speakerphone call. While on a handset

or headset call, press Mic to mute microphone on handset or headset (key will blink);

press again to cancel mute.

Press to access other phone settings including ring volume, offhook ringing, backlight,

etc.

Directional Pad (large round multi-directional key)

Press left, right, top or bottom to access Redial, Directory, Volume Control (of handset,

speaker, ringing, and brightness of LCD display). Press center button for Enter.

Hold

Press to put outside call on hold. Call will flash on line appearance key and can be

picked up by any other user.

Transfer

Press to transfer a call to a co-worker.

Speaker

Press to access your phone’s hands-free capability. Lights up when in hands-free

mode.

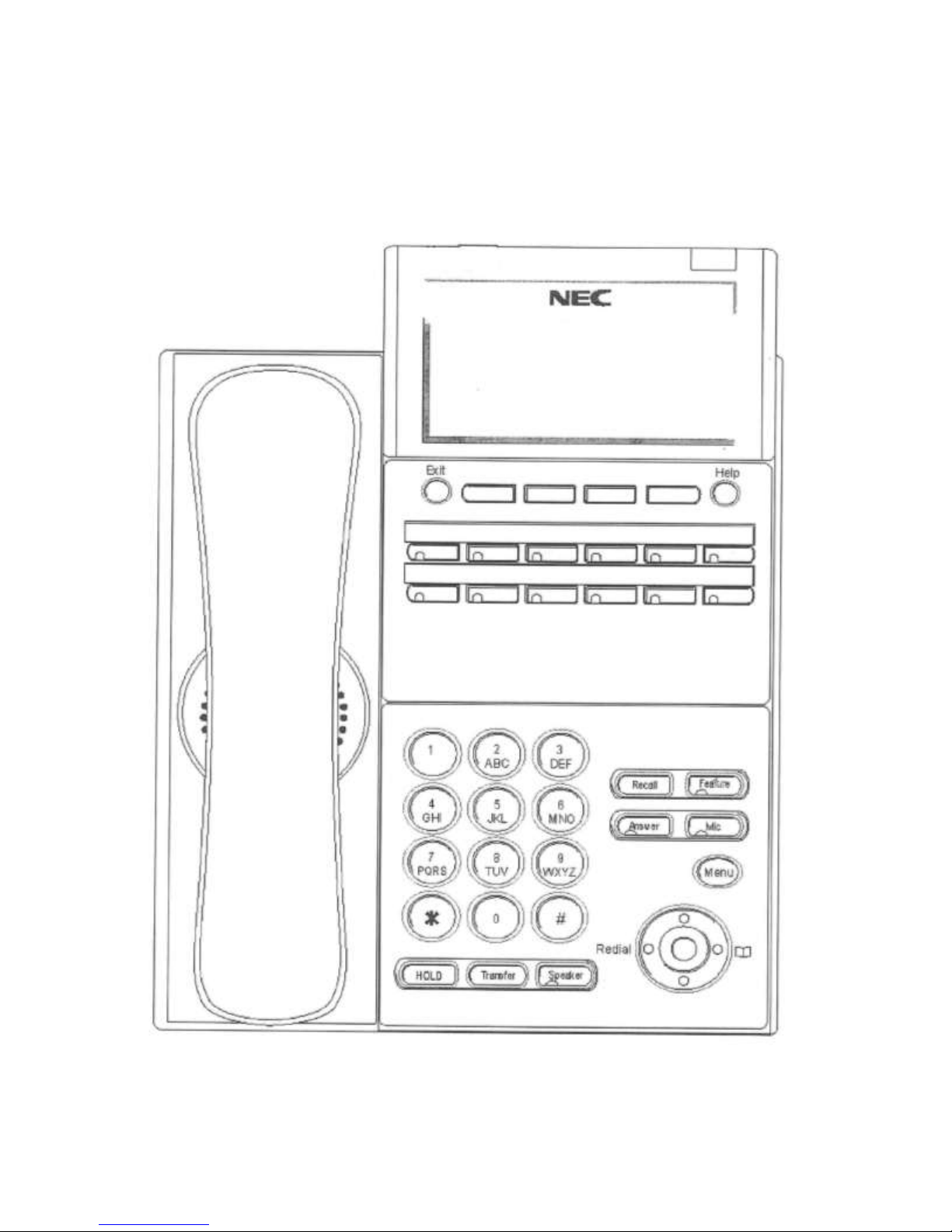

NEC SV8100 12-button Display Telephone

How to program your name on your extension:

1. Press the Speaker button

2. Dial 700

3. Dial your 3-digit extension number

4. Enter your name (see diagram on page 4):

--Use the keypad to enter letters, eg. press 1 three times for the letter C

--To delete a character, press the Feature key

--To move forward, press the # key once; to make a space, press the #

key twice

5. Press HOLD

6. Press Speaker to finish

MAKING OUTGOING CALLS

How to make an outgoing call:

1. Lift the handset

2. Press an available (unlit) outside line key

3. Dial number

How to call a previously dialed number:

1. Press Redial button

2. Use the arrows that appear on the soft keys to scroll to the number you want

to call (or use arrows on directional pad)

3. Lift handset to call the displayed number

How to make a call using caller ID:

1. Press List soft key

2. Press CID soft key

3. Use the arrows that appear on the soft keys to scroll to the number you want

to call (or use arrows on directional pad)

4. Lift handset to call the displayed number

How to make a conference call:

1. Establish the first call

2. Press CONF soft key (1st soft key)

3. Establish the second call

4. Press ADD soft key (1st soft key) after second caller answers

5. Press BEGIN soft key (1st soft key) to establish three-way conference call

--or--

5. Establish third call

6. Press BEGIN soft key (1st soft key) to establish four-way conference call

HANDLING INCOMING CALLS

How to answer an incoming call:

1. If the call is ringing at your extension, lift the handset

--or—

1. If a call is ringing on another line or extension, lift handset and press the

flashing key

--or—

1. To answer a second call ringing at your extension, press the Answer key.

Your first call will be put on hold and you will be connected to the second

call. To return to the first call, press the flashing line key.

How to put a call on HOLD:

1. While on call, press HOLD

2. Hang up (line key flashes)

How to retrieve a call from HOLD:

1. Lift handset

2. Press flashing line key

How to transfer a call to a co-worker:

1. While on call, press Transfer

2. Dial the co-worker’s three-digit extension number

--or--

2. Press the co-worker’s hotline key

3. Announce call (optional)

4. Hang up (call will ring the co-worker’s extension; if not answered, the call will

automatically go to the co-worker’s voicemail)

How to transfer a call directly to a co-worker’s voicemail:

1. While on call, press Transfer

2. Press the VMsg soft key

3. Press the co-worker’s hotline key

--or--

3. Dial the co-worker’s three-digit extension number

4. Hang up

How to use Do Not Disturb:

1. Press the Speaker button

2. Dial 747

3. Set the DND option:

--Press 1to block external calls

--Press 2to block intercom calls

--Press 3to block all calls

--Press 4to block transferred calls

--Press 0to cancel DND

4. Press Speaker to finish

INTERCOM FEATURES

How to intercom a co-worker:

1. Lift handset (optional)

2. Press hotline key for co-worker

--or--

2. Enter the three-digit extension number

3. Begin speaking after tones

How to intercom all extensions at once (paging):

1. Lift handset

2. Dial 7010

3. Begin speaking after tones

How to set intercom calls to ring vs. go to speakerphone:

1. Press Speaker button

2. Dial 723 for signaling (ringing) or 721 for voice call (speakerphone)

3. Press Speaker to finish

PERSONALIZING YOUR EXTENSION

How to program your name on your extension:

1. Press the Speaker button

2. Dial 700

3. Dial your 3-digit extension number

4. Enter your name (see diagram on page 4):

--Use the keypad to enter letters, eg. press 1 three times for the letter C

--To delete a character, press the Feature key

--To move forward, press the # key once; to make a space, press the #

key twice

5. Press HOLD

6. Press Speaker to finish

How to program personal speed dial numbers (up to 10):

1. Press the Speaker button

2. Dial 755

3. Press the key you want to program (1-9, 0 on the keypad)

4. Dial 9 and the telephone number (include 1 + area code for long distance)

5. Press HOLD

6. Enter name if desired (see diagram on page 4):

--Use the keypad to enter letters, eg. press 1 three times for the letter C

--To delete a character, press the Feature key

--To move forward, press the # key once; to make a space, press the #

key twice

7. Press HOLD

8. Press Speaker to finish

--or--

7. Repeat steps 3 through 7 to program more speed dial numbers

8. Press Speaker to finish

How to view and dial personal speed dial numbers:

1. Press the Dir softkey

2. Press the STA softkey

3. Use the softkey arrows to scroll through personal speed dial numbers 1-10

4. Press the Dial softkey to dial the selected number

How to use shortcuts to personal speed dial numbers:

1. Lift the handset

2. Dial #7 then the key you programmed (1-9, and 0 to access speed dial #10)

How to program function keys for extensions or speed dial numbers:

1. Press the Speaker button

2. Dial 751

3. Press an available function key

4. Dial 01

5. Dial three-digit extension or 9+number for speed dial

6. Press HOLD

7. Press Speaker to finish

--or--

7. Repeat steps 3 to 6 to program more keys

8. Press Speaker to finish

How to adjust the ring volume on your phone:

1. Press the Speaker button

2. Dial 729

3. Press the top or bottom of the directional pad to adjust the volume to the

desired level

4. Press Speaker to finish

How to change the ring tones on your phone:

1. Press the Speaker button

2. Dial 720

3. Press 1for intercom calls or 2for outside calls

4. Press 1 through 8 to hear the 8 different ring tone choices

5. Press the number of your choice

6. Press Speaker to finish

How to program a headset key on your phone:

1. Press the Speaker button

2. Dial 751

3. Press an available function key

4. Dial 05

5. Press Speaker to finish

Note: Use the Headset key instead of lifting the handset to answer and hang up calls.

How to forward your phone to an outside number or an extension:

1. Press the Speaker button

2. Dial 741

3. Press 1to set call forwarding

4. Enter the outside number (preceded by “9”) or the 3-digit extension number

5. Press Speaker to finish

How to cancel call forwarding:

1. Press the Speaker button

2. Dial 741

3. Press 0to cancel call forwarding

4. Press Speaker to finish
