NEC DiamondPro 2070SB Manual de usuario

Table of Contents

SpectraView Contents ............................................................................................................ 3

SpectraView Hardware Setup .............................................................................................. 4

SpectraView Software Setup ................................................................................................ 5

PC ....................................................................................................................................... 5

Macintosh ......................................................................................................................... 5

Macintosh Version

Calibrating Your Monitor................................................................................................. 6

Creating a Custom Preset ..............................................................................................12

Adjusting Monitor Controls........................................................................................... 14

Calibration Graphing ...................................................................................................... 15

PC Version

Calibrating Your Monitor................................................................................................16

Creating a Custom Preset ............................................................................................. 22

Adjusting Monitor Controls........................................................................................... 25

Calibration Logging ....................................................................................................... 26

Troubleshooting .................................................................................................................... 28

Calibrator Specifications ..................................................................................................... 29

Limited Warranty for SpectraView Hardware .................................................................. 30

SpectraView End-User Software License Agreement ...................................................... 32

References .............................................................................................................................. 33

SpectraView Contents

VGA to VGA Video Cable VGA to DVI Video Cable

Quick Start Guide

ectraView

Color Calibration Dis

lay Syste

UICK S

Hood

SpectraView

Color Calibrator

VGA to VGA Video

SpectraView Adapter

CD-ROM

1. Connect the SpectraView video cable to input connector on monitor.

•For the MultiSync FP955/FP1375X connect the DVI-A connector of the

SpectraView video cable to the DVI input connector on the monitor.

•For the DiamondPro 930SB-BK, DiamondPro 2070SB-BK and MultiSync

FP2141SB-BK connect the captive cable or the VGA cable on the monitor to the

female end of the 15-pin adapter and the male end to the computer system. Skip to

Step #3.

•For the DiamondPro 2060u connect the VGA connector(without the USB pig-tail

connector) of the SpectraView video cable to Signal B on the monitor.

2. Connect the VGA connector(with the USB pig-tail connector) of the SpectraView video

cable to the output connector of the computer system.

3. Connect the USB pig-tail connector of the SpectraView video cable to an available USB

connector on the computer system. For DiamondPro 930SB-BK, DiamondPro 2070SB-

BK and MultiSync FP2141SB-BK use the USB pig-tail of the adaptor to connect to the

computer.

4. Connect the USB connector of the SpectraView Color Calibrator to an available USB

connector on the computer system.

5. Remove adhesive covering on the Velcro tabs of the SpectraView hood and attach the

hood to the front top and sides of the monitor bezel(Figure 1).

SpectraView

Hardware Setup

Figure 1

Windows (98SE, Me, 2000, XP)

1. Insert the SpectraView CD-ROM in the CD-ROM drive.

Add/New Hardware Wizard will appear on the screen upon initial startup.

Now select “Search for a suitable driver for my device” and click “Next”. In the

next menu check the box in the search location for “CD-ROM Drives” or “Remov-

able Media” and click “Next”.

After driver installation is complete, Run “Spectraview\spectraview.exe” from the

CD-ROM.

4. Follow screen prompts for software installation.

5. Restart the computer and monitor.

Macintosh (OS 9.x or higher)

1. Insert the SpectraView CD-ROM in the CD-ROM drive.

2. Double click on the Macintosh Folder.

3. Double click on the SpectraView Installer icon.

4. Follow screen prompts for software installation.

5. Restart the computer and monitor.

Now you are ready to launch the SpectraView Software.

Please see the online documentation in this manual for the SpectraView Hardware

limited warranty.

SpectraView

Software Setup

Launch the SpectraView program.

While the SpectraView software is loading, it will initialize the monitor and the

color calibrator for adjustment. This process takes approximately 30 seconds to

complete but may vary based on system performance.

Note: If one of these two devices aren’t detected an error screen will appear asking

you to check the connection.

If this is the first time that SpectraView has run, the monitor will be uncalibrated.

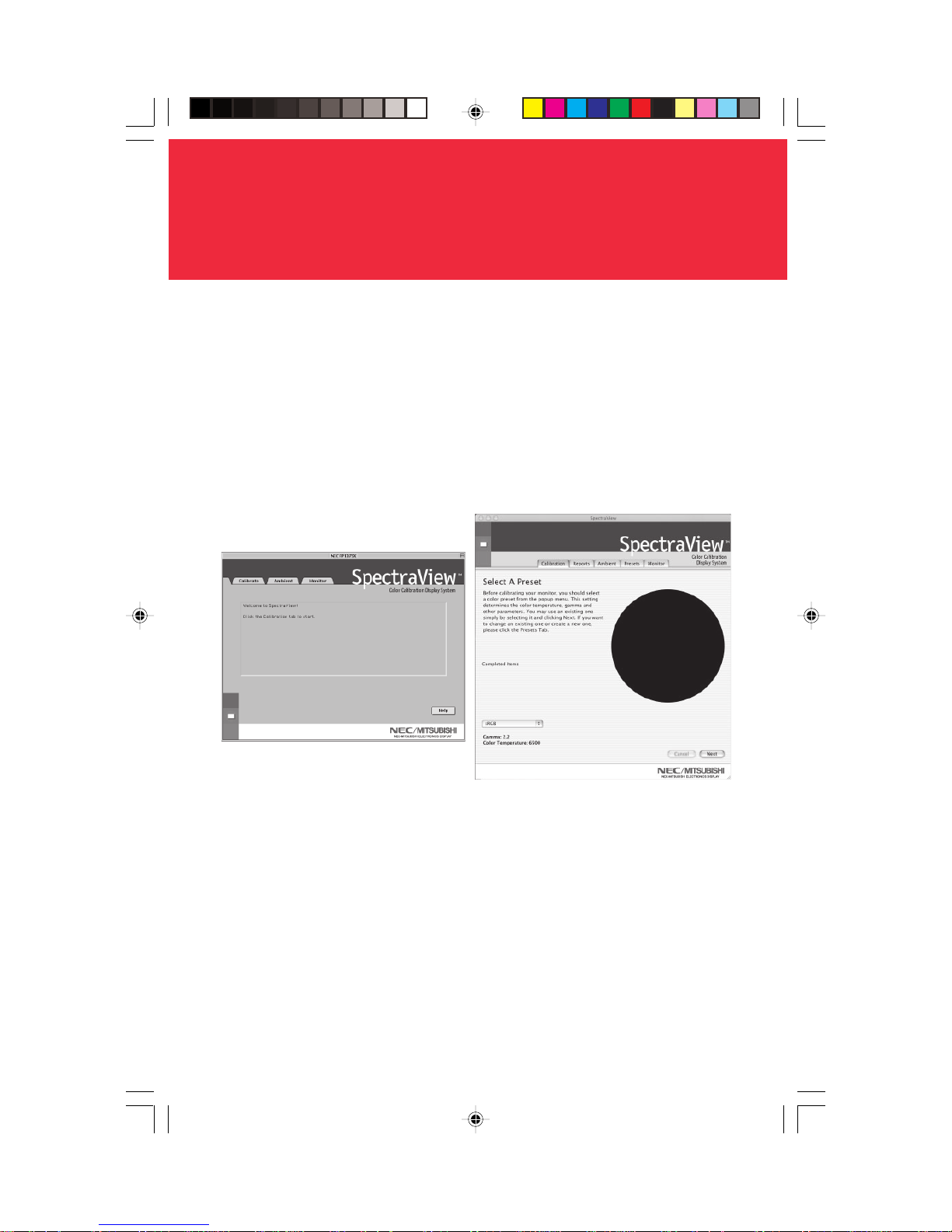

To perform a calibration, click “Calibration” in the software menu(Figure 3a).

SpectraView allows you to specify the parameters you prefer to use for calibra-

tion. These parameters(color temperature, gamma, and white luminance) are

contained in “Presets”, which are small files containing these values. SpectraView

ships with two Presets already installed, sRGB and D50. You may select a Preset

for calibration by clicking on the “Preset” pulldown in the lower-left corner of the

CALIBRATE panel. You may also create your own Presets through the process

described in Section 4: Creating a Custom Preset.

Calibrating Your Monitor

MAC VERSION

Figure 3a

OSX

OS9

The SpectraView Color Sensor is extremely sensitive to light. At first it must set

its internal values for black before measuring colors. This initial measurement of

black is called a “Dark Current Calibration.” This step must be performed prior to

every calibration of the monitor(Figure 3b).

Place the suction cup side of the color calibrator on a non-reflective, opaque

surface(desk, mousepad, etc.) and click “Next” to continue. DO NOT PLACE THE

SENSOR ON THE MONITOR SCREEN.

Calibrating Your Monitor –continued

Figure 3b

MAC VERSION

OSX

OS9

The next step will start the color calibration of the monitor.

Attach the suction cup side of the calibrator to the face of the CRT directly over

the black circle located in the software menu(Figure 3c).

Once the calibrator is attached to the monitor’s face click “Next” to continue.

Throughout the calibration process you will see many changes to the colors and

brightness of the screen(OSX calibration menu is full screen). The process indica-

tor within the menu will indicate which adjustments are currently being made.

Calibrating Your Monitor –continued

Figure 3c

MAC VERSION

OSX

OS9

Calibrating Your Monitor –continued

When the calibration process is complete, you will be prompted for the file name

of the ICC profile created from the data measured from the monitor.

When the file name is selected, click “Save” to finish the installation.

Once the initial calibration is complete the option to adjust the monitor to the

ambient lighting conditions is available. The Ambient function is used to adjust

the brightness control to maximize visibility of shadow detail in images. Since

room light washes out this detail, an increase in brightness is necessary to make

the detail visible. However, since increasing the brightness control decreases

gamma, use this function carefully.

To start this process click “Ambient” in the software menu(Figure 3d).

MAC VERSION

Figure 3d

OSX

OS9

The calibrator needs to make an ambient light measurement(Figure 3e).

Hold the color calibrator near the face of the monitor with the suction cup side

facing away from the monitor.

Note: Make sure that nothing is blocking the sensors on the suction cup side of the

color calibrator during this adjustment. The calibrator should be held with nothing

between the sensors and the light source located in the area.

Click “Next” to start this measurement.

Calibrating Your Monitor –continued

MAC VERSION

Figure 3e

OSX

OS9
