NEC Express5800 120Ed Guía de referencia

Express5800/120Ed

Rack Mount Kit

Installation Procedures

PN: 455-01607-001

Proprietary Notice and Liability Disclaimer

The information disclosed in this document, including all designs and related materials, is

the valuable property of NEC Computers Inc. and/or its licensors. NEC Computers Inc.

and/or its licensors, as appropriate, reserve all patent, copyright and other proprietary

rights to this document, including all design, manufacturing, reproduction, use, and sales

rights thereto, except to the extent said rights are expressly granted to others.

The NEC Computers Inc. product(s) discussed in this document are warranted in

accordance with the terms of the Warranty Statement accompanying each product.

However, actual performance of each such product is dependent upon factors such as

system configuration, customer data, and operator control. Since implementation by

customers of each product may vary, the suitability of specific product configurations and

applications must be determined by the customer and is not warranted by NEC Computers

Inc.

To allow for design and specification improvements, the information in this document is

subject to change at any time, without notice. Reproduction of this document or portions

thereof without prior written approval of NEC Computers Inc. is prohibited.

Trademarks

All products, brands, or trade names used in this publication are the trademarks or registered

trademarks of their respective trademark owners.

PN: 455-01607-001 February 2001

NEC Computers Inc.

15 Business Park Way

Sacramento, CA 95828

Express5800/120Ed

Rack Mount Kit Installation Procedures

CONTENTS

Introduction ............................................................................................................................................3

Unpacking and Inspection ......................................................................................................................4

Before You Begin...................................................................................................................................6

What You Need......................................................................................................................................6

Static Precautions ...................................................................................................................................6

Equipment Information...........................................................................................................................7

Preparing Your Server Unit....................................................................................................................7

Removing the Front Bezel..................................................................................................................7

Removing the Side Panels..................................................................................................................8

Installing the LED Holder and Labels................................................................................................9

Removing a Foot Stand....................................................................................................................13

Installing the New Front Bezel.........................................................................................................15

Installing the Side Panels .................................................................................................................18

Preparing the Mounting Bracket Assemblies...................................................................................19

Attaching the Mounting Bracket Assembly to the Rack..................................................................19

Installing the Server into the System Rack.......................................................................................21

Making Connections.............................................................................................................................23

Connecting the Power Cord..................................................................................................................24

Powering On Your System...................................................................................................................25

Express5800/120Ed Rack Mount installation Procedures 3

Introduction

This guide provides you with assembly information for preparing and mounting

your Express5800/120Ed Server small tower unit into a system rack

(see Figure 1).

Figure 1. Rack Mounted Server Small Tower Unit

Express5800/120Ed Rack Mount installation Procedures 4

Unpacking and Inspection

Although the rack mount kit is inspected and carefully packaged at the factory,

damage may occur during shipping. Follow these steps for unpacking the kit.

1. Visually inspect the shipping container; notify your carrier immediately of

any damage.

2. Place shipping container on a flat, clean, stable surface. Carefully remove

and verify the contents (see Table 1 and Figure 2). If parts are missing or the

equipment is damaged, notify your server representative.

3. Save the container and packing materials for any future reshipment.

Table 1. Rack Mount Kit Parts List (NZA-1203-00-00)

Item Name Description Part Number

A Rail Kit 1U Rail Kit includes:

Left Mounting Rail (246-01521-000)

Right Mounting Rail (246-01522-000)

Packet of screws (250-0151-000)

246-01523-000

B Front Bezel Bezel assembly

C Plastic Bag Plastic bag containing four screws and two bezel

assembly handles

890558

D LED Holder LED holder 246-01530-000

E Sleep Label Sleep stick-on label 405-01580-000

F Status Label Status stick-on label 405-01579-000

G Name Plate Name plate logo stick-on label 405-01545-000

H Document Installation Guide for the 120Ed Server Small Tower

Rack Mount Kit (This manual) 455-01607-000

Express5800/120Ed Rack Mount installation Procedures 5

Express5800/120Ed

Figure 2. Rack Mount Kit Parts

Express5800/120Ed Rack Mount installation Procedures 6

Before You Begin

Before you begin, please review the following cautions, warnings, and general

guidelines.

WARNING

Be sure that power to the server unit is turned off and

unplugged. All voltage is removed only when the power cord

is unplugged.

!Avoid excessive vibration and shock. Dropping an electronic component can

cause serious damage.

!Do not disconnect or remove parts other than those specified in the

procedure.

!Do not touch I/O connector pins.

!All screws are Phillips-head, unless otherwise specified.

!On completion of any reassembly, perform a power-on test. If a fault occurs,

verify that the reassembly was performed correctly. If the problem persists,

see the Problem Solving chapter in your System User’s Guide.

What You Need

In addition to the carton contents, the only tools you need are a #2 Phillips,

adjustable crescent wrench, and a utility knife to assemble the server unit.

CAUTION

It is strongly recommended that two people are present

when lifting and installing the server unit into a system rack.

Static Precautions

An electrostatic discharge (ESD) can damage disk drives, option boards, and

other components. You can provide some ESD protection by wearing an anti-

static wrist strap attached to chassis ground when handling system components.

Electronic devices can be easily damaged by static electricity. To prevent

damage, keep them in their protective packaging when they are not installed in

your system.

Express5800/120Ed Rack Mount installation Procedures 7

Equipment Information

!Measurements for the rack are given in Us where 1U is equal to 1.75 inches.

!Every three holes on the inside of the rack are equal to 1U.

!The height of the Server Small Tower Unit is 5Us (8.75 inches).

Preparing Your Server Unit

To prepare your server small tower unit for rack mounting, you must first

remove the front bezel, the side panels, and the four foot stands on the bottom of

the unit. After the previously mentioned items are removed, then the new front

bezel for rack mounting can be installed on the front of the server unit.

Removing the Front Bezel

CAUTION

If you are removing the front bezel after the server unit is set

up, you must first power off the system and all external

devices. Unplug the system power cord

The plastic front bezel assembly on your server unit is a one-piece assembly and

easy to remove.

Note: The front bezel is secured with six locking tabs.

1. Power off the server unit and ensure it is disconnected from the ac wall

outlet.

2. Remove the front bezel by carefully pulling it off the front of the server unit

chassis. Use an even amount of pressure around the edges of the bezel.

(see Figure 3).

Express5800/120Ed Rack Mount installation Procedures 8

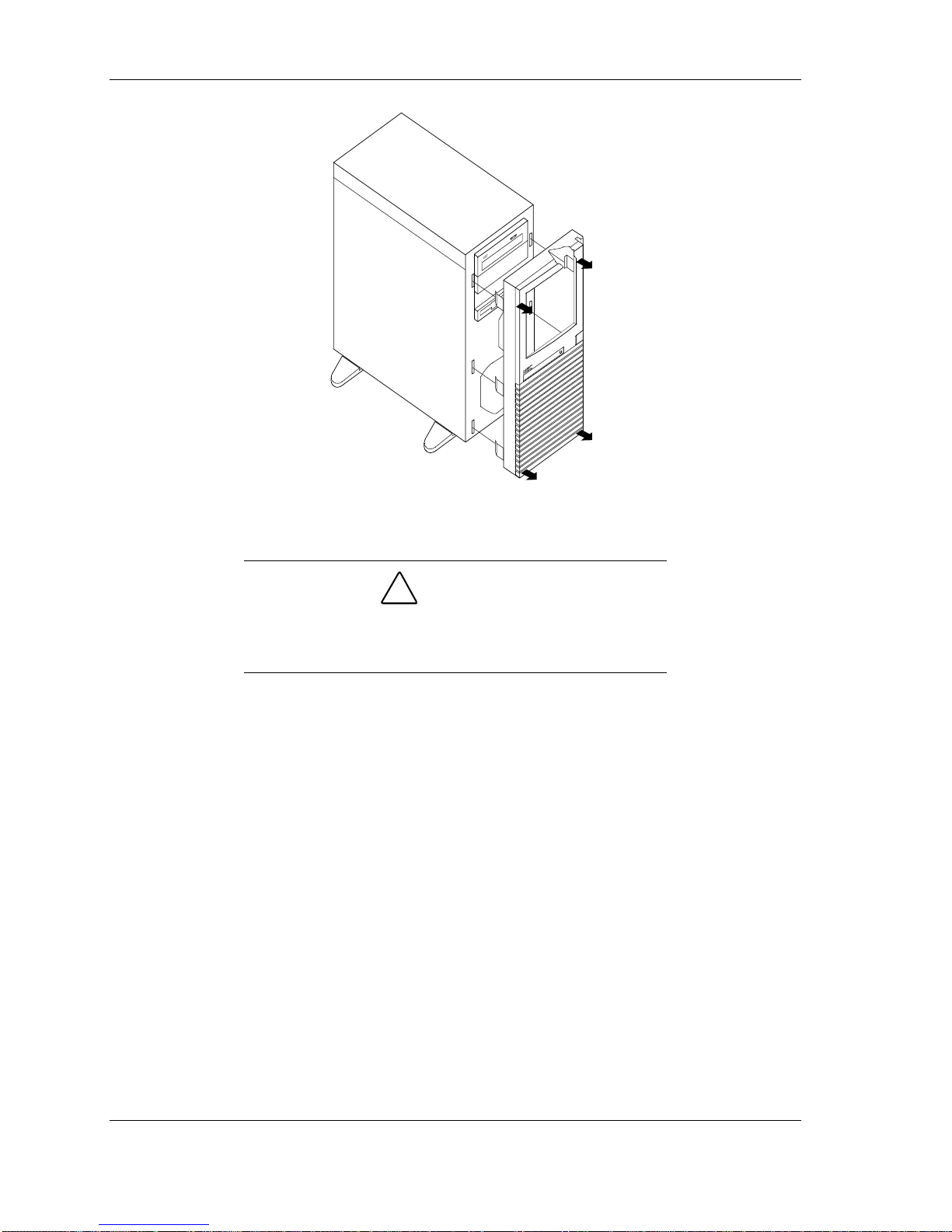

Figure 3. Removing the Front Bezel

Removing the Side Panels

CAUTION

If you are removing a side panel after the server unit is set

up, you must first power off the system and all external

devices. Unplug the system power cord

To remove a side panel:

1. Power off the server unit and ensure it is disconnected from the ac wall

outlet.

2. The side panel is secured to the chassis with three screws. Remove the

screws (see Figure 4) securing the side panel. Save the screws for

reattaching the side panel.

3. Slide the side panel toward the rear of the chassis. This unlocks the locking

fingers behind the side panel.

4. Pull the side panel up and away from the chassis.

5. Remove both the right and left side panels.
