NDS DT002 Manual de usuario
!
1
DISPLAY
User Manual
Valid for the following model:
DT002
!
2
instructions for the proper disposal
this electronic device is subject to the
European Directive 2012/19/EU. according to the
local waste disposal rules, do not dispose of
old products with normal household waste.
The proper disposal of products that can no
longer be used prevents potential negative
consequences for the environment and for
the population.
1. INTRODUCTION
DT002 is the optional display for solar regulators SC320M
e SC350M.
Thanks to this touch screen optional display, the device
shows the service battery charging data and the start-up
battery showing the status of the solar panels connected
to the solar regulator.
SAFETY INSTRUCTIONS
• Child Safety: Keep the device Out of Reach.
• carefully check the integrity of the device and
connectors.
• To avoid overheating and possible fires do not install
the device in a sealed environment, Always choose a
well ventilated area.
• Do not place the device on highly flammable
surfaces or environments (eg: paper, cloth, etc.).
• do not cover the cooling slits on the side and the fan
on the top.
• do not install the device near flooded batteries: they
produce flammable, corrosive and explosive gas
while working, and it can damage the product.
• protect the device from sunlight or direct sources of
heat.
• To avoid malfunctions, DO NOT install and use the
device in very humid environments, in contact with
water splashes, various liquids, or exposed to rain.
• To avoid risk of electric shock and/or fire, the
vehicle's fuel system must be in good condition.
• in case of damaged connecting cables or
inadequate section, immediately replace them with
2
suitable cables as specified by this manual or by a
qualified electrician.
• in case of anomalies in the conformity of the
product do not use it! it is strictly forbidden to open
the device. Repairs may only be carried out by
qualified technical personnel using original spare
parts.
• Keep the instruction manual near the device for
easy access to the essential safety, use and
maintenance information.
• The information contained in this manual may be
changed without notice. NDS Energy s.r.l. reserves
the right to make changes and improvements to the
product at any time without notice and without
obligation to apply these changes to the devices
previously distributed.
• The images of the products are purely indicative and
may therefore not be fully representative of the
characteristics of the product, differing in color, size
or accessories.
3
CAUTION
If the imanager and the SC320M or SC350M Solar regulator are
installed on the same wiring system, use the imanager starter
battery connection instead of the SC320M or SC350M one. Leave
the SC320M or SC350M starter battery connection free.
2. CONTENTS OF THE PACK
Check the package contents:
•N°1 DT002 Display
•N°1 Power Cable
•N°1 display wall bracket
•N°4 mounting screws
3. MAIN FEATURES
•Charging curve selection or battery technology
selection.
•Solar panel power selection for every connection on
the SC320M or SC350M solar regulator.
•Battery State of Charge status (SoC).
•Charging voltage and amperage, date and time
display
4
3.1 DEVICE ARCHITECTURE
5
NOTE
The provided equipment are exclusively projected for this device
and they are not compatible with other devices.
\
2
4
4
3
3
4
4
3
3
1
N°
FUNCTION
1
Touch screen Display
2
Communication cable hole
3
Four wall mounting holes
4
Display-wall mount attachment system
FRONT
BACK
4. INSTALLATION
1. Disassemble the wall bracket from the DT002 display
2. Place the wall bracket on the selected wall and take the hole
sign to make a proper hole for the mounting screws (diameter
3mm) and the communication cable pass (minimum diameter
7,2mm).
3. Make holes and screw the wall bracket to the wall using the
provided screws. Be sure to have a flat surface, without any
screw projections.
4. Let the Communication cable (connettore bianco) pass through
the hole previously realized and gently connect the joint to the
board.
6

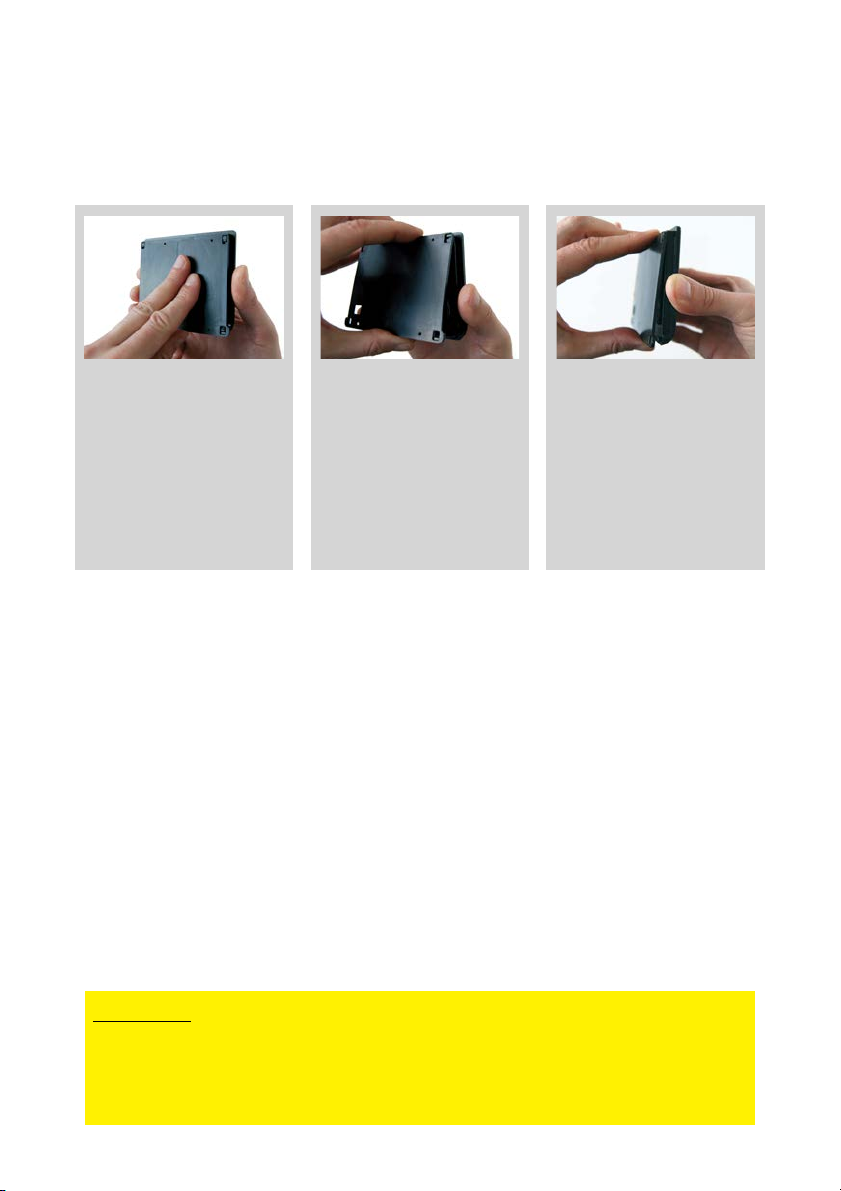

a. Slide downward the
wall Mount and
upward the display.
B. Rise the bottom
part of the display
C. Slide downward
the display and
disassemble the
wall bracket from
the display
CAUTION
Don’t force the connector in the housing: the connection side is
unique.
5. Fix the display on the wall bracket.
6. Connect the display DT002 to the SC320M or SC350M
Connect the other side of the communication cable (RJ
connector), to the SC320M or SC350M PCB, as showed in picture.
7
a. Insert the
display
mounting flaps
in the wall
mount press
and slide
upward
B. Down the
bottom part of
the display and
join the wall
mount
C. Slide downward
the display to
tighten the
bottom flaps
DT002
Display
connection
SC320M or SC350M solar regulator
internal PCB
5. SETUP
Follow the instruction for a proper touch screen usage:
•Touch de display with fingers or soft surfaces, avoid
sharp objects
•Avoid excessive pressure on the display surface
•Avoid any Contact with other electronic devices:
static discharge can damage the device.
•Avoid any contact with liquids, water, humidity: the
touch screen could not work properly
Connect the DT002 display to SunControl2. "
Once the start screen is finished, set the required data
by moving within the various screens tapping the
green button at the bottom right to continue, and at
the bottom left to go back.
8
NOTE
The DT002 optional display allows to modify parameters and
charge curves. If connected, the display will receive the
parameters set on the SunControl2 Dip Switch, further changes
must be made only on the DT002 display.
