Nauticam NA-E2F Manual de usuario

NA - E2F

For Z CAM E2-M4/S6/F6/F8 Cinema Camera

PN 16505

User Manual

Housing

N120 Video Housing

Introduction 2

Package Contents

Important Instructions

Part Names and Functions

Opening the Housing

Closing the Housing

Preparation for Use

Recommended Accessory

Care/Storage

Warranty

Specications

INTRODUCTION

PACKAGE CONTENTS

Thank you for purchasing this Nauticam product.

Before using the product, please read this manual thoroughly to familiarize yourself with full scope of functions on the

product as well as ensuring that you will use the product correctly.

Make sure that you have all the included items listed below before using this product.

If some items are missing or damaged, contact your local Nauticam dealer.

After purchase, we suggest that

you reuse all packaging materials

for future travelling.

NA-E2F

(2 x Handles with Mounting Balls, 1 x Housing Cap,

2 x Stainless Steel Handle Brackets)

Panasonic CR2032 Battery

(pre-installed for Moisture Alarm)

Spare Main O-ring

Padded Travel Case

Lubricant

Allen key set

O-ring Remover Manual Instruction Card

IMPORTANT INSTRUCTIONS

Water-tight test of the housing (without

camera inside) before usage is recom-

mended as well as any O-ring renewal

and port change.

Use only Nauticam lubricant on silicone

rubber O-ring.

Discontinue use immediately when there is

a sign of leakage.

Do not expose the housing in direct

sunlight for a prolonged period.

Prevent any sand or dust or water

penetration inside the housing. Be

extra careful when changing lens and

inserting or removing the camera.

This product is not intened for use by

children, or persons with reduced physical,

sensory or mental capabilities, or lack of

experience and knowledge, unless they

are supervised and/or given instruction by

a responsible person concerning use of

the product to ensure that they can use it

safely.

Do not seal the housing when travelling by

air as this may lead to a pressure difference

between the atmosphere and inside the

housing.

Only the accesories specied by

Nauticam must be used. Third-party

accessories may result in malfunctions

or damage to the product.

Do not stretch any O-rings excessively.

Only remove it using Nauticam O-ring

remover.

Do not open the housing in wet or sandy

environment. Protect the housing from

moisture and debris in order to prevent

malfunction or leakage.

11 12

Do not attempt to remove parts of the

housing yourself. Repairs must be done

at authorized service centers only.

The housing should be positioned on the a

stable and safe surface on land.

PART NAMES AND FUNCTIONS

Fn1 button Fn2 button

IRIS + button IRIS - button

Playback button M28 Accessory port

REC button

Focus - button

eND - button

M16 Accessory port

Focus + button

eND + button

1 2

3 4

Rear View

Moisture alarm window

PART NAMES AND FUNCTIONS

LCD Window

ISO/FN button

OK button

1/4”-20 size mounting threads

EV / Down button

M16 Accessory port

Port lock safety button

Port index mark

Menu button

2x M16 Accessory ports

Zoom knob LOCK lever

Port locking lever

Focus knob LOCK lever

Power button

Shutter / Up button

Fn3 button

Top + Front Views

PART NAMES AND FUNCTIONS

Back + Side Views

Focus knob Housing unlock button

1/4” Threaded tripod holes

Zoom knob

Zinc Anodes

OPENING THE HOUSING

depress housing unlock button

turn housing lock latch

anti-clockwise to open the

housing

flip open the back housing

when lock latch is aligned to

‘open’ position

* drawings as illustrations only

CLOSING THE HOUSING

before closing the housing, clean

and lubricate the main O-ring

make sure nothing is caught

between front and back housing

and that they are fully aligned

before locking

main O-ring

insert the housing shaft into the

shaft hole and then rotate the lock

latch clockwise until you hear and

feel it click into place

housing locked in place securely

* drawings as illustrations only

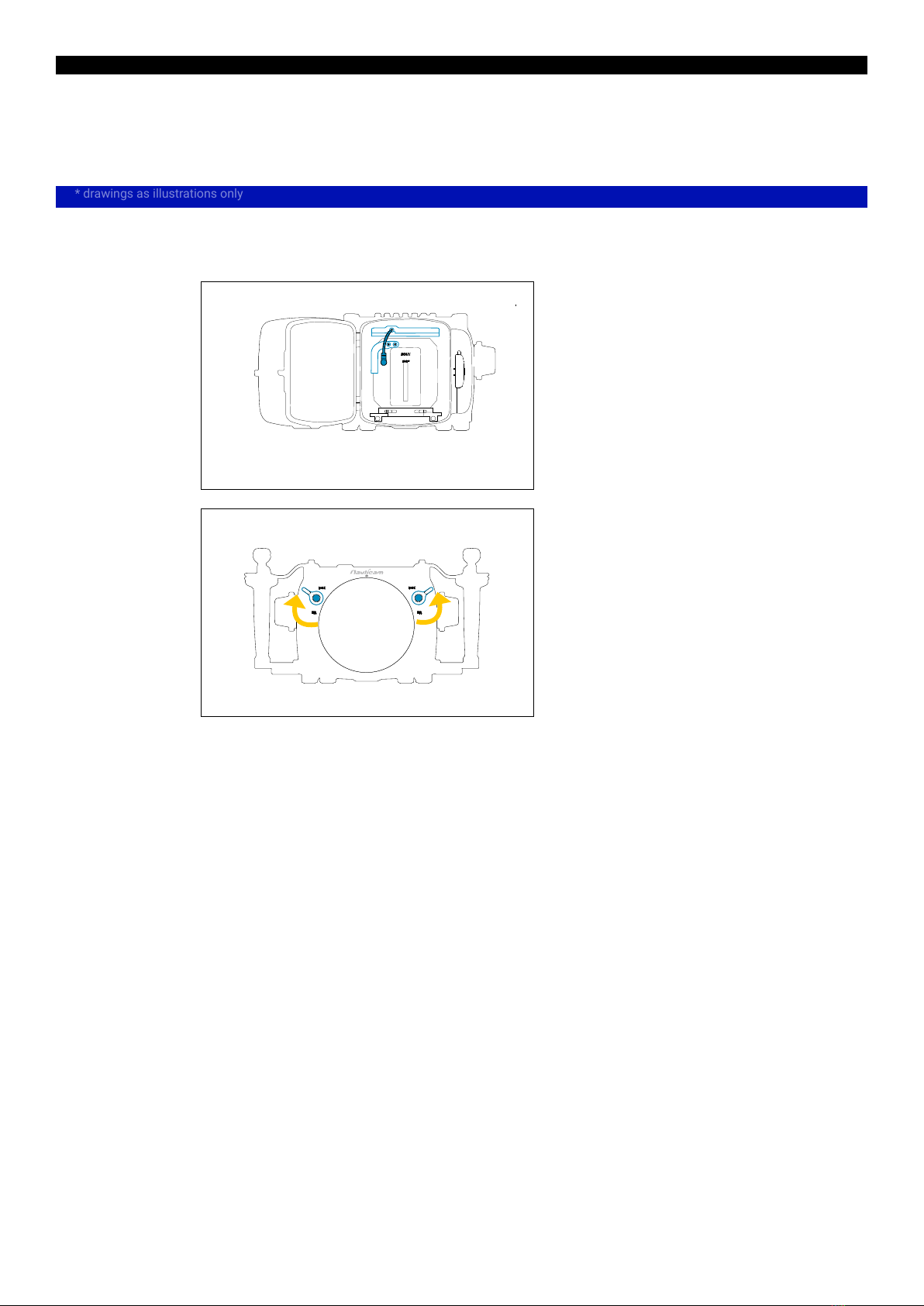

PREPARATION FOR USE

Installing the Camera

unlock camera tray lever and

remove the tray from the housing

slide the camera tray back into

the housing along the tray rail

attach the camera tray by tightening

the tray screw into the tripod socket

of the camera

turn zoom and focus knob lock

levers to REL positions.

* drawings as illustrations only

PREPARATION FOR USE

Installing the Camera

* drawings as illustrations only

Place the zoom and focus knobs

in place by turning the knob lock

levers and make sure it is

engaged with lens gears

lock camera tray

Then, connect LANC control cable
