National Instruments NI-9361 Manual de usuario

NI-9361

GETTING STARTED GUIDE

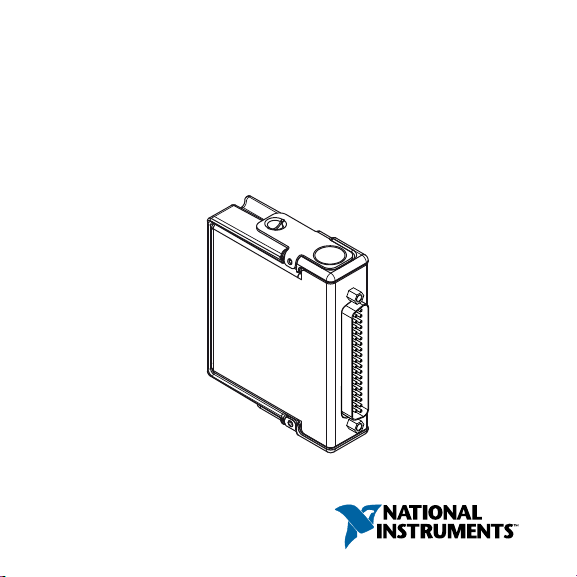

NI 9361

8 Counter DI, 0 V to 5 V Differential/0 V to 24 V

Single-Ended, 32 Bit, 102.4 kHz

This document explains how to connect to the NI 9361.

Note Before you begin, complete the software and

hardware installation procedures in your chassis

documentation.

Note The guidelines in this document are specific to

the NI 9361. The other components in the system might

not meet the same safety ratings. Refer to the

documentation for each component in the system to

determine the safety and EMC ratings for the entire

system.

Safety Guidelines

Operate the NI 9361 only as described in this document.

Caution Do not operate the NI 9361 in a manner not

specified in this document. Product misuse can result in

a hazard. You can compromise the safety protection

built into the product if the product is damaged in any

way. If the product is damaged, return it to NI for

repair.

2| ni.com | NI 9361 Getting Started Guide

Safety Voltages

Connect only voltages that are within the following limits:

Isolation

Channel-to-channel None

Channel-to-earth ground (up to 3000 m)

Continuous 60 VDC, Measurement

Category I

Withstand 1,000 Vrms, verified by a 5 s

dielectric withstand test

Vsup inputs-to-earth ground (up to 3000 m)

Continuous 60 VDC, Measurement

Category I

Withstand 1,000 Vrms, verified by a 5 s

dielectric withstand test

NI 9361 Getting Started Guide | © National Instruments | 3

Channel-to-earth ground (up to 5000 m)

Continuous 60 VDC, Measurement

Category I

Withstand 860 Vrms, verified by a 5 s

dielectric withstand test

Vsup inputs-to-earth ground (up to 5000 m)

Continuous 60 VDC, Measurement

Category I

Withstand 860 Vrms, verified by a 5 s

dielectric withstand test

Measurement Category I is for measurements performed on

circuits not directly connected to the electrical distribution system

referred to as MAINS voltage. MAINS is a hazardous live

electrical supply system that powers equipment. This category is

for measurements of voltages from specially protected secondary

circuits. Such voltage measurements include signal levels, special

equipment, limited-energy parts of equipment, circuits powered

by regulated low-voltage sources, and electronics.

4| ni.com | NI 9361 Getting Started Guide

Caution Do not connect the NI 9361 to signals or use

for measurements within Measurement Categories II,

III, or IV.

Note Measurement Categories CAT I and CAT O are

equivalent. These test and measurement circuits are not

intended for direct connection to the MAINS building

installations of Measurement Categories CAT II,

CAT III, or CAT IV.

Safety Guidelines for Hazardous Locations

The NI 9361 is suitable for use in Class I, Division 2, Groups A,

B, C, D, T4 hazardous locations; Class I, Zone 2, AEx nA IIC T4

and Ex nA IIC T4 hazardous locations; and nonhazardous

locations only. Follow these guidelines if you are installing the

NI 9361 in a potentially explosive environment. Not following

these guidelines may result in serious injury or death.

Caution Do not disconnect I/O-side wires or

connectors unless power has been switched off or the

area is known to be nonhazardous.

NI 9361 Getting Started Guide | © National Instruments | 5

Caution Do not remove modules unless power has

been switched off or the area is known to be

nonhazardous.

Caution Substitution of components may impair

suitability for Class I, Division 2.

Caution For Division 2 and Zone 2 applications,

install the system in an enclosure rated to at least IP54

as defined by IEC/EN 60079-15.

Special Conditions for Hazardous Locations Use

in Europe and Internationally

The NI 9361 has been evaluated as Ex nA IIC T4 Gc equipment

under DEMKO Certificate No. 12 ATEX 1202658X and is

IECEx UL 14.0089X certified. Each NI 9361 is marked II 3G

and is suitable for use in Zone 2 hazardous locations, in ambient

temperatures of -40 °C ≤ Ta ≤ 70 °C. If you are using the NI 9361

in Gas Group IIC hazardous locations, you must use the device in

an NI chassis that has been evaluated as Ex nC IIC T4, Ex IIC

T4, Ex nA IIC T4, or Ex nL IIC T4 equipment.

Caution You must make sure that transient

disturbances do not exceed 140% of the rated voltage.

6| ni.com | NI 9361 Getting Started Guide

Caution The system shall only be used in an area of

not more than Pollution Degree 2, as defined in

IEC 60664-1.

Caution The system shall be mounted in an

ATEX/IECEx-certified enclosure with a minimum

ingress protection rating of at least IP54 as defined in

IEC/EN 60079-15.

Caution The enclosure must have a door or cover

accessible only by the use of a tool.

Electromagnetic Compatibility Guidelines

This product was tested and complies with the regulatory

requirements and limits for electromagnetic compatibility (EMC)

stated in the product specifications. These requirements and

limits provide reasonable protection against harmful interference

when the product is operated in the intended operational

electromagnetic environment.

This product is intended for use in industrial locations. However,

harmful interference may occur in some installations, when the

product is connected to a peripheral device or test object, or if the

NI 9361 Getting Started Guide | © National Instruments | 7

product is used in residential or commercial areas. To minimize

interference with radio and television reception and prevent

unacceptable performance degradation, install and use this

product in strict accordance with the instructions in the product

documentation.

Furthermore, any changes or modifications to the product not

expressly approved by National Instruments could void your

authority to operate it under your local regulatory rules.

Caution To ensure the specified EMC performance,

operate this product only with shielded cables and

accessories.

Caution To ensure the specified EMC performance,

the length of all I/O cables must be no longer than 30 m

(100 ft).

Special Conditions for Marine Applications

Some products are Lloyd’s Register (LR) Type Approved for

marine (shipboard) applications. To verify Lloyd’s Register

certification for a product, visit ni.com/certification and search

for the LR certificate, or look for the Lloyd’s Register mark on

the product.

8| ni.com | NI 9361 Getting Started Guide

Caution In order to meet the EMC requirements for

marine applications, install the product in a shielded

enclosure with shielded and/or filtered power and

input/output ports. In addition, take precautions when

designing, selecting, and installing measurement probes

and cables to ensure that the desired EMC performance

is attained.

Preparing the Environment

Ensure that the environment in which you are using the NI 9361

meets the following specifications.

Operating temperature

(IEC 60068-2-1, IEC 60068-2-2)

-40 °C to 70 °C

Operating humidity

(IEC 60068-2-78)

10% RH to 90% RH,

noncondensing

Pollution Degree 2

Maximum altitude 5,000 m

Indoor use only.

NI 9361 Getting Started Guide | © National Instruments | 9
