National Instruments SbRIO-9629 Manual de usuario

Quick Reference Guide

sbRIO-9629

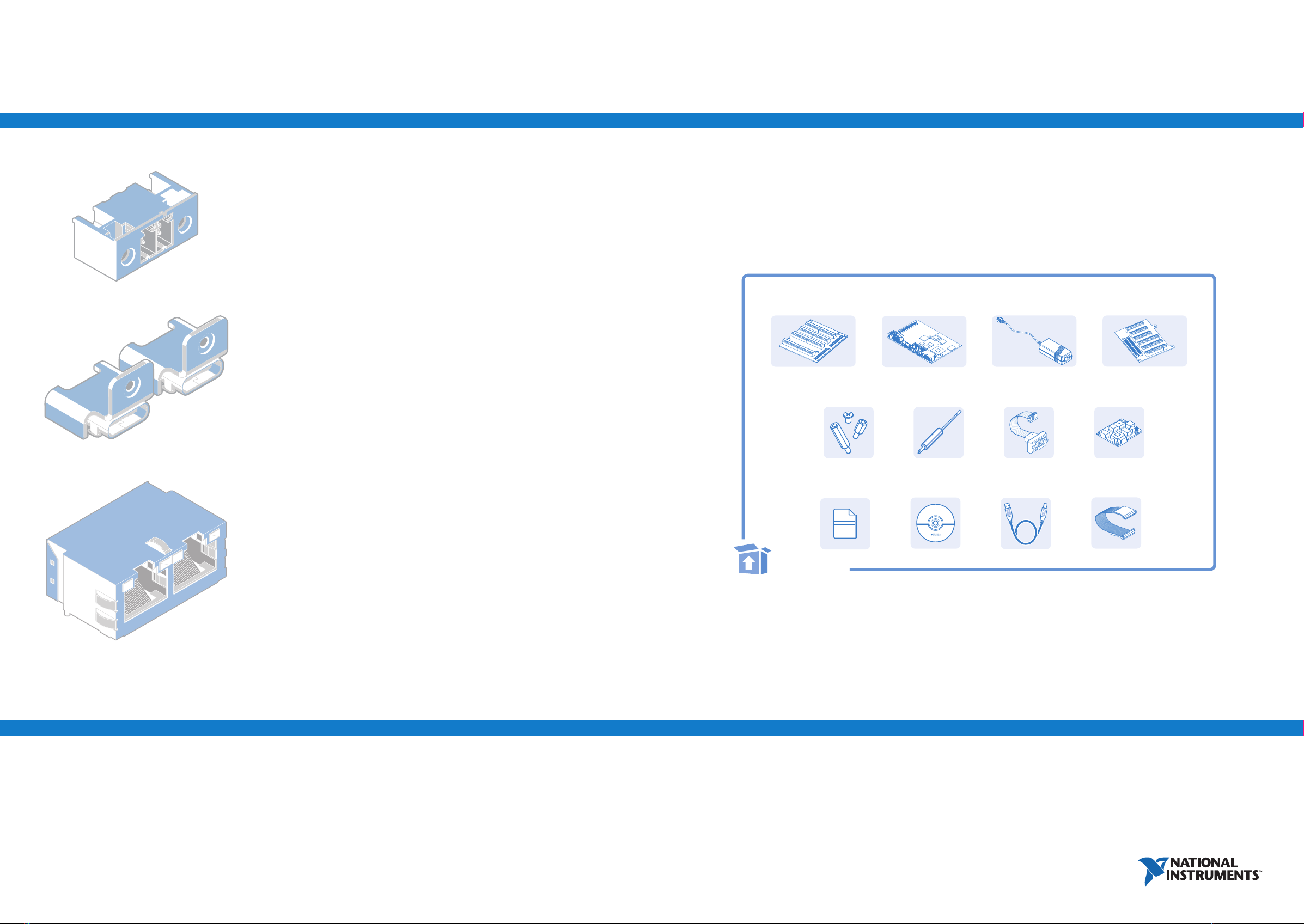

Kit Contents

Screwdriver

IDC to

DSUB Cable

Thermal

Kit

Standoffs

and Screws

Documentation Driver Media USB Cable 50-Pin IDC Cable

Power SupplysbRIO-9629

RMC Breakout

Board IDC Breakout Board

Information is subject to change without notice. Refer to the NI Trademarks and Logo Guidelines at ni.com/trademarks for more information on NI trademarks.

Other product and company names mentioned herein are trademarks or trade names of their respective companies. For patents covering NI products/

technology, refer to the appropriate location: Help»Patents in your software, the patents.txt file on your media, or the National Instruments Patents Notice at

ni.com/patents. You can find information about end-user license agreements (EULAs) and third-party legal notices in the readme file for your NI product. Refer

to the Export Compliance Information at ni.com/legal/export-compliance for the NI global trade compliance policy and how to obtain relevant HTS codes,

ECCNs, and other import/export data. NI MAKES NO EXPRESS OR IMPLIED WARRANTIES AS TO THE ACCURACY OF THE INFORMATION CONTAINED HEREIN

AND SHALL NOT BE LIABLE FOR ANY ERRORS. U.S. Government Customers: The data contained in this manual was developed at private expense and is subject

to the applicable limited rights and restricted data rights as set forth in FAR 52.227-14, DFAR 252.227-7014, and DFAR 252.227-7015.

For a complete list of resources go to the following URL: n i.c o m /r/s b r io

377898A-03 Nov19

Connect to the Host Computer via Ethernet

1. Power on the host computer.

2. Connect the sbRIO-9629 to the host computer using a standard Category 5

(CAT-5) or better shielded, twisted-pair Ethernet cable.

Connect to Power

1. Ensure that your power supply is powered off.

2. Insert the power connector plug into the power connector receptacle of

the sbRIO-9629 until the connector latches into place.

3. Turn on the power supply.

Connect to the Host Computer via USB

1. Power on the host computer.

2. Connect the USB Type-C 2.0 device port of the sbRIO-9629 to the

host computer using a Type-C to Type-A USB cable.

FPGA_VIO [48-95]

sbRIO-9629

Intel Atom E3845

Quad-Core

1.91 GHz Processor

UARTRS-232

UARTRS-485

High-Speed CAN

Xilinx Artix-7 200T

Real-Time

Clock

Digital I/O [0-47], SE/LVDS

Digital I/O [48-95], SE/LVDS

Temperature

Sensors

Watchdog

4 GB

eMMC Disk

2 GB

DDR3L

4x Digital I/O

(5 VTolerant)

16x Multiplexed

Analog Input

RS-232

Console Out

RS-485

RJ-45TSN Gigabit

Ethernet Port

RJ-45TSN Gigabit

Ethernet Port

USB 2.0 Host

Type-A Connector

USB 2.0 Host

Type-A Connector

USB 2.0 Device

Type-C Connector

USB 3.1 Host

Type-C Connector

with DisplayPort

MicroSD

Connector

4x Analog

Output

XCVR

PHY

CAN Port

Connector0 (MIO)

CAN

Controller

5 V

3.3 V

PCIe x1 Gen 2

USB 2.0

Battery Holder

(1632)

SATA 2.0

VBAT

FPGA_VIO [0-47]

2.5 V/3.3 V

Power Selector

2.5 V/3.3 V

Power Selector

9-30 VDC

Input

Power

Selection and

Protection

On-board

Power

Supplies

Power

Connector

Configurable per Module

NI-DAQmx

Technology

Configurable per Module

NI-DAQmx

Technology

Optional System

Power 9-30 VDC

2x C Series

Module Interface

RMC Connector

(240-pin 60x4 Searay)

LabVIEW FPGA API Data Path

Processor Data Path

NI-DAQmx API Data Path

Power Path

External Connector/Port

sbRIO-9629 Block Diagram

V– (GND)

Shield

CAN_H

CAN_L

V– (GND)

Shield

CAN Pinout

DCD

TXD

GND

RTS

RXD

DTR

DSR

CTS

Shield

RS-232 Pinout (ASRL1, ASRL2)

2 3 4 5 6 7 98 10 11 12

1. Power LED

2. Status LED

3. User1 LED

4. User FPGA1 LED

5. SD in Use LED

1. Connector0 (MIO Port) 8. CAN port

2. RS-485 port (ASRL3) 9. USB Type-C 2.0 device port

3. RS-232 port (ASRL2) 10. USB Type C 3.1 host port

4. USB Type-A 2.0 host port 11. RS-232 serial port (ASRL1)

5. USB Type-A 2.0 host port 12. Ethernet ports

6. MicroSD port 13. RMC Connector

7. Power terminal

sbRIO-9629 LEDs

sbRIO-9629 Parts Locator Diagram

GND

RXD–

TXD–

RXD+

TXD+

Shield

RS-485 (ASRL3) Pinout

AGND

AI8

AI9

AGND

AI10

AI11

AGND

AI12

AI13

AGND

AI14

AI15

AGND

DGND

AI0

AGND

AI1

AI2

AGND

AI4

AI3

AGND

AI5

AI6

AGND

AI7

AO0

AO1

AO2

AO3

DIO0

DIO1

DIO3

DIO2

Connector0 (MIO port) Pinout
