FIELDPOINT OPERATING INSTRUCTIONS AND SPECIFICATIONS

cFP-2200/2210/2220

Intelligent Real-Time Controllers for Compact FieldPoint

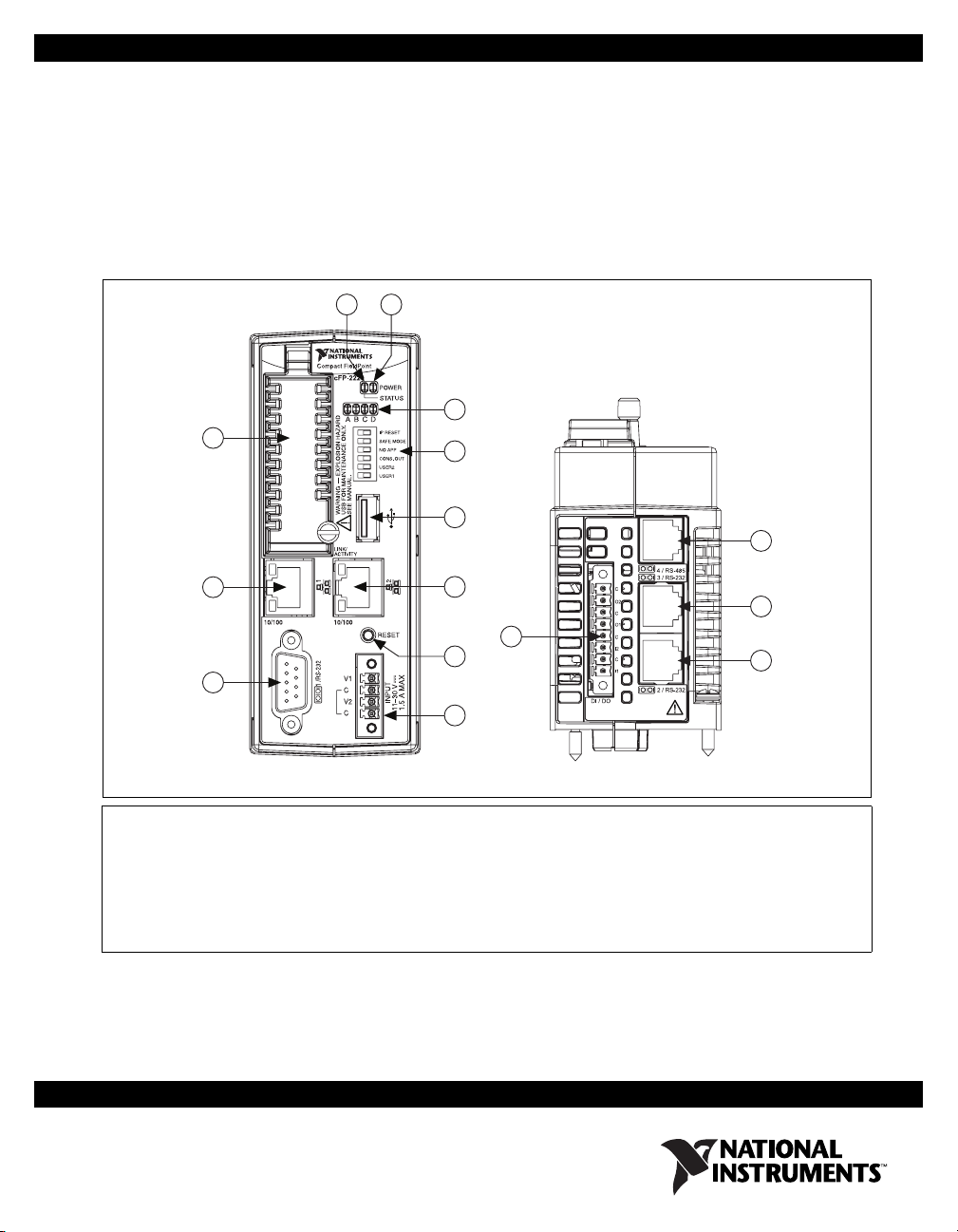

Figure 1. cFP-22xx, Front and Bottom Views

1 RS-232 Serial Port

2 RJ-45 Ethernet Port 1

3 Removable Compact Flash (cFP-2220 Only)

4 Status LED

5 Power LED

6 User-Configurable LEDs

7 DIP Switches

8 USB Port (cFP-2220 Only)

9 RJ-45 Ethernet Port 2 (cFP-2220 Only)

10 Reset Button

11 Power Connector

12 Digital Input/Output Terminals (cFP-2220 Only)

13 RS-485 Serial Port (cFP-2220 Only)

14 RS-232 Serial Port (cFP-2220 Only)

15 RS-232 Serial Port (cFP-2210 and cFP-2220 Only)

BottomBottom

Front

cFP-2200/2210/2220 2 ni.com

This document describes how to mount the cFP-2200/2210/2220

controllers, how to connect the controllers to networks, and how to use

the features of the controllers. This document also contains specifications

for the controllers. In this document, the cFP-2200/2210/2220 controllers

are referred to inclusively as the cFP-22xx.

What You Need to Install the cFP-22xx

❑cFP-22xx intelligent real-time controller

❑cFP-BP-4 or cFP-BP-8 Compact FieldPoint backplane

❑Compact FieldPoint I/O modules

❑Compact FieldPoint connector blocks and/or cables

❑Ethernet cable

❑Mounting hardware (DIN rail, panel-mount, or rack-mount accessory)

❑Two M4 or number 10 panhead screws (for panel mounting only)

❑Number 2 Phillips screwdriver

❑14 AWG (1.6 mm) wire with ring lug to fit #8 screw

❑11–30 VDC Power supply

❑PC running Windows

❑FieldPoint software 6.0.1 or later

❑LabVIEW Real-Time Module 8.5.1 or later

Mounting the Compact FieldPoint Backplane

You can mount the cFP-BP-xbackplane on a 35 mm DIN rail, on a panel,

or in a standard 19 in. rack. NI recommends DIN rail mounting for the

cFP-BP-4 only. Use panel mounting or rack mounting for the cFP-BP-8.

Use the panel mounting method for high shock and vibration applications.

Before using any mounting method, record the serial number from the back

of the backplane. You will be unable to read the serial number after you

have mounted the backplane.

Each set of mounting instructions in this document includes an instruction

to connect the protective earth (PE) ground terminal on the cFP-BP-x

backplane to the system safety ground. The backplane PE ground terminal

©National Instruments Corporation 3 cFP-2200/2210/2220

has the following symbol stamped beside it: . Connect the backplane PE

ground terminal to safety ground using 14 AWG (1.6 mm) wire with a ring

lug. Use the 5/16 in. panhead screw shipped with the backplane to secure

the ring lug to the backplane PE ground terminal.

To ensure maximum cooling efficiency, mount the Compact FieldPoint so

that the I/O module vents are at the top and bottom, as shown in the

following figure:

Figure 2. cFP-22xx Installed on cFP-BP-4 Mounted Upright

Caution Your installation must meet the following requirements for space and cabling

clearance:

• Allow at least 51 mm (2 in.) all around the backplane for air circulation.

• Allow 38 mm (1.5 in.) below and 51 mm (2 in.) above the controller.

cFP-2200/2210/2220 4 ni.com

Figure 3. cFP-22xx Installed on cFP-BP-x, Bottom View with Dimensions

Figure 4. cFP-22xx Installed on cFP-BP-4, Front View with Dimensions

Cabling

Clearance

4 slots= 246 mm (9.68in.)

8slots= 441 mm (17.4 in.)

Cooling Outline 51 mm (2 in.) Cooling Outline 51 mm (2 in.)

Min. 182 mm (7.18in.)

106 mm (4.18in.)

Cabling Clearance Cooling Outline 51 mm (2 in.) All Around

4 slots= 246 mm (9.68in.)

8slots= 441 mm (17.4 in.)

127 mm

(5.00 in.)

Min. 165 mm

(6.50 in.)

©National Instruments Corporation 5 cFP-2200/2210/2220

Figure 5. cFP-BP-8, Back View with Dimensions

Figure 6. cFP-BP-4, Back View with Dimensions

Caution Make sure that no I/O modules are in the backplane before mounting it.

104.78 mm

(4.1 in.)

63.50 mm

(2.5 in.)

22.23 mm

(0.9 in.)

33.15 mm

(1.3 in.)

129.54 mm

(5.1 in.)

311.40 mm

(12.3 in.)

387.60 mm

(15.3 in.)

407.80 mm

(16.1 in.)

127.00 mm

(5.0 in.)

440.94 mm

(17.4 in.)

104.74 mm

(4.1 in.)

63.46 mm

(2.5 in.)

127.00 mm

(5.0 in.)

22.19 mm

(0.9 in.)

34.04 mm

(1.3 in.)

84.84 mm

(3.3 in.)

161.04 mm

(6.3 in.)

211.84 mm

(8.3 in.)

245.87 mm

(9.6 in.)

cFP-2200/2210/2220 6 ni.com

Mounting the Backplane on a DIN Rail

The DIN rail mounting kit is NI part number 778614-01. You need one kit

to mount the cFP-BP-4 on a standard 35 mm DIN rail. Complete the

following steps to mount the backplane on a DIN rail.

1. Fasten the DIN rail clip to the cFP-BP-4 using a number 2 Phillips

screwdriver and the 8-32 ×5/16 in. countersink screws shipped with

the mounting kit.

Figure 7. Installing the DIN Rail Clip on the cFP-BP-4

Caution Do not use screws longer than 5/16 in. to fasten the DIN rail clip to the backplane.

2. Insert one edge of the DIN rail into the deeper opening of the DIN rail

clip, as shown in Figure 8.

Figure 8. One Edge of DIN Rail Inserted in Clip

1 DIN Rail Clip 2 DIN Rail Spring 3 DIN Rail

NATIONAL

INSTRUMENTS

©National Instruments Corporation 7 cFP-2200/2210/2220

3. Press down firmly on the backplane to compress the spring until the

clip locks in place on the DIN rail.

4. Connect the PE ground terminal on the backplane to safety ground.

Caution Disconnect power and make sure that no I/O modules are in the backplane before

removing it from the DIN rail.

Mounting the Backplane on a Panel

The horizontal panel-mount kit has mounting holes on the sides of the

backplane and is NI part number 778616-01. The vertical panel-mount kit

has mounting holes on the top and bottom of the backplane and is NI part

number 778688-01. Complete the following steps to mount the system on

a flat surface.

1. Fasten the panel-mount plates to the back of the cFP-BP-xusing a

number 2 Phillips screwdriver and the 8-32 ×5/16 in. countersink

screws shipped with the kit. You must use these screws because they

are the correct depth and thread for the plates and backplane.

Figure 9. Installing the Horizontal Panel-Mount Kit on the cFP-BP-4

NATIONAL

INSTRUMENTS

cFP-2200/2210/2220 8 ni.com

Figure 10. cFP-BP-4 with Horizontal Panel Mount Kit Installed,

Front View with Dimensions

Figure 11. cFP-BP-8 with Horizontal Panel-Mount Kit Installed,

Front View with Dimensions

Figure 12. Installing the Vertical Panel-Mount Kit on the cFP-BP-4

260 mm (10.25 in.)

102 mm

(4 in.)

102 mm

(4 in.)

457 mm (18 in.)

NATIONAL

INSTRUMENTS

©National Instruments Corporation 9 cFP-2200/2210/2220

Figure 13. cFP-BP-4 with Vertical Panel-Mount Kit Installed,

Front View with Dimensions

Figure 14. cFP-BP-8 with Vertical Panel-Mount Kit Installed,

Front View with Dimensions

2. Bolt or screw the plates to a panel.

3. Connect the PE ground terminal on the cFP-BP-xto safety ground.

Caution Disconnect power and make sure that no I/O modules are in the backplane before

removing it from the panel.

178 mm (7 in.)

152 mm (6 in.)

246 mm (9.7 in.)

178 mm (7.0 in.)

34.0 mm (1.34 in.)

7.6 mm (0.30 in.)

17.8 mm (0.70 in.)

457 mm (18 in.)

374 mm (14.7 in.)

178 mm (7 in.)

152 mm (6 in.)

33.1 mm (1.31 in.)

7.6 mm

(0.30 in.)

17.8 mm

(0.70 in.)

cFP-2200/2210/2220 10 ni.com

Mounting the Backplane in a Standard 19 in. Rack

The rack-mount kit for Compact FieldPoint is NI part number 778615-01.

The following figure shows the dimensions of the rack-mount kit.

Figure 15. Dimensions of Rack-Mount Kit

Complete the following steps to mount the system in a rack.

1. Fasten the rack-mount bracket to the back of the cFP-BP-xusing the

captive screws on the bracket.

2×

21.34 mm

(0.840 in.)

4×Radius

2.29 mm

(0.090 in.)

444.5 mm

(17.500 in.)

2.29 mm

(0.090 in.)

8×Diameter

374.65 mm

(14.750 in.)

278.89 mm

(10.980 in.)

177.8mm

(7.000 in.)

25.4 mm

(1.000 in.)

66.29 mm

(2.610 in.)

37.69 mm

(1.484 in.)

37.72 mm

(1.485 in.)

152.15 mm

(5.990 in.)

76.2 mm

(3.000 in.)

152.4 mm

(6.000 in.)

33.15 mm

(1.305 in.)

132.56 mm

(5.219 in.)

82.52 mm

(3.249 in.)

38.1 mm

(1.500 in.)

2×

34.93mm

(1.375 in.)

2×Radius

25.4 mm

(1.000 in.)

50.8mm

(2.00 in.)

+0.003in.

–0.001 in.

25.02 mm (0.985 in.)

2×

6.91 mm

(0.272 in.) 63.07 mm

(2.483 in.)

0.250 in.

+0.07 mm

–0.02 mm

6.35 mm

()

+0.003in.

–0.000 in.

0.312 in.

+0.07 mm

0 mm

7.92 mm

()

179.32 mm

(7.060 in.)

Diameter

10.59 mm

(0.417 in.)

7.06 mm

(0.278in.)

Full Radius

4×
