MuxLab Pro Digital 500452 Manual de usuario

HDMI/USB-C KVM Extender

Kit HDBT, 4K/60

Operation Manual

(500452)

HDMI/USB-C KVM Extender Kit HDBT, 4K/60 Operation Manual
MuxLab © 2021                                                  2                                        94-000966-A/SE-000966-A


                      Table of Contents

Safety Precautions...................................................................................3
Introduction.............................................................................................4
Features....................................................................................................5
Package Contents ....................................................................................5
Specifications...........................................................................................6
Product Dimensions ................................................................................8
Typical Application .................................................................................8
Operation Controls and Functions........................................................9
1 Transmitter Panel.......................................................................9
2 Reciver Panel ............................................................................10
Troubleshooting.....................................................................................11



HDMI/USB-C KVM Extender Kit HDBT, 4K/60 Operation Manual

1. Safety Precautions

To ensure the best performance from the product, please read all instructions carefully before using

the device. Save this manual for future reference.

⚫Follow basic safety precautions to reduce the risk of fire, electrical shock, and injury.

⚫Do not dismantle the housing or modify the module. It may result in electrical shock or burns.

⚫Do not open or remove the housing of the device as you may be exposed to dangerous voltage

or other hazards.

⚫To prevent fire or shock hazard, do not expose the unit to rain, moisture and do not install this

product near water. Keep the product away from liquids.

⚫Spillage into the housing may result in fire, electrical shock, or equipment damage. If an object

or liquid falls or spills on the housing, unplug the module immediately.

⚫Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power to the device

before cleaning.

⚫Using supplies or parts not meeting the product specifications may cause damage, deterioration

or malfunction.

⚫Refer all servicing to qualified service personnel.

⚫Install the device in a place with adequate ventilation to avoid damage caused by overheat.

⚫Unplug the power when left unused for a long period of time.

⚫Information on disposal of devices: do not burn or mix with general household waste, please

treat them as normal electrical waste.

All contents in this manual are copyrighted, and cannot be cloned, copied, or translated without the

express permission of MuxLab Inc. Product specifications and information in this document are for

reference only, and the content may be updated from time to time without prior notice.

HDMI/USB-C KVM Extender Kit HDBT, 4K/60 Operation Manual

2. Introduction

The MuxLab HDMI/USB-C KVM Extender Kit HDBT, 4K/60 (500452) allows one HDMI channel

and one USB2.0 channel to be transmitted over distances of up to 131ft (40m) at 4K@60Hz (4:4:4)

resolution, or 230ft (70m) at resolutions up to 1080p via one (1) Cat 6/6a/7 unshielded twisted pair

cable in a point-to-point configuration.

The MuxLab HDMI/USB-C KVM Extender Kit HDBT, 4K/60 includes one (1) transmitter and one

(1) receiver. The transmitter is a wall plate HDBT 2x1 switcher with HDMI and USB-C input. It

features a US one-gang enclosure for Decora-style wall plate openings. The USB-C input provides

an ideal AV interface for connecting with new Apple notebooks and Windows® PCs as well as

smartphones and tablets. The Transmitter is remotely powered by the Receiver via PoC. The Receiver

features a 1x2 USB2.0 hub for transferring USB2.0 data transmissions and has analog audio output.

HDMI/USB-C KVM Extender Kit HDBT, 4K/60 Operation Manual

3. Features

⚫Compliant with HDMI 2.0b, HDCP 2.2 and DisplayPort 1.2a

⚫Supports 18Gbps video bandwidth

⚫4K @ 60Hz (4:4:4) to distances of up to 131ft (40m) over single Cat6/6a/7 cable

⚫1080p @ 60Hz to distances of up to 230ft (70m) over single Cat6/6a/7 cable

⚫Supports all digital audio modes

⚫Supports HDMI and USB-C input

⚫USB2.0 extension with Receiver

⚫Input signal selection supports automatic or manual mode

⚫USB-C charging port

4. Package Contents

⚫One (1) HDMI/USB-C KVM Extender Kit HDBT, 4K/60 Transmitter

⚫One (1) HDMI/USB-C KVM Extender Kit HDBT, 4K/60 Receiver

⚫One (1) Power supply

⚫Two (2) Wall Mount Brackets

⚫One (1) User manual (available via download)

Notes：Confirm that the product and accessories are all included. If not, please contact the supplier from

which you purchased the unit.

HDMI/USB-C KVM Extender Kit HDBT, 4K/60 Operation Manual

5. Specifications

HDMI Compliance

HDMI 2.0b, DisplayPort 1.2a

HDCP Compliance

HDCP 2.2

Video Bandwidth

18 Gbps

Video Resolution

4096×2160@24/25/30/50/60Hz,

3840×2160@24/25/30/50/60Hz,

2048x1080p@23.98/24/25/29.97/30/50/59.94/60Hz,

1080i@50/59.94/60Hz,

720p@50/59.94/60Hz, 576p, 576i, 480p, 480i

Color Space

RGB, YCbCr 4:4:4, YCbCr 4:2:2, YUV 4:2:0

Color Depth

8/10/12-bit

HDR

HDR10, HDR10+

HDMI Audio Formats

Dolby Atmos, TrueHD, Digital+, Digital; DTS X, HD

Master Audio, HD High Resolution Audio, 5.1; PCM 2-8Ch

Transmission Distance

Max distance (1080p): 230ft / 70m over CAT6/6a/7

Max distance (4K): 131ft / 40m over CAT6/6a/7

ESD Protection

Human body model —±8kV (Air-gap discharge) & ±4kV

(Contact discharge)

Connectors (Transmitter)

Inputs: 1x HDMI Type A [19-pin female]

1x USB-C

Outputs: 1x HDBaseT Out [RJ45, 8-pin female]

1x USB-C (only for charging)

Control: 1x USB-B [Micro USB, Update port]

Connectors (Receiver)

Inputs: 1x HDMI IN [Type A, 19-pin female]

1x HDBaseT IN [RJ45, 8-pin female]

Outputs: 1x HDMI OUT [Type A, 19-pin female]

1x AUDIO OUT [Phoenix jack]

Control: 2x USB [USB A TYPE]

1x FW [Micro USB, Update port]

HDMI/USB-C KVM Extender Kit HDBT, 4K/60 Operation Manual

Power Supply

Receiver: One (1) 110-240V/24VDC Power supply with

interchangeable blades

Transmitter: Powered by the Receiver via PoC (Note: only

one power supply is required if USB devices are being

powered)

Housing

Metal Enclosure

Dimensions (WxDxH)

Wall plate: 1.31” x 2.58” x 2.70” (33.3mm x 65.7mm x

68.7mm)

Faceplate: 2.75” x 0.11” x 4.5” (69.9mm x 3mm x

114.3mm)

Receiver: 7.87” x 3.85” x 0.90” (200mm x 98mm x 23mm)

Weight

Wall plate: 0.43 lbs (0.196 kg)

Receiver: 1.12 lbs (0.511 kg)

Shipping Weight

2.67 lbs (1.21 kg)

Warranty

2 years

Order Information

500452 HDMI/USB-C KVM Extender Kit HDBT,

4K/60 (UPC: 627699004524)

HDMI/USB-C KVM Extender Kit HDBT, 4K/60 Operation Manual

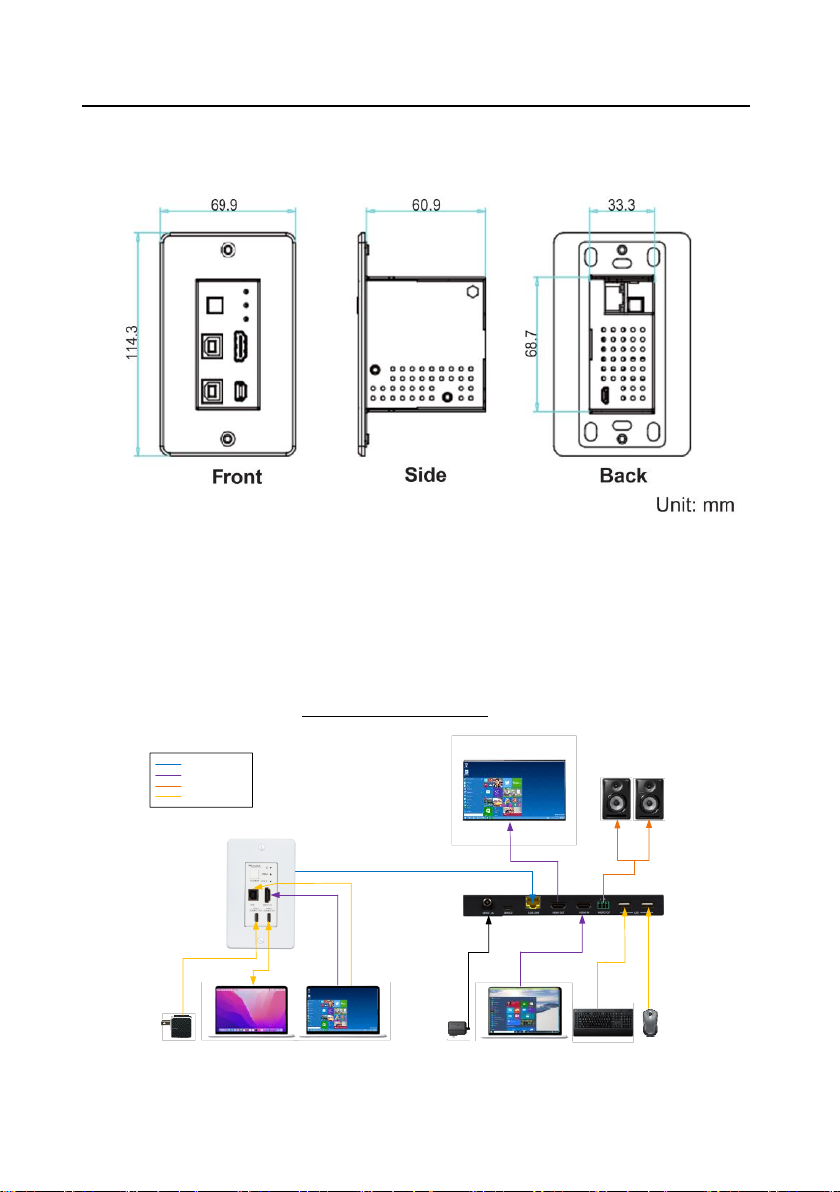

6. Product Dimensions

7. Typical Application

Applications include KMV commercial and residential AV systems, classroom projector systems,

digital signage, boardroom systems and collaborative PC systems,

Typical Application Diagram

CAT6/6a/7 Cable

HDMI Cable

Audio Cable

USB Cable

Speakers

Mouse

Keyboard

MacBook

Power Adapter Laptop/Desktop Laptop/Desktop

Power Adapter

500452- Transmitter

500452- Receiver

(*) The TX is PoC powered by the RX. However anoptional power supply may be used if connected USB devices do not have their own

power supply and must be powered via the TX USB port.

TV or Monitor

HDMI/USB-C KVM Extender Kit HDBT, 4K/60 Operation Manual

8. Operation Controls and Functions

8.1 Transmitter Panel

No.

Name

Function Description

Power LED

The power LED indicator will illuminate in green when the product is

powered on, and red when the product is on standby.

HDMI LED

When the HDMI input port is active and the HDMI signal is detected,

the HDMI LED will illuminate in green.

USB-C LED

When the USB-C input port is active and USB-C signal is detected,

the USB-C LED will illuminate in green.

HDMI port

HDMI input port, connect to HDMI source device.

USB-C port

(1) USB-C signal input port.

(2) Charging port for devices with USB-C port.

CHARGE port

Connect this port to power supply, then the USB-C port will power the

connected device.

USB-B port

Connect to the computer’s USB port.

SOURCE button

Used to switch HDMI / USB-C input signal.

HDBaseT OUT

Connect to the HDBaseT IN port of Receiver with a CAT6/6a/7 cable.

Micro-USB

Firmware update port.

HDMI/USB-C KVM Extender Kit HDBT, 4K/60 Operation Manual

8.2 Reciver Panel

No.

Name

Function Description

Power LED

When the product is powered on, the Power LED indicator will turn on.

DC 24V

DC 24V power supply connector.

Firmware update port.

HDBaseT IN

Connect to the HDBaseT OUT port of Transmitter with a CAT6/6a/7

cable.

HDMI OUT

HDMI output port, connect to HDMI display device.

HDMI IN

HDMI input port, connect to HDMI source device.

AUDIO OUT

Analog audio output port.

USB port

Two USB ports for KVM function.

Note:

The transmitter supports automatic/manual mode for source signal input. In manual switching

mode, press the SOURCE button to select HDMI/ USB-C input source.

In automatic switching mode, the last connected or the currently connected source signal will be

selected automatically; When both HDMI and USB-C ports are connected to active signal, HDMI

signal input is preferred; When both HDMI and USB-C ports are not connected to active signal, it

will switch to the source signal of the Receiver.
