Munters EC52 Manual de usuario

Assembly manual

Spare part list + Assembling guideline

Air extraction fan

Models: EC52 - EC50

Ag/MIT/ImEN-2712-02/19 Rev 1.2

2| © Munters AB, 2020

Assembly manual

Original instructions

Revision 1.2

This document is destined for the user of the apparatus: it may not be reproduced in whole or

in part, committed to computer memory as a file or delivered to third parties without the prior

authorisation of the assembler of the system.

Munters Italy S.p.A. reserves the right to effect modifications to the apparatus in accordance

with technical and legal developments and to make alterations to specifications, quantities, etc.,

for production or other reasons, subsequent to publication.

3| © Munters AB, 2020
CONTENTS

1. SPARE PART LIST EC52..........................................................................4
EC52 exploded view................................................................................................. 4
Spare parts EC52 ..................................................................................................... 7
2. ASSEMBLING TOOLS.............................................................................18
3. ASSEMBLING GUIDELINES...................................................................21
HOUSING ASSEMBLING....................................................................................... 21
CENTRIFUGAL SYSTEM AND PULLEY TO PROPELLER ASSEMBLING.......... 24
CENTRIFUGAL MASS TO CENTRAL SUPPORT ASSEMBLING ........................ 26
SHUTTER BLADES ASSEMBLING....................................................................... 30
EC52 CONE DISCHARGE ASSEMBLING ............................................................ 33
EC50 CONE DISCHARGE ASSEMBLING ............................................................ 35
CONE ASSEMBLING TO FAN............................................................................... 36
OPTIONAL PYRAMIDAL SHAPE MESH ASSEMBLING ...................................... 37
4. SPARE PART LIST EC50........................................................................38
EC50 exploded view............................................................................................... 38
Spare parts EC50 ................................................................................................... 41

 WARNING All the components and spare parts MUST be storaged in dry and clean
environment.

4| © Munters AB, 2020

1. SPARE PART LIST EC52

EC52 exploded view

5| © Munters AB, 2020

DETAIL A

6| © Munters AB, 2020

DETAIL B

DETAIL C

DETAIL D: ALIGNEMENT OF

SHUTTER BLADE

POSITIONING OF PROPELLER

FLANGE

ALIGNEMENT FOR REAR AND FLANGE FLANGES

7| © Munters AB, 2020

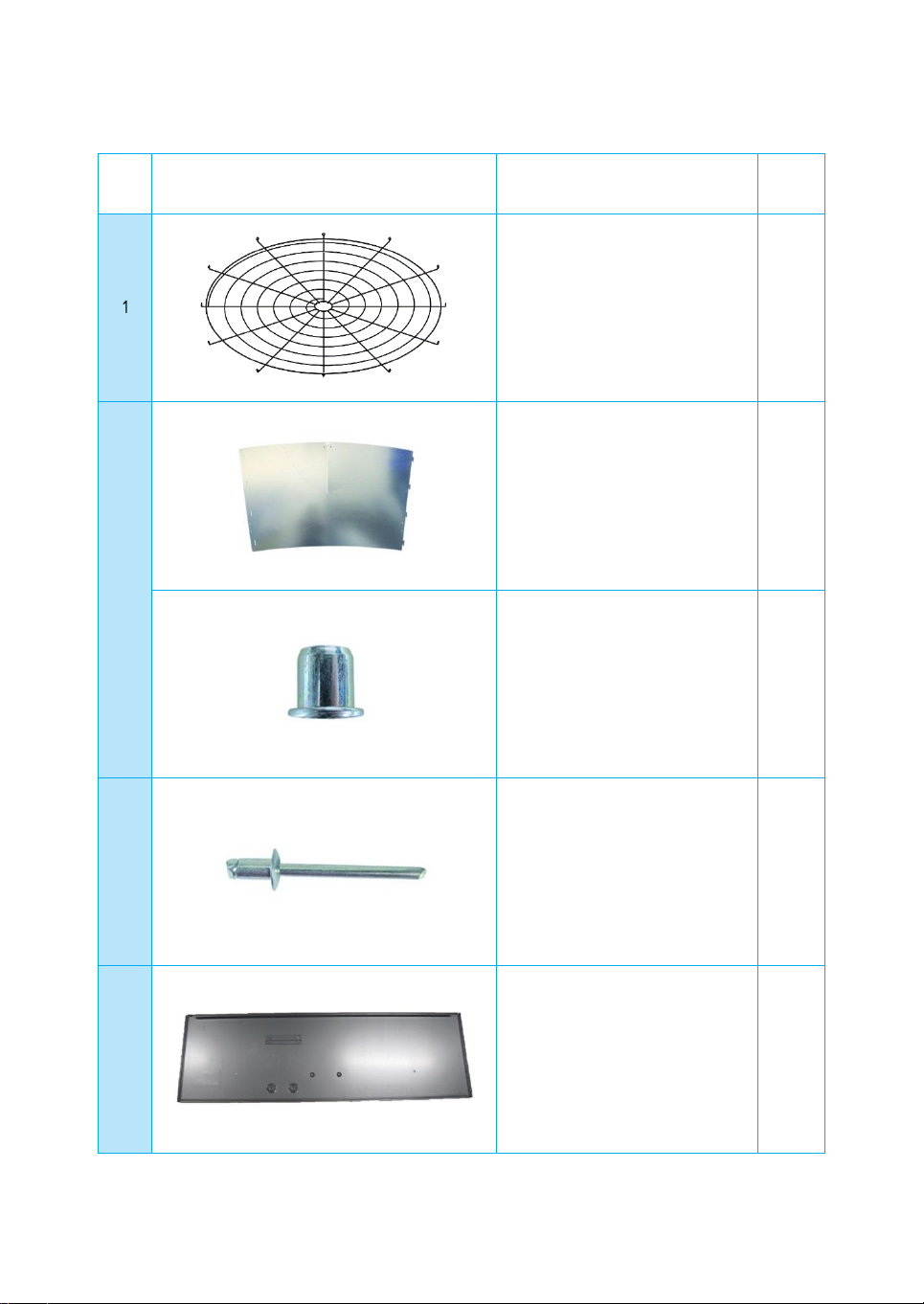

Spare parts EC52

Ref


Description

Q.ty

ROUND SAFETY MESH

CONE SECTOR

THREADED BUSH M8X12.5

POP UP RIVET 6.4X8

TOP PANEL

8| © Munters AB, 2020

Ø8X32 WASHER

HEX SCREW M8X16

MOTOR

HOOK FOR SPRING

RUBBER FOR CABLE

PLASTIC TIE ROD

9| © Munters AB, 2020

CENTRAL PLASTIC BEARING

RIGHT

PLASTIC BEARING RIGHT

SHUTTER BLADE

PLASTIC BEARING LEFT

METAL CLIP FOR MESH

Ø6,3×19 SELF-TAPPING

SCREW

10 | © Munters AB, 2020

PYRAMIDAL SAFETY MESH**

CENTRAL PLASTIC BEARING

LEFT

CENTRAL SHUTTER BLADE

COVER PLATE

SIDE PANEL

BOTTOM PANEL
