X340 (MS-1352) Disassemble Guide

■ 1、BATTERY PACK

■ 2、LOWER CASE ASSY

■3、KEYBOARD

■4、SEPARATE UPPER CASE AND LOWER CASE

■5、HDD MODULE

■ 6、WLAN MODULE

■ 7、LOWER CASE ASSY-1

■ 8、RAM MODULE

■9、LOWER CASE ASSY-2

■10、UPPER CASE ASSY

■11、LCD MODULE ASSY

X340（MS-1352）Disassemble Guide

1、BATTERY PACK

1.1：Move the “Unlock’ button base on left picture

shows;

1.2：Release the “Release” button and move the

battery pack base on left picture.

Component P/N Qty

Battery Pack S9N-2141200-SB3 1

X340（MS-1352）Disassemble Guide

2、LOWER CASE ASSY

2.1：Push the Dummy card firstly, then remove it

after it pop up;

Component P/N Qty

Dummy Card E2P-3512611-Y31 1

2.2：Remove the 10 screws (M2*2.5mm);

Attention: the screw driver touque is: 1.5-2.0Kgf-cm

Component P/N Qty

Screw E43-1202506-H29 10

X340（MS-1352）Disassemble Guide

3、KEYBOARD

3.1：Before removing K/B, firstly release the 2

hooks of the middle of the keyboard upside.

3.2：Insert the stick below the keyboard

3.3：Release the 2 hooks of the two sides of the

keyboard upside, then raise upside of the keyboard

X340（MS-1352）Disassemble Guide

3、KEYBOARD

3.4：Insert the plate, then move the plate from left

to right to remove double-sided adhesive pad.

3.5：Remove the keyboard.

3.6：Firstly push the handspike on two sides of the

K/B cable connector according to the direction as

pic shows; then remove the cable;

Component P/N Qty

Keyboard S1N-1ETC211-SA0 1

X340（MS-1352）Disassemble Guide

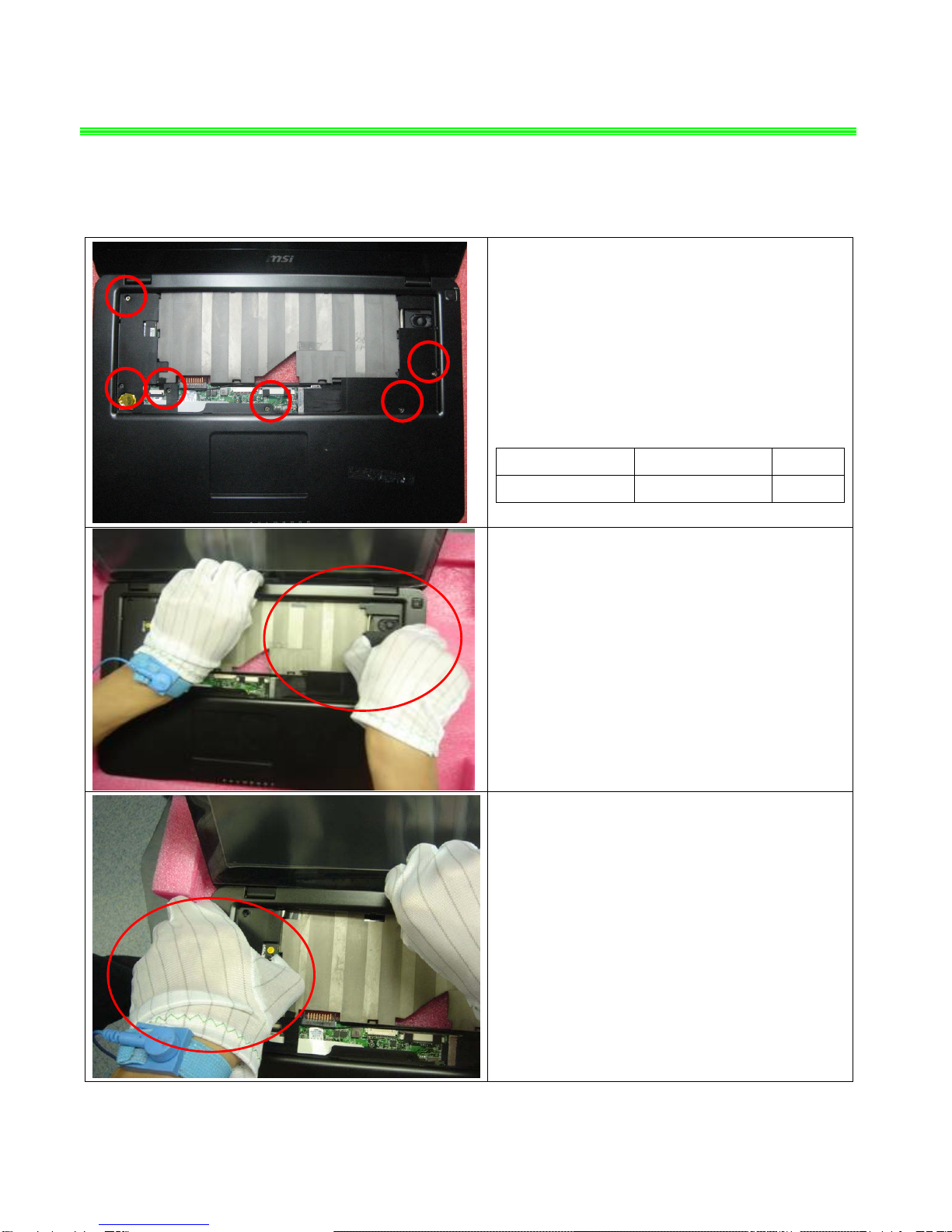

4、SEPARATE UPPER CASE AND LOWER CASE

4.1：Remove the 6 screws(M2*3.5mm);

Attention: the screw driver torque is: 1.5-2.0Kgf-cm

Component P/N Qty

Screw E43-1203501-H29 6

4.2：When remove the Upper case, firstly remove

the right side. Lift the inside of the upper with the

thumb; the other fingers push the upper to left.

4.3：Then remove the left side. Lift the inside of the

upper with the thumb; the other fingers push the

upper to right.

X340（MS-1352）Disassemble Guide

4、SEPARATE UPPER CASE AND LOWER CASE

4.4：When remove the Upper case, detach the

Upper case down side from Lower case;

Attention: Don’t use the heavy strength to

pull the Upper case; and the Touchpad cable

is connected with the main board;

4.5：First release the connector that stabilize the

cable, then remove Touchpad cable according to

the direction that pic shows;

X340（MS-1352）Disassemble Guide

5、HDD MODULE

5.1：Remove the 2 screws(M2*3.5mm);

Attention: the screw driver torque: 1.5-2.0Kgf-cm

Component P/N Qty

Screw E43-1203501-H29 2

5.2：Remove the HDD Module according to the

direction as pic shows;

X340（MS-1352）Disassemble Guide

5、HDD MODULE

5.3：Remove the 3 screws(M3*3.5mm)

that stabilize the bracket;

Attention: the screw driver torque is 3.0-3.5Kgf-cm

Component P/N Qty

Screw E43-1303502-H29 3

5.4：Remove the 3 HDD bracket;

Component P/N Qty

HDD Bracket 307-3510611-A89 3

HDD Module S71-2432504-F06 1

X340（MS-1352）Disassemble Guide

6、WLAN MODULE

6.1：Remove 2 screws(M2*3.5mm)

Attention: the screw driver torque is 1.5-2.0Kgf-cm

Component P/N Qty

Screw E43-1203501-H29 2

6.2：Remove the Wlan board as left pic shows:

Component P/N Qty

Wlan Board 607-1352P-01S 1

6.3：Remove the two side wireless card antenna

as pic shows:
