MRC DW-6163 Manual de usuario

6000 W x 1 W, PF, ACV, ACA

WATT METER

Model : DW-6163 Your purchase of this

WATT METER marks a

step forward for you

into the field of

precision measurement.

Although this METER is

a complex and delicate

instrument, its durable

structure will allow

many years of use if

proper operating

techniques are

developed. Please read

the following

instructions carefully

and always keep this

manual within easy

reach.

OPERATION MANUAL

3, Hagavish st. Israel 58817 Tel: 972 35595252, Fax: 972 3 5594529

[email protected]

MRC. 5.19

Caution Symbol

Caution :

* Risk of electric shock !

Caution :

* Do not apply the overload

voltage, current to the input

terminal !

* Remove test leads before open

the battery cover !

* Cleaning - Only use the dry

cloth to clean the plastic case !

Environment Conditions

* Installation Categories III-600V.

* Pollution Degree 2.

* Altitude up to 2000 meters.

* Indoor use.

* Relative humidity 80% max.

TABLE OF CONTENTS

1. FEATURES....................................................................... 1

2. SPECIFICATIONS........................................................... 1

2-1 General specifications.............................................. 1

2-2 Electrical specifications................................................ 2

3. FRONT PANEL DESCRIPTION............................................ 4

3-1 Display.......................................................................

3-2 POWER/Backlight button..............................................4

3-3 FUNCTION button.......................................................

3-4 HOLD button...............................................................4

3-5 RECORD button ( MAX. / MIN. )................................... 4

3-6 LOAD terminal............................................................ 4

3-7 POWER SOURCE terminal.......................................... 4

3-8 RS-232 output terminal.............................................. 4

3-9 DC 9V Power Adapter input socket...............................

3-10 Battery Cover / Compartment.................................. 4

3-11 Stand........................................................................4

4. MEASUREING PROCEDURES.............................................. 5

4-1 Power ON/OFF............................................................ 5

4-2 ACV measurement procedure....................................... 5

4-3 ACA measurement procedure....................................... 5

4-4 Watt measurement procedure...................................... 6

4-5 Data Hold...................................................................

4-6 Data Record ( Max., Min. reading )............................... 6

4-7 Backlight ON/OFF.......................................................7

4-8 Auto power management.............................................7

5. MAINTENANCE............................................................... 8

6. RS232 PC SERIAL INTERFACE............................................8

7. BATTERY REPLACEMENT...................................................10

8.THE ADDRESS OF AFTER SERVICE CENTER.........................10

1. FEATURES

* Professional precision WATT meter with 1 W resolution

digital display , battery operated.

*LSI - circuit provides high reliability and durability.

* Directly operation.

*Measurement:

WATT ( AC ) : 6000W x 1W.

ACV : 600V x 0.1 V .

ACA : 10 A x 10 m A .

PF : 1.00 x 0.01

* True Power and Wide range 0 W to 6000 Watt.

* True RMS measurement of ACV / ACA.

* Super large LCD , Dual display at same time.

* Full function Auto range.

* Memory Record ( Max. , Min. ) , Data Hold.

* RS232 / USB Computer interface.

* Built-in low battery indicator.

* Built - in backlight easy to readout.

* Power : DC 9V ( 006P ) or AC to DC 9V adapter in.

2. SPECIFICATIONS

2-1 General Specifications

Circuit Custom one-chip of microprocessor LSI

circuit.

Display Large LCD display max. reading 9999.

Digit size : 21.8 x 8.5 mm.

Dual value display with backlight

Measurement ACV 0 to 600.0 V

Unit ACA 0.01 to 10.00 A

WATT 0 to 6000 W

PF 0.01 to 1.00

Over input " ---- " mark indication .

Zero

utomatic adjustment

Sampling Time Approx. 1 second .

Data Hold Freeze the display reading .

Memory Recall Maximum & Minimum value .

Data output RS232 / USB PC Computer interface.

* Connect the optional RS232 cable

UPCB - 02 will get the RS232 plug.

* Connect the optional USB cable

USB - 01 will get the USB plug.

Operation 0 to 50 ( 32 to 122 ).℃℃℉ ℉

Temperature

Operation Less than 80% RH

Humidity

Power Supply Alkaline or Heavy duty type DC 9V battery

006P , MN1604 (PP3) or equivalent.

Power Approx. DC 10 mA

Consumption

Weight 398 g/0.88 LB

Dimension 190 x 88 x 40 mm ( 7.5 x 3.5 x 1.6 inch ).

Accessories Instruction manual....................1 PC

Included Test lead (Red & Black).............1 Pair

Optional AC TO DC 9V adapter

Accessories USB cable , USB - 01

RS232 cable , UPCB - 02

Data Acquisition software, SW-U801-WIN

Excel Data Acquisition software, SW-E802

2-2 Electrical Specifications (23±5 )℃

WATT ( TRUE POWER )

Range Resolution Accuracy

6000 W 1 W ± ( 1%+ 5 W )

* Auto range.

*Measuring Signal come from the front LOAD plug terminals.

*Accuracy is test under input signal is sine wave , 50 / 60 Hz.

*ACV ACA frequency response is from 40 to 400 Hz.

*Max. input value, AC voltage : 600V, AC current : 10 A.

*Accuracy @ 23 ± 5 .℃℃

V/A ( TRUE RMS )

Range Resolution Accuracy

ACV 600 V 0.1 V ± ( 0.3 % + 0.3 V )

ACA 10 A 0.01 A ± ( 0.3 % + 0.03 A )

* Auto range.

*ACV, ACA accuracy is test under input signal is sine wave,

50/ 60 Hz.

*ACV ACA frequency response is from 40 to 400 Hz.

*Max. input value, AC voltage : 600V, AC current : 10 A.

*Accuracy @ 23 ± 5℃℃

PF ( Power factor )

Range Resolution Accuracy

1.00 0.01 ± ( 1 %+ 2d)

* ACV, ACA accuracy is test under input signal is sine wave,

50/ 60 Hz

*ACV ACA frequency response is from 40 to 400 Hz.

*Max. input value, AC voltage : 600V, AC current : 10 A.

*Accuracy @ 23 ± 5℃℃

Above specification tests under the environment RF Field Stren

less than 3 V/M & frequency less than 30 MHz only.

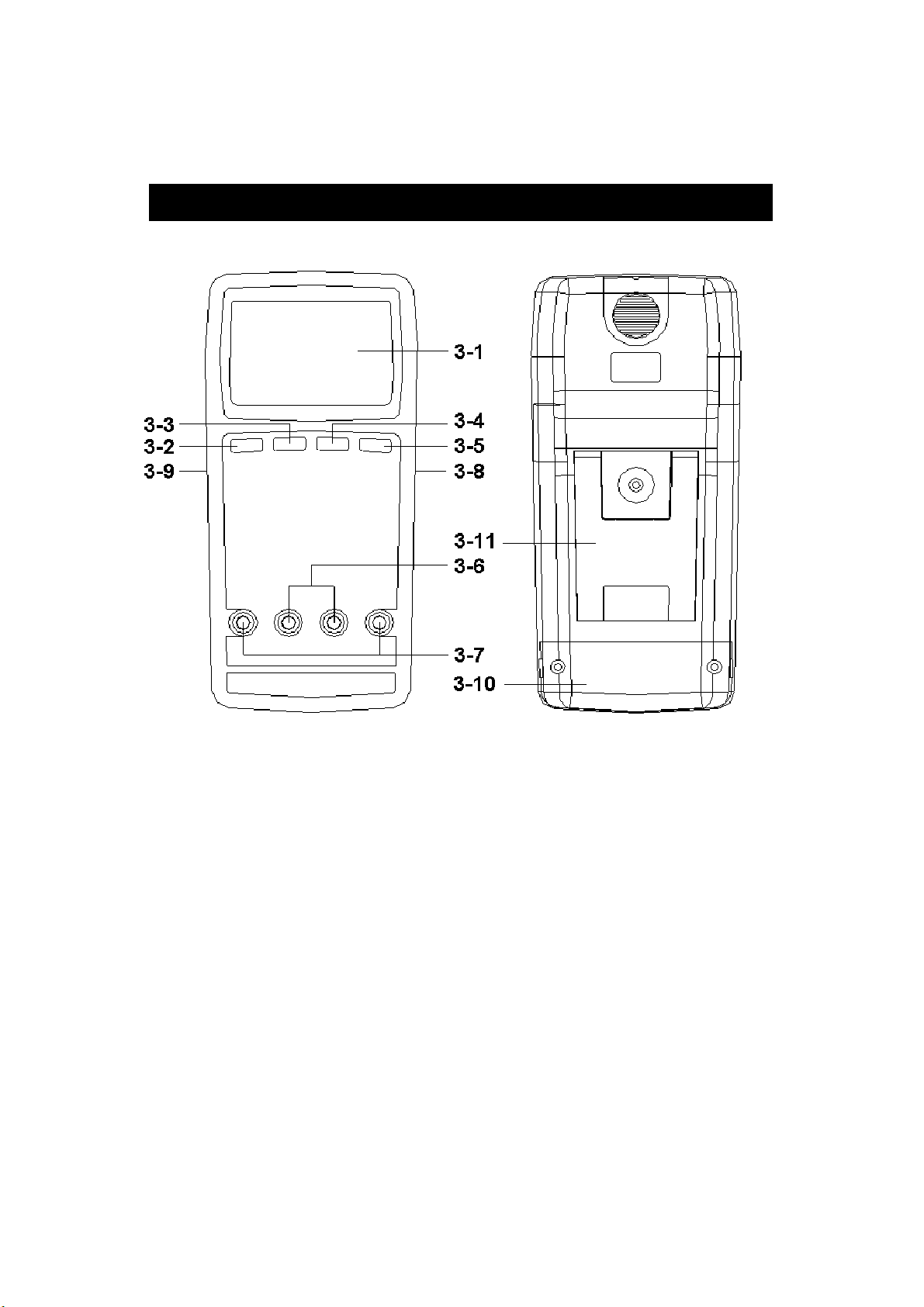

3. FRONT PANEL DESCRIPTION

Fig. 1

3-1 Display

3-2 POWER / Backlight button

3-3 FUNCTION button

3-4 HOLD button

3-5 RECORD button ( MAX. / MIN. )

3-6 LOAD terminal

3-7 POWER SOURCE terminal

3-8 RS-232 output terminal

3-9 DC 9V Power Adapter input socket

3-10 Battery Cover / Compartment

3-11 STAND

4. MEASURING PROCEDURE

4-1 Power ON/OFF

1)Press the POWER button ( 3-2, Fig. 1 ) more than 1.5

sec to Turn ON the meter.

2)Press the POWER button ( 3-2, Fig. 1 ) more than 1.5

sec to Turn OFF themeter.

4-2 ACV measurement procedure

1)Press the POWER button ( 3-2, Fig.1 ) more than 1.5

sec to Turn ON the meter.

2)Push the FUNCTION button ( 3-3, Fig. 1 ) once then

change function for measuring ACV.

3)Connect Red test lead to the " V " input terminal and

Black test lead to " COM " input terminal .

4)Then use the test lead measurement unknown AC voltage.

5)Read the up display . The value indicated corresponds

to the position selected. If the Display shows " ---- "

it indicates an Out-of-range measurement.

4-3 ACA measurement procedure

1)Press the POWER button ( 3-2, Fig.1 ) more than 1.5

sec to Turn ON the meter.

2)Push the FUNCTION button ( 3-3, Fig. 1 ) once then

change function for measuring ACA

3)Connect red test lead to the " 10 A " input terminal and

black test lead to "COM" input terminal .

4)Then use the test lead measurement unknown AC current.

5)Read the down display . The value indicated

corresponds to the position selected. If the display

shows "---- " it indicates an Out-of-range measurement.

4-4 Watt measurement procedure

1)Press the POWER button ( 3-2, Fig. 1 ) more than 1.5

sec to Turn ON the meter.

2)Make sure your equipment work voltage, such as 110 V

or 220 V.

3)Turn off the POWER SOURCE.

4)Plug in the LOAD ( equipment ) to V terminal and COM

terminal.

5)Plug in the power source to WATT terminal and 10A

terminal.

6)Push the FUNCTION ( 3-3, Fig. 1 ) button once then

change function for measuring ACV / ACA

7)Turn on the POWER SOURCE,

then you can read out the WORK VOLTAGE from the

top of the LCD display value.

8)Turn on the equipment power switch. Let it work,

then you can read out the POWER CONSUMPTION

from the bottom of the LCD display value

9)At the same time. Push the FUNCTION button ( 3-3, Fig.

1 ) once then change function for measuring WATT / PF

10) Now you can take the Active Power value and Power

Factor value from the LCD display .

4-5 Data Hold

During the measurement, press the " Hold Button " ( 3-4,

Fig. 1 ) once will hold the measured value & the LCD will

display a " HOLD " symbol.

Press the " Hold Button " once again will release the data

hold function.

4-6 Data Record ( Max., Min. reading )

1)The data record function records the maximum and

minimum readings. Press the " REC Button " ( 3-5, Fig.

1 ) once to start the Data Record function and there

will be a " REC. " symbol on the display.

2)With the " REC. " symbol on the display :

a)Press the " REC Button " ( 3-5, Fig. 1 ) once, the "

REC. MAX. " symbol along with the maximum value

will appear on the display.

If intend to delete the maximum value, just press

the " Hold Button " ( 3-4, Fig. 1 ) once, then the

display will show the " REC. " symbol only & execute

the memory function continuously.

b)Press the " REC Button " ( 3-5, Fig. 1 ) again, the

" REC. MIN. " symbol along with the minimum value

will appear on the display.

If intend to delete the minimum value, just press

the " Hold Button " ( 3-4, Fig. 1 ) once, then

the display will show the " REC. " symbol only &

execute the memory function continuously.

c)To exit the memory record function, just press the

" REC " button for 2 seconds at least. The display will

revert to the current reading.

4-7 Backlight ON/OFF

1)When use the instrument in a dark place or under the SUN .

You can turn ON the Backlight for easy readout.

2)If the instrument is working. Press the POWER button

( 3-2, Fig. 1 ) once, can turn ON the Backlight.

3)Press the button again will turn OFF the Backlight .

4-8 Auto power management

1)The instrument has built-in "Auto Power Shut-off"

in order to prolong battery life. The meter will switch

off automatically if none of the buttons are pressed

within 10 min.

2)To de-activate this feature, Select the memory record

function during measurement, by pressing the

" Record button " ( 3-5, Fig. 1 ).

Tabla de contenidos

Otros manuales de Instrumento de medición de MRC

Manuales populares de Instrumento de medición de otras marcas

Suaoki

Suaoki D40 Manual de usuario

Elster

Elster BK-G1.6 Manual de usuario

Endress+Hauser

Endress+Hauser Deltabar FMD71 Manual

Duratool

Duratool D03128 Manual de usuario

Vega

Vega VEGAPULS 65 Manual de usuario

Tonghui

Tonghui TH2618B Manual de usuario

Tenmars

Tenmars TM-801 Manual de usuario

MSR

MSR 145 Manual de usuario

TPS

TPS WP-82 Manual de usuario

ELMETRON

ELMETRON CP-511 Manual de usuario

PCB Piezotronics

PCB Piezotronics 003C30 Manual de usuario

Tenma

Tenma 72-10465 Manual de usuario

Endress+Hauser

Endress+Hauser Proline Promag 50 Especificaciones técnicas

Siemens

Siemens SITRANS F Coriolis FCT030 Manual de lista de piezas

KLINGER

KLINGER CMF V Series Manual de usuario

EXFO

EXFO FTB-2 Manual de operación y mantenimiento

Keysight

Keysight M8290A Manual de usuario

ADTEK

ADTEK MW-5 Manual de usuario
