YD-200 Urine Analyzer

User Manual

Jilin Yida Medical Equipments Co.,Ltd

YD-200 Urine Analyzer User Manual

Content

Chapter 1. Introduction...................................................................... ..2

Chapter 2. Technical Specifications, structure, application range……4

Chapter 3. Installation and functions…………………………………6

Chapter 4. Set up……………………………………………………..10

Chapter 5. Testing options…………………………………………...19

Chapter 6. Worktable………………………………………………. . 20

Chapter 7. Test method……………………………………………….21

Chapter 8 .Record query……………………………………………...26

Chapter 9. Maintenance………………………………………………27

Chapter 10. Malfunction solution…………………………………… 28

Appendix A. Output value of YD-200 Urine Analyzer……………...29

YD-200 Urine Analyzer User Manual

Chapter 1 General Description

YD-200 urine analyzer is a kind of adopt latest optoelectronic technology and

microprocessor technology for Clinical urine test; it is user-friendly, and accurate.

URS-11A urine strip is dedicated for YD-200. YD-200 can provide 11 items results of

quantitative or semi-quantitative for Urobilinogen, Bilirubin, Ketone, Blood, Protein,

Micro-albumin ,Nitrite, Leucocytes, Glucose, Specific gravity, pH, Vitamin C.

Symbol information: The symbols can be seen on the analyzer and introduction as

follows:

Biohazard：Pay attention to the protection and treatment.

Shock hazard: Pay attention to the electric shock risk, avoid touching

dangerous charged items.

Danger：Attention Please Refer to their requirement of user manual.

Protective earthing: Protect earthing terminal, must ensure it cont act the

grounding.

IVD device

Intended use

It can provide a qualitative or semi-quantitative result of content among the personal

urine sample for medical institutions.

Instrument life

Normally, instrument life is 5 years at least, if the daily maintenance does well.

Instrument store

Keep in a cool, dry place.

YD-200 Urine Analyzer User Manual

Chapter 2 Technical Specifications, Structure and Application Range

2.1 Technical Specifications

Testing Principle：the method of high luminous cold light source reflectivity

Monochromatic color: white

Test items:

Glucose

Bilirubn

Ketone

Gravity

Vitamin C

Protein

Urobilinogen

Nitrite

Blood

Leucocytes

GLU

BIL

KET

PRO

URO

NIT

BLD

LEU

Test speed：

Fast mode：120 specimens/hour

Slow mode: 60 specimens/hour

Data Memory：1,000 patient results

Environment Requirements：Required temperature range is 0℃～40℃

Relative humidity ≤85%

Baud rate：1200,9600,19200,115200bps

Power Supply：AC220V/110V, 50/60Hz

Power：30VA

Net Weight：2Kg

Dimensions：L×W×H :285×237×171mm

2.2 Structure

DY-200 is made up by communication unit, control unit, power system, mechanical

unit, display unit, photoelectric scanning unit, keyboard, printer and some other parts.

2.3 Intended use

It can provide a qualitative or semi-quantitative result of content among the personal

urine sample for medical institutions.

YD-200 Urine Analyzer User Manual

It must take the dedicated urine strips. Urine strips are validity of consumables. Please

pay attention to the whether it is in the period of validity and color of zone is changed.

If so, the urine strips cannot be used. Urine strips is not a part of instrument. User are

required to read the User's Guide before taking use of the instrument, otherwise the

protection of the instrument itself could be broken, the accuracy of result could not be

ensured.

Chapter 3 Installation and Functions

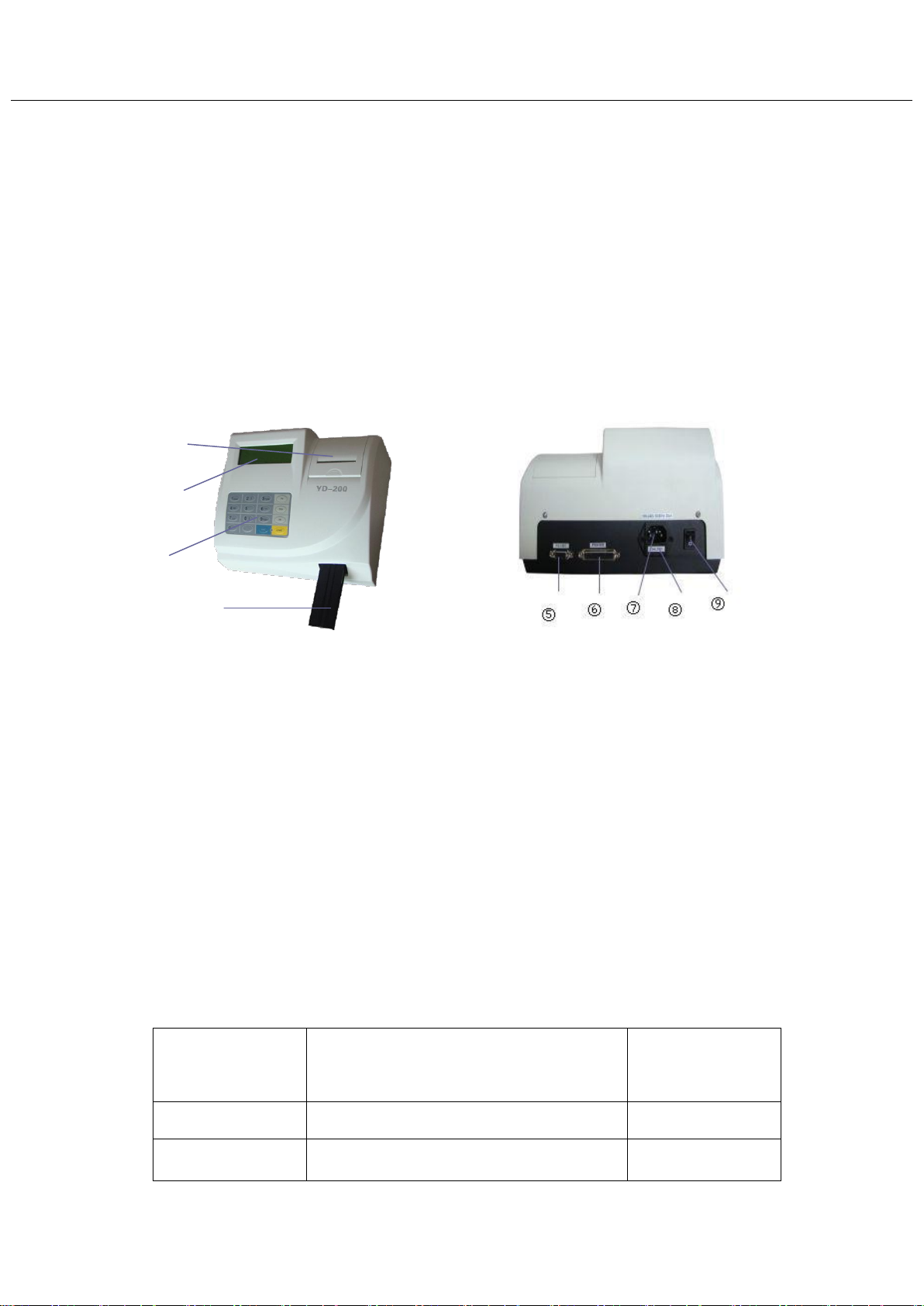

3.1 Name of Part（Figure3-1 3-2）

Figure 3-1 Figure 3-2

①LCD Screen：Display reminder, results and so on.

②Keyboard：Realize man-machine dialogue.

③Printer: Micro, low noise, high speed, high-definition Image of thermal internal printer.

④Strip table unit：Place the urine strip.

⑤Serial port: RS-232C outlet with 9-core.

⑥Parallel port: Outlet with 25-core for external-printer.

⑦Power supply wire port: IEC standard three-wire for power plug.

⑧Fuse socket: FUSE.

⑨Power switch:”∣” on,”○” off.

3.2 Running Environment

Environment Requirements as below chart:

Parameters

Running Environment

Store

Environment

Temperature

0℃~40℃

Relative

Humidity

≤85%

①

②

③

④

YD-200 Urine Analyzer User Manual

Barometric

Pressure

76-106Kpa

Table-board

Please put the instrument on a stable,

ventilate, clean and flat table-board and

with stable power supply, no strong

electromagnetic interference.

Note：put the instrument on a stable and flat table-board.

3.3 Functions keys

Name

Function

Menu（FN）

Start the pop-up menu.

Print（PRN）

Enabled Printing.

Feed Paper（FP）

Feed paper.

Back（Home）

Once pressed, the cursor will return to the head of the line.

UP（PgUp）

Make the display return to the upper page.

End（End）

Once pressed, the cursor will return to the end of the line.

↑ ↓ → ←

Cursor direction.

Down（PgDn）

Go forward to next page.

Esc（ESC）

Stop current option. Exist from current sub-menu, return to

upper menu. Under “start menu”, loader goes back to inside of

instrument.

Start（START）

Go to the selected sub-menu. Confirm the current correction and

start-up function.

3.4 Power on

Connect the power wire, make the power like “∣”this position, display the boot screen,

meanwhile each system begin to self-checking process, then the screen display ready

for test picture,figure3-3 after self-checking done.

YD-200 Urine Analyzer User Manual

#0001 4-011-01

12:00:00

VERSION 1.001

Figure 3-3

3.5 Install printing paper

3.5.1 Press the printer cover (Figure 3.3), printer cover bounce automatically, then open

the printer cover, put the new roll of paper into the paper box.

3.5.2 Insert the printing paper to make the paper top to the underside of the rubber roll,

press the FP button until the paper top is 3-4cm higher than the interface of instrument.

3.5.3 Unfold the printer paper, make the printer paper top goes through the exit of paper

box, remove the printer cover.

Note: thermal surface of the printer paper should forward to the operator while

installing paper, normally the external surface the thermal surface.

3.6 Menu Functions

Under the boot screen (Figure 3.3), press menu option (FN), another pop-up men will

be displayed, all the settings of testing, related information of hardware will be

contained in this page. The contents are as below chart:

First Display

Second Display

Third Display

Function

No. Setting

In put No.:0001

Setting sample No.

Setting

Sample

System testing

Standard strip testing

No.QC Liquid

0001

QC testing

System testing

Data Recall

Current record

the current testing result Query

Query the sequence

NO.

Input No.：0001

The sequence NO. Query

Control query

Data clear

Clear memory：YES

Clear the store data

YD-200 Urine Analyzer User Manual

Test Mode

Fast mode

Fast mode, 120tests/hour

Slow mode

Slow continuous mode, 60tests/hour

Slow step mode

Slow mode, 60tests/hour

Set up Menu

Set clock

Set time

Set time, date, date format

Set date

Date format

Strip Select

URS-10A

URS-11A

Strip select

Status

Plus on

User can set up the Plus, External

printer, Internal printer, PC port.

External printer off

Internal printer on

PC port on

Languages

Chinese English

Languages set

Set Output

SI Conventional Select the unit of the format Plus

system

Baud Rate

1200 9600 19200

115200

Select the rate of the instrument port.

Chapter 4 Set up

4.1 Set Sequence Number

#0001 4-011-01

12:00:00

1.006

YIDA MEDICAL

Figure 4-1

In the main screen (Figure 4-1) press the key “Menu”, the screen shows as follows:

MAIN MEN

Set Seq No. Data Recall

Calibration Test Mode

QC Liquid Set Up

Figure 4-2

Press the key “Menu” return to the main screen (Figure 4-1).

YD-200 Urine Analyzer User Manual

Press the key “▲” and “▼” to move the cursor to the position of “Set Seq. No.”,

Press the key “START” for confirmation, and enter sequence number setup Submenu.

(Figure 4-3).

Please Input Sequence No.

Sequence No. 0001

Figure 4-3

The sequence number can be any numerical value between 0001-9999, the sequence

number will add 1 automatically after each test.

Cursor will stay at first digit position when the user goes to the submenu of “Set

Seq. No.” input the numbers by the number key. The cursor will shift to right 1 position

when inputting is finished .Setting is finished, press the “START” button to return and

vacancies will full filled with“0”.

Press the key “Menu” to discard changes and return to the upper menu (Figure 4-2).

4.2 Data recall

In main menu (Figure 4-2), press the key “Data recall” and “Start” to confirm, the

screen will show as Figure 4-4:

Current Record

Locate

QC Record

Clear Memory

Figure 4-4

User can recall the data by Current record recall and Sequence number Recall.

4.2.1 Current record

Select Current Record and press “Current record recall” and press “START”, the screen

will show current records. Press the key “DOWN” could turn record page and press the

YD-200 Urine Analyzer User Manual

key “▲”and“▼”to select the corresponding record as Figure 4-4:. Press the key “Print”

to print the showed record.

4.2.2 Sequence number Recall

Select the “Sequence number recall” and press the key “start” to confirm, the screen

will show as Figure 4-5:

Please Input Sequence No.

Sequence No. 0001

Figure 4-5

The cursor stops at the first number, enter the recall sequence number through the

number key. And then, press the key “START” to check the result by the sequence

number. If there is record in the instrument, the screen will display the record.

If there is no such record, the screen will display “Record Not Found!’ (Figure 4-6).

Press the “back” return to Figure 4-5:

Record Not Found#

Figure 4-6

4.2.3 Quality Control Record

Analyzer could store 50 pieces QC records. Choose “QC Record” in Figure 4-4 and

then press “start” key to confirm. Press the key Line could turn record page and press

the key “▲” and “▼” to select the corresponding record. Press the key “Print” to print

the showed record. Press “back” to return. If there is no such record, the screen will

display “Record Not Found!’
