MP-Man MPQC124i Manual de usuario

This manual contains important safety precautions and information of correct use.

Please be sure to read this manual carefully before use so as to avoid any accidents.

Do not place the product in hot, wet or dusty environment, especially in summer, do not leave the

product inside a car with all windows closed.

Avoid dropping, impacting or shaking the product violently, otherwise it may cause damages or

malfunctions.

Select a proper volume to avoid ear problem when using earphones.

Do not cross the road or drive vehicles, using headphones to avoid traffic accidents.

Be sure to use the provided chargers and accessories in the package.

Be sure to charge the product when the following situations take place,

- The battery icon shows lower or empty.

- System automatically shut down and it turns off soon after restart.

- Operation keys do not respond properly.

- The device shows on the top right corner.

Specification

Hardware

Software

10.1” High Definition IPS LCD Touch

Screen (800x1280 pixel)

Android 6.0

Capacitive multi-touch (5 touch) point

Google browser

CPU : Quad core Cortex MT8163 processor

Wi-Fi connection

RAM : DDR3L 1GB

(3D accelerator possible for 3D games)

e-Book function (all e-book formats

supported by application)

Wi-Fi (IEEE802.11 a/b/g/n, 2.4/5GHz dual

band) for internet connection

1080P HD file playback

USB host for OTG function

VOIP phone function with Wi-Fi connection

G-sensor

Possible to view/edit MS office files by

application

Micro SD card slot recognizing up to 32GB

Video : AVI, RM/RMVB, FLV, MPG4-1,

MPEG-2 etc.

Built-in speaker & Built-in MIC

Audio : MP3, WMA, AAC, WAV etc.

5V power adapter

Photo : JPEG, BMP, GIF, PNG, TIFF

Compatible with keyboard, mouse

Dimension : 264.5 x 164.5 x 10.8mm

Name

Important Notice

- If the device is freezing or stuck, press the reset button(a small hole) located at left side of microSD card slot. Another

way to turn off the device by force is to hold pressing power button for more than 10 seconds

- When the performance is slow after using some applications, it is recommended to close running application in setting

menu.

- Use”File Manager” at main menu to search files.

Charging

- Be sure to use the power adapter (5V) that is provided in the package, otherwise, the device may be damaged and does

not work.

- See the battery icon ( ) on the status bar to check charging.

- It takes approx. 5-6 hours to be fully charged from empty battery. Do not charge more than 10 hours to protect the

device.

Note

The device is equipped with high performance processor. It may be warm in case of using long or while charging,but not

the problem.

1. Power On/Off

Long press power button to turn on/off the device. It may take a minute to boot the device.

Short press power button to turn on/off the screen.

(Standby mode. Refer to 3. below)

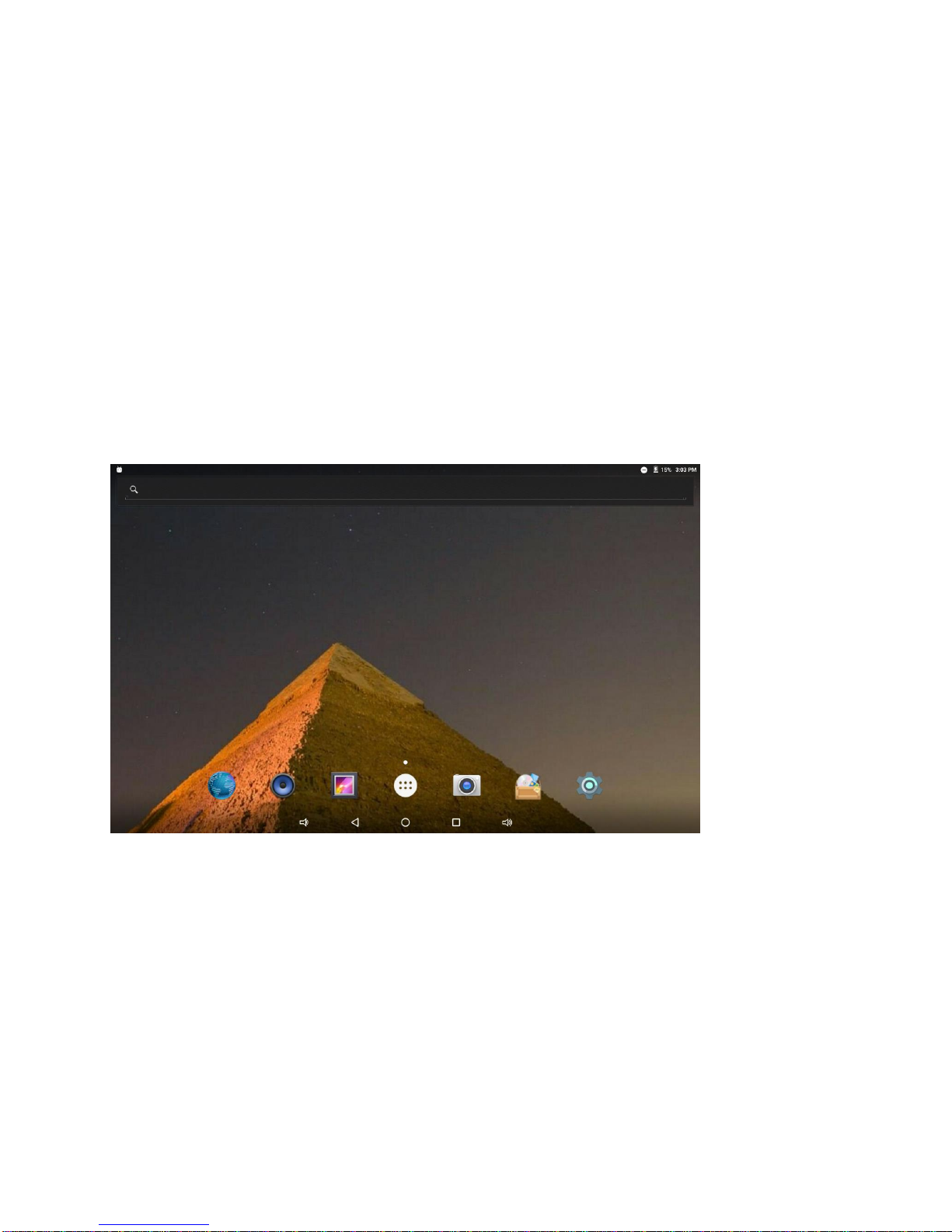

2. Desktop

After turning on the device, desktop displays with shortcut icons and notification bar.

3. Standby mode(Screen off mode) / Unlock the screen

Short press the power button to turn on/off the screen (standby mode on/off). After standby mode

off, swipe up the lock icon in order to unlock the screen.

4. System Setting

1.Swipe down from the top of the screen.

2.Touch notification bar on the top.

3. Touch the setting icon .

4.Setting menu shows up.

Wi-Fi

Turn On Wi-Fi.

The device will automatically search the available

Wi-Fi signals. Select the network you want to

connect with.

Bluetooth

Turn On Bluetooth.

The device will be visible to nearby devices while

Bluetooth is tunred on.

Display

Set up each settings as you wish.

Sound & Notification

Set up each settings as you wish.

Storage

Check the device memory and Micro SD card

stauts.

Battery

Check the battery usage.

Apps

Manage downloaded or running applications.

Apps –Uninstall

Touch the application to manage.

Touch disable the selected application.

Location

Google’s location service – Let apps use data from sources such as Wi-Fi and mobile networks to

determine your approximate location.

Security

Manage security options on the device.

Setting for the screen lock, Password visibility, Unknown sources and etc.

Accounts

Create your account. After connecting Wi-Fi network, the e-mailing system synchronizes your

account with the device. Emails are automatically downloaded into the device.

Language & input

Language- Choose your preferable language.

Keyboard & input method –Change keyboard & keyboard settings.

Speech –Manage settings for Voice input, Text-tospeech output, Voice control.

Date & time

Set date & time and format

About tablet

See status, legal information, ETC
