MP-Man MP959 Manual de usuario
EN
For Model No.
MP959 User Manual
Page 1
Do not place the product in hot, wet or dusty environment, especially in summer,
do not leave the product inside a car with all windows closed.
Avoid dropping, impacting or shaking the product violently, otherwise it may cause damages or malfunctions.
Select a proper volume to avoid ear problem when using earphones.
Do not cross the road or drive vehicles, using headphones to avoid trac accidents.
Be sure to use the provided chargers and accessories in the package.
Be sure to charge the product when the following situations take place,
- The battery icon shows lower or empty.
- System automatically shut down and it turns o soon after restart.
- Operation keys do not respond properly.
- The device shows on the top right corner.
This manual contains important safety precautions and information of correct use.
Please be sure to read this manual carefully before use so as to avoid any accidents.
Andriod 4.0 ICS
Audio: MP3, WMA, AAC, WAV etc
Photo: JPEG, BMP, GIF, PNG, TIFF
Video: AVI, RM/ RMVB, FLV, MPG4 – 1, MPEG – 2 etc.
Possible to view/edit MS oce les by application
VoIP phone function with Wi-Fi connection
1080p HD le playback
e-Book function (all e-book formats supported by application)
Wi-Fi connection
Google browser
5V DC power adapter
9.7" IPS 1024*768 Capacitive touch panel
Capacitive 10-point multi-touch screen
CPU: ARM cortex A8 processor
RAM : DDR3 1GB (3D accelerator possible for 3D games)
Wi-Fi (IEEE802.11 b/g/n) for internet connection
Dual camera 2M pixel (backside), 0.3M pixel (front)
HDMI port for TV-out (1080p output support)
USB host for OTG function
G-sensor
Micro SD card slot recognizing up to 32GB
Built-in speaker & Built-in MIC
Hardware specification Software specification
Page 2
Specification
Page 3
Name
Power
TV-OUT
MicroSD
Earphone
Speaker
Charger USB
USB/OTG/host Camera(front) Camera(back)
Volume+
Volume -
ESC
Reset
P959
Important Notice
-
-
-
If the device is freezing or stuck, press the reset
button (a small hole). Another way to turn o the
device by force is to hold pressing power button
for more than 7 seconds.
When the performance is slow after using some
applications, it is recommended to close running
application in setting menu.
Use“File Manager”at main menu to search les.
Instruction
Charging
The device is equipped with high performance processor.
It may be warm in case of using long or while charging, but not the problem.
Note
Be sure to use the power adapter (DC5V, 2A) that is provided in the package, otherwise, the device may be
damaged and does not work.
See the battery icon ( ) on the status bar to check charging.
It takes approx.. 8-10 hours to be fully charged from empty battery. Do not charge more than 15hours to
protect the device.
Page 4
-
-
-

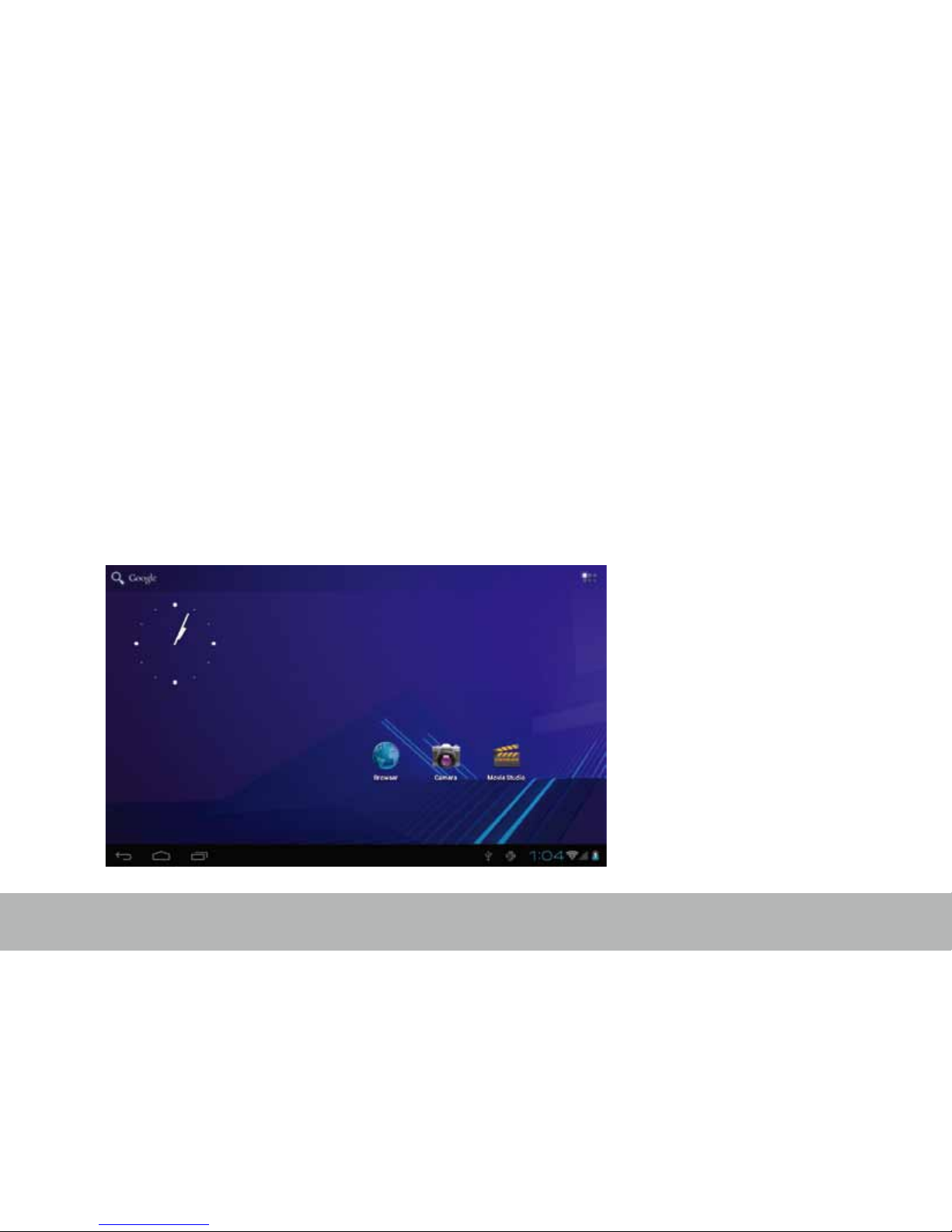

After turning on the device, desktop displays with shortcut icons and arrow panel at the right side
Page 5
1. Power On/Off
Long press power button to turn on/o the device. It may take a minute to boot the device.
Short press power button to turn on/o the screen.(Standby mode. Refer to 3. below)
2.Desktop
3. Standby mode(Screen off mode) /
Unlock the screen
Short press the power button to turn on/o the screen (standby mode on/o).
After standby mode o, slide the lock icon in order to unlock the screen.
Page 6

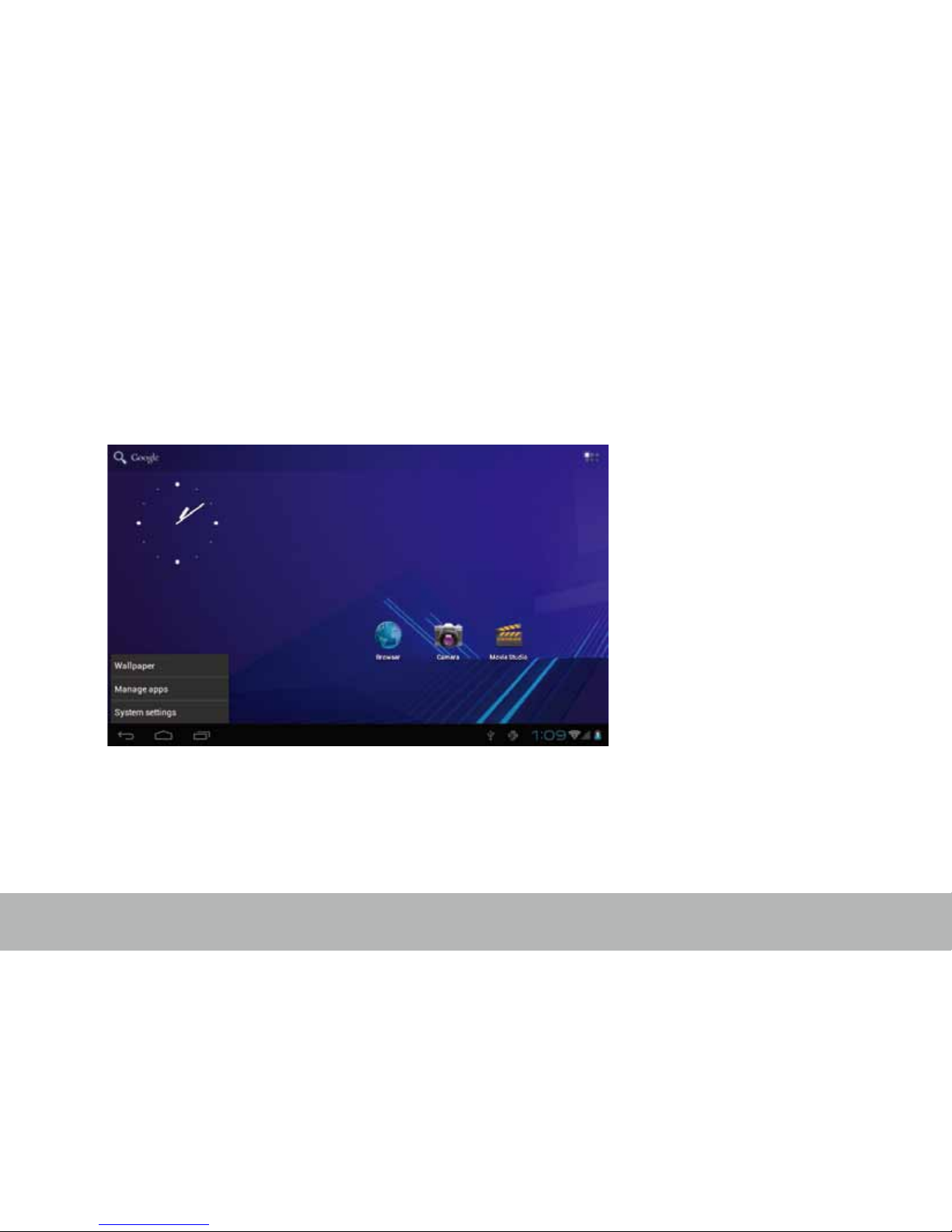

On the desktop, press menu button and select system settings.
4. System settings
Page 7
Press system settings
1. Wireless & networks
Page 8
Wi-Fi – Press Wi-Fi to turn on/o
Wi-Fi settings - Press Wi-Fi settings, then the device
will automatically search the available Wi-Fi signals.
Select the network you want to connect with.
2. Sound
Set up each setting as you like.
Page 9
3. Display
Set up each setting as you like.
4. Storage
Check device memory and microSD card status.
Unmount SD card – Unmount the SD card for
safe removal.
•
To search the les, run “File Manger” at main menu. On the top screen, press to see les inside device.
Press to see les of microSD card. Press to see les of external storage.
Note
